Vollrath FC-6IH-02208 Induction-Based Warming Equipment
Description

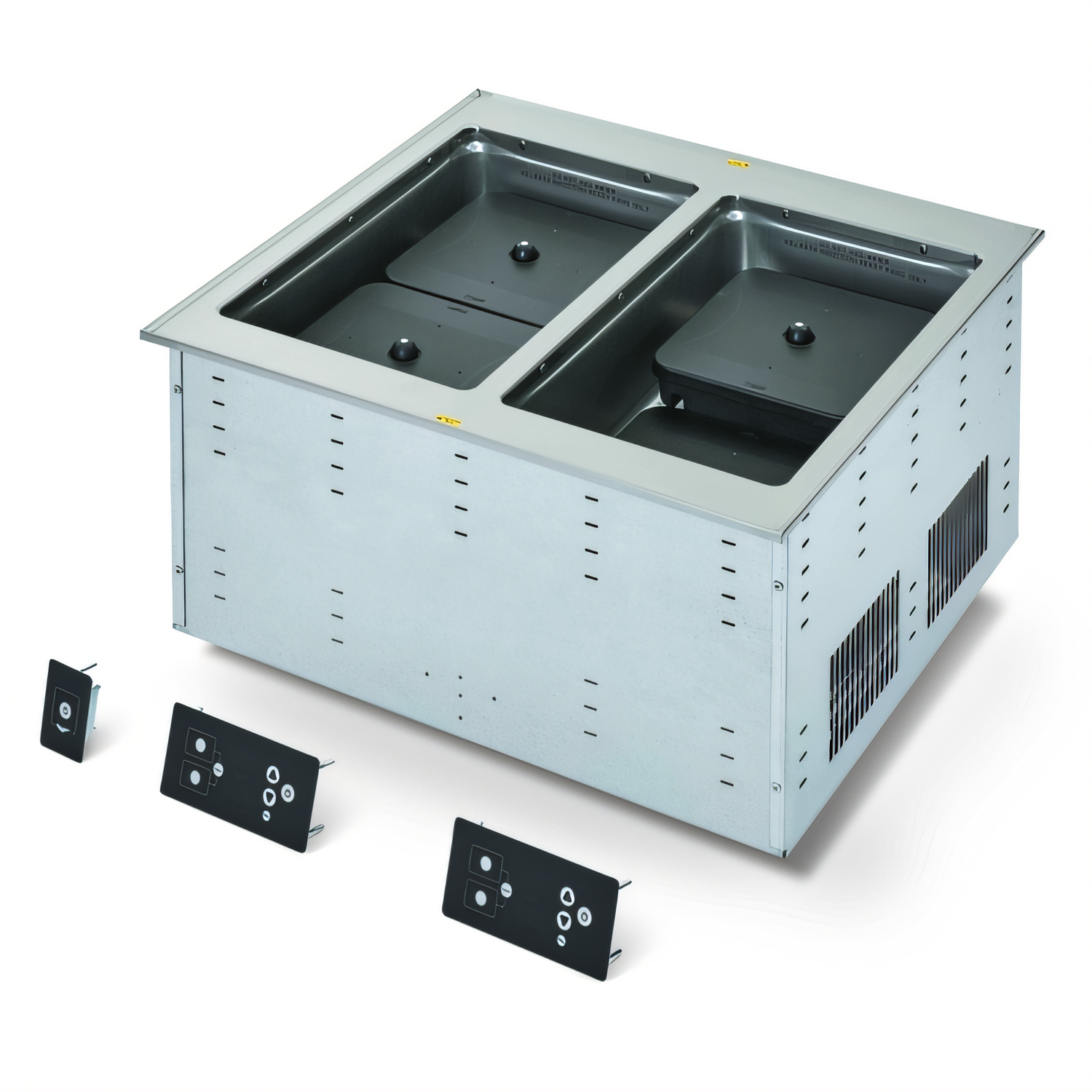

Vollrath FC-6IH-02208 Modular Induction Dry Well Drop-In – 2 Well
Waterless, Dual-Zone Hot Food Holding with Precise Induction ControlGive your serving line the speed, consistency and labor-saving benefits of induction technology—without plumbing. The Vollrath FC-6IH-02208 two-well drop-in keeps hot menu items at a safe, appetizing 140-190 °F range using efficient, waterless heat. Each well offers two independent induction capsules, allowing up to four unique heat zones or synchronized operation at the touch of a button.
Why You’ll Love It

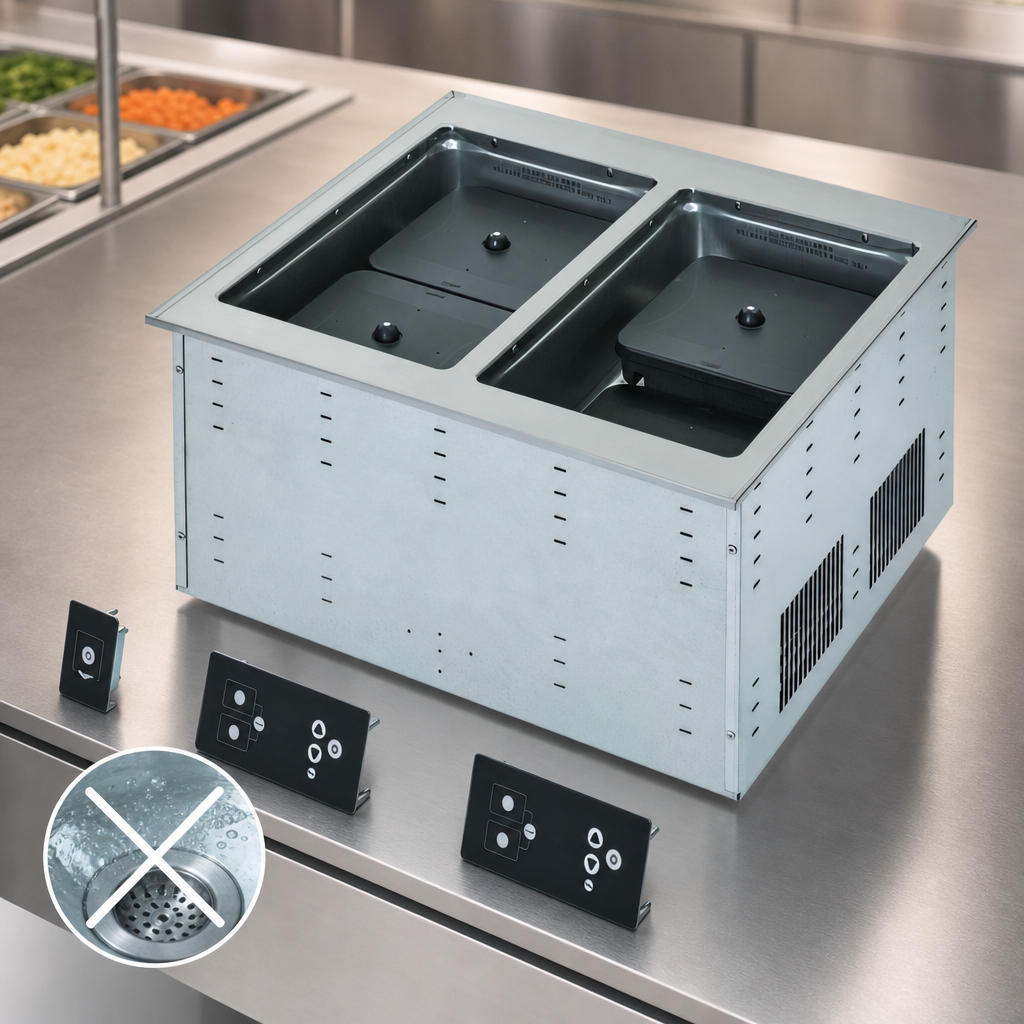

- True waterless design eliminates drains, refills and scale buildup.
- 2 independent wells—each with 2 heat zones (4 total) for mixed menu flexibility.
- Three quick-select power levels (Low / Medium / High) plus 140-190 °F (60-88 °C) temperature control.
- Individual power & heat controls per well, plus a master power switch for fast daily start-up/shutdown.
- Accepts Vollrath induction-ready steam table pans: 1 full-size (2½" or 4") – or – 2 half-size (2½" or 4") per well; mix depths zone-to-zone.

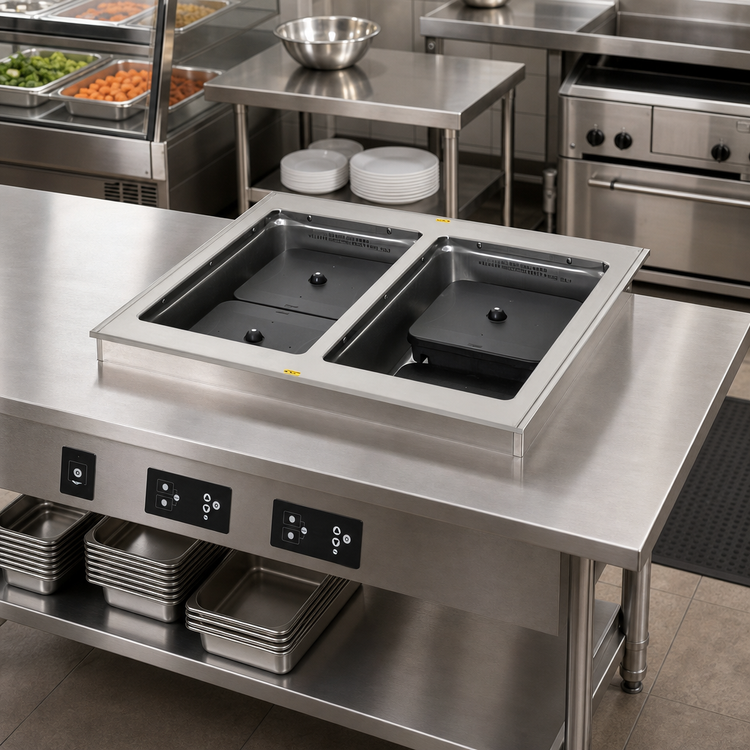

- 300-series stainless steel flange & wells integrate seamlessly with other ServeWell® drop-ins.
- Ships pre-wired with 6 ft (1.8 m) cord & NEMA 6-15P plug—no hard-wiring required.
- NSF, cULus & FCC listed; Made in USA and built to order.
Technical Specs
| Model | FC-6IH-02208 |
|---|---|
| Number of wells | 2 |
| Heat zones | 2 per well (4 total); zones may operate independently or synced |
| Temperature range | 140 – 190 °F (60 – 88 °C) |
| Power levels | 3 (Low, Medium, High) |
| Total wattage | 1,590 W |
| Electrical | 208-240 V / 60 Hz / 1-ph, 6.6 A |
| Plug | NEMA 6-15P (6 ft cord included) |
| Overall dimensions | 28-1/4 in W × 26 in D |
| Required cutout | 27-1/2 in W × 25-1/4 in D |
| Maximum counter thickness | Up to 3 in (7.6 cm) with included mounting clips |
| Clearance for ventilation | 2 in sides & ends, 6 in below (from rating plate) |
| Construction | 300-series stainless steel well & top flange |
| Certifications | NSF, cULus, FCC |
| Origin | Made in USA |
Compatible Vollrath Induction-Ready Pans (sold separately)
- 5IPF40 – Full-size, 4 in deep
- 5IPF25 – Full-size, 2½ in deep
- 5IPH40 – Half-size, 4 in deep
- 5IPH25 – Half-size, 2½ in deep
Refer to vollrathfoodservice.com for full warranty policy and operating instructions.
