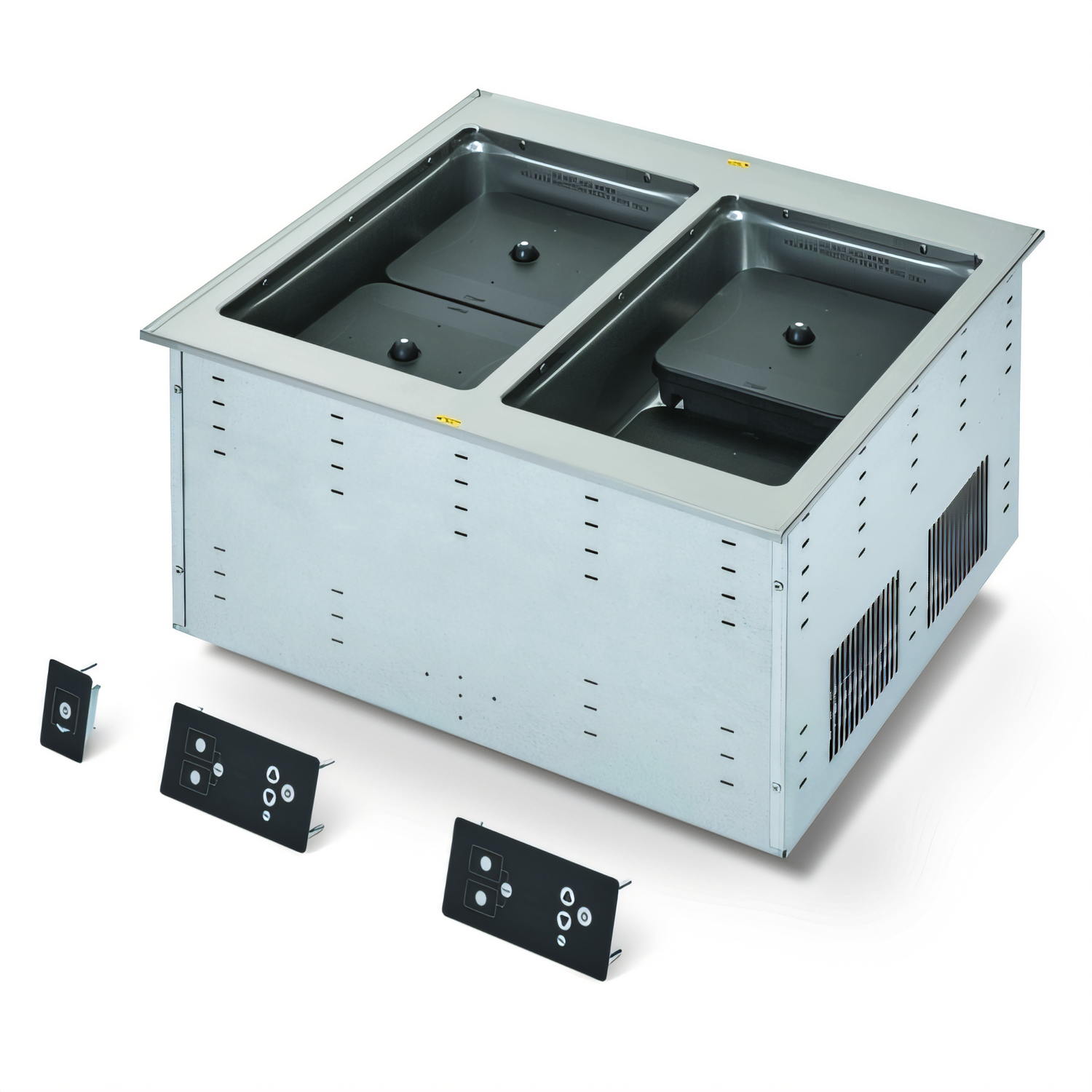

Modular Induction Dry Well Hot Drop-In – 2 Wells, 120 V
Vollrath Model FC-6IH-02120 | Made in USA (made to order)Hold entrées, sides or sauces with pinpoint accuracy – no water, no drains, and no guessing. Vollrath’s 2-well modular induction drop-in delivers fast, even heat across four independent heat zones, giving you the flexibility to run each zone separately or sync them at the touch of a button.
Key features at a glance

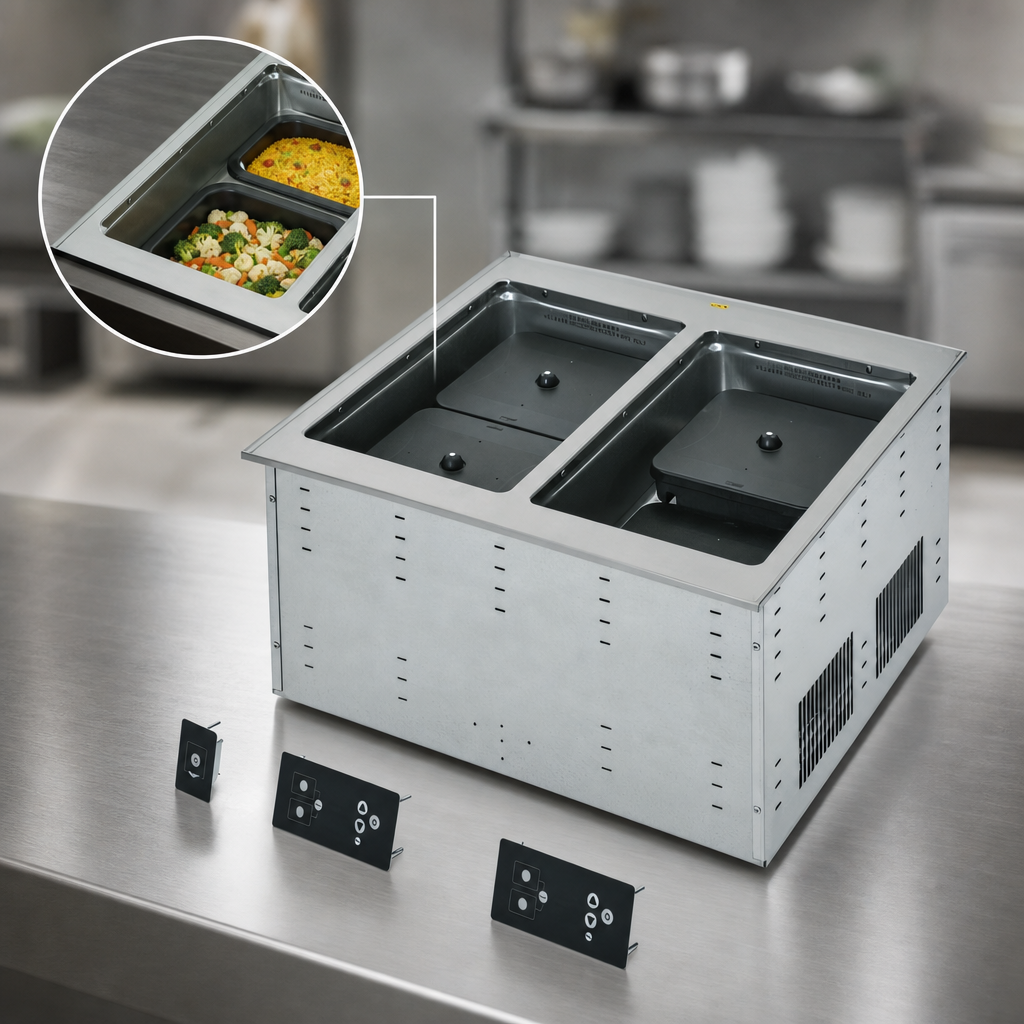

- Dry operation – eliminates water refills, drains and scale buildup.
- Two induction capsules per well create 2 zones per well; run different temperatures or synchronize them for full-well heating.
- Individual power & heat control for each well.
- Temperature range: 140 – 190 °F (60 – 88 °C).
- Quick-select power settings: low, medium & high.
- Accepts Vollrath induction-ready pans:
- (1) full-size, 2½" or 4" deep, or
- (2) half-size, 2½" or 4" deep per well.
- Stainless-steel wells & top flange blend with surrounding equipment.
- Master power switch turns both wells on/off simultaneously.
- 6 ft (1.8 m) cord with NEMA 5-20P; no hard-wiring required.
- NSF, cULus & FCC listed for commercial kitchens.
Technical specifications
| Wells / Heat Zones | 2 wells / 4 zones (2 per well) |
|---|---|
| Temperature range | 140 – 190 °F (60 – 88 °C) |
| Power levels | Low, Medium, High (per well) |
| Input voltage | 120 V / 60 Hz / 1-phase (dedicated circuit recommended) |
| Wattage / Amps | 1,590 W / 13.2 A |
| Plug type | NEMA 5-20P (straight blade) |
| Overall dimensions | 28 ¼ in W × 26 in D (71.8 cm × 66 cm) |
| Counter cut-out | 27 ½ in × 25 ¼ in (69.9 cm × 64.1 cm) |
| Clearance required | 2 in (5.1 cm) on long & short sides, 6 in (15.2 cm) below unit |
| Construction | 300-series stainless-steel wells & flange |
| Certifications | NSF, cULus, FCC |
| Country of origin | USA |
Compatible induction-ready pans
- 5IPF40 – Full-size, 4" deep
- 5IPF25 – Full-size, 2½" deep
- 5IPH40 – Half-size, 4" deep
- 5IPH25 – Half-size, 2½" deep
Pans sold separately. Vollrath induction-ready pans are required for optimal performance.
Refer to VollrathFoodservice.com for full warranty terms and conditions.
