Vollrath  |  FlexVent™  |  SKU: FC-6DV-36

Vollrath FC-6DV-36 FlexVent™ Induction-Based Warming Equipment

$16,615.86
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Warranty sheet
Related Searches
Induction-Based Warming Equipment Reheating & Warming Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

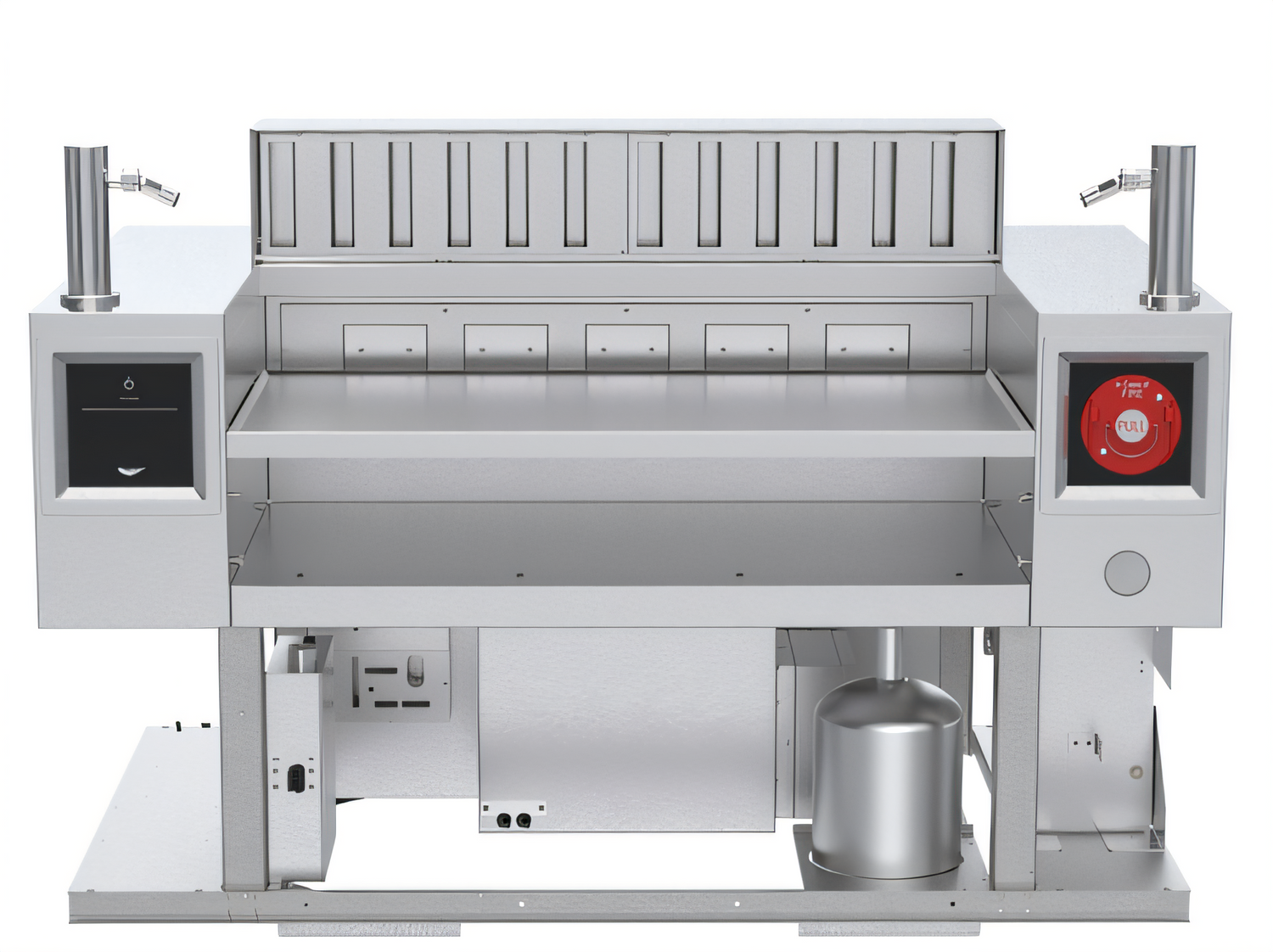

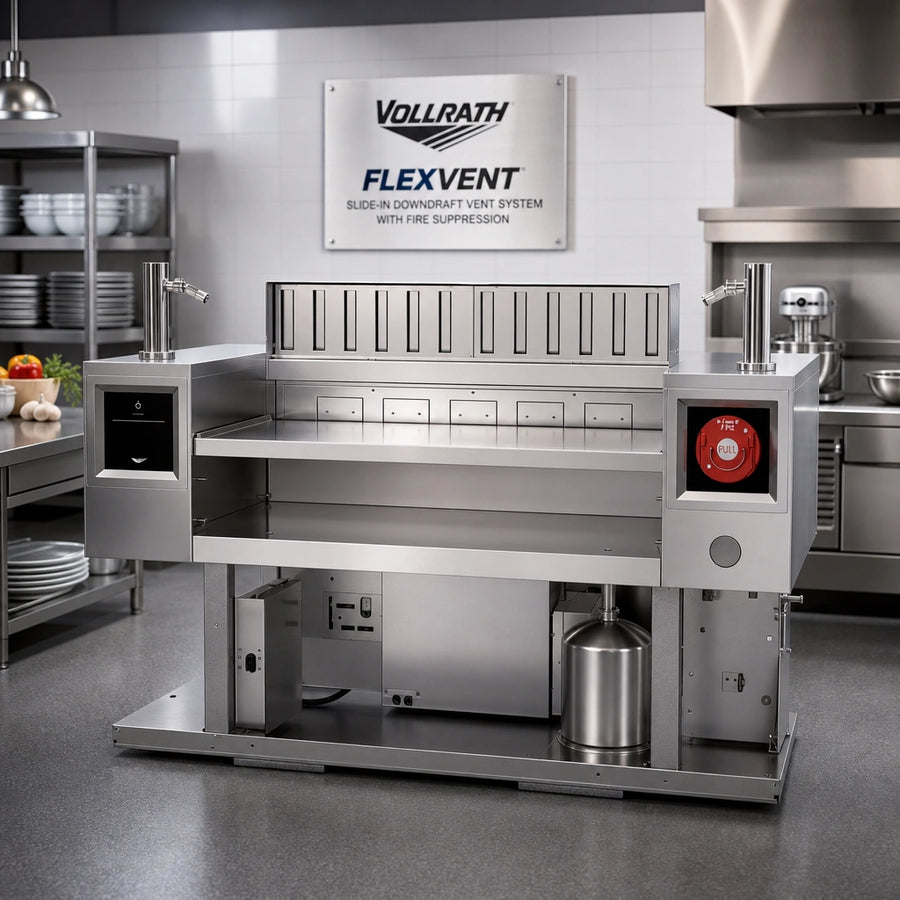

Vollrath FlexVent™ Versatile Slide-In with Downdraft Vent System & Fire Suppression

Model FC-6DV-36 | UL 710B Recognized | UL Classified to NSF 2

Bring the sizzle of live cooking to spaces where ducted hoods are impossible. The self-contained FlexVent™ captures smoke, grease and odors right at countertop level while its factory-installed ANSUL® R-102 system keeps your team and guests protected.

Key benefits

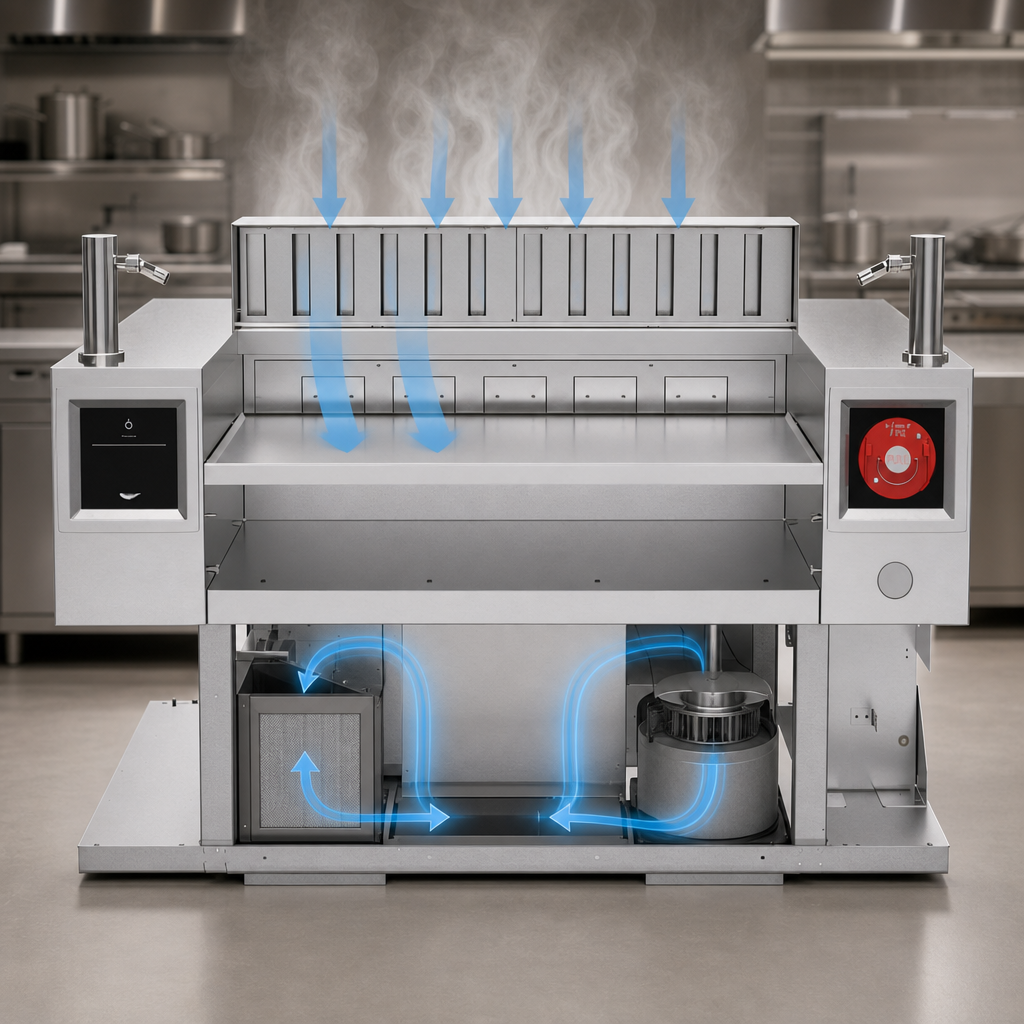

  • Downdraft recirculating vent system—no bulky ceiling hood required.
  • All-stainless-steel construction slides seamlessly into a custom counter (counter/cabinet not included).
  • Three-position adjustable shelf holds up to 3 electric countertop appliances (induction, griddle, sandwich press, fryer, etc.) for a combined draw of up to 7,200 watts.
  • Multi-stage air filtration: (2) removable stainless-steel grease filters + (2) carbon/particulate filters (included).
  • Integrated ANSUL® R-102 wet-chemical fire-suppression piping—ready for field charging and commissioning.
  • Operator-side access panel for a clean façade and quick serviceability.
  • Install over, under, or flush with your countertop to match any serving-line concept.
Specification highlights
Overall dimensions (H × W × D) 36 3/4 in × 53 1/2 in × 35 1/8 in
(93.3 cm × 135.9 cm × 89.2 cm)
Appliance area 35 3/4 in W × 18 1/4 in D (90.8 cm × 46.4 cm)
System electrical 120 V, 60 Hz, 420 W, 3.4 A (cord & plug)
Max appliance load 120/208–240 V, 60 Hz, up to 7,200 W, 30 A (combined)
Filters (included) (2) stainless-steel grease filters, (2) carbon/particulate filters
Fire suppression ANSUL® R-102 wet-chemical system (factory plumbed)
Construction 18-ga stainless steel exterior & interior
Warranty 12-month parts & labor to end user (18-month to dealer)
Looking for compatible equipment? Visit  vollrath.com for the full list of approved appliances.
Perfect for
  • Front-of-house presentation stations
  • Stadium & arena suites
  • Micro-kitchens & cafés
  • Renovations where ductwork is impractical
Important: This custom product is made to order and cannot be cancelled or returned. The customer is responsible for:
  • Securing Authority Having Jurisdiction (AHJ) approval before purchase.
  • Charging, inspecting, and commissioning the ANSUL® system via a certified distributor.
  • Providing a minimum ceiling height of 96 inches and adequate electrical service.
For detailed installation drawings, replacement parts, and service information, download the spec sheet or call Vollrath Technical Services at 800-825-6036.

Features & Specs

Manufacturer

Vollrath

Brand_name

FlexVent™

Certifications

NSF, UL, UL-Sanitation, Made in USA

Height

36.75in

Width

53.5in

Depth

35.13in

Specifications

FlexVent™ Versatile Slide-In with Downdraft Vent System & Fire Suppression, All stainless steel construction slide-in component to be built into a custom serving counter (counter/cabinet not included in pricing), Self-contained system includes (2) removable stainless steel grease filters and (2) counter mounted particulate charcoal filters with integrated ANSUL R-102 Fire Suppression System **CHARGING, INSPECTION, AND COMMISSIONING ARE RESPONSIBILITY OF CUSTOMER**, Stainless steel three position adjustable shelf to accommodate various electric appliance and cooking vessel heights. Holds up to 3 pieces of countertop equipment up to a max of 7200 watts total. Equipment options include Vollrath induction, griddles, sandwich presses, and fryers. (see www.vollrath.com for full list of compatible equipment options and restrictions), UL710B Recognized, UL Classified to NSF2 See spec sheet for dimensional information & installation guidelines. CUSTOMER MUST HAVE AUTHORITY HAVING JURISDICATION (AHJ) REVIEW AND APPROVAL PRIOR TO PURCHASE. **CUSTOM PRODUCT CANNOT BE CANCELED OR RETURNED** (Refer to vollrathfoodservice.com for full warranty policy)
