Vollrath  |  4-Series Signature Server®  |  SKU: 69722S-2-S

Vollrath 69722S-2-S 4-Series Signature Server® Induction-Based Warming Equipment

$18,198.50
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Operator's manual Warranty sheet
Related Searches
Induction-Based Warming Equipment Reheating & Warming Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

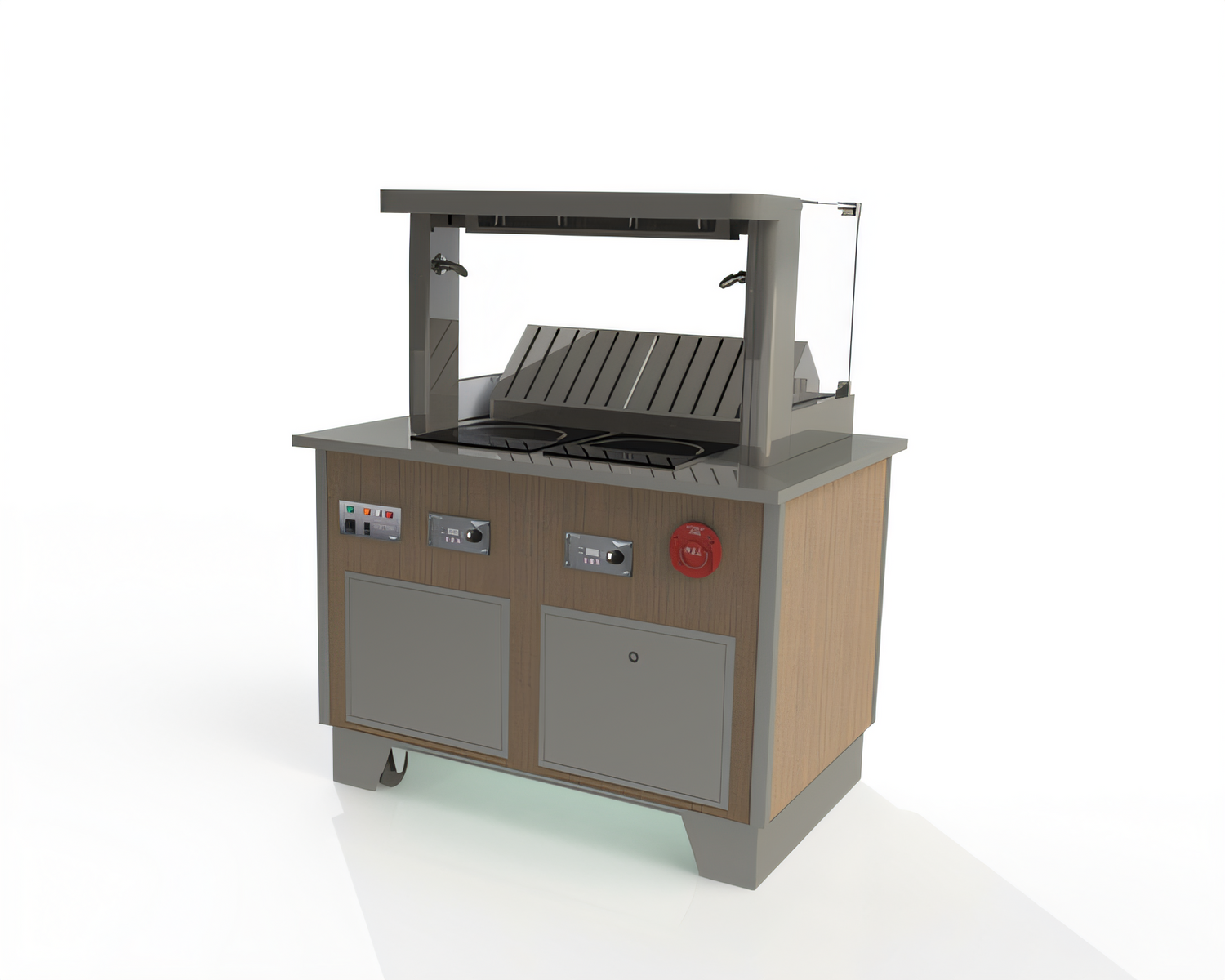

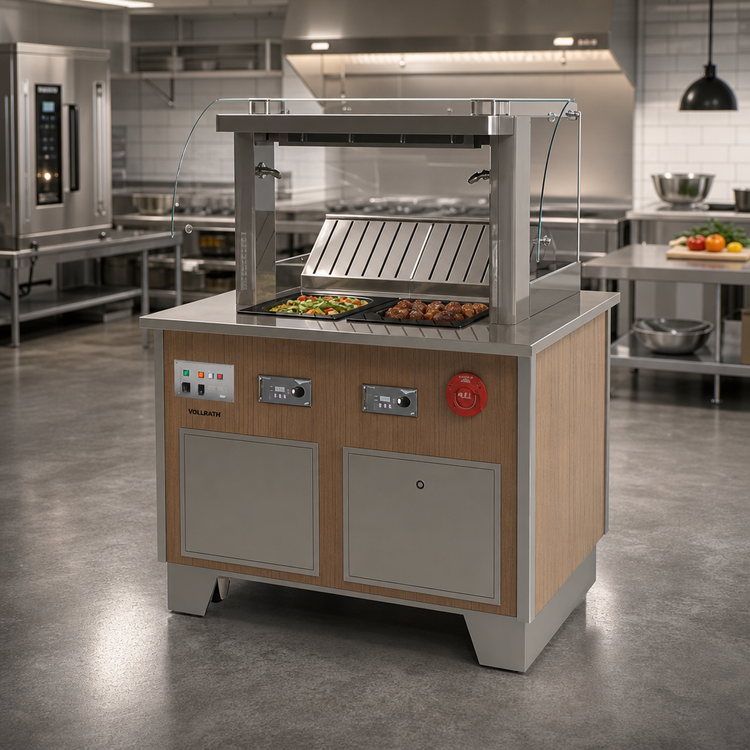

Signature Server® 4-Series Custom Downdraft Vent System

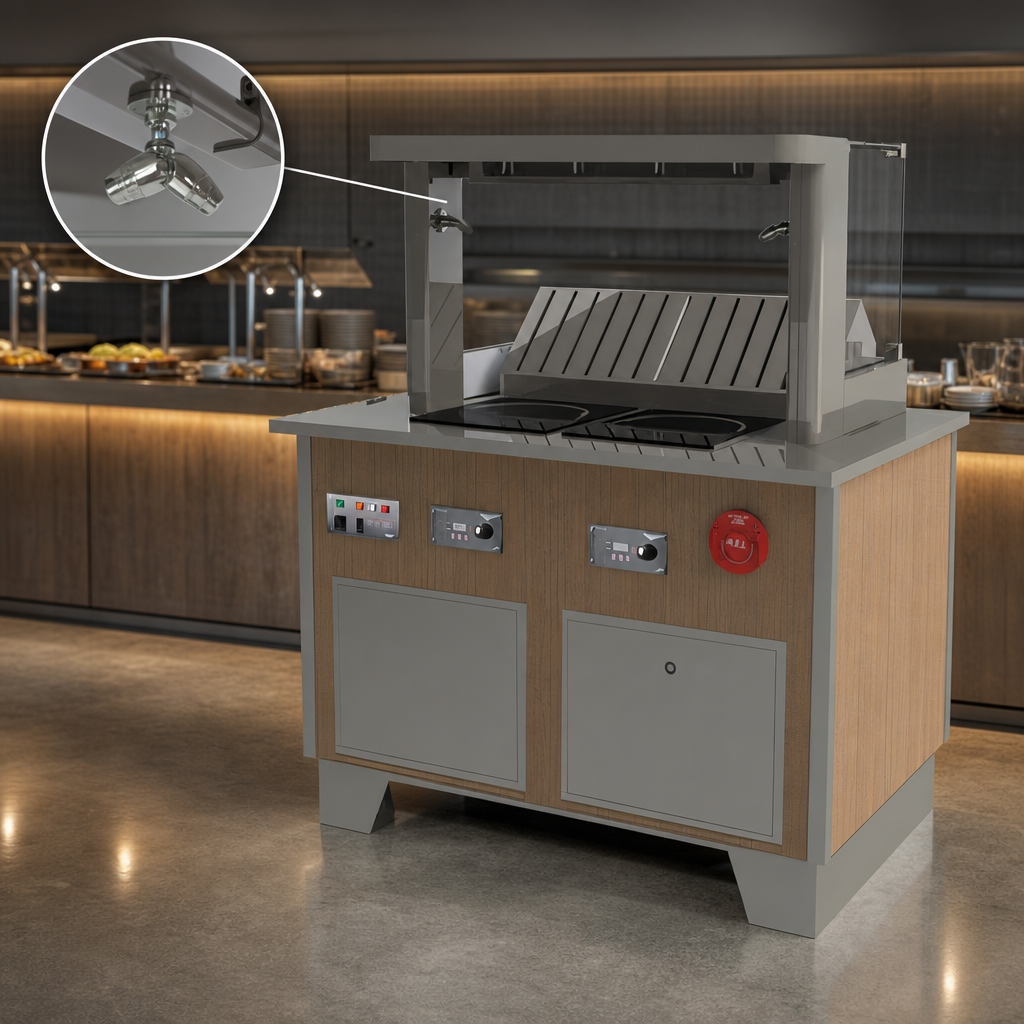

Ventless induction cooking with built-in ANSUL® R-102 fire suppression

Bring live-action cooking to the front of the house—without a traditional hood. The Vollrath 4-Series Signature Server® pairs two Mirage® 59501DV drop-in induction ranges with a UL-listed downdraft recirculating ventilation module and a 22 in (55.9 cm) curved tempered glass breath guard. Everything arrives factory-integrated, NSF-listed, fire-suppressed and ready to roll on 5 in locking casters.

Why you’ll love it

  • Ventless operation – UL 710B & UL 197 certified; installs without costly ductwork.
  • ANSUL R-102 fire suppression factory-installed and enclosure-integrated.
  • Downdraft recirculating module with dual grease (UL 1046) & dual carbon/particulate filters.
  • (2) Mirage® 59501DV 1800 W induction hobs – 1-100 % power control, 1-180 min timer, 86 % efficiency.
  • 22 in high, 6 mm thick curved tempered glass breath guard meets NSF 2 requirements.
  • Heavy-duty 18 ga stainless unibody base with matching stainless kickplates on front & both ends.
  • 5 in swivel casters with adjustable leveling legs for fast service-to-service repositioning.
  • Complies with NFPA 96 & EPA Method 202 – verified emissions < 5 mg/m3 (30 % fat ground beef).
  • Made-to-order in Sheboygan, WI – built, wired, and tested in the USA.

At-a-glance specs

Model No. 69722S-2-S
Base style 4-Series Signature Server®
Cooking surface (2) Mirage® 59501DV 1800 W drop-in induction ranges
Ventilation Recirculating downdraft module with 2 × grease & 2 × carbon/particulate filters
Fire suppression ANSUL R-102 wet-chemical system (charged & tagged by local ANSUL dealer)
Overall width 47 in  (119.4 cm)
Overall depth 34 in  (86.4 cm)
Base height 34 in  (86.4 cm)
Breath guard height 22 in  (55.9 cm) above deck
Electrical 120 V / 60 Hz / 21 A, NEMA 5-30P
Certifications UL 710B, UL 197, UL-Sanitation, NSF 4, FCC Part 18
Origin Made in USA (Sheboygan, WI)

Included with this unit

  • Complete 4-Series stainless base with side & front kickplates
  • Curved tempered breath guard with stainless supports
  • Factory-installed downdraft vent module & filter set
  • Integrated ANSUL R-102 system (shipping empty – see note below)
  • (2) Mirage® 59501DV induction hobs & control panels
  • 6 ft (1.8 m) power cord & NEMA 5-30P plug
  • 5 in swivel/locking casters with adjustable legs

Ordering & lead time

Each Signature Server® is built to order. Standard production lead time is 8–10 weeks after receipt of approved order. Freight term is FOB Factory (Sheboygan, WI).

Important: • Price does not include ANSUL dealer fees to charge, inspect, or tag the fire-suppression system. • Custom products cannot be canceled or returned once released to production. • Verify local jurisdictional approval prior to purchase.

Warranty

Backed by Vollrath’s two-year parts & labor warranty against defects in materials or workmanship. Full policy available at VollrathFoodservice.com.

Need dimensional drawings, replacement filters, or countertop options? Download the spec sheet or contact our sales team for a custom quote.

Features & Specs

Manufacturer

Vollrath

Brand_name

4-Series Signature Server®

Certifications

NSF, UL, UL-Sanitation, Made in USA

Height

56.0in

Width

47.0in

Depth

34.0in

Design

specify

Overall Width (side - side)

43" - 48" W

Base Construction

stainless steel base

Exterior Finish

specify exterior

Burner Qty

(2) burners

Depth (front - back)

34" D

Top Construction

specify top

Working Height

34" H

Specifications

Signature Server® Custom Downdraft Vent System: Includes Base & 22" tall Tempered Curved Breathguard with Integrated ANSUL R-102 Fire Suppression System, Downdraft Recirculating Vent with (2) Grease & (2) Carbon/Particulate Filters. Includes qty. 2 - 59501DV Mirage Drop-In Ranges. Includes stainless kickplates (front, left & right sides), 5" casters with adjustable legs). UL certified to UL710B, UL197, UL-Sanitation. NSF certified to NSF4. Meets the requirements of EPA Method 202 from Section 59 of UL710B & NFPA96. Emissions < 5.00 mg/m3 using 30% fat ground beef. Made-to-Order in the USA. (Contact factory for lead-time, typically allow 8-10 weeks). See spec sheet for dimensional & electric information. Quoted FOB Factory - Sheboygan, WI. Price does not include ANSUL fees to charge, inspect, commission/tag the unit. Contact your local ANSUL dealer. **CUSTOM PRODUCT CANNOT BE CANCELED OR RETURNED** (Refer to vollrathfoodservice.com for full warranty policy)
