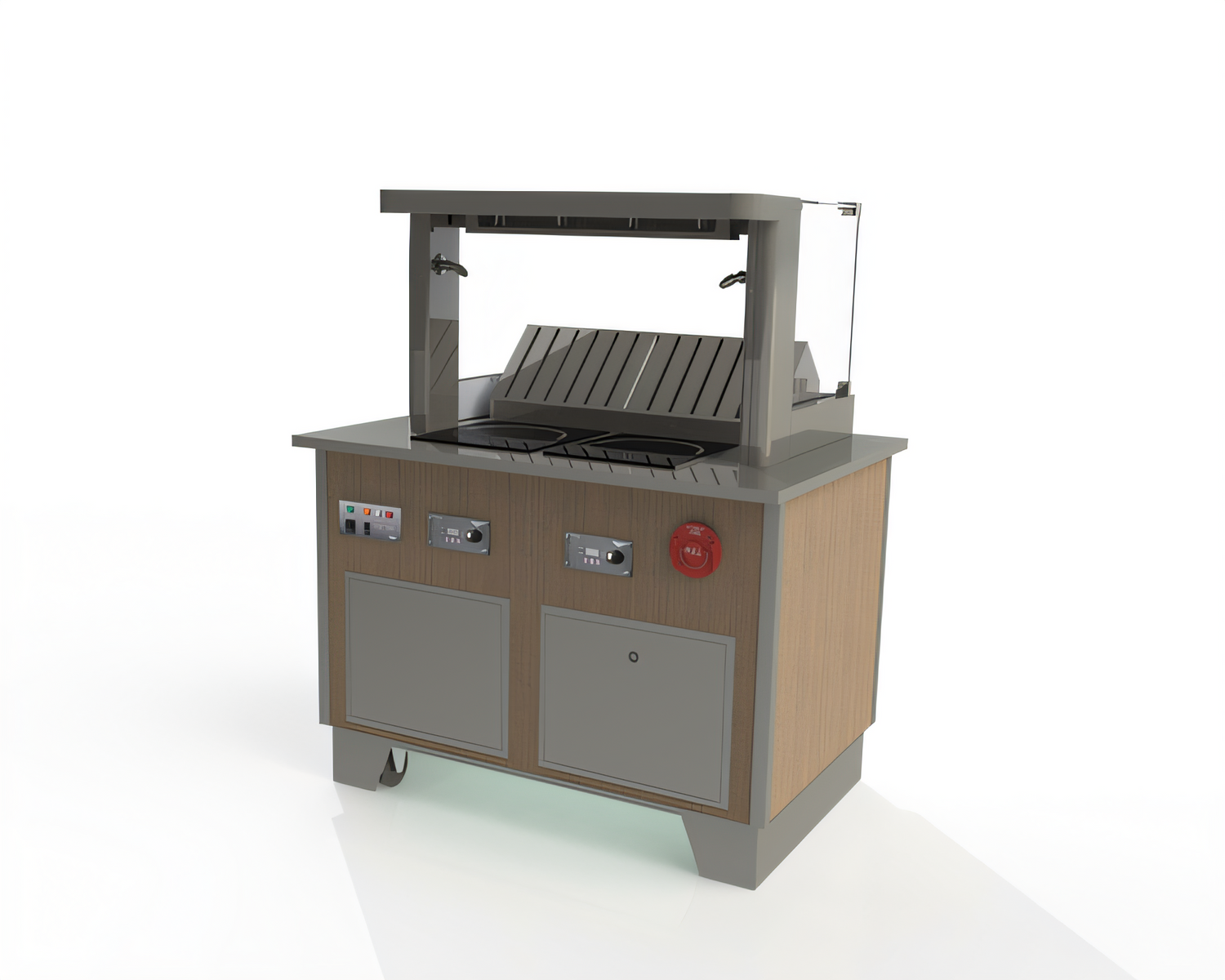

Vollrath V-Class Custom Downdraft Vent System
22" Curved Breath Guard • Integrated ANSUL R-102 • Mirage® 59501 Induction RangeEngineered for open-kitchen theatrics and the most stringent ventless codes, the V-Class Custom Downdraft Vent System brings cooking, filtration and fire protection together in a compact, mobile footprint that is made-to-order in Sheboygan, WI.
Why You’ll Love It
- Factory-installed ANSUL R-102 wet-chemical fire-suppression system with concealed piping and stainless distribution nozzles.

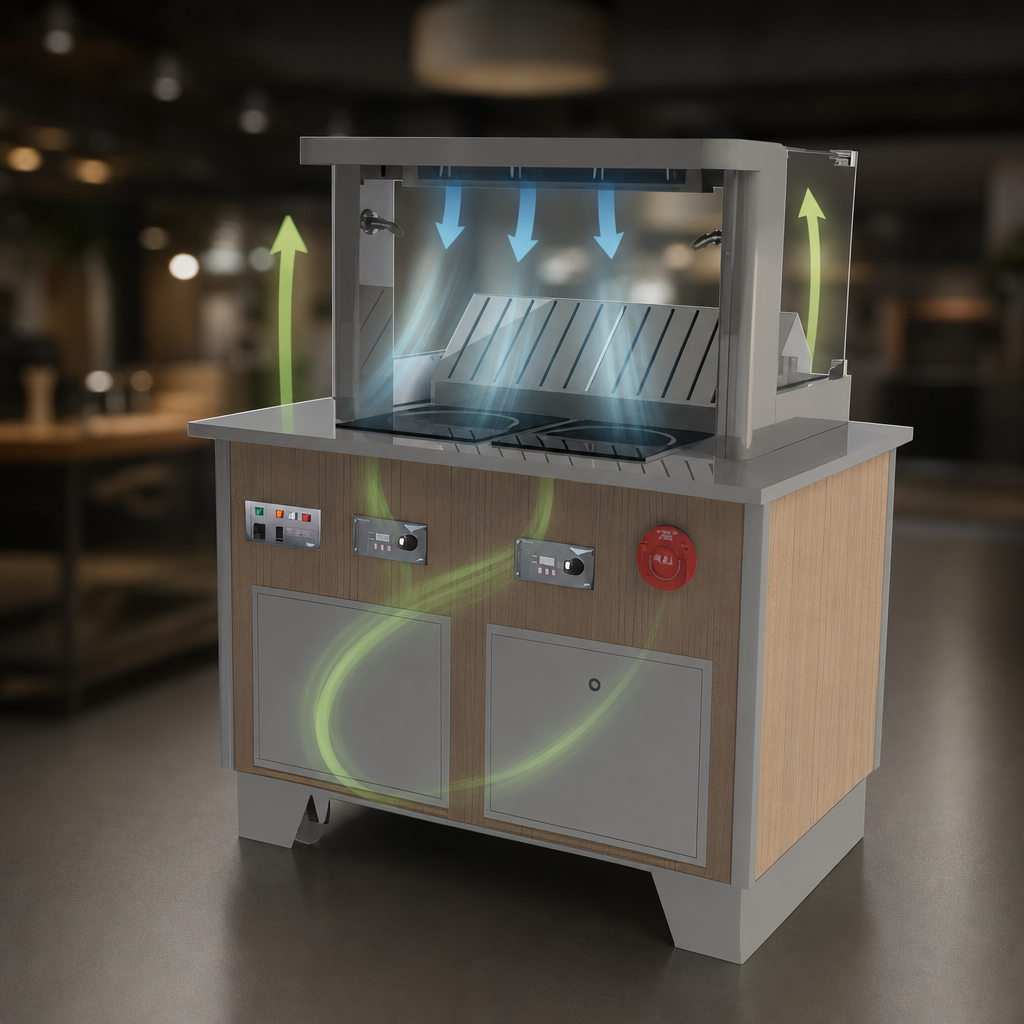

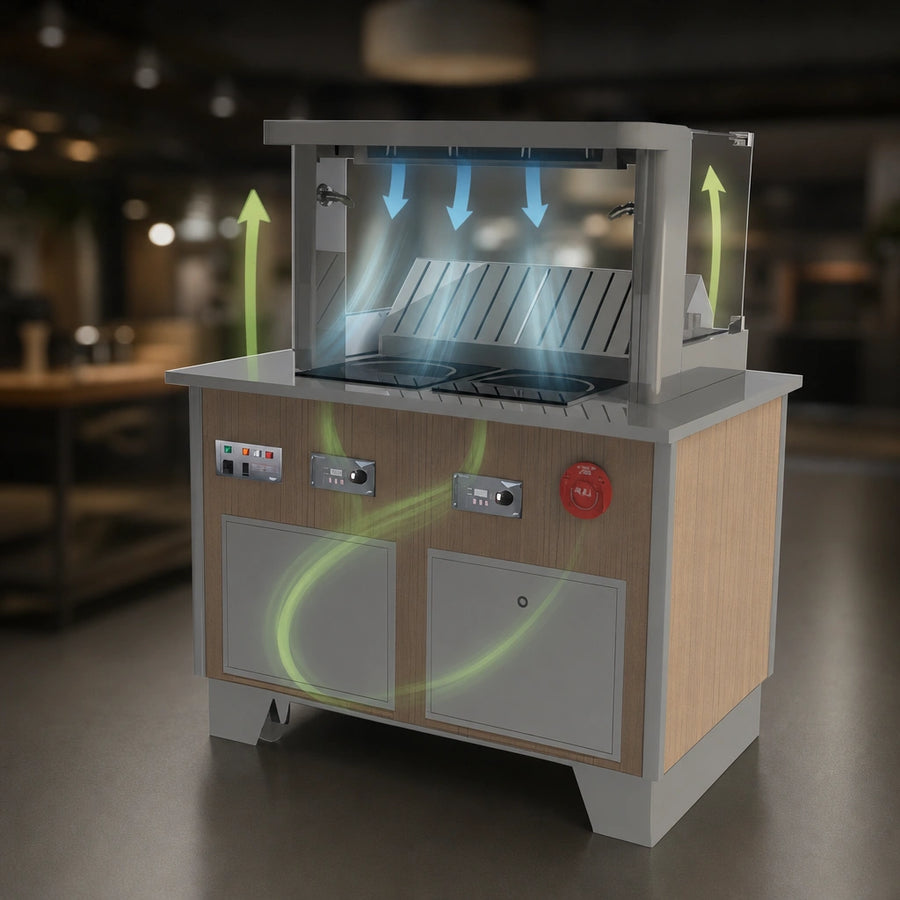

- Downdraft recirculating vent module uses two UL 1046 grease filters and two high-capacity carbon/particulate filters for true ventless operation.

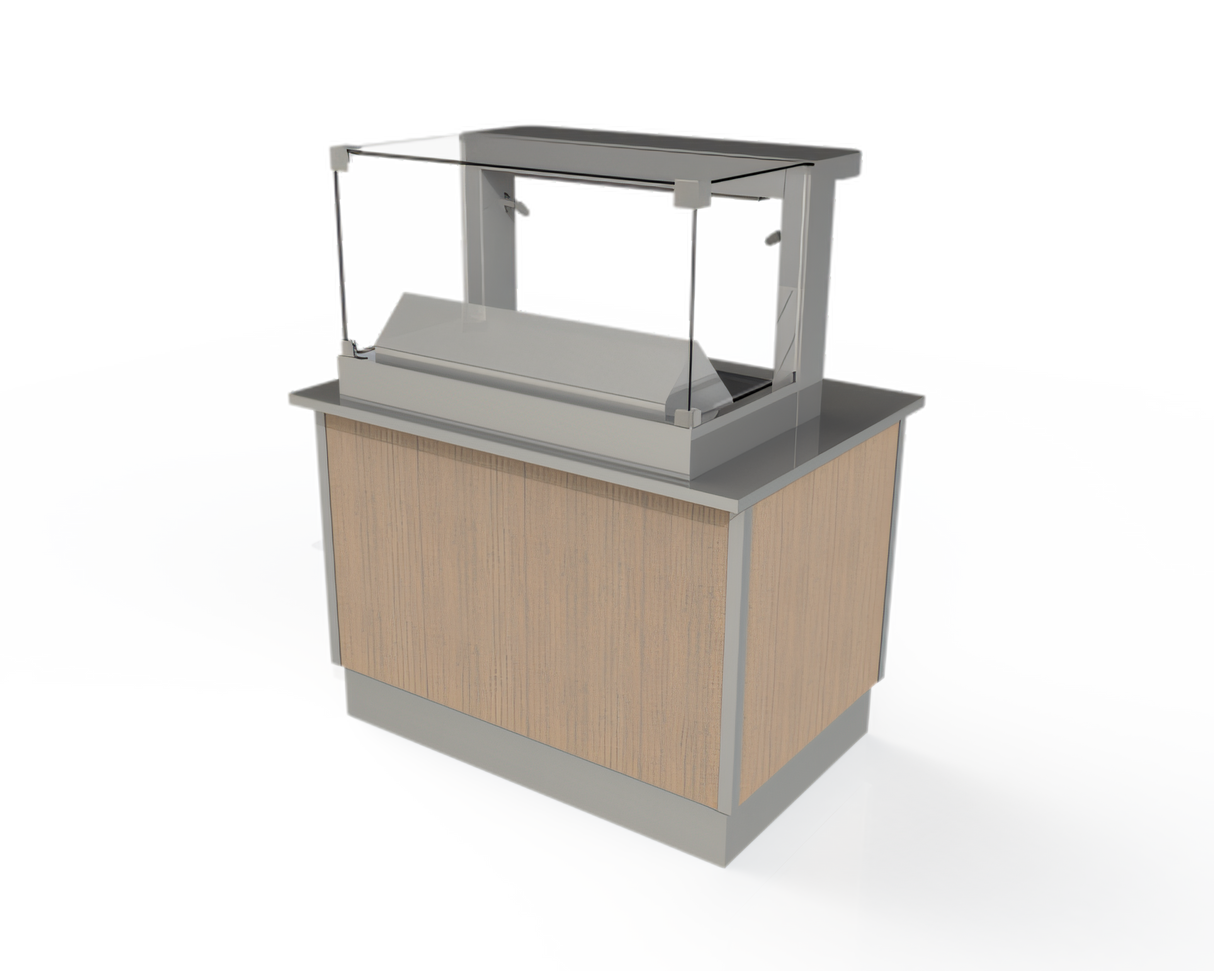

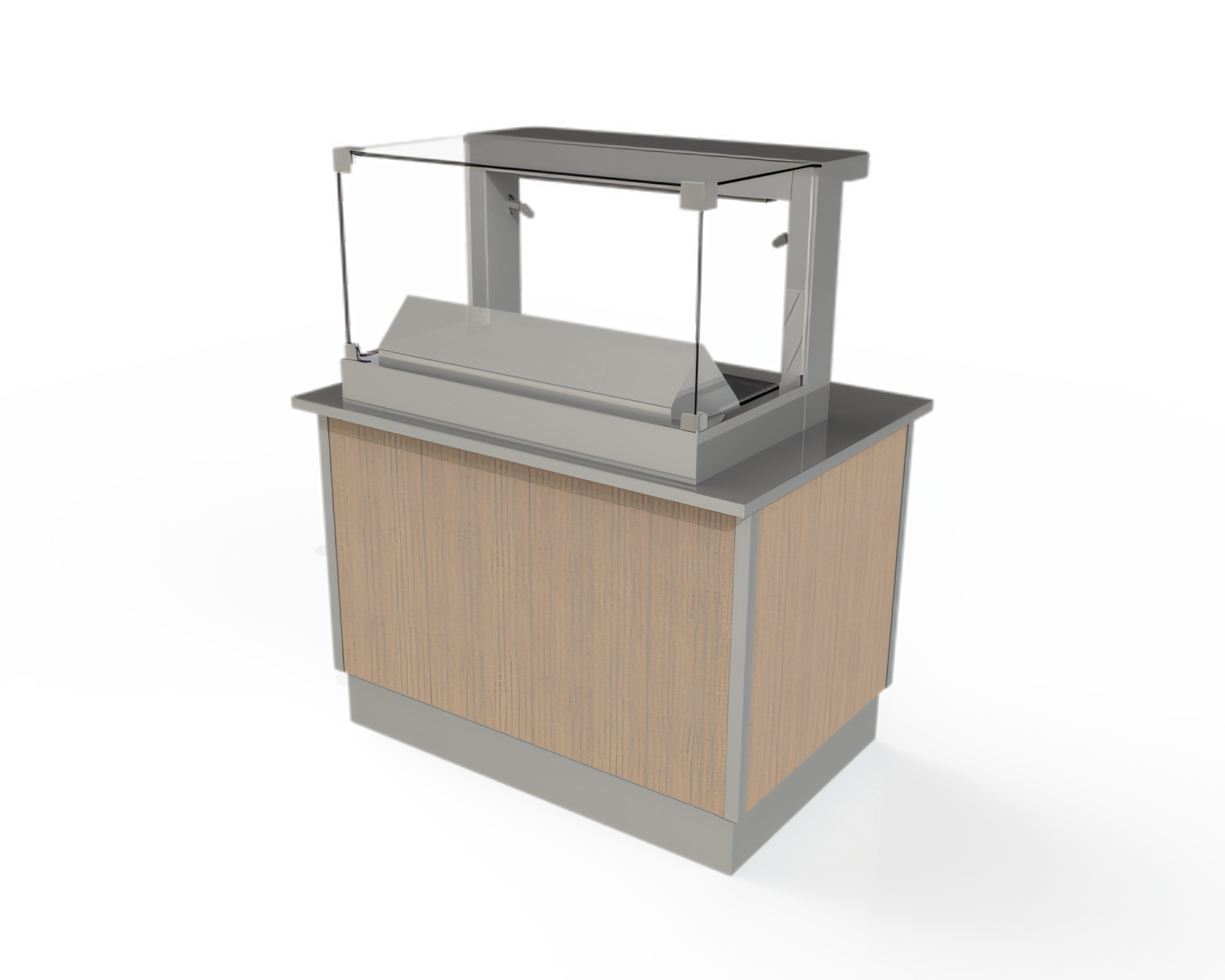

- 22 inch (55.9 cm) tempered, curved breath guard meets NSF 2 splash/ sneeze requirements while showcasing the cooking action.
- Includes one Mirage® 59501 1800 W drop-in induction hob (choose operator left or right) plus a removable rectangle poly cutting board on the opposite side.
- 6-Series custom base: welded 18 ga. stainless unibody, tubular frame, front/left/right stainless kickplates and locking service-access panel.
- Easy-rolling 5" swivel casters with adjustable leveling legs—move it for service, level it for use.
- Simple 120 V connection (NEMA 5-15P) — no dedicated exhaust duct, Ansul commissioning required before first use.
Tested & Certified
- UL 710B ventless recirculating ventilation system
- UL 197 & UL Sanitation listed
- NSF 4 & NSF 2 compliant
- EPA Method 202 (Section 59 of UL 710B) – emissions < 5.00 mg/m3 using 30 % fat ground beef
- Meets NFPA 96 requirements
- FCC Part 18 compliant
Technical Snapshot
| Model | V-Class Custom Downdraft with 22" Breath Guard & 1 Mirage® 59501 Hob |
|---|---|
| Overall Footprint | 47 in W × 34 in D × ≈56 in H (119.4 × 86.4 × 142 cm) Refer to factory drawing for exact dimensions. |
| Electrical | 120 V / 1-phase / 15 A • 6 ft power cord with NEMA 5-15P plug |
| Filter Set | (2) UL 1046 stainless grease filters • (2) carbon/particulate filters |
| Mobility | 5" swivel casters (front locking) with adjustable legs for leveling |
| Construction | 18 ga. 300/400 series stainless, tubular frame, stainless kickplates, tempered glass guard |
| Origin | Made-to-Order in the USA – Vollrath, Sheboygan WI |
Standard lead time is 8–10 weeks ARO. Ships FOB Factory, Sheboygan, Wisconsin.
Important:
- Price does not include ANSUL fees to charge, inspect or commission the fire-suppression system. Contact your local authorized ANSUL dealer.
- This custom product is built to order and cannot be canceled or returned.
- Unit will not operate until the fire-suppression system is commissioned by a licensed ANSUL technician.
Warranty
Covered by Vollrath’s standard two-year parts & labor warranty. See vollrathfoodservice.com for full policy details.
$18,617.49
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to
?
Vollrath V-Class induction warming station with integrated ANSUL R-102, downdraft vent, filters, tempered breathguard, casters — UL/NSF certified.
Manufacturer
Vollrath
Certifications
NSF, UL, UL-Sanitation, Made in USA
Height
55.55in
Width
47.0in
Depth
34.0in
Overall Width (side - side)
43" - 48" W
Design
specify
Exterior Finish
specify exterior
Base Construction
stainless steel base
Burner Qty
(1) burner
Working Height
34" H
Top Construction
specify top
Depth (front - back)
34" D
Specifications
V-Class Custom Downdraft Vent System: Includes Base & 22" tall Tempered Curved Breathguard with Integrated ANSUL R-102 Fire Suppression System, Downdraft Recirculating Vent with (2) Grease & (2) Carbon/Particulate Filters. Includes qty. 1 - 59501 Mirage Drop-In Range & Rectangle Countertop Cutting Board (in non-induction location left or right location). Includes stainless kickplates (front, left & right sides), 5" casters with adjustable legs). UL certified to UL710B, UL197, UL-Sanitation. NSF certified to NSF4. Meets the requirements of EPA Method 202 from Section 59 of UL710B & NFPA96. Emissions < 5.00 mg/m3 using 30% fat ground beef. Made-to-Order in the USA. (Contact factory for lead-time, typically allow 8-10 weeks). See spec sheet for dimensional & electric information. Quoted FOB Factory - Sheboygan, WI. Price does not include ANSUL fees to charge, inspect, commission/tag the unit. Contact your local ANSUL dealer. **CUSTOM PRODUCT CANNOT BE CANCELED OR RETURNED** (Refer to vollrathfoodservice.com for full warranty policy)
