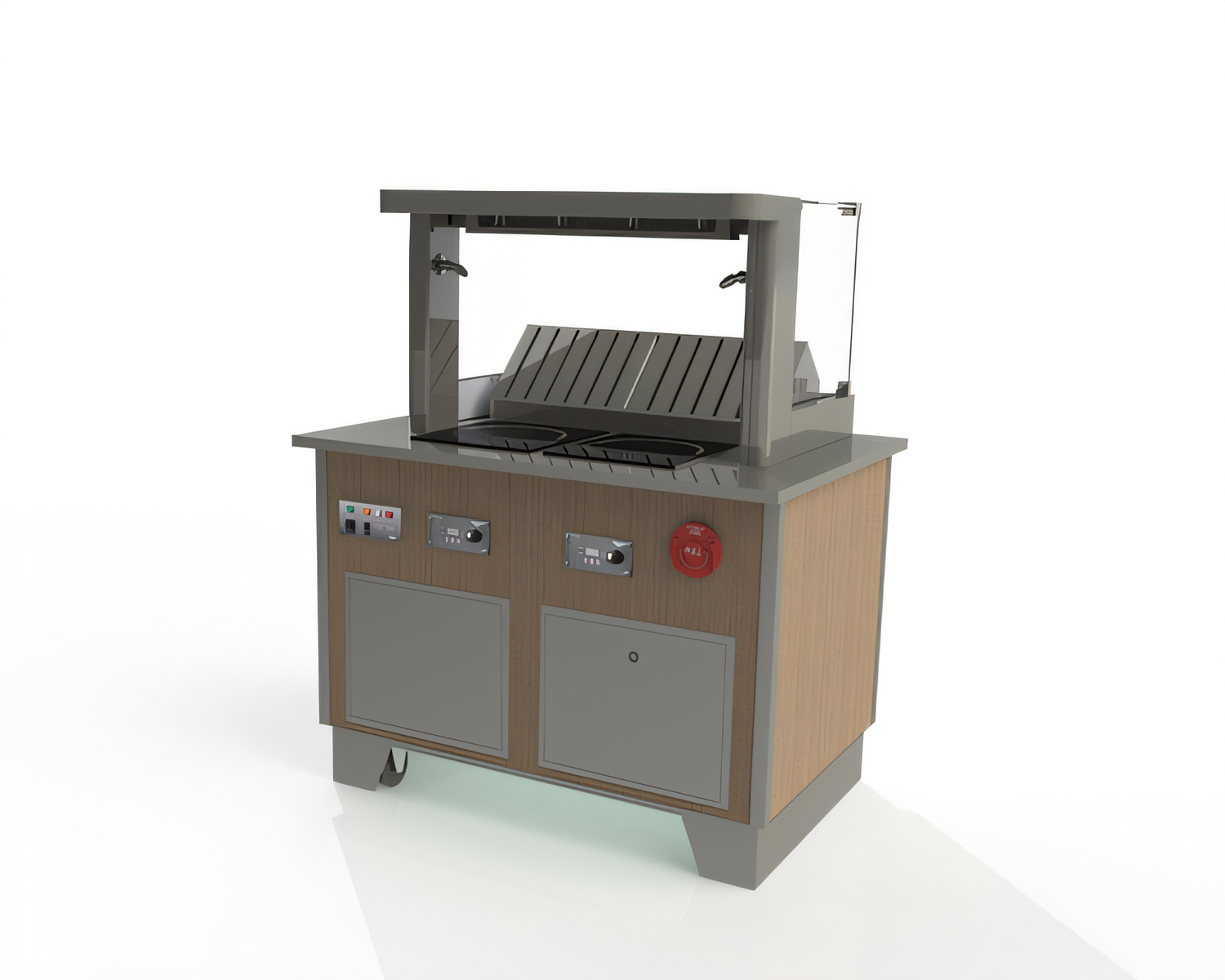

V-Class Custom Downdraft Vent System
22" Curved Breathguard • Mirage® 59501 Induction • Integrated ANSUL® R-102Take ventless cooking anywhere on the property—no expensive hood, make-up air, or hard ductwork required. The made-to-order Vollrath V-Class combines a high-performance downdraft recirculating hood, proven Mirage® induction technology and factory-installed ANSUL® fire suppression into one elegant, mobile station built for front-of-house theatrics and back-of-house compliance.
Why you’ll love it
- Curved 22 in (56 cm) tempered glass breathguard maximizes guest visibility while meeting NSF 2 food-shield requirements.

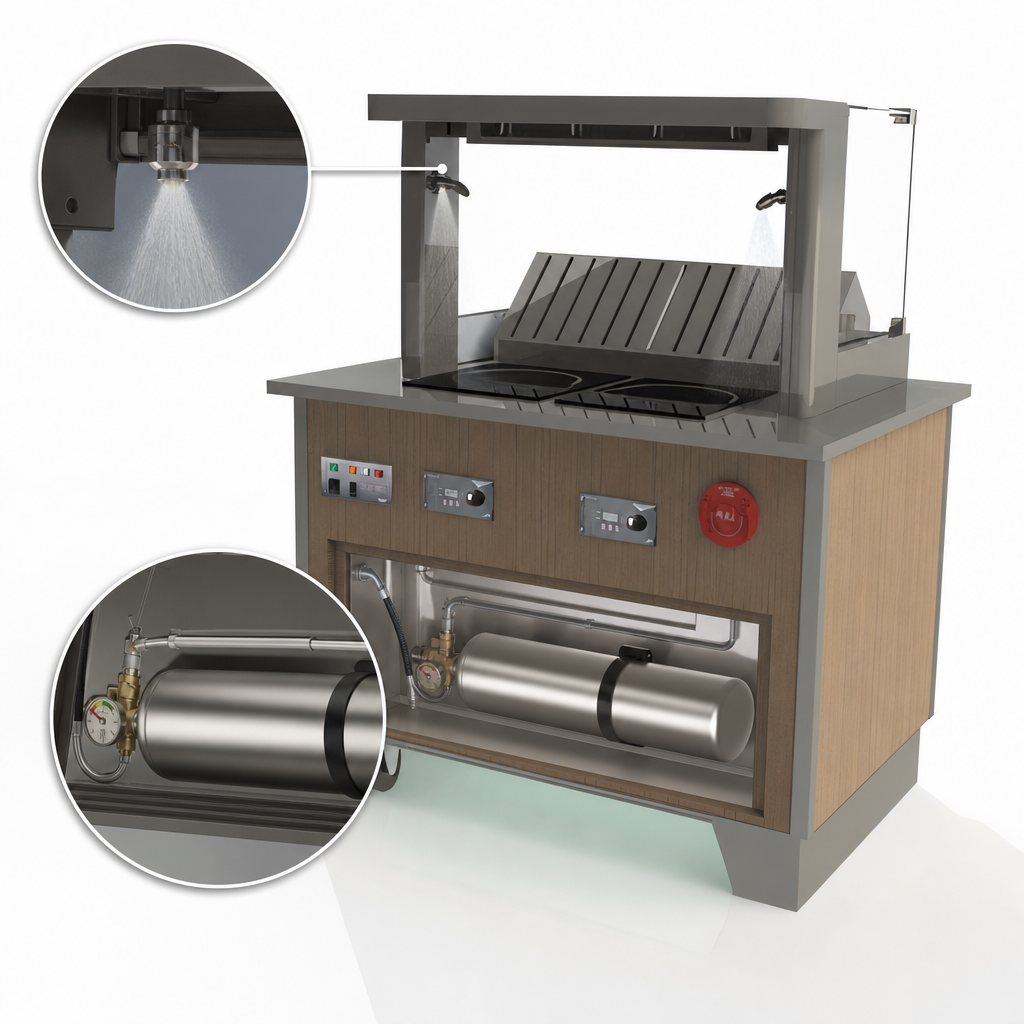

- ANSUL R-102 wet-chemical fire suppression factory-integrated in the guard frame—no overhead hood needed.
- Downdraft, recirculating vent module with (2) UL 1046 grease + (2) carbon/particulate filters for < 5 mg/m³ emissions (EPA 202).
- Mirage® 59501 1800 W drop-in induction hob with 1 %–100 % power control, °F/°C temperature dial and 1–180 min timer.
- Full-size stainless cutting board workstation on the non-induction side—specify left or right when ordering.
- Rugged stainless tubular frame, reinforced 18 ga unibody panels and matching stainless kickplates (front, left & right).
- 5 in swivel locking casters with adjustable legs allow smooth rolling and rock-solid serving.
- 6 ft cord & NEMA 5-15P plug—simply roll in, plug in and cook.
- Made-to-order in Sheboygan, WI; typical lead-time 8-10 weeks.
Safety & compliance
- UL 710B (ventless), UL 197 and UL-Sanitation listed
- NSF 4 certified
- Meets NFPA 96 & EPA Method 202 (Section 59 of UL 710B)
- FCC Part 18 compliant
At-a-glance specifications
| Footprint (L × D) | 34 in × 34 in (86.4 cm × 86.4 cm) – see spec sheet for exact overall dimensions |
|---|---|
| Breathguard height | 22 in (55.9 cm) above worksurface |
| Electrical | 120 V / 12 A / 1 Φ • NEMA 5-15P • 6 ft (1.8 m) cord |
| Induction hob | Mirage® 59501 (1 × 1800 W) drop-in, flush-mounted |
| Filters (included) | 2 × grease (washable) • 2 × carbon/particulate (replaceable) |
| Mobility | 5 in locking casters with adjustable leveling legs |
Detailed dimensional drawings, utility requirements and replacement filter part numbers are available on the downloadable specification sheet.
Warranty
Covered by Vollrath’s standard 2-year equipment warranty. Refer to Vollrathfoodservice.com for full policy details.
Important:
- Price does not include ANSUL® charging, inspection or commissioning fees. Unit will not operate until tagged by your local certified ANSUL distributor.
- Made-to-order CUSTOM PRODUCT CANNOT BE CANCELED OR RETURNED.
- FOB Factory – Sheboygan, WI.
$18,617.49
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to
?
Vollrath V-Class induction warming station with integrated ANSUL R-102 fire suppression, downdraft vent, filters, casters; UL/NSF certified, made in USA.
Manufacturer
Vollrath
Certifications
NSF, UL, UL-Sanitation, Made in USA
Height
55.55in
Width
47.0in
Depth
34.0in
Exterior Finish
specify exterior
Design
specify
Overall Width (side - side)
43" - 48" W
Top Construction
specify top
Burner Qty
(1) burner
Base Construction
stainless steel base
Working Height
34" H
Depth (front - back)
34" D
Specifications
V-Class Custom Downdraft Vent System: Includes Base & 22" tall Tempered Curved Breathguard with Integrated ANSUL R-102 Fire Suppression System, Downdraft Recirculating Vent with (2) Grease & (2) Carbon/Particulate Filters. Includes qty. 1 - 59501 Mirage Drop-In Range & Rectangle Countertop Cutting Board (in non-induction location left or right location). Includes stainless kickplates (front, left & right sides), 5" casters with adjustable legs). UL certified to UL710B, UL197, UL-Sanitation. NSF certified to NSF4. Meets the requirements of EPA Method 202 from Section 59 of UL710B & NFPA96. Emissions < 5.00 mg/m3 using 30% fat ground beef. Made-to-Order in the USA. (Contact factory for lead-time, typically allow 8-10 weeks). See spec sheet for dimensional & electric information. Quoted FOB Factory - Sheboygan, WI. Price does not include ANSUL fees to charge, inspect, commission/tag the unit. Contact your local ANSUL dealer. **CUSTOM PRODUCT CANNOT BE CANCELED OR RETURNED** (Refer to vollrathfoodservice.com for full warranty policy)
