4-Series Signature Server® Custom Downdraft Vent System
Ventless mobile cooking station with 22" curved breath guard, induction hob & integrated ANSUL R-102 fire suppressionCreate a true “chef-to-guest” experience anywhere in the dining room. Built on Vollrath’s heavy-duty 4-Series base, the Signature Server® combines a high-efficiency Mirage® induction range with a self-contained downdraft recirculating hood and factory-installed fire suppression—no dedicated hood, duct or make-up air required. Simply roll it in, plug it into a standard 120 V outlet and start cooking.
Key advantages
- Ventless design tested to UL 710B (KNKG) – emissions < 5 mg/m³

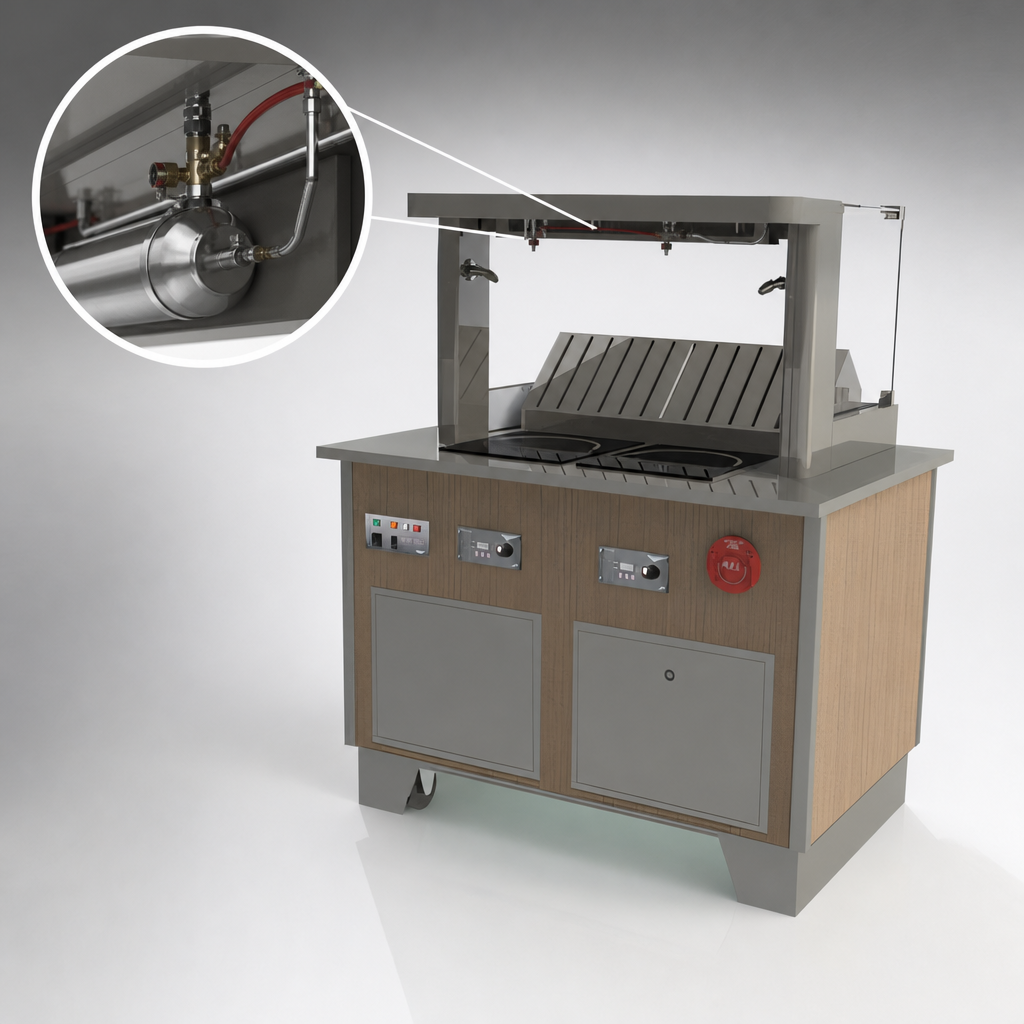

- Integrated ANSUL R-102 system protects the cooking zone and breath guard
- 1 × 59501 Mirage® drop-in induction hob — 86 % efficient, 1 %–100 % power control, 180-minute timer
- 22" (55.9 cm) tempered curved glass breath guard meets NSF 2 requirements
- Downdraft module includes (2) grease & (2) carbon/particulate filters for fast swap-out service
- Stainless kickplates, 5" swivel/locking casters and adjustable leveling legs included
- Made-to-order in Sheboygan, WI — typically ships in 8–10 weeks
What’s in the box
- 4-Series stainless-steel base with operator-side access panel
- Factory-installed ANSUL R-102 fire suppression piping & detection (charge/commissioning by local dealer)
- Downdraft recirculating ventilation module with 6 ft power cord
- Mirage® 59501 drop-in induction range (NEMA 5-15P)
- Rectangle poly cutting board for the non-induction side
- Front, left & right stainless toe kicks (field assembly)
- (4) 5" casters with adjustable legs
Certifications & compliance
- UL 710B ventless, UL 197, UL-Sanitation
- NSF/ANSI 4
- EPA Method 202 (Section 59 of UL 710B)
- Meets NFPA 96 requirements
- FCC Part 18 compliant
Technical specifications
| Overall dimensions | 47" W × 34" D × 56" H (base 34" H + breath guard 22") |
|---|---|
| Cooking technology | 1 × Mirage® 59501 induction hob, 1 800 W, 120 V, NEMA 5-15P |
| Ventilation system | Recirculating downdraft; (2) UL 1046 grease filters & (2) carbon/particulate filters |
| Fire suppression | ANSUL R-102 pre-piped (field charge & commissioning required) |
| Mobility | (4) 5" swivel casters (front two locking) & adjustable legs |
| Power cord | 6 ft, factory installed |
| Origin | Made in USA – FOB Sheboygan, WI |
Need additional dimensions, cut-sheets or utility rough-ins? View the full specification sheet on the Vollrath website.
Warranty
Covered by Vollrath’s standard 2-year limited warranty against defects in materials and workmanship. See complete policy at vollrathfoodservice.com.
Important ordering notes
• Price does not include ANSUL fees to charge, inspect or tag the unit – contact your local authorized ANSUL dealer.
• Custom products are built to order and cannot be cancelled or returned once production begins.
• Price does not include ANSUL fees to charge, inspect or tag the unit – contact your local authorized ANSUL dealer.
• Custom products are built to order and cannot be cancelled or returned once production begins.
Vollrath
Vollrath 69722S-1-SR 4-Series Signature Server® Induction-Based Warming Equipment
SKU: 69722S-1-SR
$18,198.50
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to
?
Vollrath Signature Server 4-Series induction warming station with integrated ANSUL fire suppression, downdraft venting, casters, NSF/UL certified.
Manufacturer
Vollrath
Brand name
4-Series Signature Server®
Certifications
NSF, UL, UL-Sanitation, Made in USA
Height
56.0in
Width
47.0in
Depth
34.0in
Overall Width (side - side)
43" - 48" W
Design
specify
Exterior Finish
specify exterior
Top Construction
specify top
Burner Qty
(1) burner
Working Height
34" H
Base Construction
stainless steel base
Depth (front - back)
34" D
Specifications
Signature Server® Custom Downdraft Vent System: Includes Base & 22" tall Tempered Curved Breathguard with Integrated ANSUL R-102 Fire Suppression System, Downdraft Recirculating Vent with (2) Grease & (2) Carbon/Particulate Filters. Includes qty. 1 - 59501 Mirage Drop-In Range & Rectangle Countertop Cutting Board (in non-induction location left or right location). Includes stainless kickplates (front, left & right sides), 5" casters with adjustable legs). UL certified to UL710B, UL197, UL-Sanitation. NSF certified to NSF4. Meets the requirements of EPA Method 202 from Section 59 of UL710B & NFPA96. Emissions < 5.00 mg/m3 using 30% fat ground beef. Made-to-Order in the USA. (Contact factory for lead-time, typically allow 8-10 weeks). See spec sheet for dimensional & electric information. Quoted FOB Factory - Sheboygan, WI. Price does not include ANSUL fees to charge, inspect, commission/tag the unit. Contact your local ANSUL dealer. **CUSTOM PRODUCT CANNOT BE CANCELED OR RETURNED** (Refer to vollrathfoodservice.com for full warranty policy)
