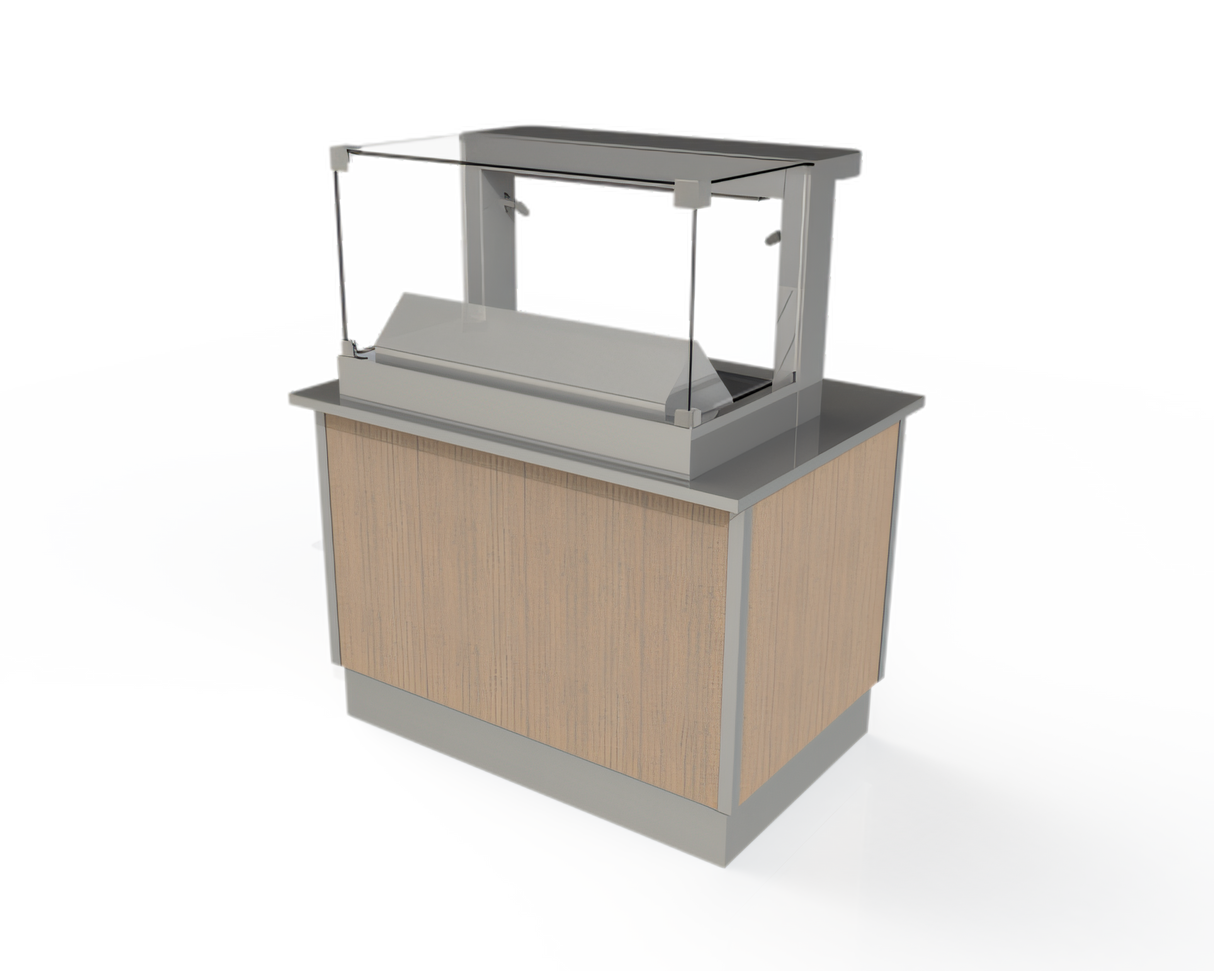

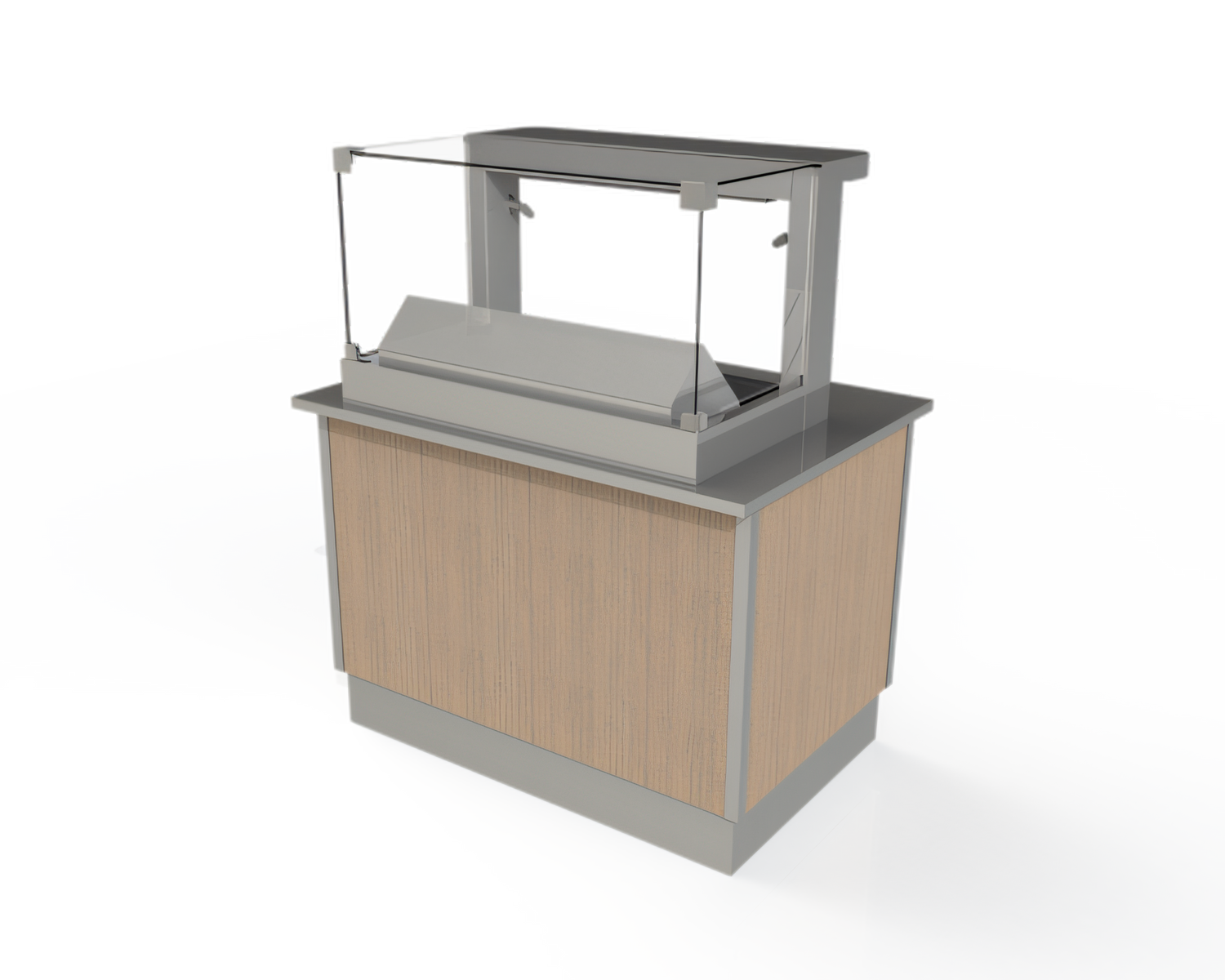

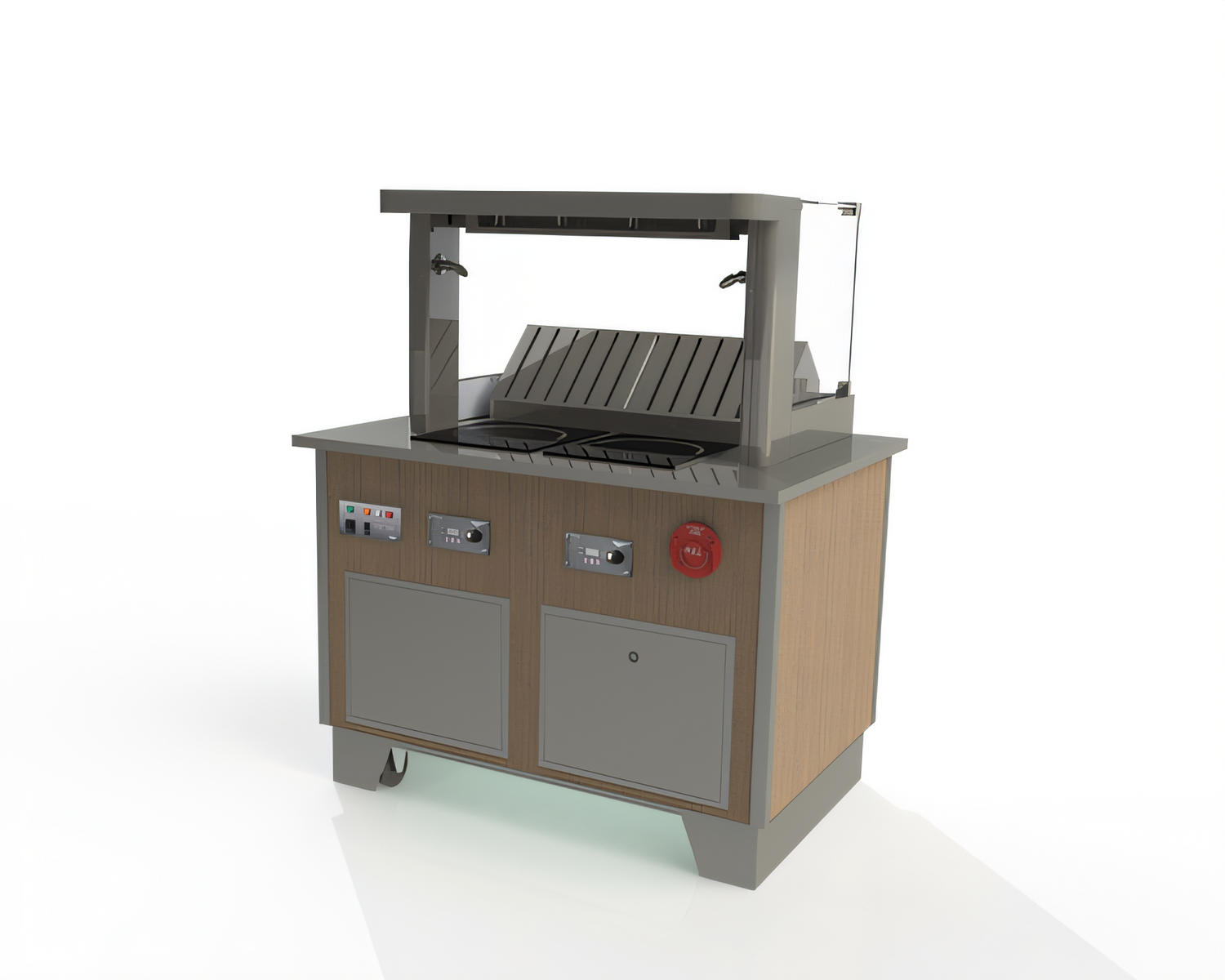

Vollrath 4-Series Signature Server® Custom Downdraft Vent System
22 in Curved Breath Guard • Integrated ANSUL R-102 • 1-Hob Mirage® Induction RangeCreate an eye-catching, code-compliant action station anywhere—without the cost or complications of ductwork. Built to order in Sheboygan, WI, the 4-Series Signature Server® combines downdraft ventilation, UL-listed fire suppression and high-efficiency induction cooking in one mobile, ventless package.
Key benefits

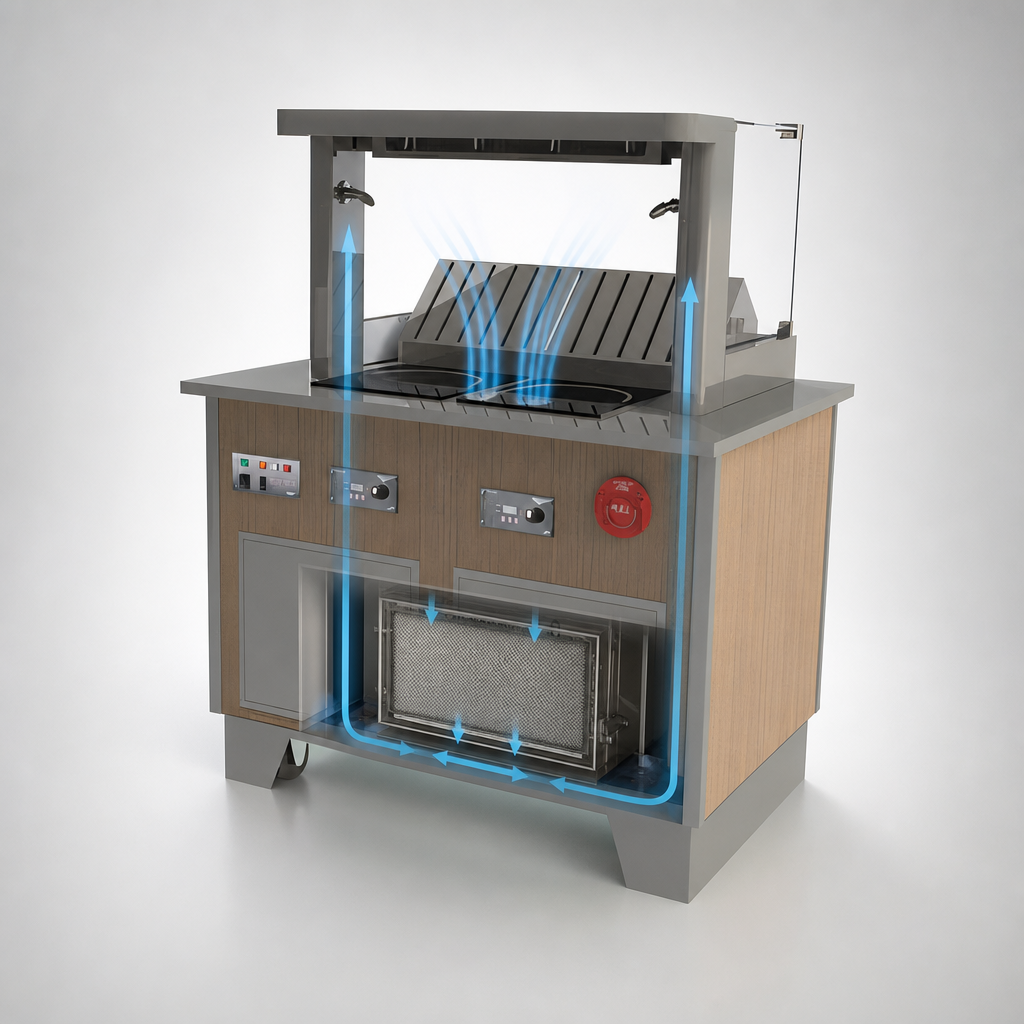

- Self-contained recirculating vent captures smoke, steam and grease—no Type I hood required.
- Factory-installed ANSUL R-102 wet-chemical system protects the cooktop and the 22 in tempered-glass breath guard.
- Includes one 59501 Mirage® 1.8 kW drop-in induction hob (left or right) plus a removable rectangular cutting board.
- Two stainless-steel grease filters and two carbon/particulate cartridges keep emissions < 5 mg/m³ (EPA Method 202).
- Precision 1–100 % power control, 1–180 min timer and automatic pan detection for energy-smart performance.
- Stainless kickplates shield all sides; 5 in swivel casters (locking) with adjustable legs provide effortless mobility.
- Certified to UL 710B, UL 197, UL-Sanitation, NSF 4 and NFPA 96; FCC Part 18 compliant.
Typical applications
- Chef-attended carving, sauté or omelet stations
- Buffets, cafeterias and micro-markets where ducting is impossible
- Coffee shops, breweries and kiosks seeking an on-demand hot-food solution
- Seasonal pop-ups and catering venues
Technical specifications
| Base style | 4-Series Signature Server® mobile cart |
|---|---|
| Overall footprint | Approx. 47 in W × 34 in D × 34 in H (without guard) |
| Breath guard | 22 in (55.9 cm) curved, 6 mm tempered glass |
| Cooking equipment | (1) 59501 Mirage® 1800 W induction hob |
| Work surface | Stainless top with removable poly cutting board (non-induction side) |
| Ventilation filters | (2) grease baffles + (2) carbon/particulate cartridges |
| Electrical | 120 V, 15 A NEMA 5-15P (vent) & 120 V, 15 A NEMA 5-15P (hob); 6 ft cords |
| Mobility | (4) 5 in swivel casters, 2 locking, with adjustable leveling legs |
| Certifications | UL 710B, UL 197, UL-Sanitation, NSF 4, NFPA 96, FCC Part 18 |
| Country of origin | Made-to-order in the USA |
| Lead time | Typically 8–10 weeks after receipt of order |
Dimensions and electrical information are for reference only—request a factory-approved submittal before installation.
What’s included
- 4-Series base with stainless exterior panels & kickplates
- 22 in curved breath guard with integrated ANSUL R-102 nozzles
- Recirculating downdraft module (pre-wired & tested)
- (1) 59501 Mirage® induction hob
- Poly cutting board insert
- (2) grease filters & (2) carbon/particulate filters
- Operator manual and 6 ft power cords
Important: This custom product is non-cancelable and non-returnable once an order is placed.
Pricing excludes ANSUL charging, inspection and commissioning—arranged through your local authorized ANSUL dealer.
Standard Vollrath 2-year parts & labor warranty applies; consumable items such as filters, glass and cutting boards are excluded. Full policy available at vollrathfoodservice.com.
FOB Factory – Sheboygan, Wisconsin, USA.
Vollrath
Vollrath 69722S-1-SL 4-Series Signature Server® Induction-Based Warming Equipment
SKU: 69722S-1-SL
$18,198.50
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to
?
Vollrath Signature Server® induction warming station with downdraft vent, ANSUL fire suppression, NSF/UL certified, casters, custom-made in USA.
Manufacturer
Vollrath
Brand name
4-Series Signature Server®
Certifications
NSF, UL, UL-Sanitation, Made in USA
Height
56.0in
Width
47.0in
Depth
34.0in
Exterior Finish
specify exterior
Top Construction
specify top
Overall Width (side - side)
43" - 48" W
Design
specify
Burner Qty
(1) burner
Base Construction
stainless steel base
Working Height
34" H
Depth (front - back)
34" D
Specifications
Signature Server® Custom Downdraft Vent System: Includes Base & 22" tall Tempered Curved Breathguard with Integrated ANSUL R-102 Fire Suppression System, Downdraft Recirculating Vent with (2) Grease & (2) Carbon/Particulate Filters. Includes qty. 1 - 59501 Mirage Drop-In Range & Rectangle Countertop Cutting Board (in non-induction location left or right location). Includes stainless kickplates (front, left & right sides), 5" casters with adjustable legs). UL certified to UL710B, UL197, UL-Sanitation. NSF certified to NSF4. Meets the requirements of EPA Method 202 from Section 59 of UL710B & NFPA96. Emissions < 5.00 mg/m3 using 30% fat ground beef. Made-to-Order in the USA. (Contact factory for lead-time, typically allow 8-10 weeks). See spec sheet for dimensional & electric information. Quoted FOB Factory - Sheboygan, WI. Price does not include ANSUL fees to charge, inspect, commission/tag the unit. Contact your local ANSUL dealer. **CUSTOM PRODUCT CANNOT BE CANCELED OR RETURNED** (Refer to vollrathfoodservice.com for full warranty policy)
