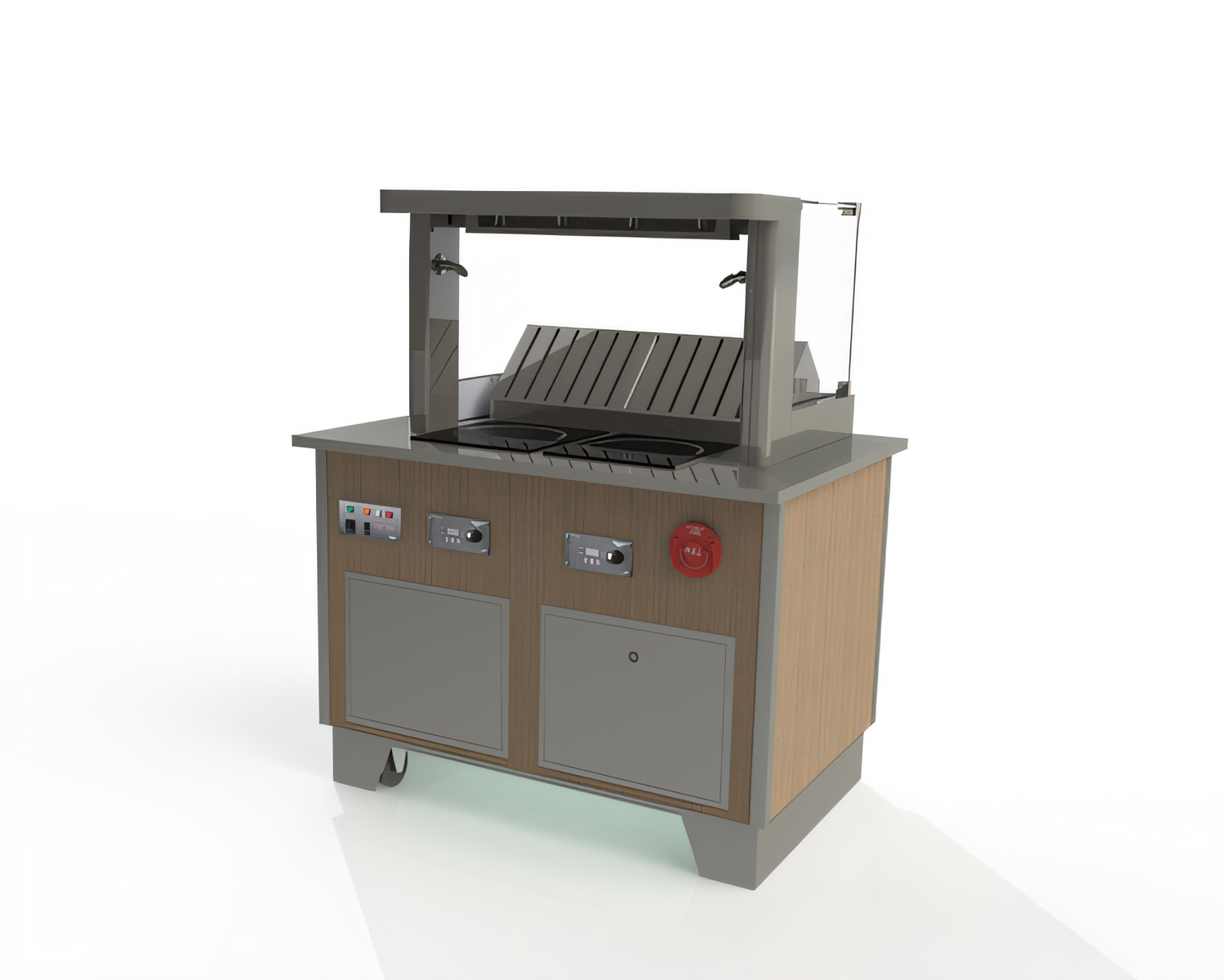

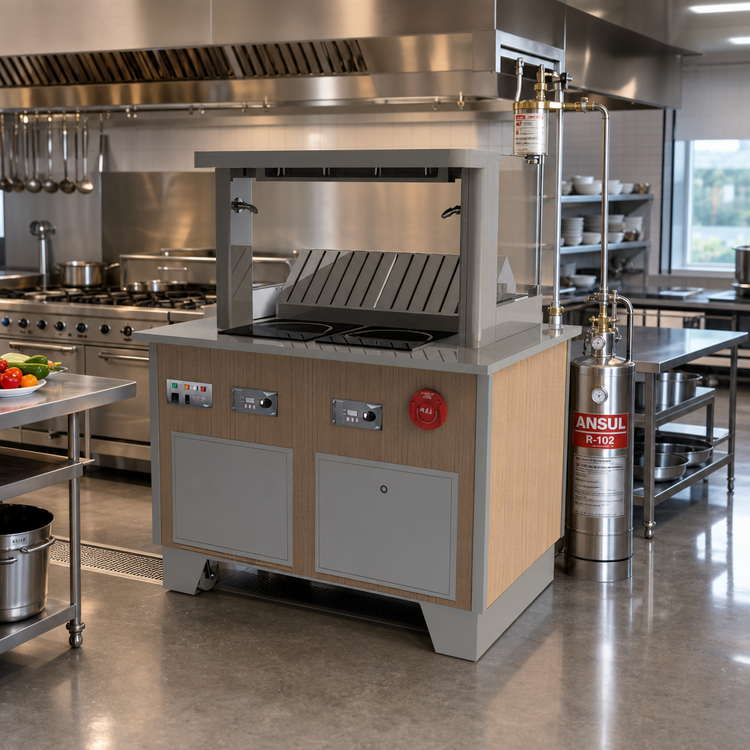

V-Class Custom Downdraft Vent System w/ 18" Curved Breath Guard & ANSUL R-102
Front-of-house cooking, recirculating ventilation & integrated fire protection – all in one NSF/UL certified station.
Purpose-built for theater cooking and tight footprints, Vollrath’s made-to-order V-Class Downdraft Vent System delivers true ventless performance,
a fully charged ANSUL R-102 fire suppression system,
and the power of a Mirage® 59501 drop-in induction hob — no dedicated hood or ductwork required.
What’s Included
- Custom stainless base with removable side access panel
- 18 in (45.7 cm) tall tempered curved breath guard with integrated fire containment

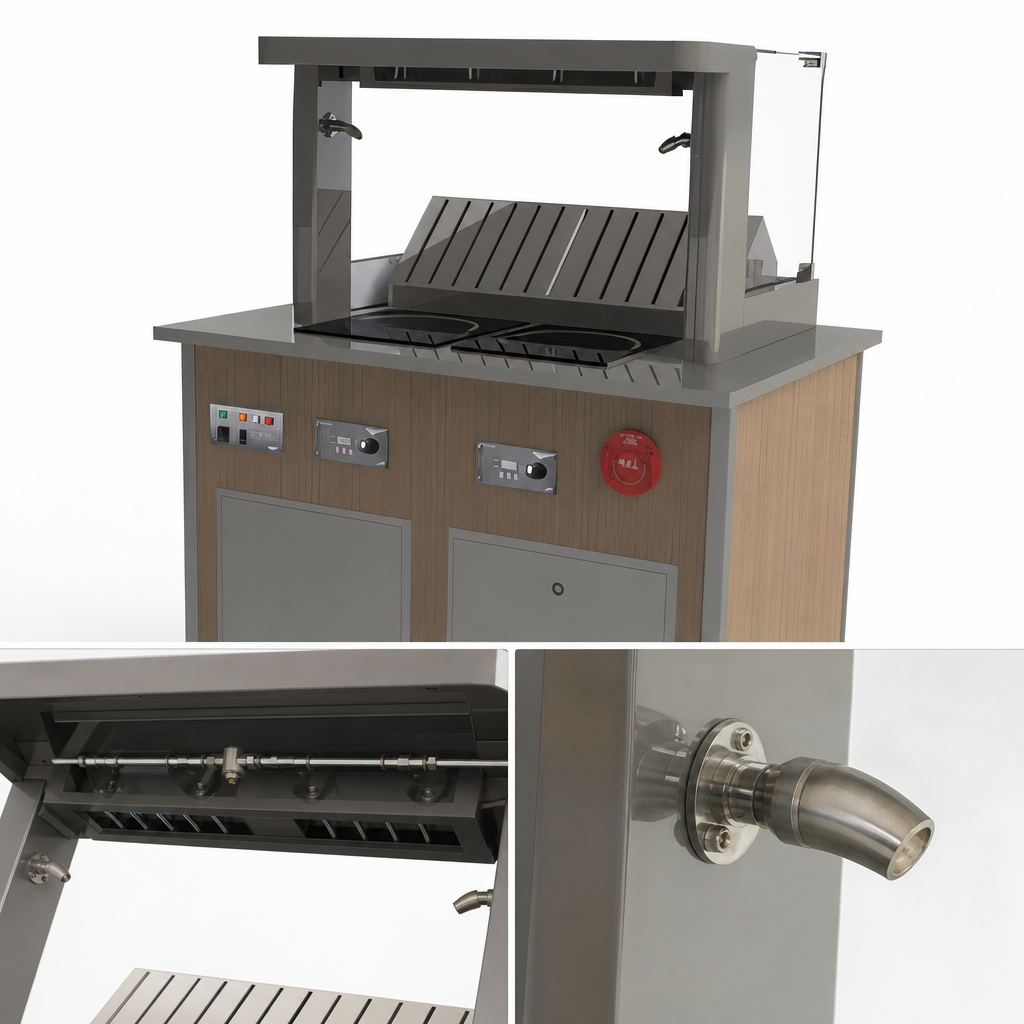

- Factory-installed ANSUL R-102 wet-chemical fire suppression, nozzle plumbing & detection system
- Downdraft recirculating vent module with:
- (2) removable grease filters
- (2) carbon/particulate filters
- Variable-speed exhaust blower
- (1) Vollrath Mirage® 59501, 1.8 kW drop-in induction range
- Rectangular countertop cutting board (installs in non-induction well, left or right)
- Stainless toe-kicks (front, left & right)
- (4) 5" swivel locking casters with adjustable leveling legs
- 6 ft power cord(s) & NEMA 5-15P plug(s)
Key Performance & Safety Features
- Certified ventless operation – UL710B & UL197 listed
- EPA Method 202 tested; emissions < 5 mg/m³ using 30 % fat ground beef
- Meets NFPA 96 requirements for recirculating systems
- Induction hob efficiency > 86 %, 1 %–100 % power control, 180-min timer & pan-sense safety
- HOT-surface warning and multiple automatic shut-offs for added operator safety
Certifications & Compliance
- UL 710B, UL 197, UL-Sanitation (KNKG)
- NSF 4 & NSF 2 (breath guard)
- FCC Part 18 compliant
- Made-in-USA – Sheboygan, WI
Specifications (overview)
| Food-guard height | 18 in / 45.7 cm (curved tempered glass) |
|---|---|
| Induction hob power | 1.8 kW, 120 V, 15 A, NEMA 5-15P |
| Vent module power | 120 V, 12 A, NEMA 5-15P |
| Filters | (2) grease + (2) carbon/particulate (field-replaceable) |
| Mobility | 5" locking casters (standard) | Adjustable legs for stationary use |
| Lead time | Typically 8-10 weeks ARO (made-to-order) |
| Freight terms | FOB Factory – Sheboygan, Wisconsin USA |
Detailed dimensional drawings & electrical loading charts are available on the product spec sheet.
Important Ordering & Installation Notes
Custom product – no cancellations or returns.
Price does not include ANSUL charges to fill, tag or commission the fire system. All charging, inspection & commissioning must be performed by a licensed local ANSUL distributor before operation.
Price does not include ANSUL charges to fill, tag or commission the fire system. All charging, inspection & commissioning must be performed by a licensed local ANSUL distributor before operation.
Warranty
Vollrath two-year limited warranty against defects in materials & workmanship. See full policy at vollrathfoodservice.com.
$18,617.49
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to
?
Vollrath V-Class induction warming station with integrated downdraft vent and ANSUL fire suppression—NSF/UL certified, made-to-order in USA.
Manufacturer
Vollrath
Certifications
NSF, UL, UL-Sanitation, Made in USA
Height
51.55in
Width
47.0in
Depth
34.0in
Design
specify
Exterior Finish
specify exterior
Base Construction
stainless steel base
Overall Width (side - side)
43" - 48" W
Working Height
34" H
Burner Qty
(1) burner
Top Construction
specify top
Depth (front - back)
34" D
Specifications
V-Class Custom Downdraft Vent System: Includes Base & 18" tall Tempered Curved Breathguard with Integrated ANSUL R-102 Fire Suppression System, Downdraft Recirculating Vent with (2) Grease & (2) Carbon/Particulate Filters. Includes qty. 1 - 59501 Mirage Drop-In Range & Rectangle Countertop Cutting Board (in non-induction location left or right location). Includes stainless kickplates (front, left & right sides), 5" casters with adjustable legs). UL certified to UL710B, UL197, UL-Sanitation. NSF certified to NSF4. Meets the requirements of EPA Method 202 from Section 59 of UL710B & NFPA96. Emissions < 5.00 mg/m3 using 30% fat ground beef. Made-to-Order in the USA. (Contact factory for lead-time, typically allow 8-10 weeks). See spec sheet for dimensional & electric information. Quoted FOB Factory - Sheboygan, WI. Price does not include ANSUL fees to charge, inspect, commission/tag the unit. Contact your local ANSUL dealer. **CUSTOM PRODUCT CANNOT BE CANCELED OR RETURNED** (Refer to vollrathfoodservice.com for full warranty policy)
