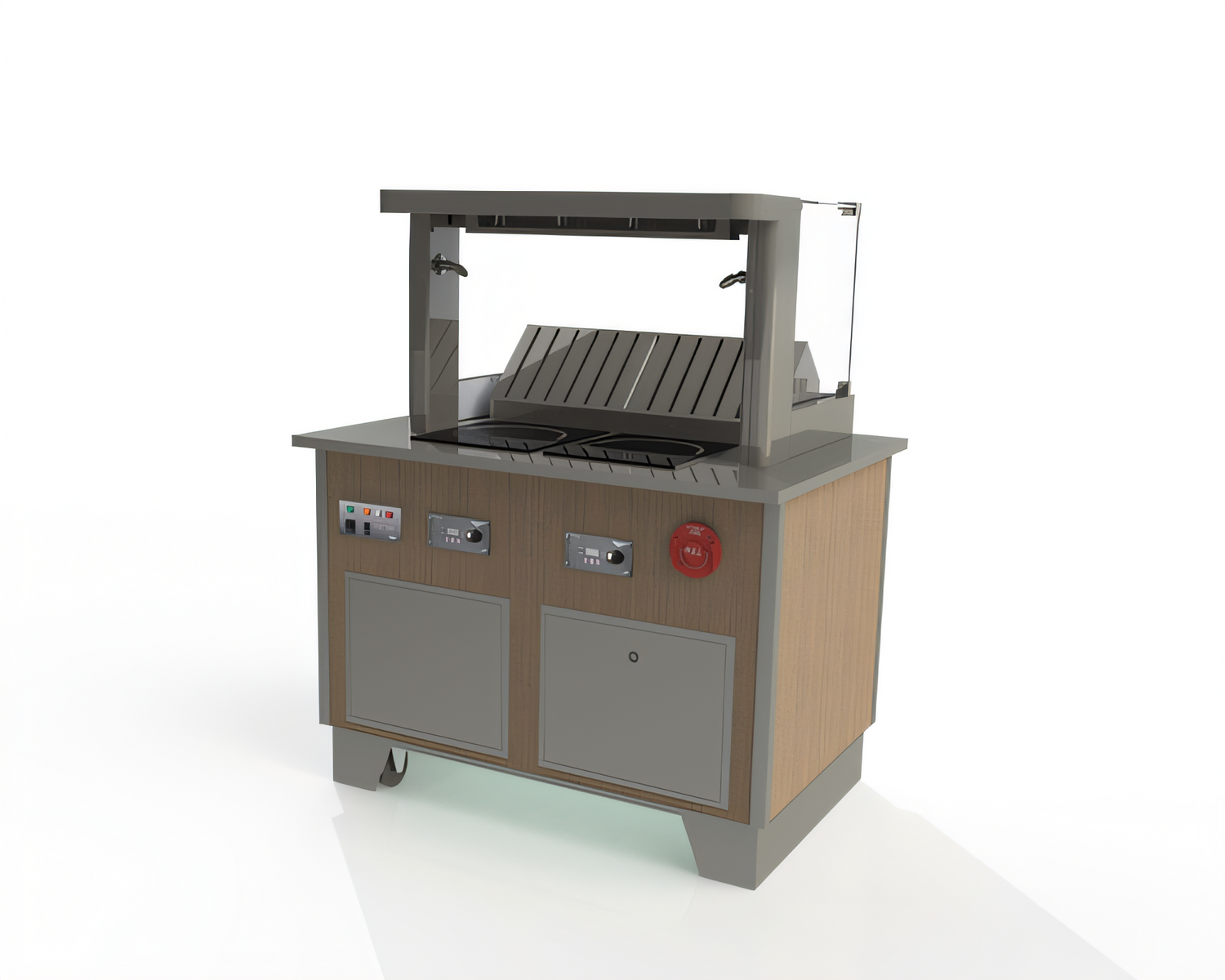

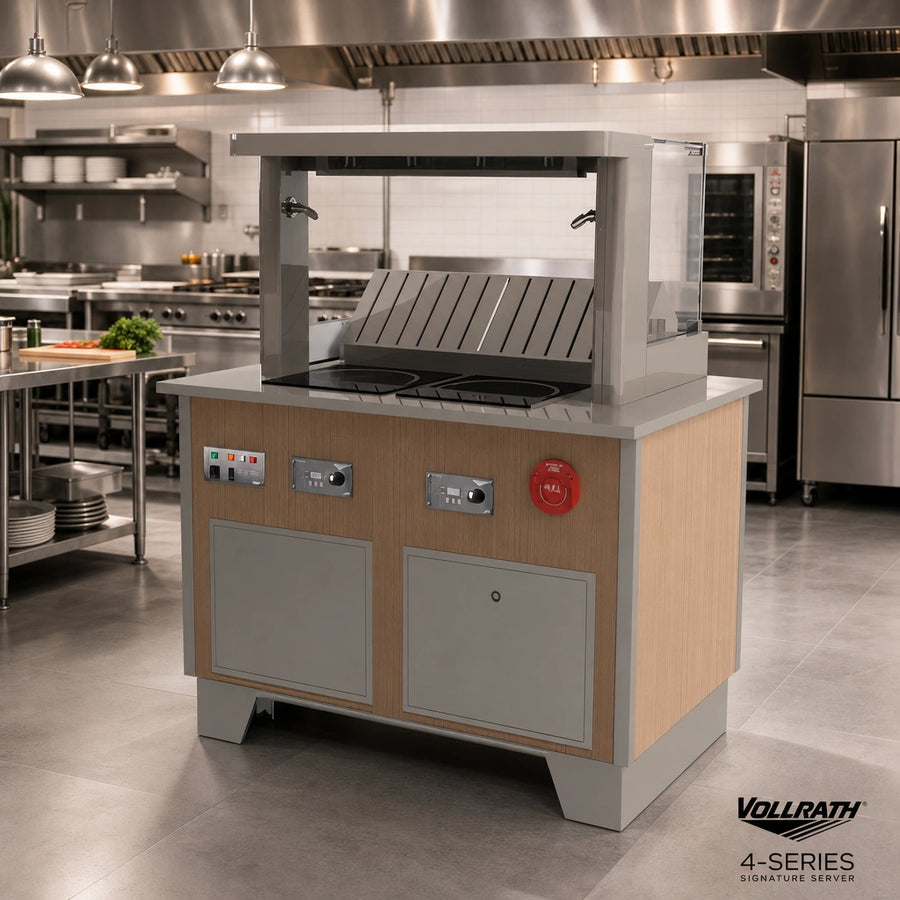

4-Series Signature Server® Downdraft Vent System
Model 69718S-1-S | Integrated ANSUL R-102 Fire Suppression & Mirage® InductionBring live-action cooking anywhere in the house—without a Type I hood. Vollrath’s 4-Series Signature Server® combines a ventless downdraft system, built-in fire suppression and a high-efficiency Mirage® induction hob into a single, mobile platform that is UL listed for front-of-the-house operation.
Why You’ll Love It
- Ventless, self-contained downdraft system eliminates costly ductwork.
- Integrated ANSUL R-102 fire suppression is factory-installed and ready for commissioning.
- 18 in (45.7 cm) curved, tempered-glass breath guard meets NSF 2 for food protection.
- Mirage® 59501 1800 W drop-in induction range delivers 1–100 % power control with 86 % efficiency.
- Recirculating filter pack ships with two UL 1046 grease filters and two carbon/particulate filters.
- Heavy-gauge stainless-steel unibody, full stainless kickplates (front/left/right) and 5 in locking casters with levelling legs stand up to daily use.
- Made-to-order in Sheboygan, WI; typical lead time 8–10 weeks.
What’s Included
- 4-Series stainless base with operator-side access panel
- 18 in curved tempered-glass breath guard
- ANSUL R-102 tank, piping & fusible links (uncharged)

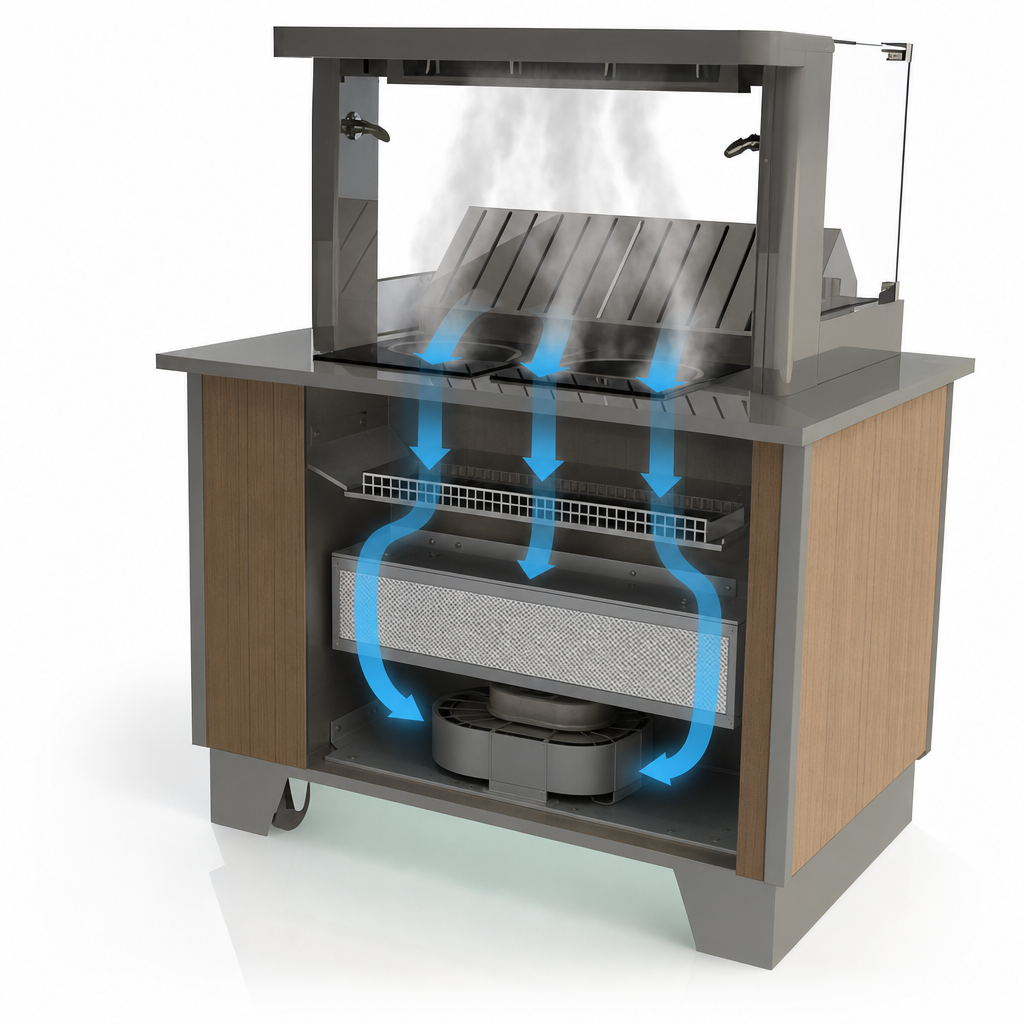

- Downdraft recirculating vent module
- (2) UL 1046 grease filters
- (2) Carbon/particulate filters
- (1) Mirage® 59501 drop-in induction hob (left or right location)
- Full-size rectangle cutting board for the non-induction side
- 6 ft power cord with NEMA 5-15P plug
Safety & Certifications
| UL Listings | UL 710B (ventless), UL 197, UL-Sanitation |
|---|---|
| NSF | NSF 4 & NSF 2 (breath guard) |
| NFPA | Complies with NFPA 96 |
| EPA 202 Emissions | < 5.00 mg/m³ using 30 % fat ground beef |
Quick Specs
| Overall (W × D × H) | 47 in × 34 in × 34 in (119 × 86 × 86 cm) height excludes breath guard |
|---|---|
| Breath-Guard Height | 18 in / 45.7 cm |
| Electrical | 120 V, 15 A, 1 ph, NEMA 5-15P |
| Construction | Reinforced 18 ga 400-series stainless unibody |
| Mobility | (4) 5 in swivelling casters (front two locking) + adjustable legs |
| Country of Origin | Made in the USA |
Detailed dimensional drawings and amperage charts are available in the factory spec sheet.
Warranty
Covered by Vollrath’s standard two-year parts & labor warranty against defects in materials or workmanship. See VollrathFoodservice.com for complete terms.
Important:
- Fire-suppression system must be charged, inspected and commissioned by a certified local ANSUL dealer before first use; associated fees are not included in product price.
- This custom product is built to order and cannot be canceled or returned.
- Allow 8–10 weeks lead time from receipt of approved order.
- Installation must comply with all applicable codes and the latest edition of NFPA 96.
FOB Factory – Sheboygan, WI. For questions or to verify lead times, please contact Vollrath Technical Services at 800-825-6036.
Vollrath
Vollrath 69718S-1-SR 4-Series Signature Server® Induction-Based Warming Equipment
SKU: 69718S-1-SR
$18,198.50
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to
?
Vollrath Signature Server 4-Series induction warming with downdraft vent, ANSUL fire suppression, filters, casters & cutting board. Made in USA.
Manufacturer
Vollrath
Brand name
4-Series Signature Server®
Certifications
NSF, UL, UL-Sanitation, Made in USA
Height
52.0in
Width
47.0in
Depth
34.0in
Overall Width (side - side)
43" - 48" W
Top Construction
specify top
Exterior Finish
specify exterior
Design
specify
Burner Qty
(1) burner
Working Height
34" H
Base Construction
stainless steel base
Depth (front - back)
34" D
Specifications
Signature Server® Custom Downdraft Vent System: Includes Base & 18" tall Tempered Curved Breathguard with Integrated ANSUL R-102 Fire Suppression System, Downdraft Recirculating Vent with (2) Grease & (2) Carbon/Particulate Filters. Includes qty. 1 - 59501 Mirage Drop-In Range & Rectangle Countertop Cutting Board (in non-induction location left or right location). Includes stainless kickplates (front, left & right sides), 5" casters with adjustable legs). UL certified to UL710B, UL197, UL-Sanitation. NSF certified to NSF4. Meets the requirements of EPA Method 202 from Section 59 of UL710B & NFPA96. Emissions < 5.00 mg/m3 using 30% fat ground beef. Made-to-Order in the USA. (Contact factory for lead-time, typically allow 8-10 weeks). See spec sheet for dimensional & electric information. Quoted FOB Factory - Sheboygan, WI. Price does not include ANSUL fees to charge, inspect, commission/tag the unit. Contact your local ANSUL dealer. **CUSTOM PRODUCT CANNOT BE CANCELED OR RETURNED** (Refer to vollrathfoodservice.com for full warranty policy)
