Vollrath 69718S-1-SL 4-Series Signature Server® Induction-Based Warming Equipment
Vollrath 69718S-1-SL 4-Series Signature Server® Induction-Based Warming Equipment is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Vollrath 69718S-1-SL 4-Series Signature Server® Induction-Based War...
Description

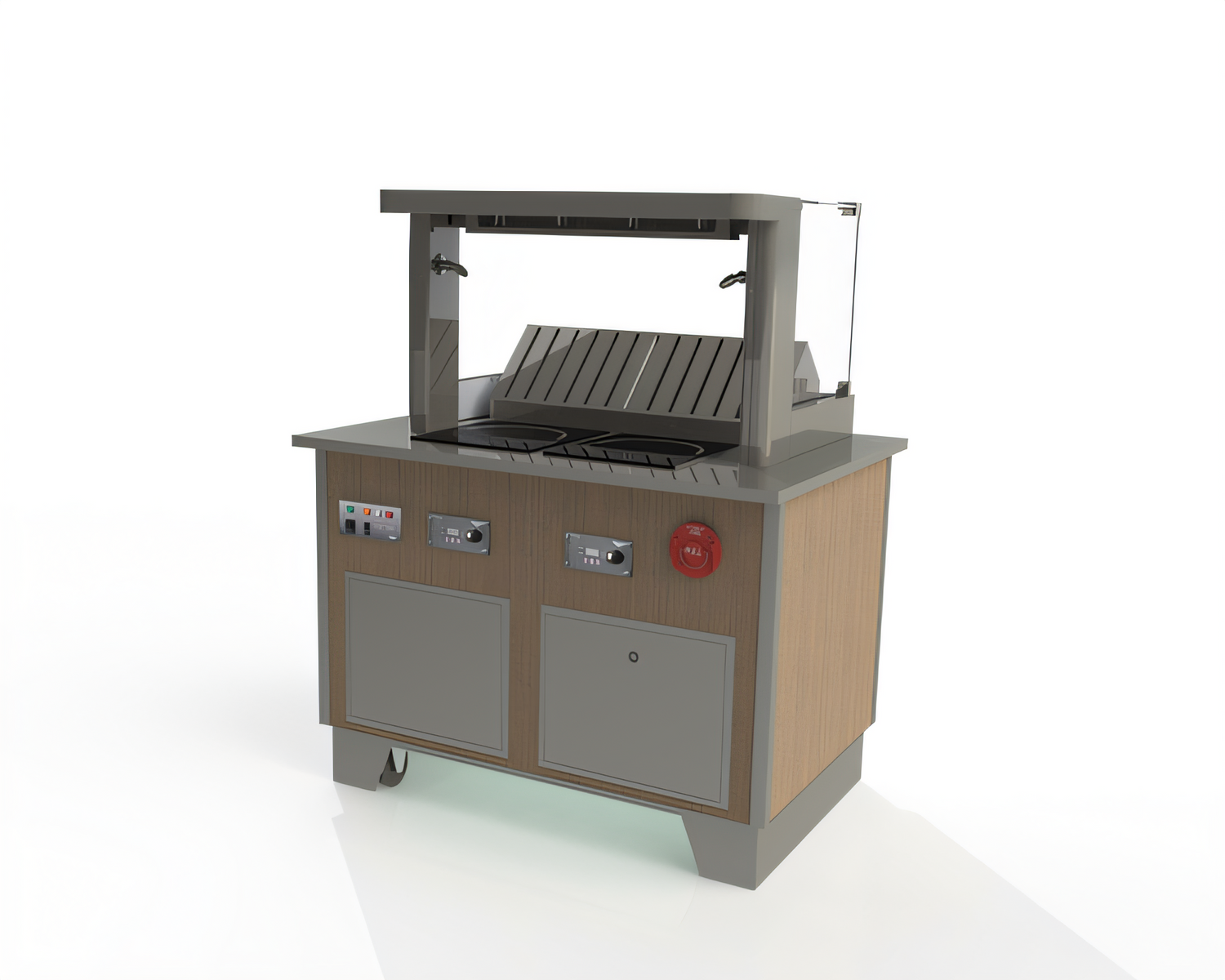

4-Series Signature Server® Downdraft Vent System
Ventless induction cooking station with integrated ANSUL R-102 fire suppressionBring front-of-house cooking anywhere—no overhead hood or ductwork required. The Signature Server® combines Vollrath’s proven Mirage® induction technology with a UL-listed recirculating ventilation module and a sleek, curved breath guard that protects food and guests while keeping sightlines clear.
Key Features
- Ventless downdraft system captures grease, smoke and odor at the source—UL 710B certified.
- Factory-installed ANSUL R-102 fire suppression system for code-compliant protection (ships uncharged).
- 18 in (457 mm) curved, tempered-glass breath guard meets NSF® requirements and maximizes customer visibility.
- (2) reusable grease filters and (2) carbon/particulate filters included for clean, recirculated air.
- One 59501 Mirage® drop-in induction hob delivers 1–100 % power control, 1–180-minute timer and 86 % efficiency.
- Matching rectangular cutting board fills the non-induction well for prep or plating.
- Rugged 4-Series stainless-steel base with reinforced 18-ga unibody construction and tubular frame.
- Stainless kick plates on front, left & right sides for a finished, durable look.
- 5 in swivel locking casters with adjustable legs—roll it to service and level it for use.
- 6 ft power cord; vent module (NEMA 5-30P) and hob (NEMA 5-15P) plug into standard 120 V outlets.
Certifications & Compliance
| UL Listings | UL 710B (ventless), UL 197 (electrical), UL Sanitation |
|---|---|
| NSF | NSF/ANSI 2 & 4 |
| NFPA | Meets NFPA 96 requirements |
| EPA Method 202 | < 5.00 mg/m³ particulate (30 % fat ground beef) |
| FCC | Complies with Part 18 |
Included Components
- 4-Series Signature Server® base with downdraft vent module
- Curved 18 in tempered-glass breath guard
- ANSUL R-102 fire suppression system (uncharged)
- Mirage® 59501 1,800 W induction hob
- Rectangular NSF® poly cutting board
- (2) UL1046 grease filters & (2) carbon/particulate filters
Ordering & Lead Time
Made-to-order in Sheboygan, WI. Standard lead time is 8–10 weeks from receipt of purchase order and approved drawings. Ships FOB Factory.
ANSUL charging, inspection and commissioning are performed by your local authorized ANSUL dealer and are not included in the purchase price.
Covered by Vollrath’s two-year limited warranty on materials and workmanship. See vollrathfoodservice.com for complete terms.
