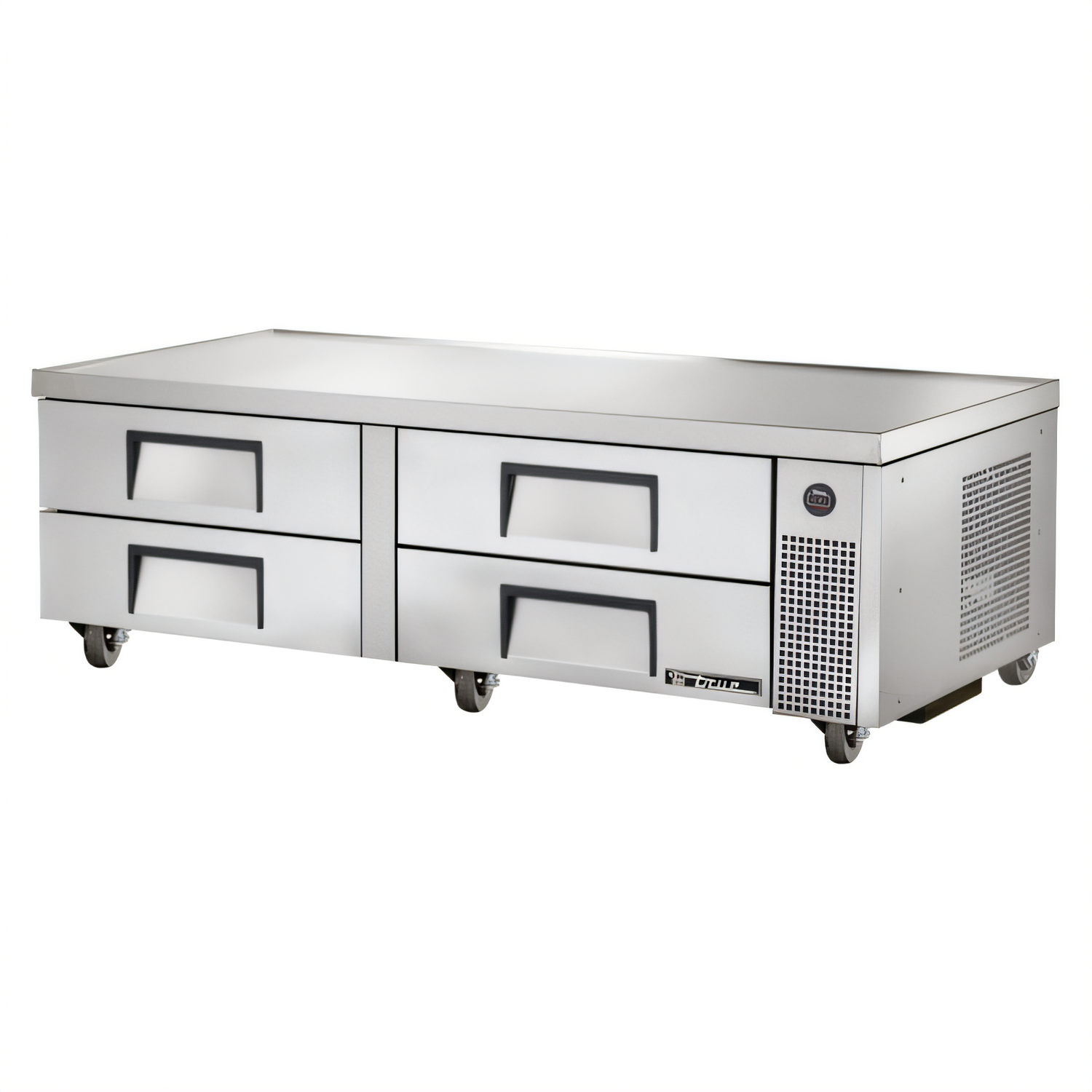

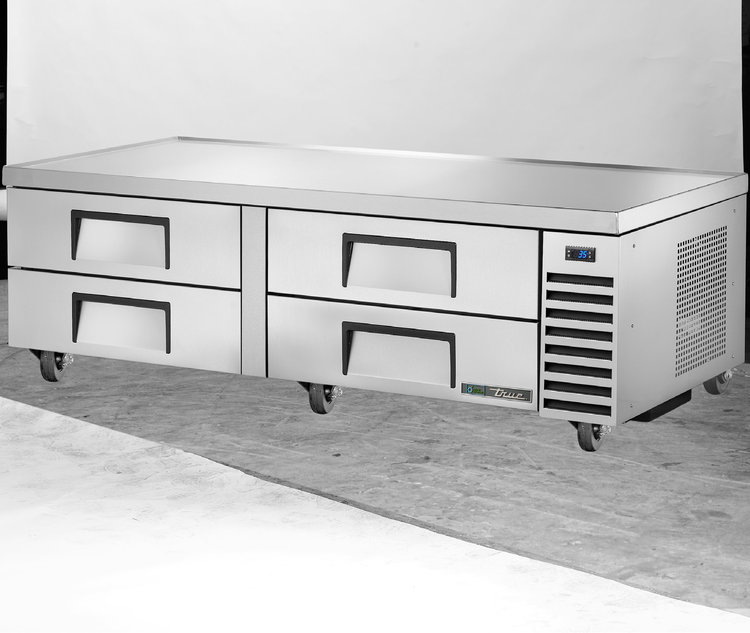

True TRCB-72-HC Refrigerated Chef Base – 72" (4 Drawer)
Built-to-last cold storage for busy cooklinesKeep ingredients ice-cold and right where the action is. The American-made True TRCB-72-HC slides effortlessly under countertop griddles, charbroilers and ranges, giving you four refrigerated drawers that hold up to eight full-size food pans while supporting more than half a ton of cooking equipment on top.
Why you’ll love it
- Four full-extension drawers – each fits (2) 12" × 20" × 4" pans (pans sold separately).

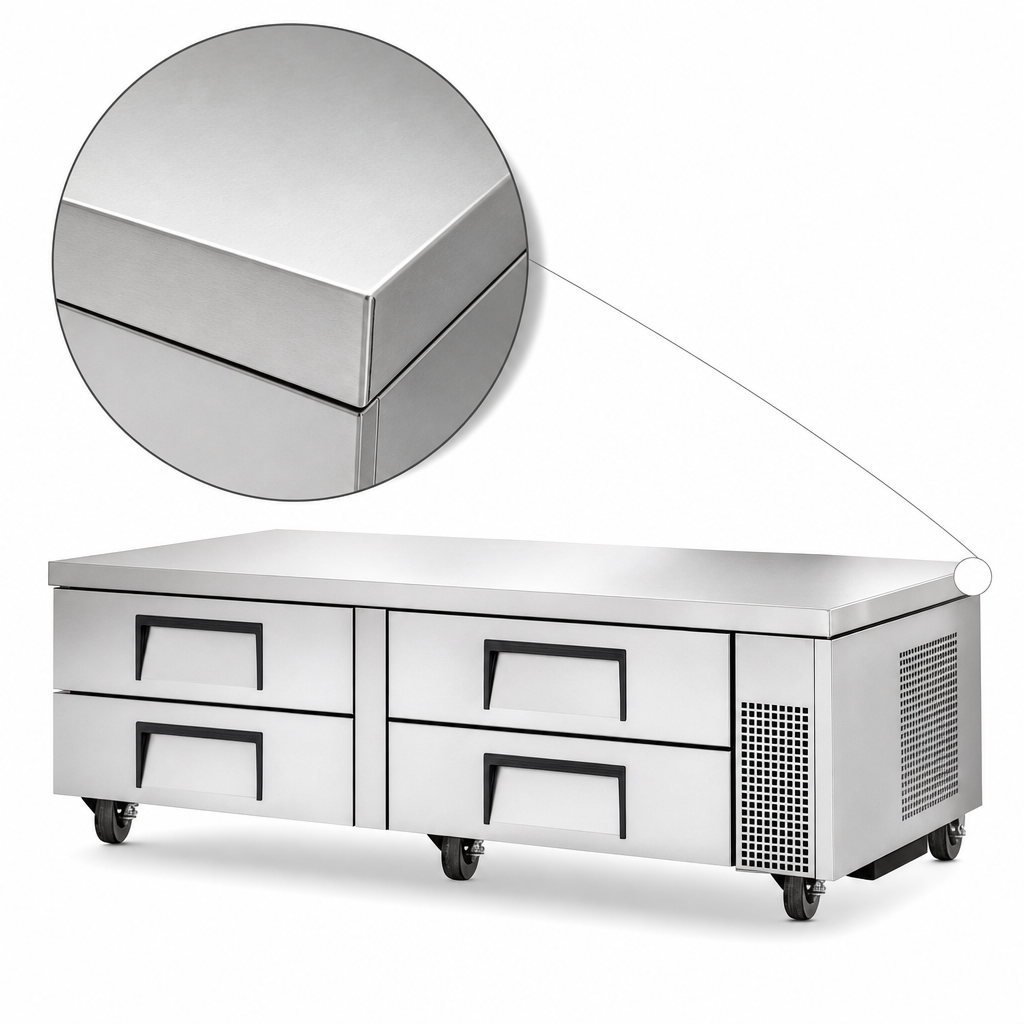

- One-piece 18-gauge 300-series stainless steel top with drip-resistant “V” edge; supports up to 1,084 lb (492 kg).
- Factory-balanced, self-contained refrigeration system charged with natural R290 hydrocarbon refrigerant (zero ODP, 0.02 GWP).
- Maintains food-safe 33 °F – 38 °F (0.5 °C – 3.3 °C) even during peak service thanks to an oversized evaporator coil, 1/3 HP compressor and large condenser.
- All-stainless front, top and sides with corrosion-resistant GalFan-coated steel back.
- Aluminum interior and coved stainless steel floor for quick wipe-downs.
- Heavy-duty stainless drawer slides & rollers remove without tools; one-piece magnetic gaskets pull out for fast sanitation.
- Exterior digital temperature display for instant HACCP checks.
- 4" locking plate castors let you roll the unit for cleaning and service.
- cULus, UL EPH Classified & CE listed; NSF/ANSI 7 compliant for open food storage.
Technical specifications
| Model | TRCB-72-HC |
|---|---|
| Exterior dimensions (W × D × H) | 72 3/8" × 32 1/8" × 20 1/2" 24 1/2" overall height with 4" castors |
| Drawer capacity | 4 drawers / (8) 12" × 20" × 4" pans |
| Temperature range | 33 °F – 38 °F (0.5 °C – 3.3 °C) |
| Refrigerant | R290 (hydrocarbon) |
| Compressor | 1/3 HP, rear-mounted slide-out |
| Electrical | 115 V / 60 Hz / 1 ph • 4.4 A • NEMA 5-15P |
| Cord length | 10 ft (3.05 m) |
| Insulation | Foamed-in-place high-density polyurethane |
| Crated weight | 435 lb (198 kg) |
| Approvals | cULus, UL EPH, CE |
| Country of origin | Made in the USA |
Energy & sustainability benefits
- Natural R290 refrigerant – minimal environmental impact.
- Low-velocity, high-volume airflow design shortens run times and cuts utility costs.
- Zero-ODP / zero-GWP foamed-in-place insulation locks in cold air.
Installation note: Maintain at least 4" (102 mm) clearance between the bottom of
any countertop cooking equipment and the chef-base top. A heat shield is recommended for
maximum performance and warranty protection.
What’s in the box
- TRCB-72-HC refrigerated chef base with 4" locking castors (pre-installed)
- 10 ft power cord & NEMA 5-15P plug
Protected by True’s industry-leading 7-year parts, labor & compressor warranty for worry-free ownership.
True Mfg. - General Foodservice
True Mfg. - General Foodservice TRCB-72-HC Undercounter & Worktop Refrigeration
SKU: TRCB-72-HC
$7,921.88
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to
?
True Mfg. TRCB-72-HC refrigerated chef base: 72" stainless worktop, four drawers, R290 efficiency, durable stainless/aluminum build. Made in USA.
Manufacturer
True Mfg. - General Foodservice
Certifications
CE, cULus, UL EPH Classified, Made in USA
Height
20.38in
Width
72.38in
Depth
32.13in
Shipping Weight
485.0lbs
Drawer Qty
4 drawers
Compressor HP
1/3 HP
Refrigeration
self-contained, side mounted
Top Finish
stainless steel top
Width
61" - 72" wide
Specifications
Refrigerated Chef Base, 72-3/8"W base, one-piece 300 series 18 gauge stainless steel top with V edge, (4) drawers (accommodates (2) 12" x 20" x 4" pans, NOT included), stainless steel front/sides, aluminum back, aluminum interior with stainless steel floor, 4" castors, R290 Hydrocarbon refrigerant, 1/3 HP, 115v/60/1-ph, 4.4 amps, NEMA 5-15P, cULus, UL EPH Classified, CE, Made in USA
