Description

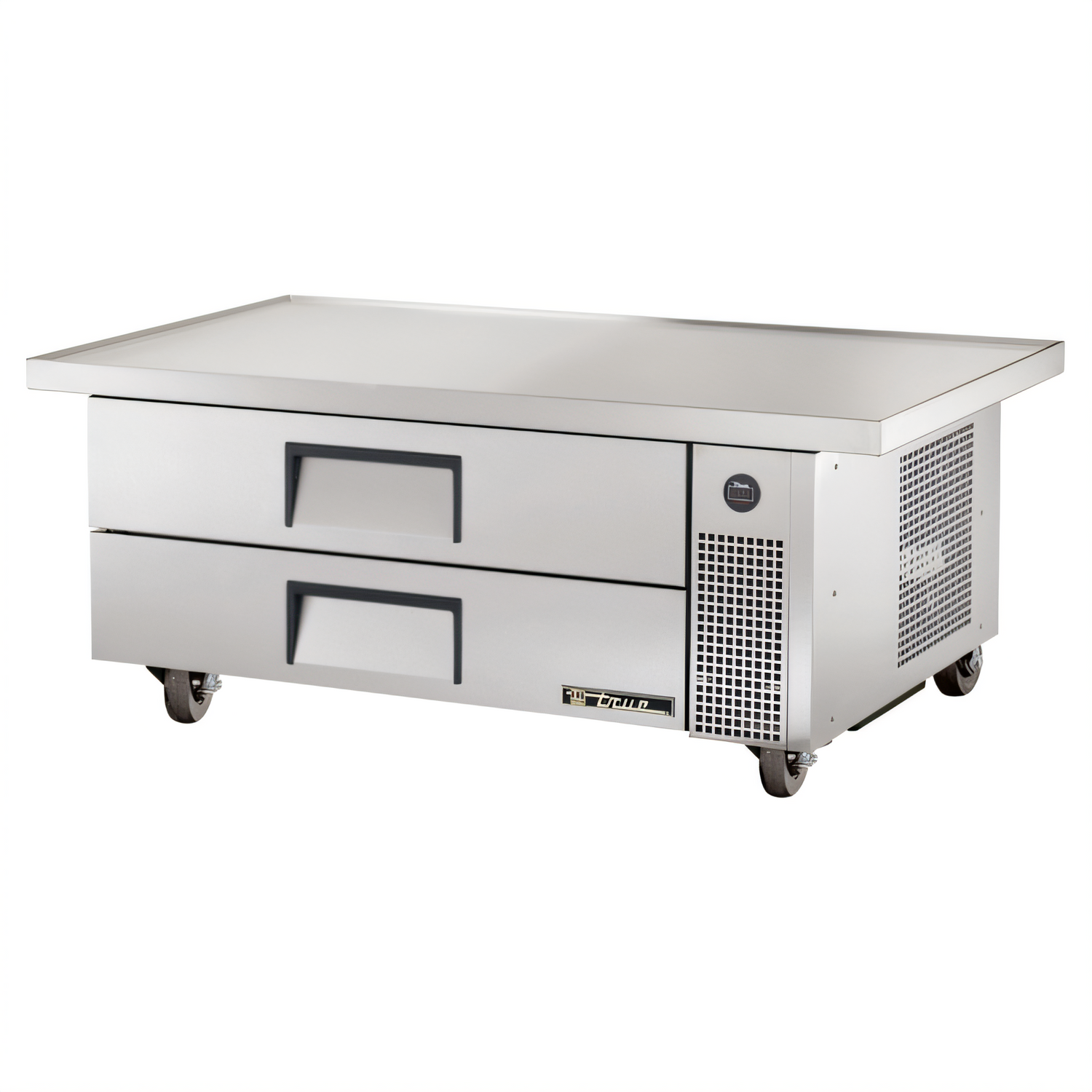

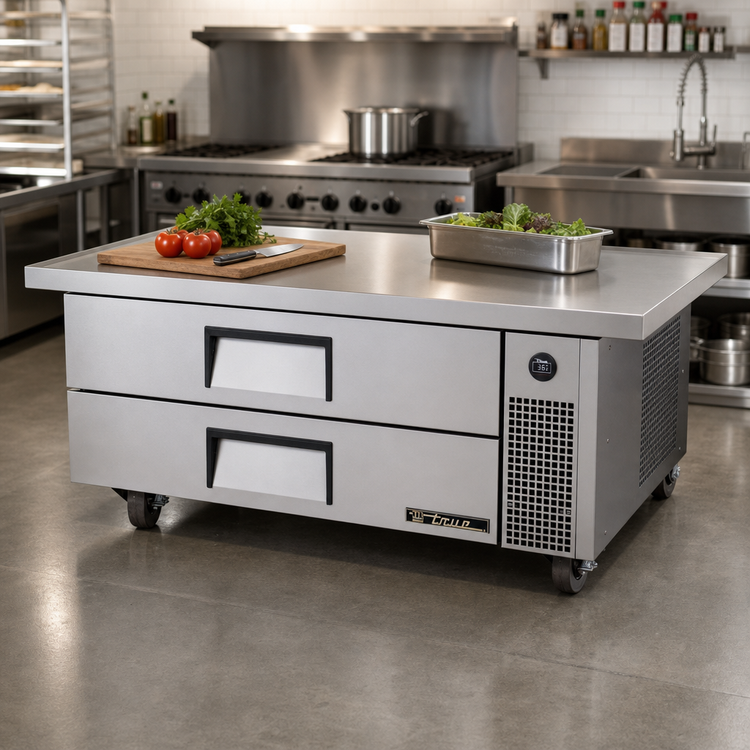

True TRCB-52-60-HC Refrigerated Chef Base – 60" Wide, 2 Drawers

Eco-friendly R290 | 33-38 °F holding | Made in USA

Give your grill station instant, ice-cold storage with the True TRCB-52-60-HC. This heavy-duty chef base keeps ingredients at a food-safe 33-38 °F while its 18-gauge stainless top shoulders up to 717 lb of cooking equipment—perfect for griddles, charbroilers and more.

Key Features

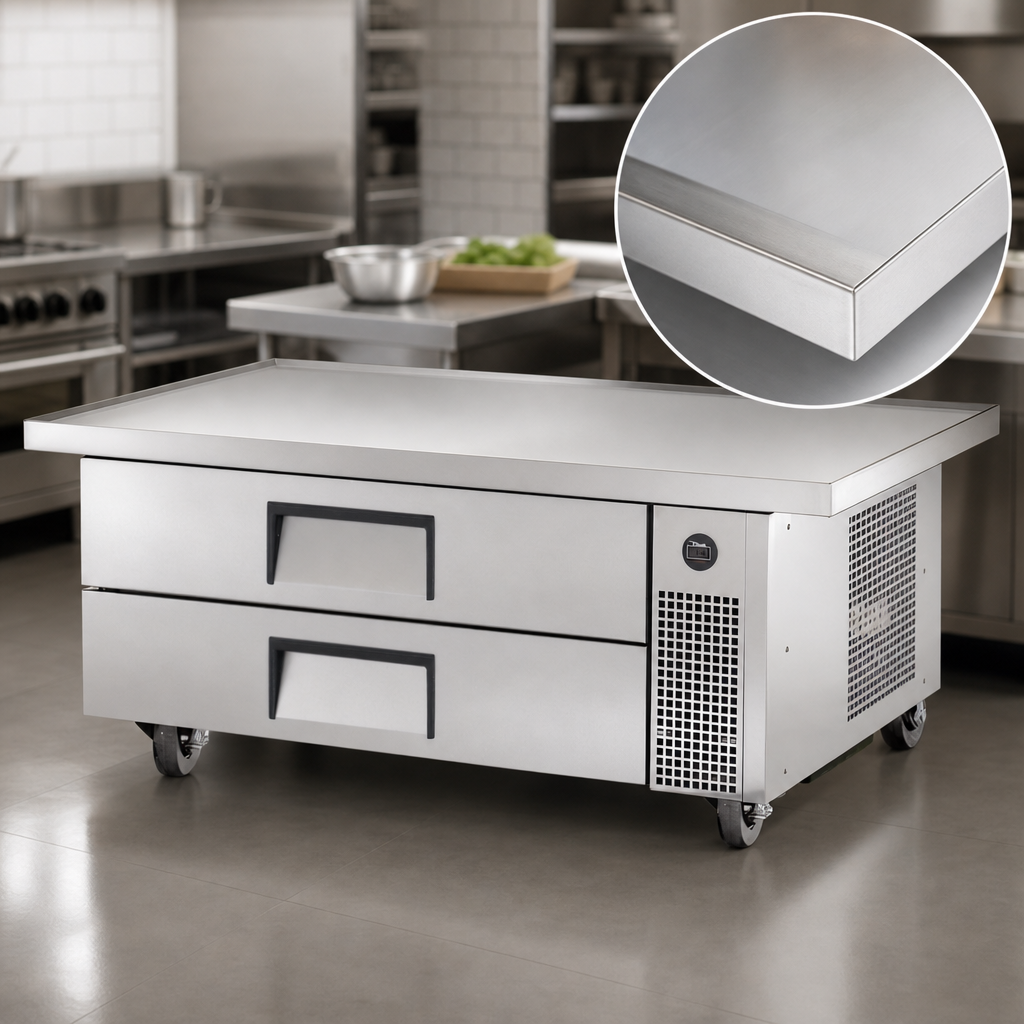

  • One-piece 300-series stainless steel top with drip-resistant V-edge—no seams, no leaks, no warping.
  • Oversized, factory-balanced refrigeration system with natural R290 hydrocarbon refrigerant  (0 ODP / 0.02 GWP).
  • (2) full-extension drawers—each holds three full-size 12" × 20" × 4" hotel pans (pans not included).
  • Stainless steel drawer slides & rollers remove tool-free for fast cleanup.
  • Extra-large evaporator coil and high-volume, low-velocity airflow for rapid temperature recovery.
  • Foamed-in-place, high-density polyurethane insulation (zero ODP & GWP).
  • 4" locking plate casters installed—roll it out for easy floor cleaning.
  • Exterior digital temperature display; NSF/ANSI 7 listed for open food storage.
  • cULus, UL EPH Classified & CE certified.

Specifications

Model TRCB-52-60-HC
Temperature Range 33 °F – 38 °F (0.5 °C – 3.3 °C)
Refrigerant R290 Hydrocarbon
Compressor 1/4 HP, self-contained capillary tube
Drawers / Capacity 2 drawers – 3 full-size pans per drawer
Top Load Rating 717 lb (326 kg)
Exterior Dimensions
(W × D × H)		 60" × 32 1/8" × 20 1/2"
(1524 × 814 × 520 mm)
Add 5" (127 mm) for casters
Electrical 115 V / 60 Hz / 1-ph, 2.4 A, NEMA 5-15P cord & plug included
Shipping Weight 370 lb (168 kg)

Certifications

  • cULus
  • UL EPH Classified
  • CE
  • NSF/ANSI 7 for open food product
Important: 1) Food pans and countertop cooking equipment are shown for reference only and are not included. 2) Maintain a minimum 4" (102 mm) clearance between the chef-base top and any heat source. 3) Installing a heat shield is recommended for optimum performance.

Best-in-class Warranty

True Refrigeration backs this unit with an unmatched 7-year parts, labor and compressor warranty throughout the U.S. & Canada—peace of mind included.

Features & Specs

Manufacturer

True Mfg. - General Foodservice

Certifications

CE, cULus, UL EPH Classified, Made in USA

Height

20.38in

Width

60.0in

Depth

32.13in

Shipping Weight

370.0lbs

Compressor HP

1/4 HP

Top Finish

stainless steel top

Refrigeration

self-contained, side mounted

Width

49" - 60" wide

Drawer Qty

2 drawers

Specifications

Refrigerated Chef Base, 51-7/8"W base, 60"W one-piece 300 series 18 gauge stainless steel top with V edge, (2) drawers (accommodates (3) 12" x 20" x 4" pans, NOT included), stainless steel front/sides, aluminum back, aluminum interior with stainless steel floor, 4" castors, R290 Hydrocarbon refrigerant, 1/4 HP, 115v/60/1-ph, 2.4 amps, NEMA 5-15P, cULus, UL EPH Classified, CE, Made in USA
