Description

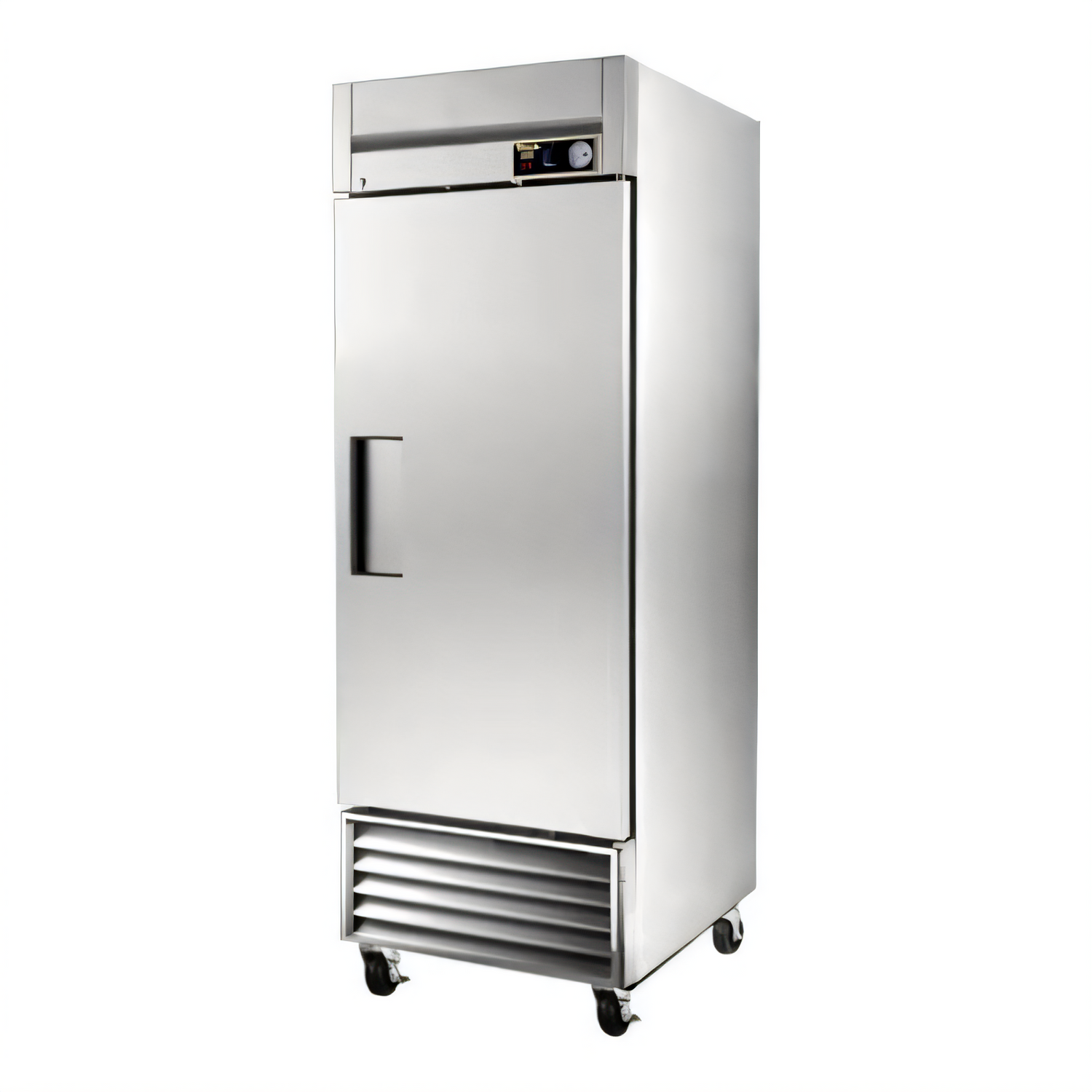

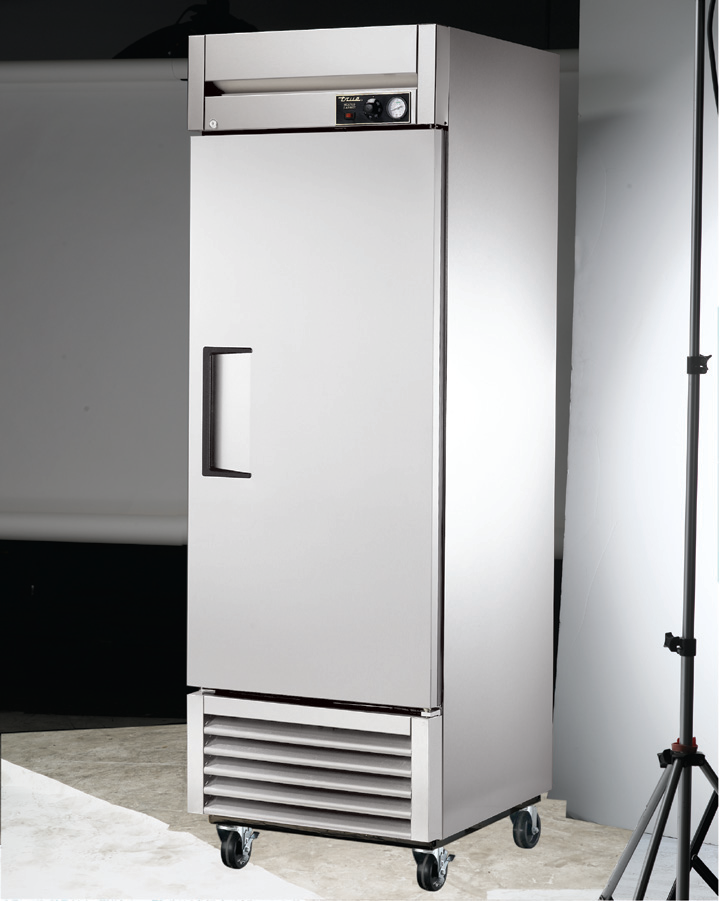

True TH-23 Reach-In Heated Cabinet

1-Section • Solid Door • 23 cu ft • 80-180 °F Holding Range

Keep plated entrées, sheet-panned sides, and other cooked foods hot, fresh, and service-ready with the True TH-23. This USA-built reach-in delivers even, low-velocity heat from 80 °F to 180 °F (26.6 °C – 82.2 °C) in a compact, single-door footprint that fits virtually any line-up or back-of-house layout.

Key performance & durability features

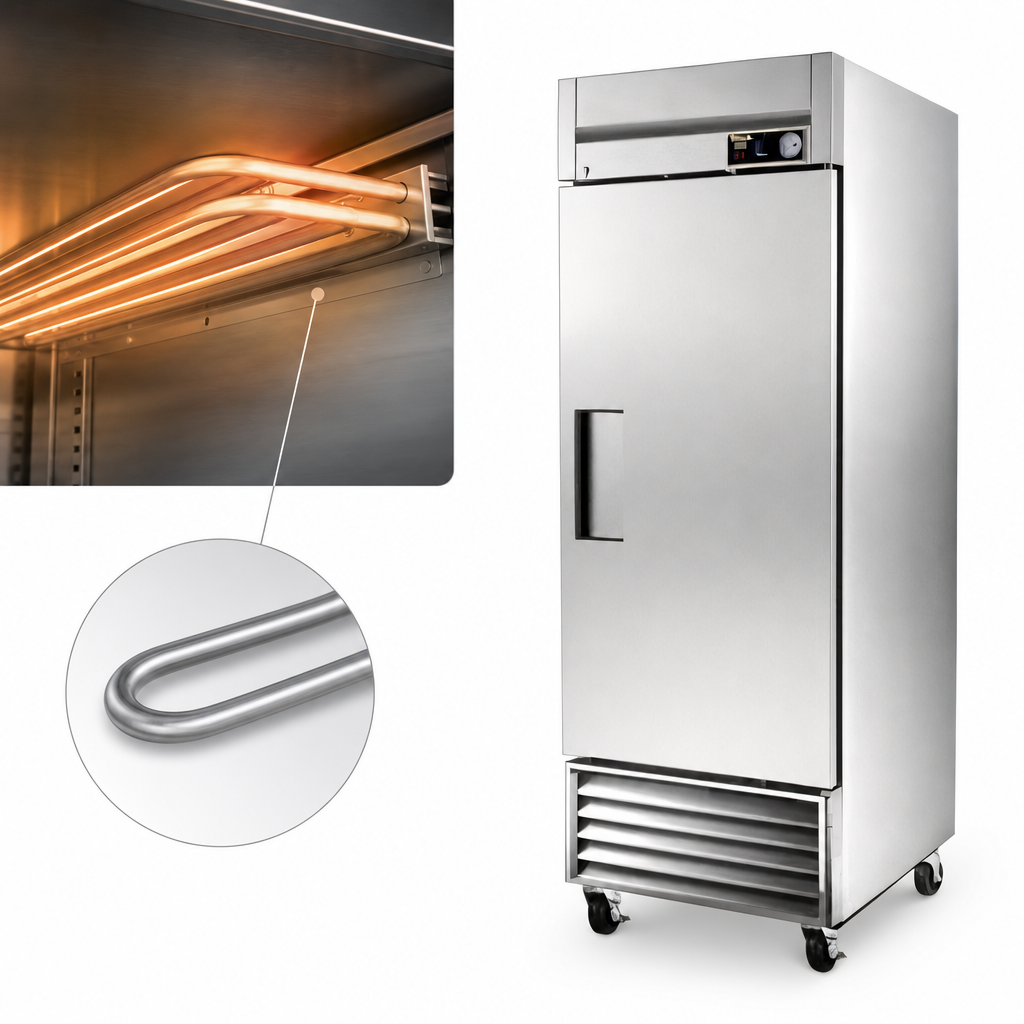

  • 850-watt corrosion-resistant stainless steel element supplies consistent heat.

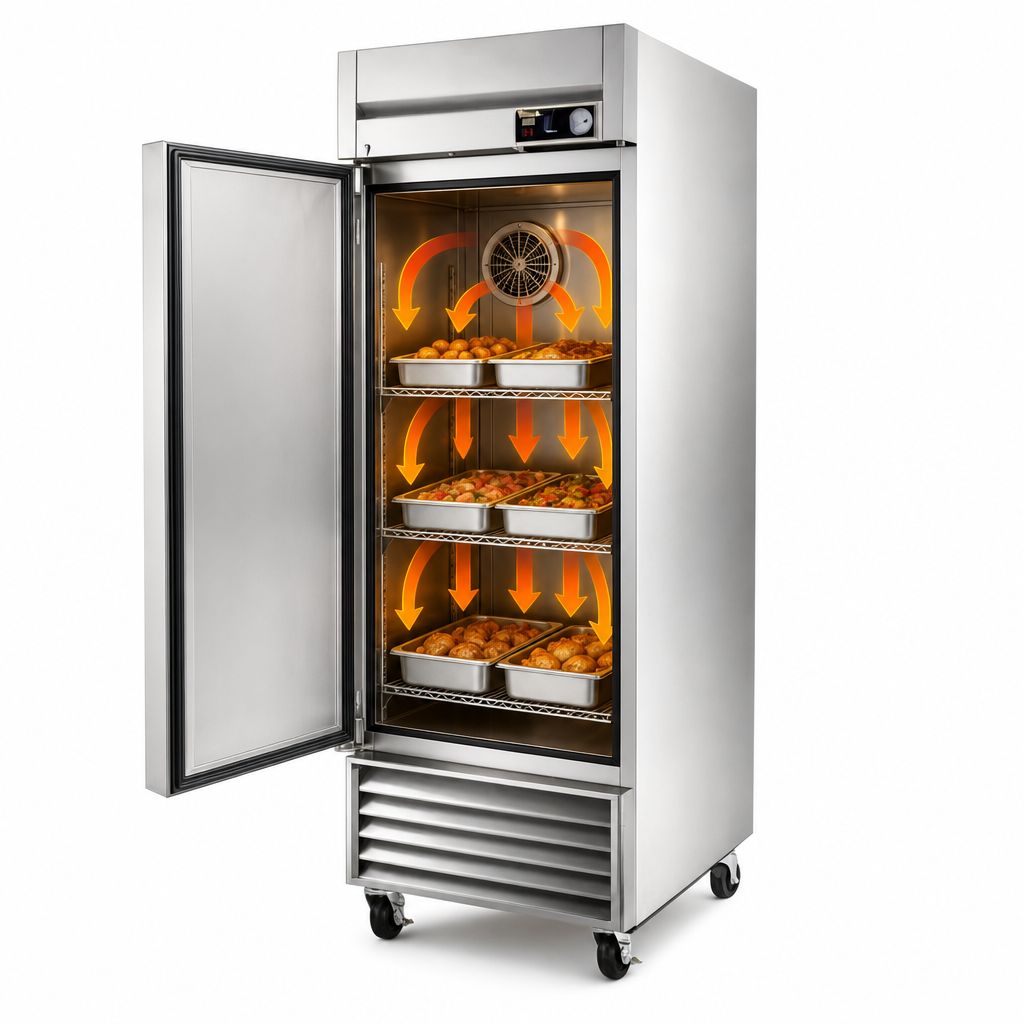

  • Internal fan circulates low-velocity, forced-air heat for uniform cabinet temperatures.
  • Manual top-mounted vent for positive humidity control; 12 × 20 × 1 in. humidity pan included.
  • Exterior on/off rocker & easy-read temperature dial with exterior dial thermometer.
  • Self-closing, right-hinged solid stainless door with lock, lifetime-guaranteed hinges, and 12 in. recessed handle.
  • Three heavy-duty, chrome-plated wire shelves (21 ¼ in. L × 23 ¼ in. D) on ½-in. adjustable aluminum pilasters.
  • Bright, shielded interior lighting for quick product identification.
  • 4 in. stem castors (front locking) for effortless mobility during cleaning or kitchen re-sets.
  • Foamed-in-place, zero-ODP/zero-GWP polyurethane insulation maximizes energy efficiency.
  • Stainless steel front & door, anodized aluminum sides, stainless interior liner & floor.
  • NSF/ANSI 4, cULus & UL EPH Classified for open food storage.
  • Backed by an industry-leading 7-year parts & labor warranty (U.S./Canada).
Important: The TH-23 is engineered to hold hot food that has already been cooked to a safe internal temperature. It is not designed to heat ambient or refrigerated product.

At-a-glance specifications

Capacity Approx. 23 cu ft
Temperature range 80 °F – 180 °F (26.6 °C – 82.2 °C)
Exterior dimensions (W × D × H) 27 in. × 29 1⁄2 in. × 78 3⁄8 in.
(686 × 750 × 1991 mm) – add 5 in. for castors
Shelves (adjustable) 3 heavy-duty chrome wire (4 clips each)
Construction Stainless front & door / aluminum sides / stainless interior
Heat source Stainless steel sheathed element, 850 W
Electrical 115 V / 60 Hz / 1-phase, 7.8 A, NEMA 5-15P (9 ft cord)
Mobility 4 in. diameter stem castors, front locking
Certifications cULus, UL EPH Classified, NSF/ANSI 4
Country of origin Made in the USA
Shipping weight 260 lb (118 kg)

What’s included

  • True TH-23 heated cabinet with 4 in. castors installed
  • 3 adjustable chrome wire shelves & shelf clips
  • 12 × 20 × 1 in. humidity water pan
  • Factory-installed door lock & magnetic door gasket
  • NEMA 5-15P cord & plug (pre-wired)

Need additional shelves, bun pan racks, or 6 in. legs? Compatible factory-approved accessories are available upon request.

Features & Specs

Manufacturer

True Mfg. - General Foodservice

Certifications

cULus, UL EPH Classified, Made in USA

Height

78.38in

Width

27.0in

Depth

29.5in

Shipping Weight

260.0lbs

Exterior Finish

all stainless steel exterior

Interior configuration

shelves

Interior Finish

stainless steel interior

Doors

hinged solid

Depth

standard depth

Size

1 section

Specifications

Heated Cabinet, reach-in, one-section, (1) solid hinged door with lock, (3) heavy-duty chrome-plated adjustable shelves, interior lighting, stainless steel front, aluminum sides, stainless steel interior, 4" castors, 850 watts, 115/60/1-ph, 7.8 amps, NEMA 5-15P, cULus, UL EPH Classified, Made in USA
