Star (Middleby) UM1854 Ultra-Max Conveyor Ovens
Description

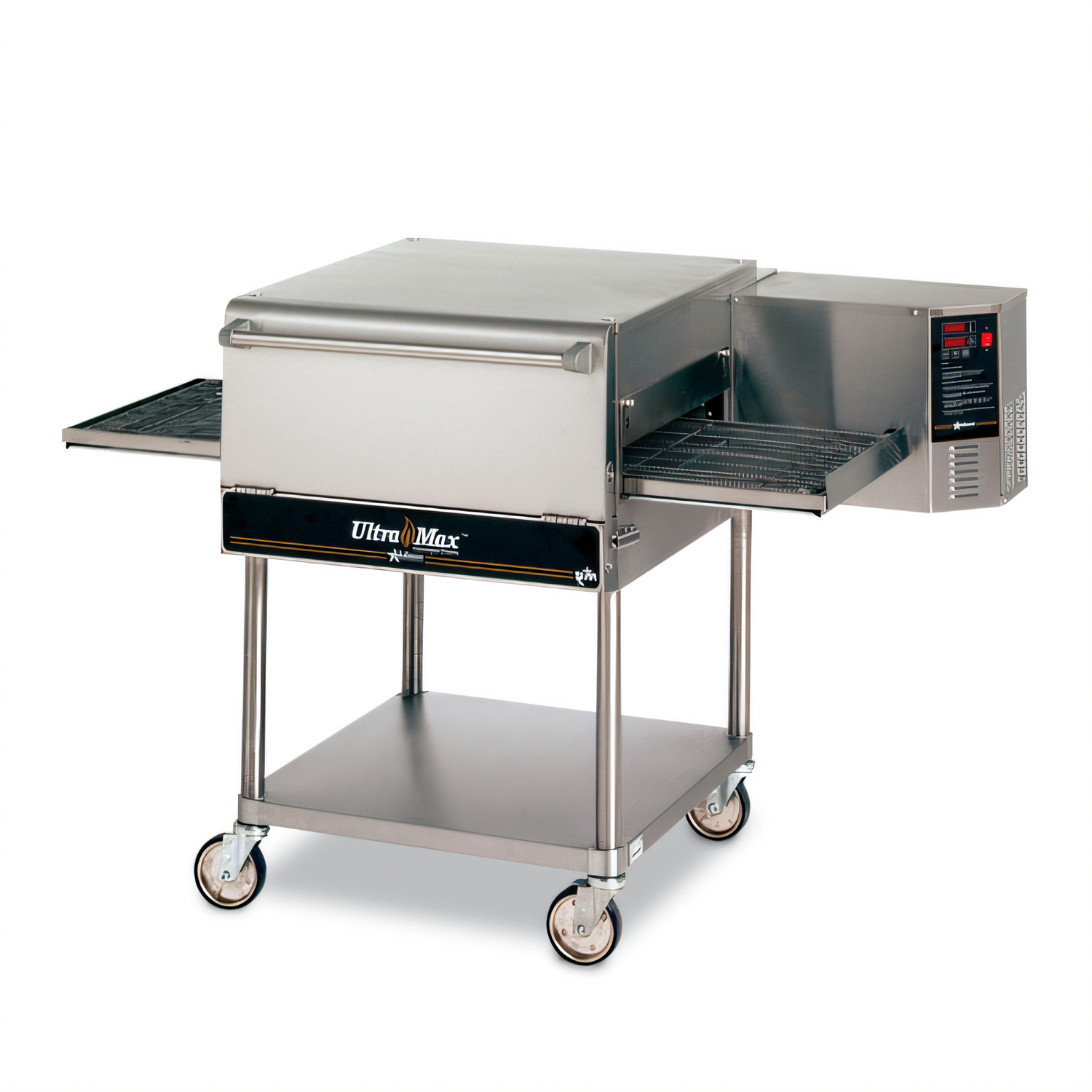

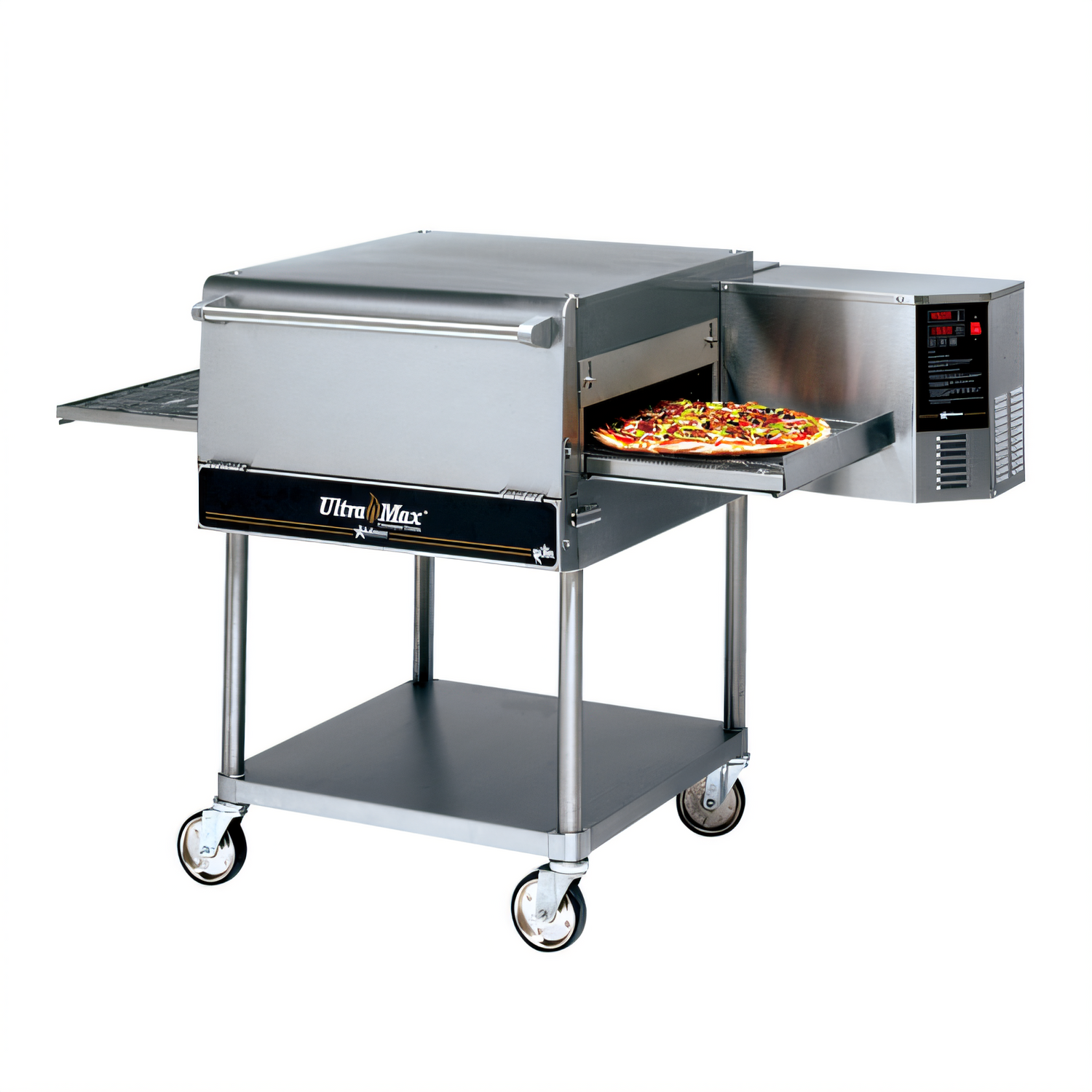

Star Ultra-Max® UM1854 Gas Impingement Conveyor Oven
18" x 54" Conveyor • 40,000 BTU • Countertop Single-DeckGive your kitchen the speed of an impingement oven without sacrificing space. The Star Ultra-Max UM1854 drives 40,000 BTU of forced hot air across an 18" stainless-steel conveyor, locking in moisture while producing the consistent, crave-worthy finish today’s customers expect—batch after batch.
Key Features
- Air-impingement technology cooks up to 50 % faster than conventional ovens.
- 18" (457 mm) wide x 54" (1.37 m) long stainless-steel conveyor belt handles pizzas, subs, wings & more.
- 28" (711 mm) cook chamber with adjustable 3.5" (89 mm) product opening.
- Easy-to-use electronic controller stores 6 programmable menu presets and offers diagnostics & lock-out.
- Left-to-right belt travel standard; field-convertible to right-to-left in minutes—no extra parts needed.
- Drop-down door plus tool-free removable impingement fingers for fast cleaning.
- Stackable design (up to two ovens) with optional legs or caster stand to maximize volume, not footprint.
- Auxiliary cooling fan protects control components for extended service life.
- All-stainless construction built for demanding commercial environments.
- Factory-paid start-up and 1-year parts & labor warranty included.
Specifications
| Model | UM1854 |
|---|---|
| Heat Source | 40,000 BTU stainless-steel burner (natural or LP) |
| Electrical | 120 V / 60 Hz / 1-ph, 0.5 A, 10 ft cord, NEMA 5-15P |
| Conveyor Belt | 18" W × 54" L (457 × 1,370 mm), stainless steel, reversible |
| Cook Chamber | 18.9" W × 28" L × 3.5" H (480 × 711 × 89 mm) |
| Overall Dimensions | 60.6" W × 39.3" D × 17.3" H (1,540 × 998 × 439 mm) |
| Installed / Shipping Weight | 290 lb (132 kg) / 352 lb (160 kg) |
| Gas Connection | ½" NPT (¾" if supply run exceeds 10 ft / 3 m) |
| Certifications | cULus, UL EPH Classified, Made in USA |
Optional Accessories
- 6" input shelf (UMENTRY6)
- Output shelves: 8" (UMEXIT8), 8" with drop (UMEXIT8D), or 10.5" (UMEXIT11)
- 4" leg kit (UMLK)
- Single or double-stack stand with casters (ES-UM1854)
- Nozzle plates for custom airflow patterns (upper UMGNT-xxx / lower UMGNB-xxx)
