Star (Middleby) 772TCHSA Ultra-Max Electric Griddles
Description
Star Ultra-Max® 72" Electric Chrome Griddle
Model 772TCHSA • Heavy-Duty Countertop SeriesTackle high-volume breakfast, lunch and dinner menus with the largest member of Star’s Ultra-Max® line. The 772TCHSA pairs a full 6-foot chrome cooking surface with independent, snap-action controls to deliver the capacity, precision and durability busy kitchens demand—day after day.
Key Advantages
- Massive 72" W × 24" D (1830 × 610 mm) cooking surface—enough real estate for up to 150 pancakes per hour*
- 1" (25 mm) thick hexavalent chrome-plated T1 steel plate: reduced flavor transfer, lightning-fast recovery and simplified nightly clean-up
- Six independent 4.35 kW elements (one every 12")—that’s 26.1 kW of total muscle
- Snap-action thermostats mounted 3/16" below the plate sense and correct temperature swings instantly; 150-450 °F (66-232 °C) range
- 5" tapered wrap-around splash guard and 3.5" wide by 1" deep front trough funnel grease into dual 6-quart drawers
- Heavy-duty metal control knobs with positive-stop guards—built for life on the line
- Welded steel frame, full stainless exterior and 4" adjustable legs (1-5/8" travel) stand up to constant relocation and cleaning
- Ships from Tennessee—Made in the USA and backed by a 2-year parts & labor warranty

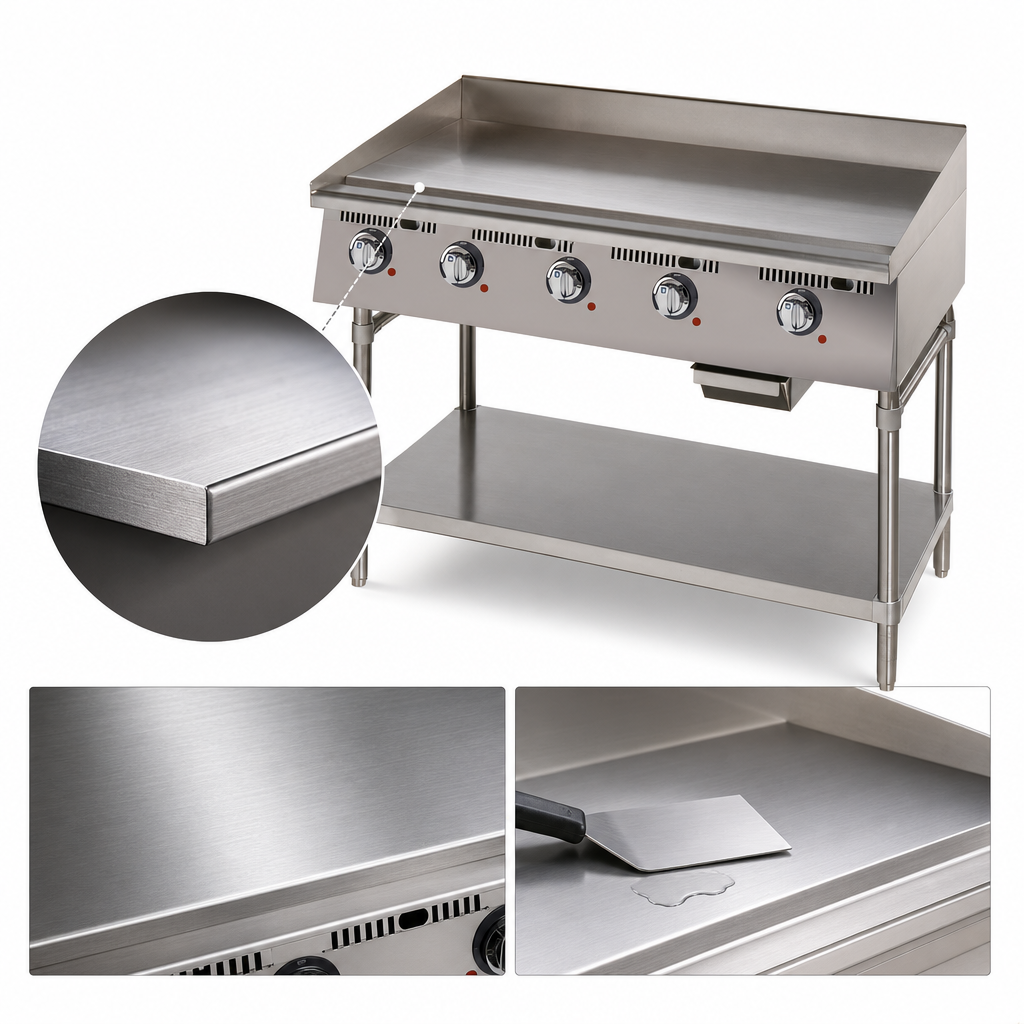

Why Choose Chrome?
- Saves up to 25 % in energy compared with traditional steel plates
- Minimizes sticking—shortens turn times and reduces oil usage
- Mirror finish wipes clean with water & razor scraper for labor-saving sanitation
Technical Specifications
| Cooking surface | 72" W × 24" D (1830 × 610 mm) |
|---|---|
| Control zones | 6 (one every 12") |
| Plate material / thickness | Chrome-plated T1 steel, 1" (25 mm) |
| Thermostat range | 150 °F – 450 °F (66 °C – 232 °C) |
| Element rating | 4.35 kW per zone • 26.1 kW total |
| Electrical | 208 V / 240 V, 3 Φ (field convertible 1 Φ), requires two hard-wired connections |
| Grease management | Dual 6 qt front drawers, 3.5" trough |
| Splash guard | 5" rear & side, tapered wrap-around |
| Exterior | Stainless steel, welded steel sub-frame |
| Overall dimensions | 72" W × 33.6" D × 18" H (1830 × 853 × 457 mm) |
| Shipping / installed weight | 798 lb / 670 lb (362 kg / 304 kg) |
| Certifications | UL, EPNS, Made in USA |
| Warranty | 2-year parts & labor (Ultra-Max series) |
*Output will vary with menu mix, product temperature and operator technique. Specifications are based on manufacturer data and are subject to change without notice.
