Star (Middleby) 548TGF Star-Max Electric Griddles
Description

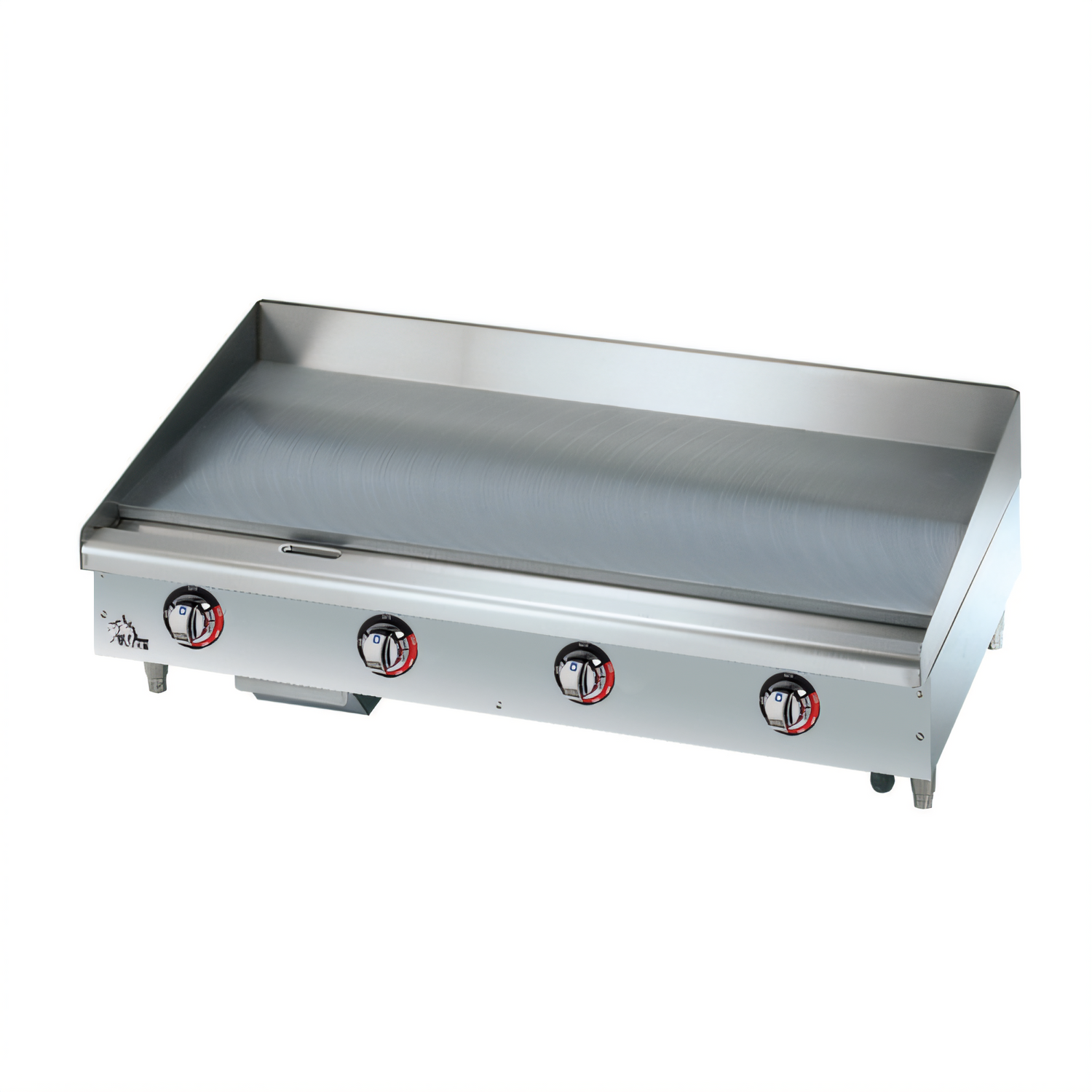

Star-Max® 548TGF 48" Electric Countertop Griddle
Heavy-Duty Snap-Action Series • Polished Steel PlateBuilt for high-volume kitchens that refuse to compromise on speed or consistency, the Star-Max 548TGF delivers precise temperature control across a generous 48" cook zone. Four independent snap-action thermostats react instantly to surface changes, while a full-inch thick polished steel plate stores massive heat for flawless searing, browning and finishing—all day, every day.
Key Features
- 48" W × 20-3/4" D cooking surface (10.3 sq ft) handles peak-hour demand with ease.

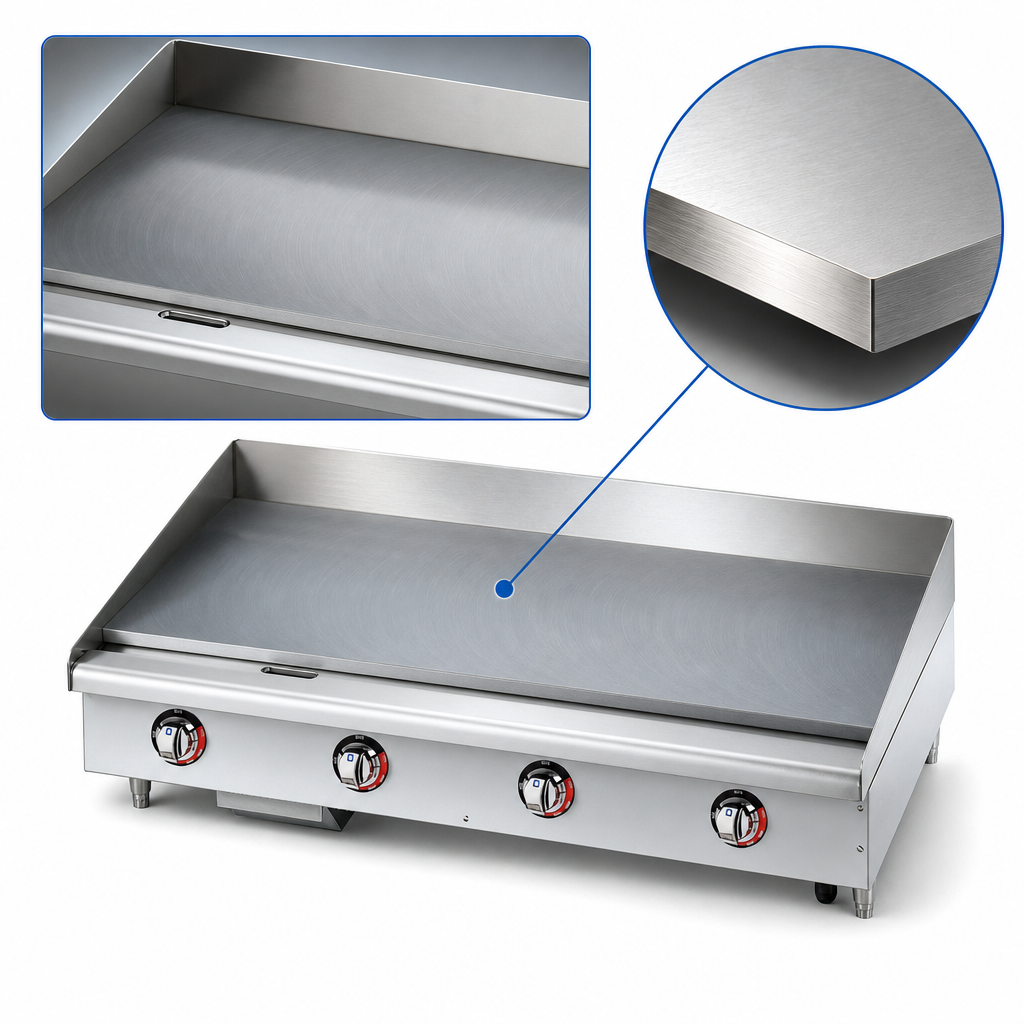

- 1" thick polished steel plate ensures even heat distribution and rapid recovery.

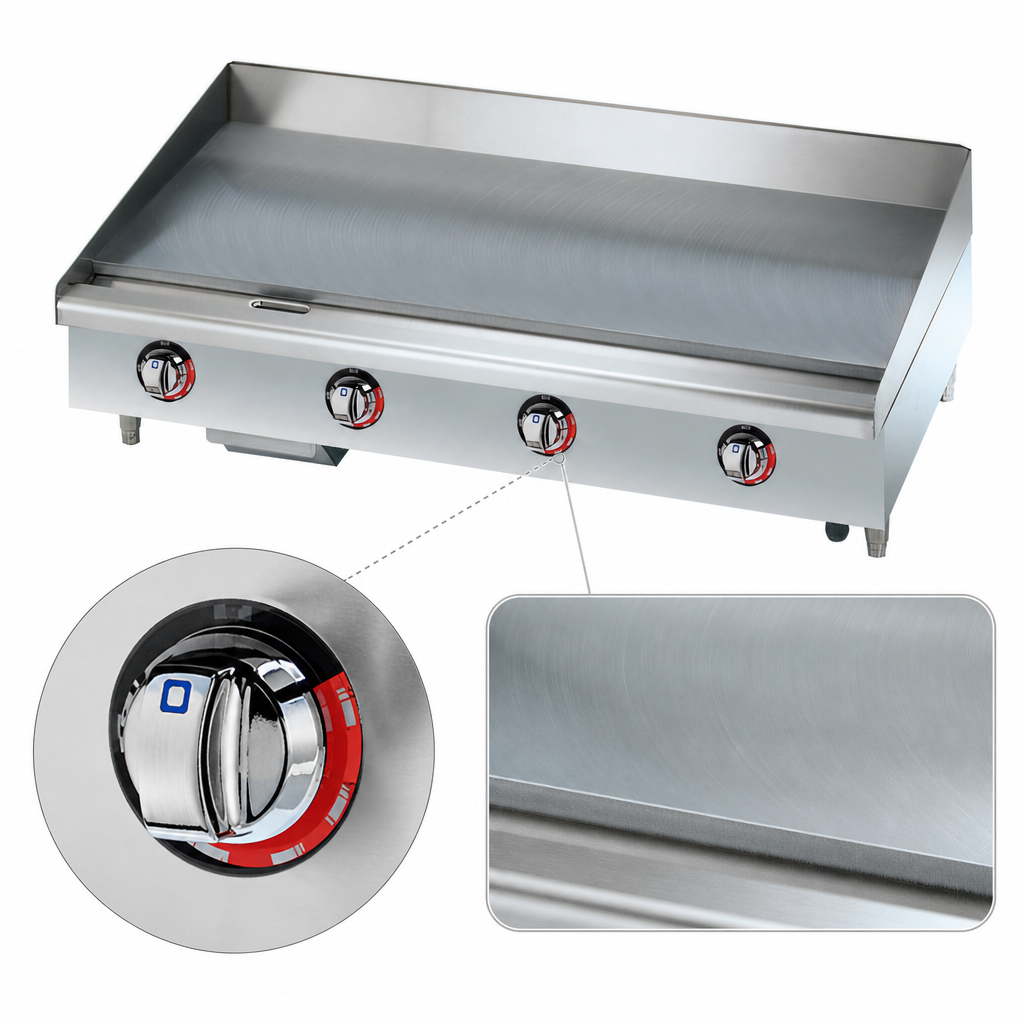

- Snap-action thermostats embedded 3/16" from the surface adjust from 150 - 450 °F for lightning-fast response.
- 16 kW total output – a powerful 4,000 W Incoloy element under every 12" section.
- Cool-to-the-touch bull-nose protects controls and provides a comfortable work zone.
- 4-1/2" wrap-around stainless splash guard plus 3-1/4" wide front grease trough keep workspaces clean.
- 4-1/2 qt. stainless steel grease drawer removes easily for quick dump and rinse.
- All-welded steel frame with stainless top & front and aluminized steel sides—built for years of abuse.
- Chrome-plated metal knobs stand up to heat and daily cleaning.
- Factory-installed 4" adjustable steel legs; safe clearance within 1" of combustibles.
- Made in the USA and fully certified: cULus, UL EPH Classified, CSA.
At-a-Glance Specs
| Model | 548TGF (Polished Steel Plate) |
|---|---|
| Cooking Area | 48" W × 20-3/4" D (1219 mm × 527 mm) |
| Overall Dimensions | 48" W × 27.9" D × 15.5" H |
| Power | 16 kW @ 240 V | 12.0 kW @ 208 V |
| Electrical | Field-convertible 1-Phase or 3-Phase; hard-wire connection |
| Temperature Range | 150 °F – 450 °F (65 °C – 232 °C) |
| Plate Thickness | 1" (26 mm) polished steel |
| Shipping / Installed Weight | 350 lb / 330 lb (159 kg / 150 kg) |
| Grease Drawer Capacity | 4-1/2 qt (4.3 L) |
| Certifications | cULus Listed, UL EPH Classified, CSA |
| Warranty | 2 years parts & labor (Star-Max series) |
Electrical note: unit must be hard-wired by a qualified electrician in accordance with local codes.
Why It Beats the Competition
- Faster recovery: Snap-action controls and thick plate bounce back quickly after loading.
- Sectional flexibility: Four thermostats let you sear proteins, hold pancakes and toast buns simultaneously.
- Service-friendly: Front-mounted grease system and easy-off knobs slash daily clean-up time.
- Space-savvy: Double-wall insulation allows installation just 1" from combustible surfaces.
