Star (Middleby)  |  Star-Max  |  SKU: 536TGF

Star (Middleby) 536TGF Star-Max Electric Griddles

$2,609.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Middleby financial flyer Installation & operation Warranty sheet
Related Searches
Electric Griddles Griddles & Flat Tops

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

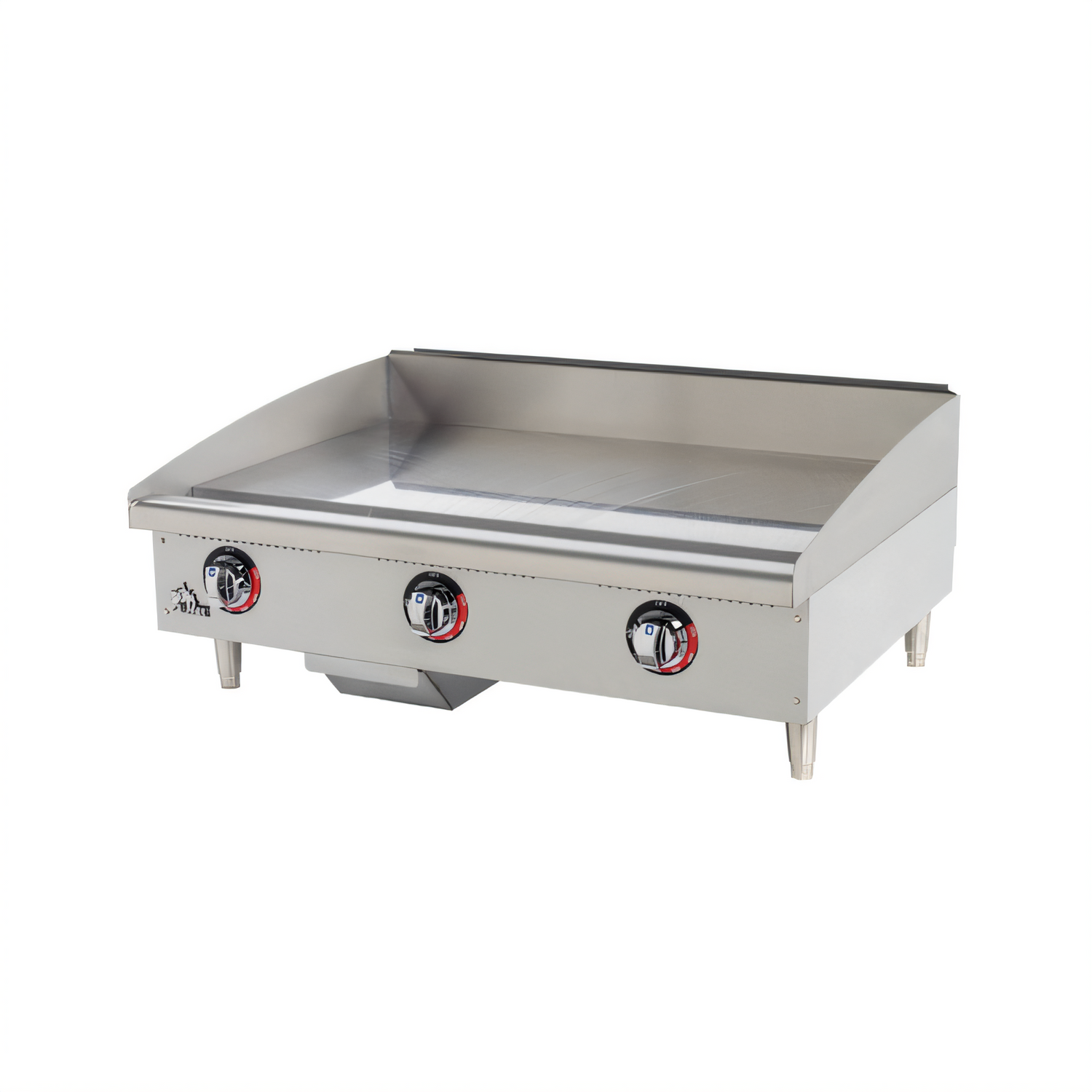

Star-Max® 36" Electric Heavy-Duty Countertop Griddle – Model 536TGF

12 kW snap-action precision • 1" polished steel plate • Made in the USA

Engineered for high-volume breakfast, lunch and late-night service, the Star-Max® 536TGF pairs rapid recovery with rock-solid construction in a compact 36-inch footprint. From sizzling burgers to delicate pancakes, you’ll get consistent, edge-to-edge results shift after shift.

Key Features

  • 36" W × 20-3/4" D (914 mm × 527 mm) cooking surface handles up to 48 eggs or 36 burgers at once.

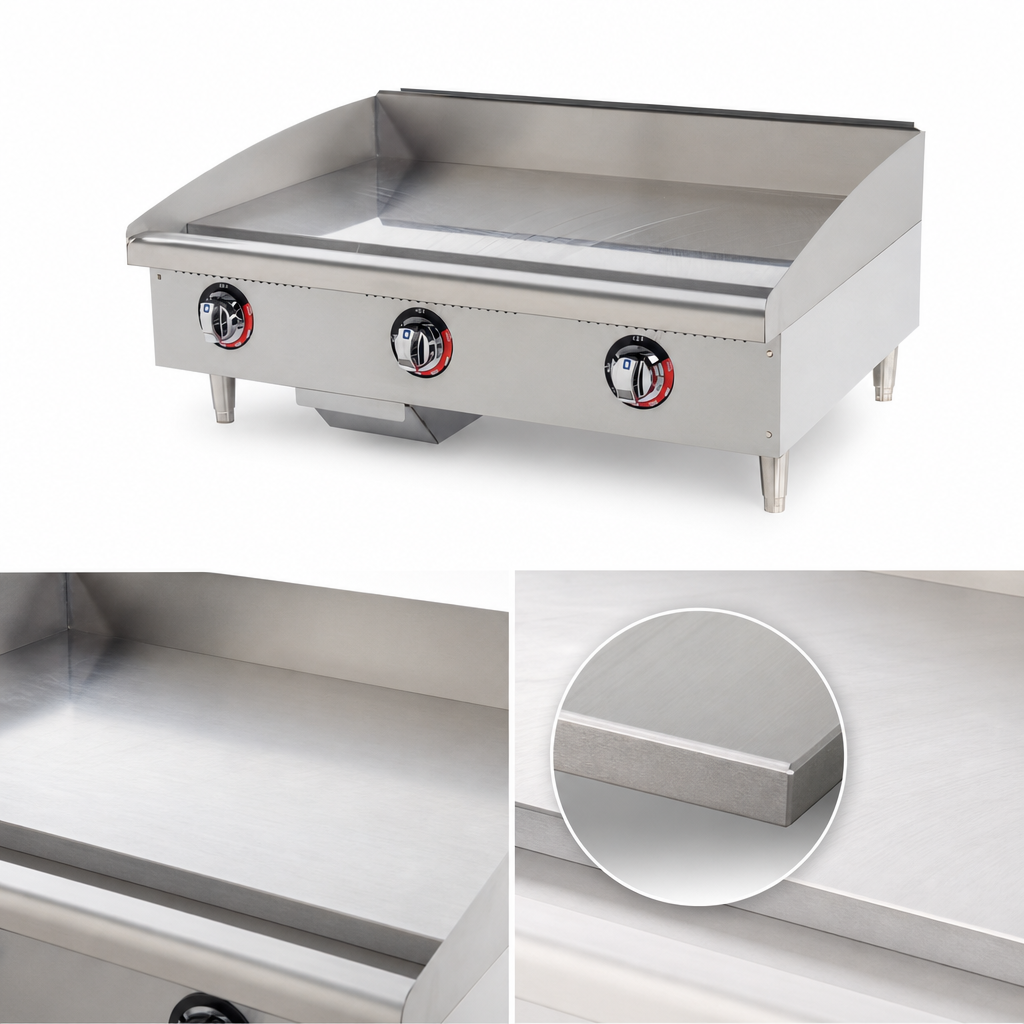

  • 1" thick, highly-polished steel plate delivers superior heat retention and resists warping.

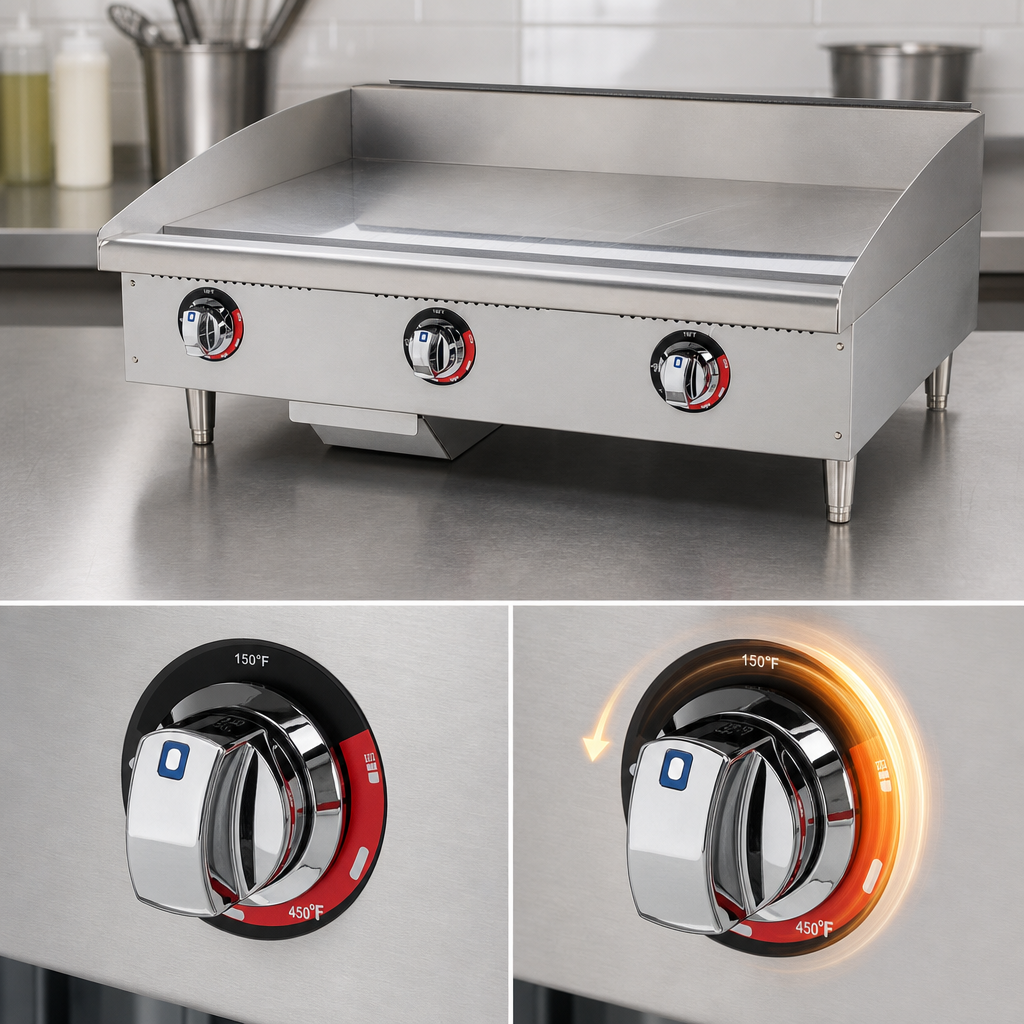

  • Snap-action thermostats (150-450 °F) are embedded just 3/16" below the surface for instant response.
  • Three independent 4,000 W Incoloy sheath elements—one every 12"—provide a total of 12 kW of searing power.
  • Cool-touch stainless steel bull-nose shields the chrome-plated metal knobs and keeps operators safe.
  • 4-1/2" wrap-around splash guard, 3-1/4" wide grease trough and 4-1/2 qt stainless drawer speed clean-up.
  • All-welded steel frame with stainless top & front and double-wall aluminized steel sides for long-term durability.
  • 4" nickel-plated steel legs with 1-3/8" adjustment make leveling on any counter easy.
  • cULus, UL EPH Classified & CSA listed for electrical safety and sanitation.
  • Backed by a full 2-year parts & labor warranty.

Perfect For

  • Diners, cafés and breakfast houses
  • QSRs, ghost kitchens & food trucks needing electric equipment
  • Schools, hospitals and institutions with gas restrictions
  • Hotel room-service and buffet lines

Specifications

Model 536TGF (Star-Max® series)
Cooking surface 36" W × 20-3/4" D (914 mm × 527 mm)
Plate material / thickness Polished steel, 1" (25 mm)
Temperature range 150 °F – 450 °F (65 °C – 232 °C)
Heating elements 3 × 4,000 W (one every 12")
Total wattage 12,000 W
Voltage / phase 208 V or 240 V, 1-phase or 3-phase, hard-wired
Nominal amps 208 V 1-ph: 43.3 A • 240 V 1-ph: 50 A
208 V 3-ph: 25 A/line • 240 V 3-ph: 28.9 A/line
Overall dimensions 36" W × 27.9" D × 15.5" H (914 × 709 × 394 mm)
Clearance 1" (25 mm) rear & sides from combustibles
Shipping / installed weight 262 lb / 247 lb (119 kg / 112 kg)
Warranty 2 years parts & labor
Origin Made in the USA

Need a matching stand? Optional 27" equipment stands and other accessories are available—just ask!

Electrical connection required: Unit ships without a cord and must be hard-wired by a qualified electrician to a dedicated 208/240 V circuit.

Features & Specs

Manufacturer

Star (Middleby)

Brand_name

Star-Max

Certifications

cULus, UL EPH Classified, CSA, Made in USA

Height

15.5in

Width

36.0in

Depth

27.88in

Shipping Weight

262.0lbs

Griddle Plate Finish

smooth steel

Cooking Surface Width (side - side)

25" - 36"

Exterior Finish

aluminized steel, stainless steel front

Control Type

thermostatic

Cooking Surface Depth (front - back)

17" - 23"

Specifications

(MIDDLEBY ESSENTIALS ITEM) Star-Max® Heavy Duty Griddle, electric, countertop, 36" W x 20-3/4" D cooking surface, 1" thick polished steel griddle plate, 150°-450°F snap-action thermostat and 4000 watt element every 12", welded steel frame with stainless steel top and front, splash guard & grease trough, aluminized steel sides, chrome metal knobs, grease drawer, 4" steel legs, cULus, UL EPH Classified, CSA, Made in USA
