Southbend (Middleby) SB14R Gas Fryers
$6,832.00
Unit price
/
Unavailable
Description

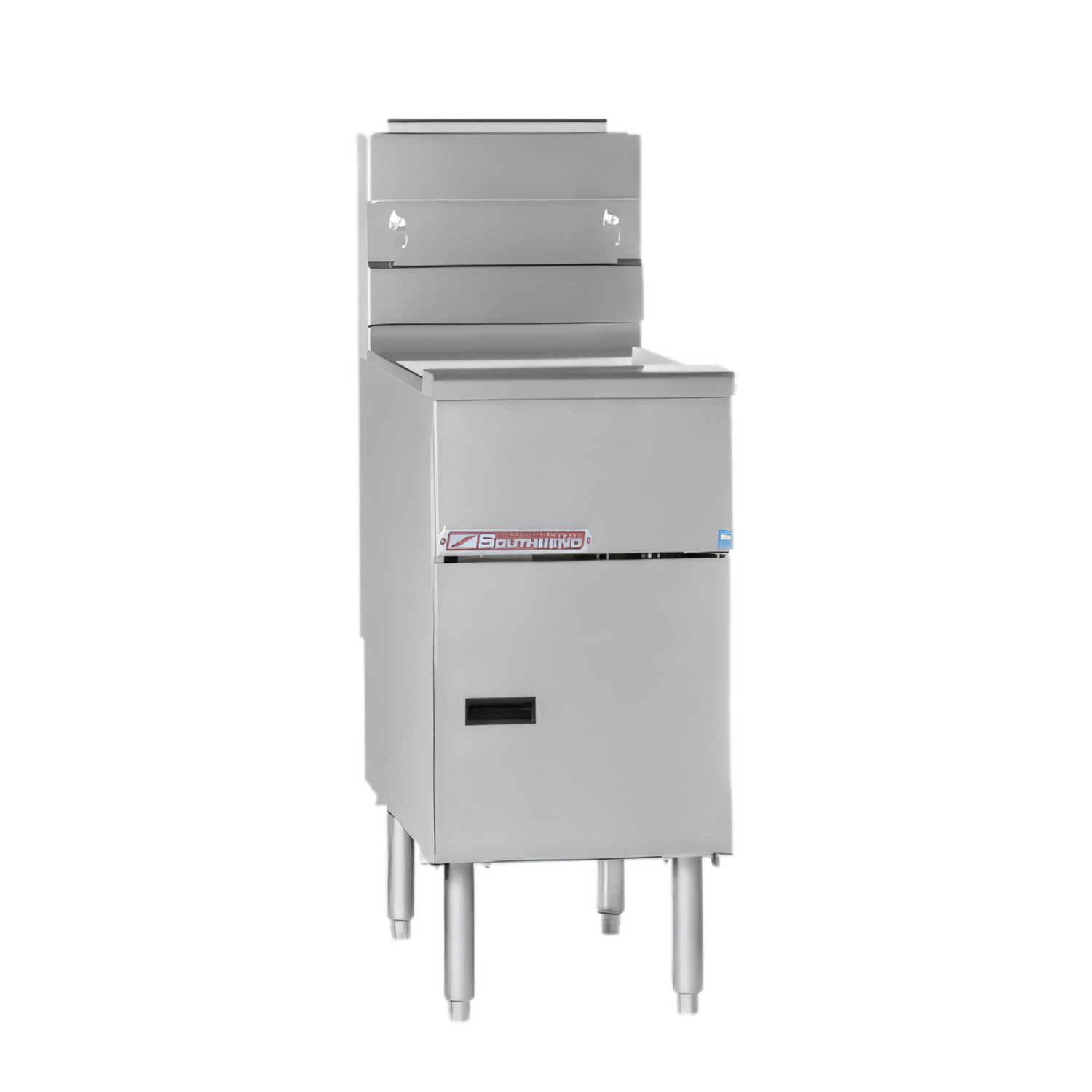

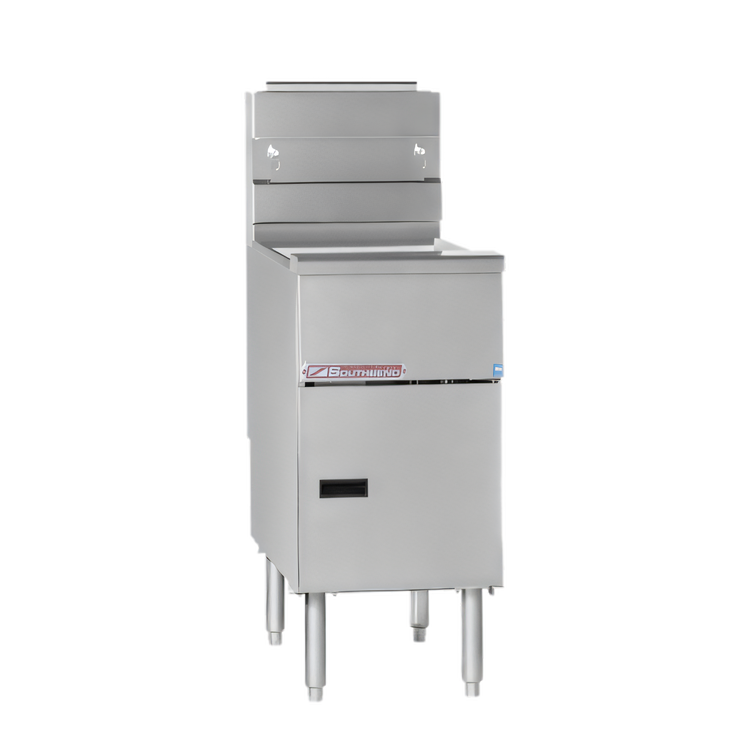

Southbend SB14R Mid-Tier Gas Fryer – 40-50 lb
122,000 BTU | Stainless Steel | Millivolt Controls | CSA & NSF CertifiedBuilt for busy commercial kitchens, the Southbend SB14R delivers fast recovery, rock-solid temperature accuracy, and simplified cleaning—all without requiring an electrical hookup. From chicken and fries to signature appetizers, this 40-50 lb floor fryer helps you keep the tickets moving.
Key features
- 40–50 lb oil capacity with 14 × 14 in. cooking area

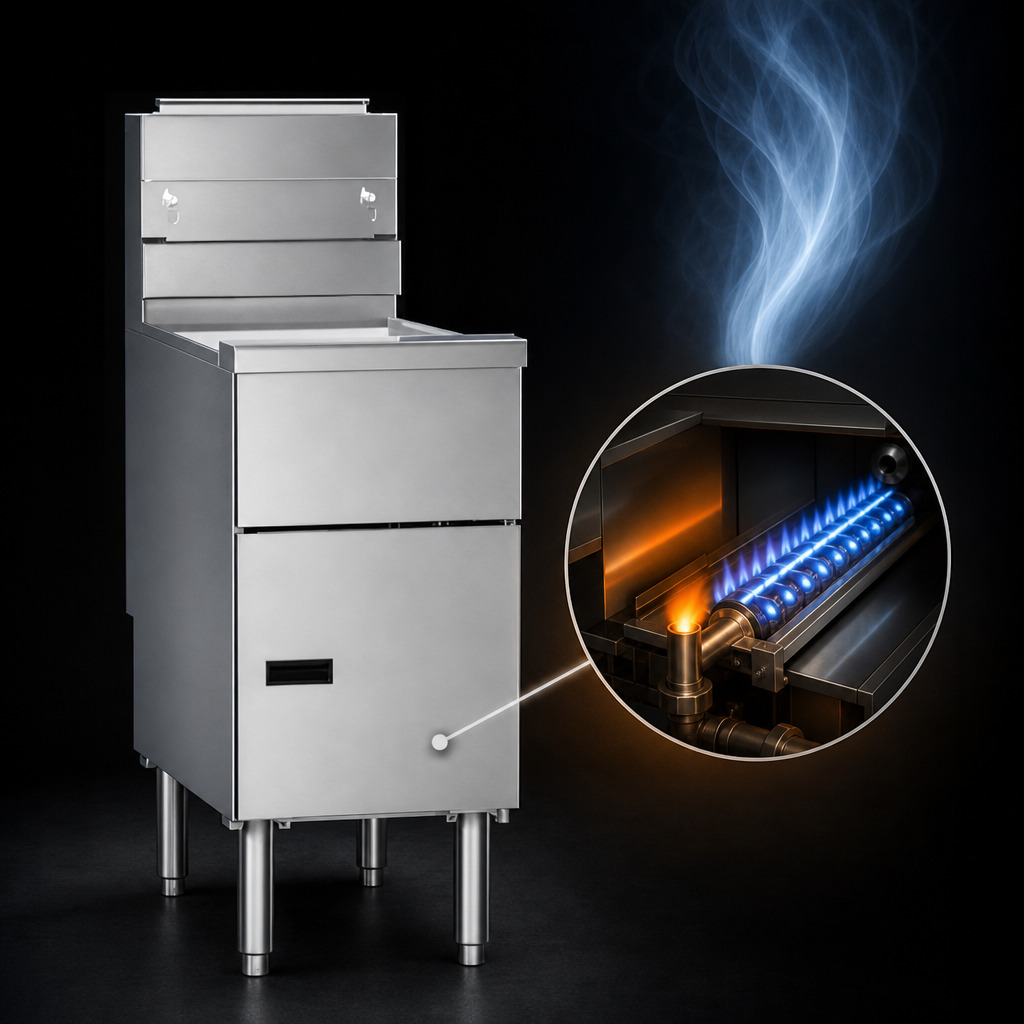

- 122,000 BTU Solstice atmospheric burners – no blower or fragile ceramics

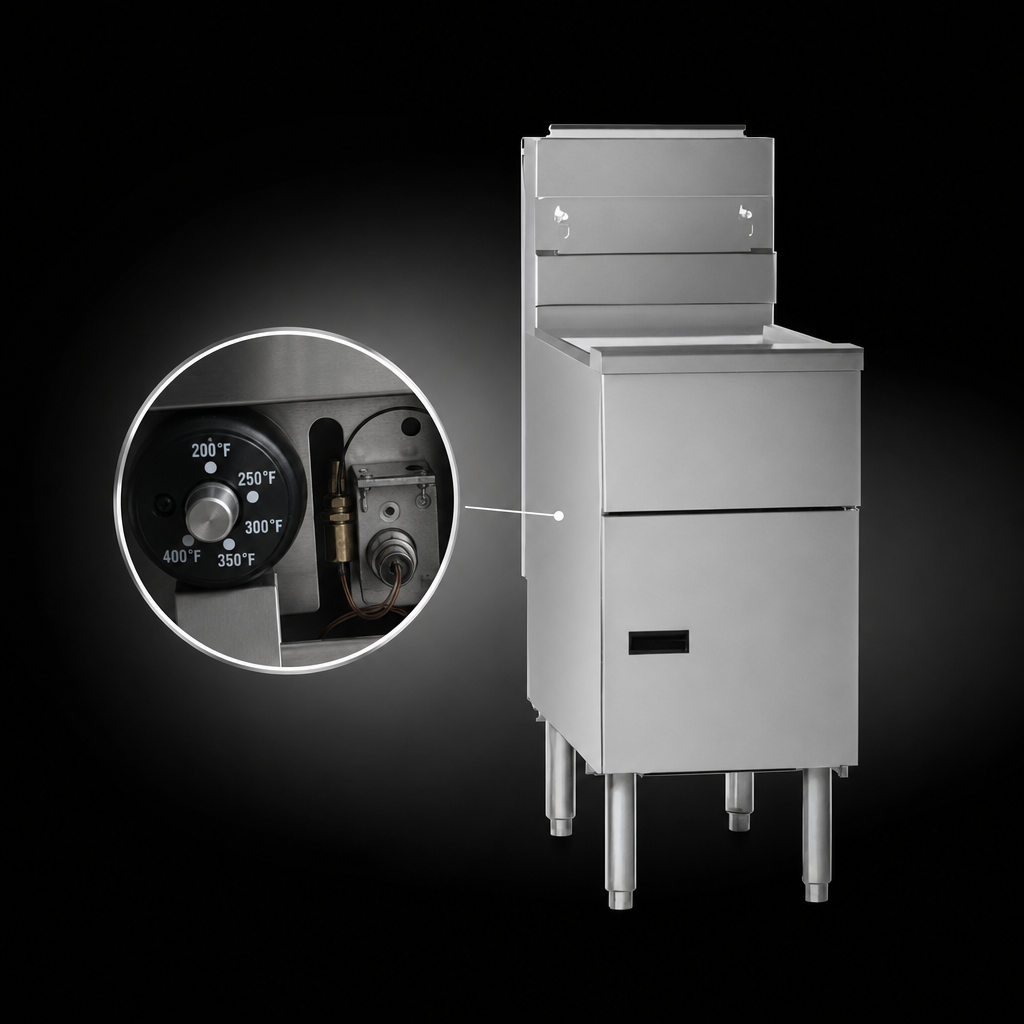

- Millivolt thermostat (200 – 400 °F) operates even during power outages
- Thermo-safety pilot & built-in gas pressure regulator for fail-safe ignition
- Welded stainless steel tank with extra-smooth peened finish for easy clean-up
- Stainless steel front, sides & door withstand daily wear
- Front 1 ¼ in. full-port drain valve plus clean-out rod & drain extension
- Twin plated wire mesh baskets with plastic-coated, stay-cool handles (included)
- Tool-less, removable basket hanger & tube rack keep crumbs in the cool zone to extend oil life
- 9 in. adjustable legs for leveling and under-fryer floor access
- Separate manual gas shutoffs located at the front for quick servicing
Specifications
| Model | SB14R |
|---|---|
| Oil Capacity | 40 – 50 lb (18 – 23 kg) |
| Heat Input | 122,000 BTU/hr (natural or LP gas) |
| Temperature Range | 200 °F – 400 °F (93 °C – 190 °C) |
| Cooking Area | 14 in. W × 14 in. D (356 × 356 mm) |
| Cooking Depth | 3.25 – 5 in. (83 – 127 mm) |
| Gas Connection | ¾ in. NPT (rear) |
| Drain Valve | 1 ¼ in. NPT full-port (front) |
| Overall Dimensions | 15.6 in. W × 34.4 in. D × 46.1 in. H (396 × 874 × 1172 mm) |
| Shipping Weight | 208 lb (94 kg) |
| Certifications | CSA, NSF |
What’s included
- (2) twin fry baskets with plastic-coated handles
- Drain extension & clean-out rod
- Sample packet of fryer cleaner
Popular add-ons (sold separately)
- 9 in. heavy-duty casters
- Portable filtration system & filter paper/powder
- Stainless steel splash shield
- Stainless steel tank cover
Warranty: 1-year limited parts & labor. Commercial installations only. See full warranty for terms and exclusions.
Important: This appliance is intended for commercial use and must be installed under a properly ventilated hood by a qualified technician in accordance with all local codes.
Features & Specs
Features & Specs
Manufacturer
Southbend (Middleby)
Certifications
NSF, CSA
Height
46.1in
Width
15.6in
Depth
34.4in
Shipping Weight
208.0lbs
Controls
millivolt controls
Fat Capacity (approximate)
50 lb
Exterior Finish
stainless steel front & sides
Type
restaurant
Fry pot
stainless steel fry pot
Basket Lifts
without basket lifts
Filter
no filter
Specifications
Fryer, gas, floor model, 40-50 lb. capacity, millivolt controls, thermo-safety pilot, built-in regulator, includes (2) twin baskets with plastic-coated handles, stainless steel tank, front & sides, 9" adjustable legs, 122,000 BTU, CSA, NSF
