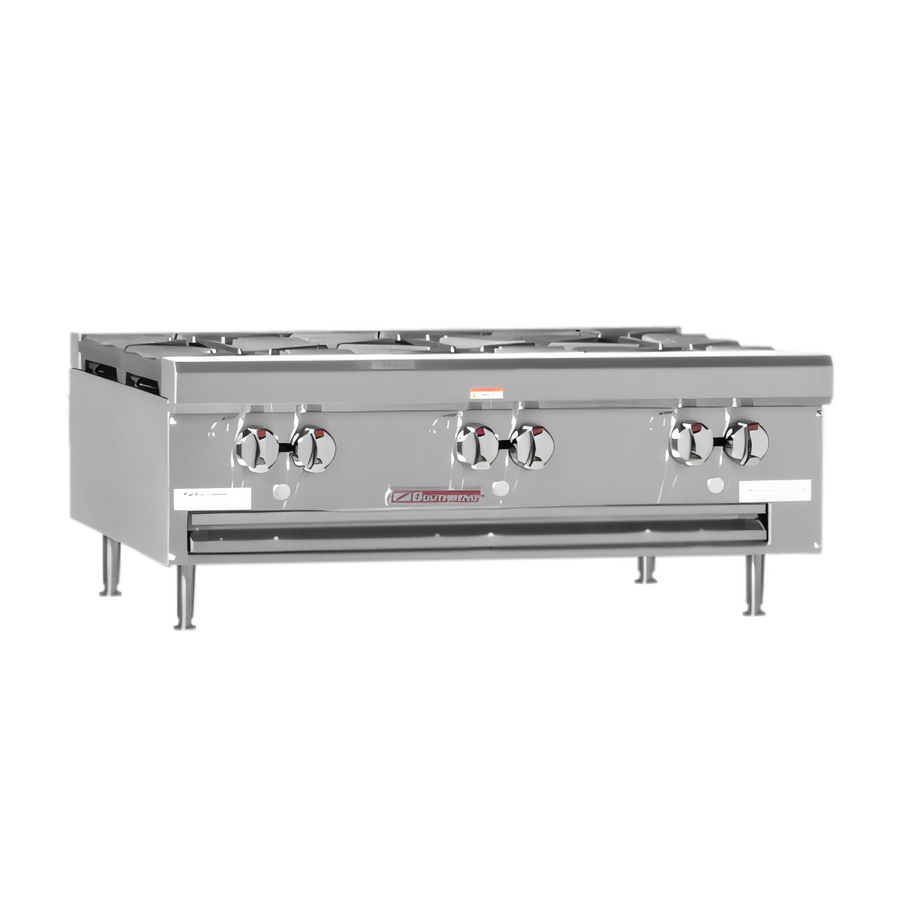

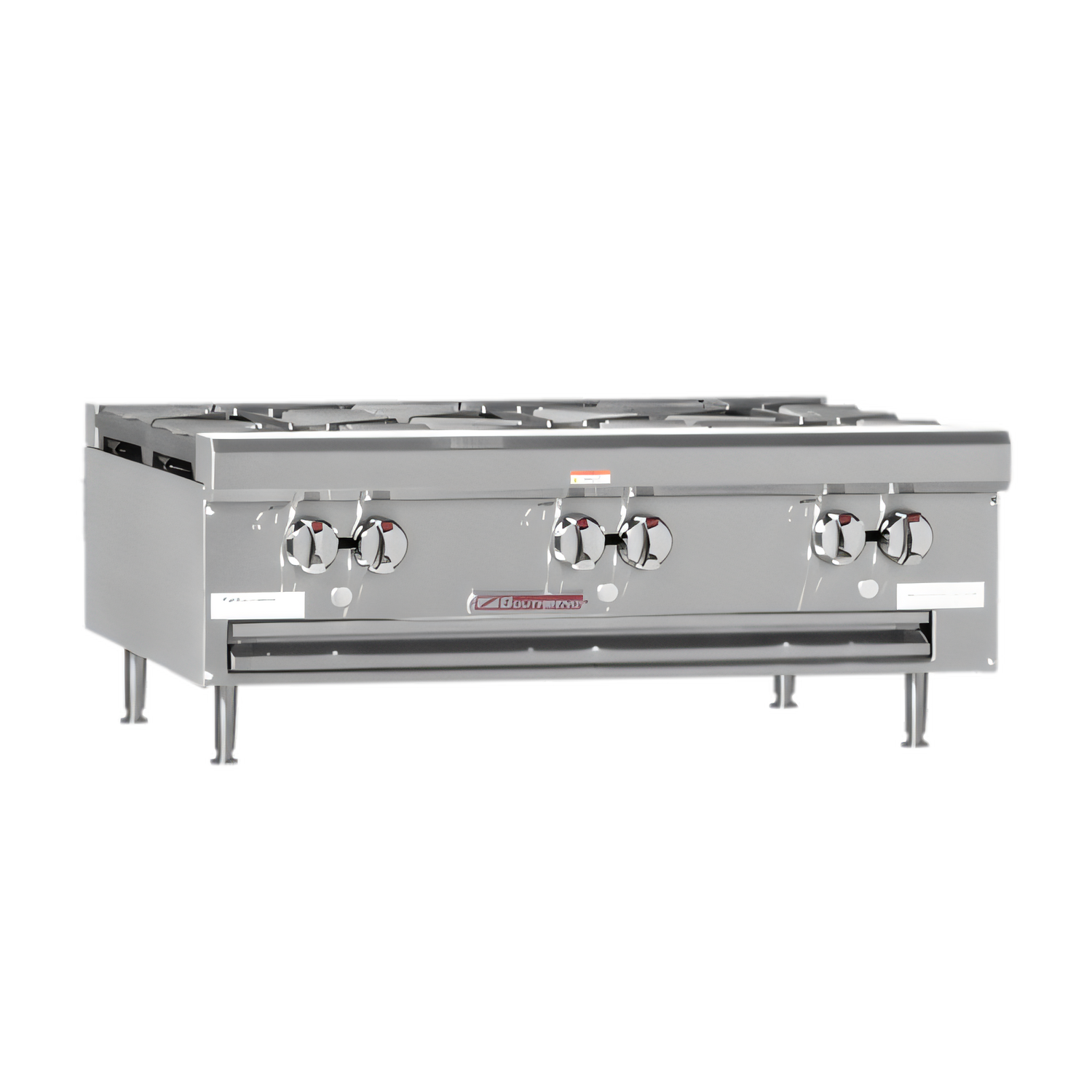

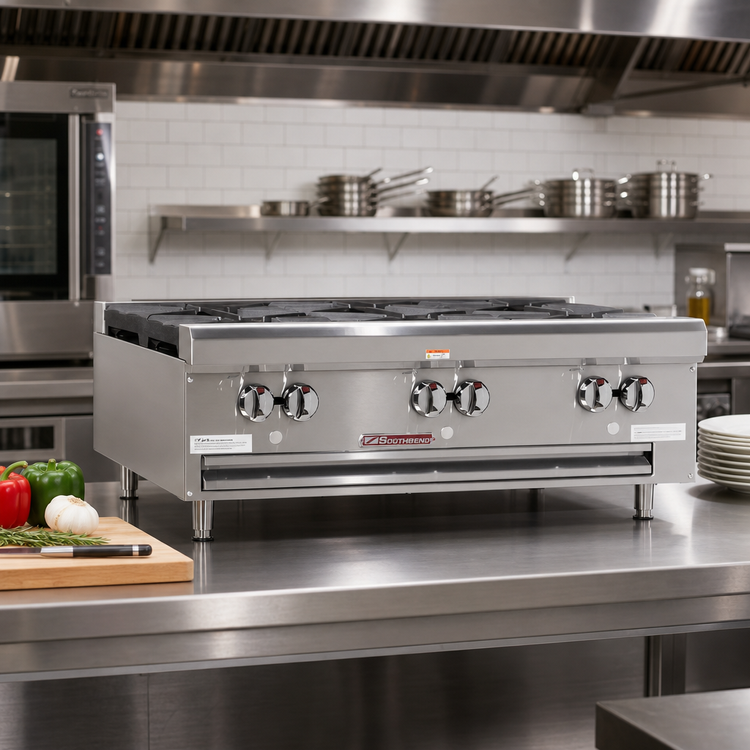

Southbend HDO-24 Countertop Gas Hotplate – 24" / 4 Burners
132,000 BTU total • Manual hi/low valves • CSA & NSF ListedPut heavy-duty power on any line with the Southbend HDO-24. Four non-clogging, cast-iron open burners crank out 33,000 BTU each, giving you the firepower to sear, sauté, simmer or boil—all in a compact 24" footprint that drops on any refrigerated or stainless work table. Engineered for relentless commercial use, this hotplate features a full stainless exterior, removable flush-top grates, and an easy-out crumb tray that make daily clean-up fast and frustration-free.
Performance & Construction Highlights
- Four 33,000 BTU NAT (24,000 BTU LP) cast-iron open burners – 132,000 BTU total output.

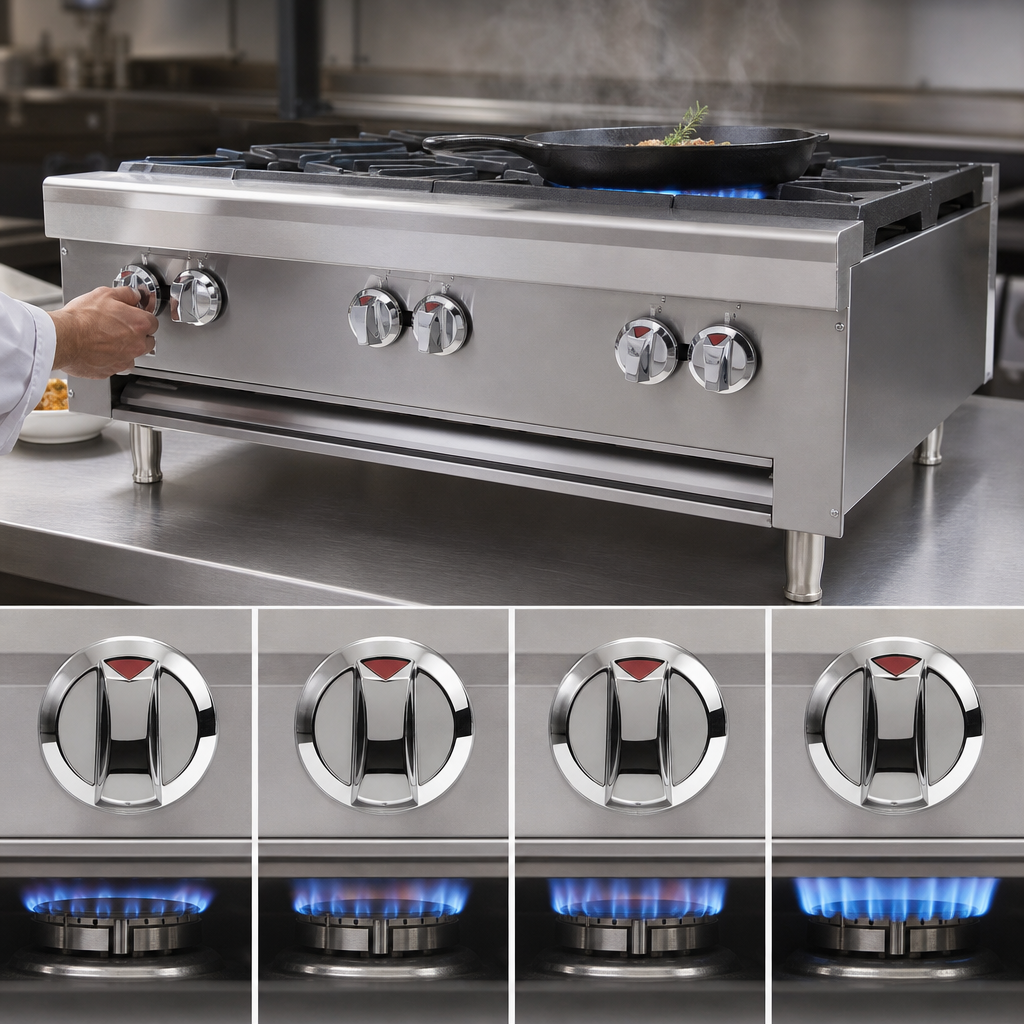

- Individual manual hi/low valves with standing pilots for instant ignition & precise flame control.
- 12" x 12" removable, flush-top cast-iron grates allow pots & pans to slide effortlessly.
- Full-width stainless steel crumb tray lifts out for quick dumping and rinsing.
- Durable stainless steel front & sides; aluminized steel rear/bottom for extra corrosion resistance.
- 4" stainless steel adjustable legs level the unit on any countertop.
- Factory-supplied ¾" rear gas connection & pressure regulator for simple hook-up.
- Zero clearance from non-combustible surfaces—perfect for tight cooklines.
- Certified to CSA & NSF standards; commercial use only.
Key Specifications
| Model | HDO-24 |
|---|---|
| Total Input | 132,000 BTU/hr (Natural Gas) 96,000 BTU/hr (Propane) |
| Burners | 4 × 33,000 BTU NAT (24,000 BTU LP) open top, non-clog |
| Gas Connection | ¾" NPT (rear) with pressure regulator |
| Operating Pressure | 7" W.C. NAT • 11" W.C. LP |
| Exterior Dimensions | 24.5" W × 31" D × 15" H (622 × 788 × 381 mm) – height includes 4" legs |
| Shipping Weight | Approx. 209 lb / 94 kg |
| Certifications | CSA, NSF |
| Warranty | 1-year limited parts & labor |
Optional Accessories (sold separately)
- Stainless steel equipment stand (with or without casters)
- High-performance wok ring
- 2" insulated base for mounting on refrigerated units
- Battery spark ignition kit
Peace-of-Mind Warranty
Every Southbend heavy-duty countertop range ships with a one-year parts & labor warranty, backed nationwide by Southbend’s network of authorized service agencies.
Do not allow cookware larger than 12" in diameter to overhang the front rail. Oversized pots should be positioned toward the rear burners to avoid excess heat on the controls and front rail.
