Southbend (Middleby)  |  SKU: HDG-72-M

Southbend (Middleby) HDG-72-M Gas Griddles

$11,706.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Owner's manual Middleby financial flyer Warranty sheet
Related Searches
Gas Griddles Griddles & Flat Tops

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

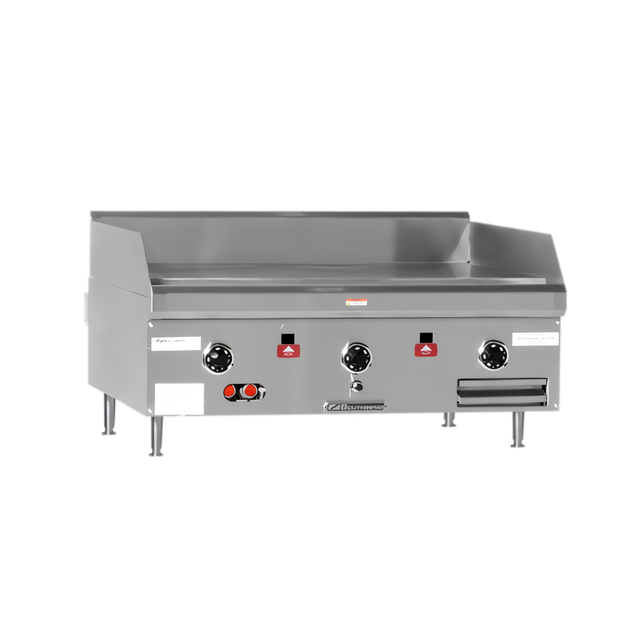

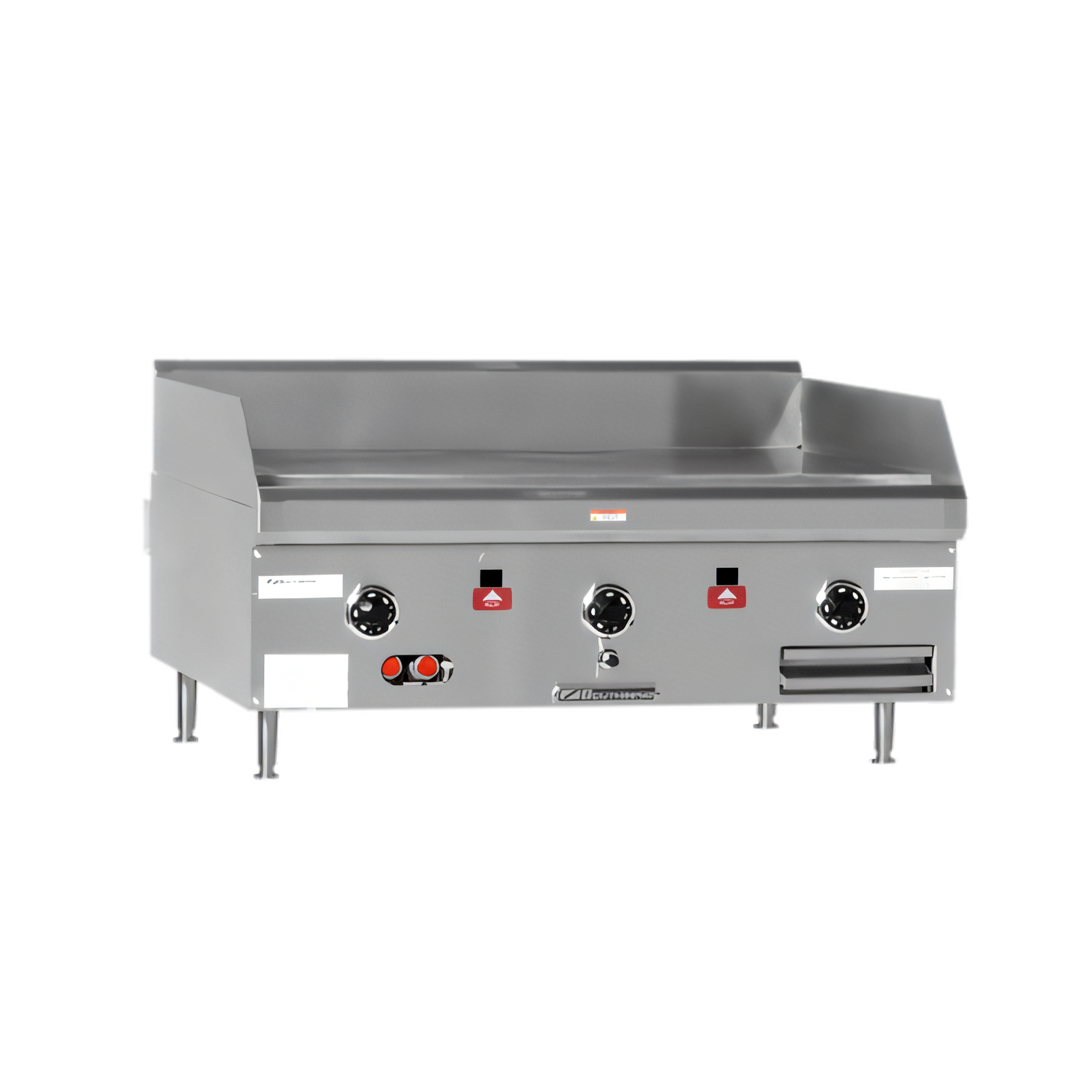

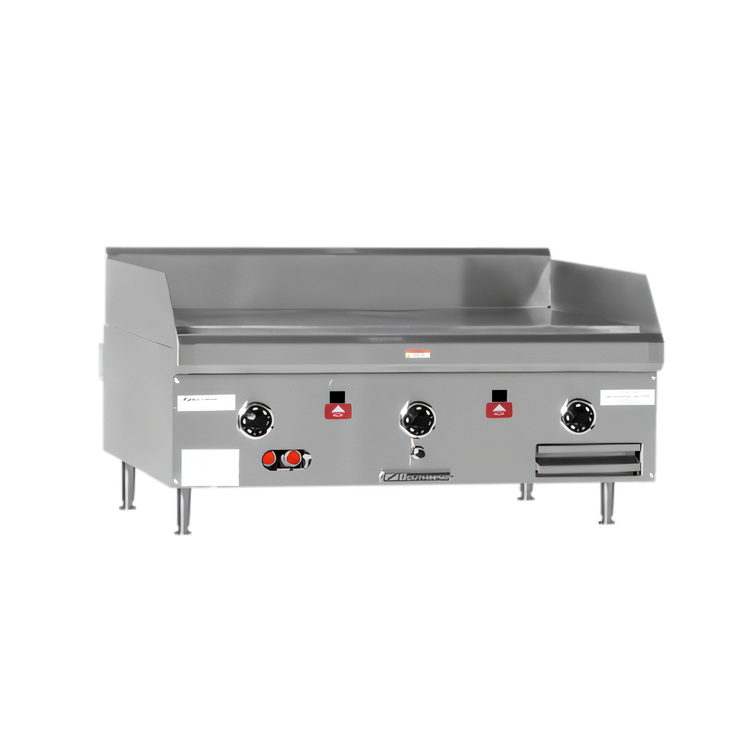

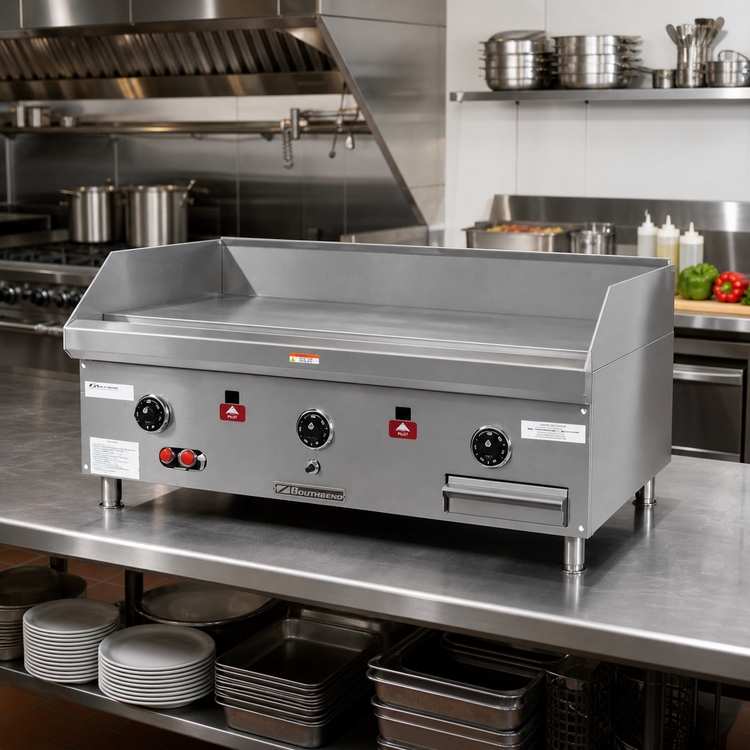

Southbend HDG-72-M Heavy-Duty 72" Manual Gas Countertop Griddle

120,000 BTU • 1" Polished Steel Plate • CSA & NSF Certified

Built for round-the-clock breakfast rushes, high-volume diners, and demanding commercial kitchens, the Southbend HDG-72-M delivers a full six feet of evenly heated cooking real estate. Six powerful 20,000 BTU “U”-shaped burners team up with Southbend’s exclusive NO COLD Zone technology to keep pancakes, burgers, and fajitas sizzling from corner to corner.

Why You'll Love It

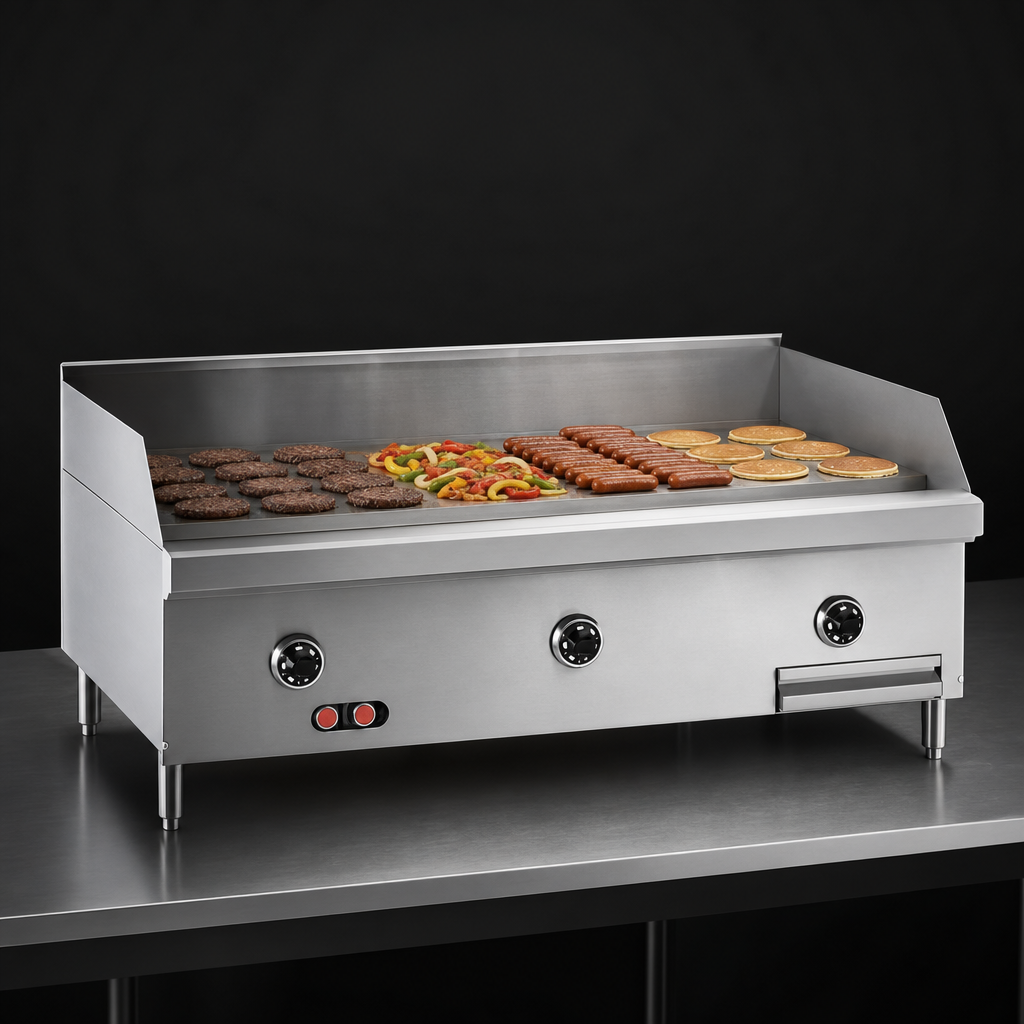

  • Massive 72" × 24" plate—handle multiple orders at once without overcrowding.
  • 1" thick polished rolled-steel plate retains heat for lightning-fast recovery.
  • Six independent manual snap-action controls for flexible multi-zone cooking.
  • Battery-powered electronic spark ignition—no electrical hookup required.
  • Stainless steel front, sides, vent & 4" adjustable legs stand up to daily abuse.
  • 5" rear & 4" side splash guards contain grease splatter.
  • Extra-large front grease drawer simplifies cleanup shifts.
  • 3/4" rear gas connection with pressure regulator included.

Key Specifications

Model HDG-72-M
Cooking Surface (W × D) 72" × 24" (1829 mm × 610 mm)
Total BTU Input 120,000 BTU/hr (Natural or Propane)
Burners / Controls 6 burners • 6 manual valves
Plate Thickness 1" (25 mm) polished steel
Ignition Battery electronic spark
Gas Inlet 3/4" NPT (rear)
Required Supply Pressure 7" W.C. Natural • 11" W.C. Propane
Certifications CSA • NSF
Warranty 1 year parts & labor

Popular Add-Ons (Sold Separately)

  • Stainless steel equipment stand (with or without cutting board shelf)
  • Factory-installed grooved or chrome-plated griddle plates
  • Casters for mobile applications
  • 2" insulated base for mounting on refrigerated units
For Commercial Use Only: Install under a properly sized vent hood and maintain minimum clearances of 12" on the sides and 8" at the rear from combustible surfaces. Follow all local gas and fire codes.

Need help with financing? Competitive equipment-financing programs are available— ask your foodservice representative for details.

Features & Specs

Manufacturer

Southbend (Middleby)

Certifications

NSF, CSA

Height

16.13in

Width

72.0in

Depth

33.75in

Shipping Weight

840.0lbs

Exterior Finish

stainless steel front & sides

Cooking Surface Width (side - side)

67" - 72"

Cooking Surface Depth (front - back)

24" - 29"

Griddle Plate Finish

smooth steel

Plate Thickness

1"

Controls

manual controls

Specifications

Griddle, countertop, gas, 72" W x 24" D cooking surface, 1" thick polished steel plate, manual controls, battery spark ignition, stainless steel front, sides & 4" adjustable legs, 120,000 BTU, CSA, NSF
