Southbend (Middleby) HDG-18 Gas Griddles
Description

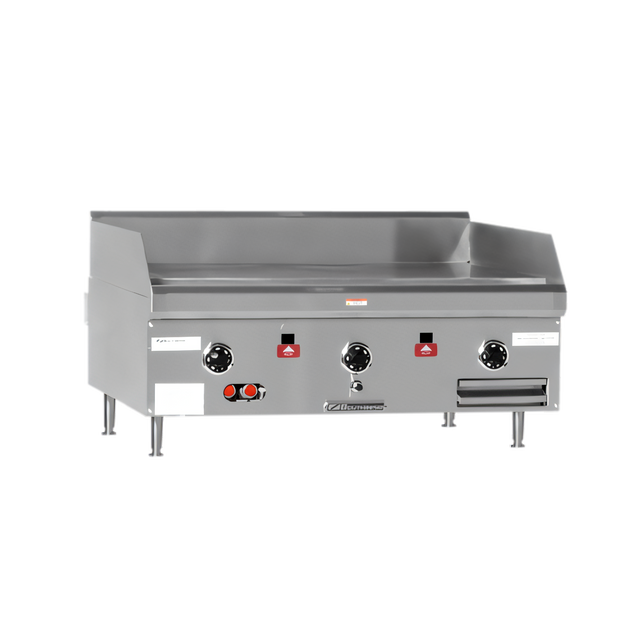

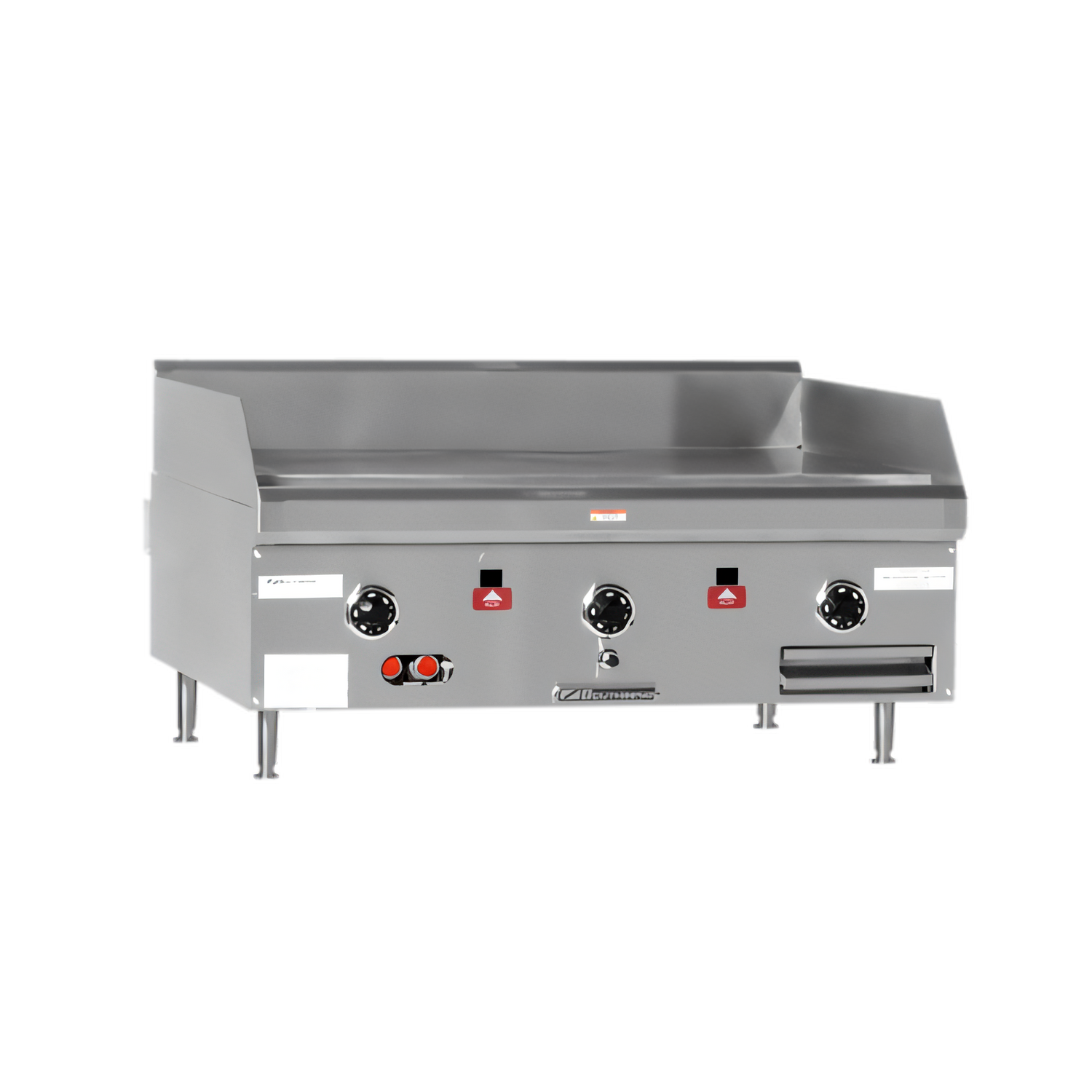

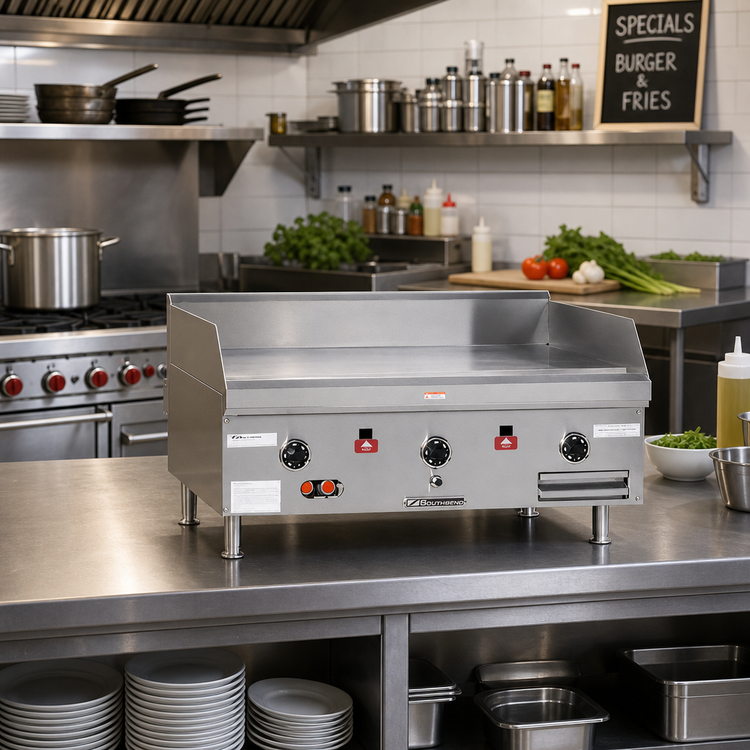

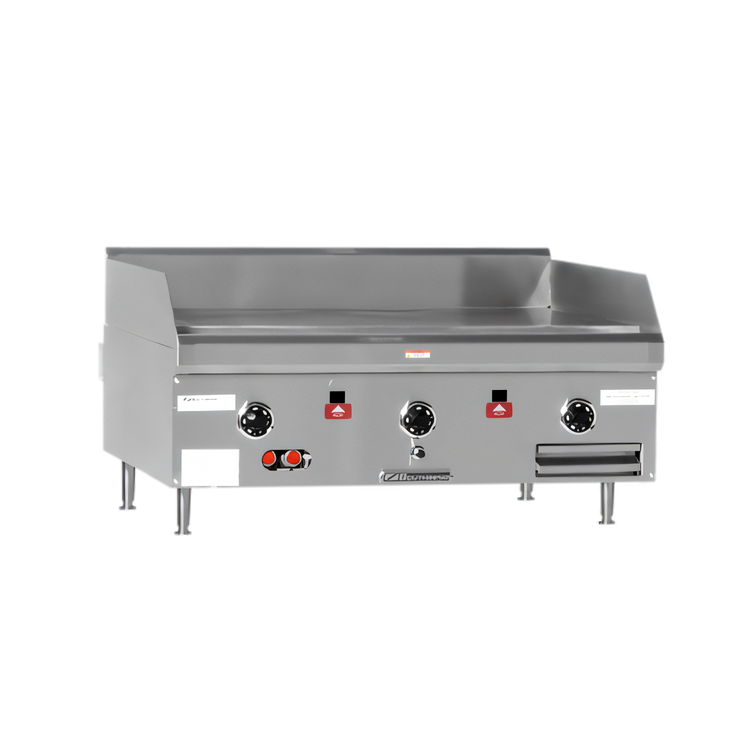

Southbend HDG-18 Counterline Heavy-Duty Thermostatic Griddle – 18"
Compact 30,000 BTU gas countertop griddle with 1" polished steel plateGive your cooks the fire-power of a full-size flat top in a space-saving footprint. The Southbend HDG-18 delivers rock-solid temperature accuracy, lightning-fast recovery and the legendary durability operators have trusted since 1898.
Key performance features

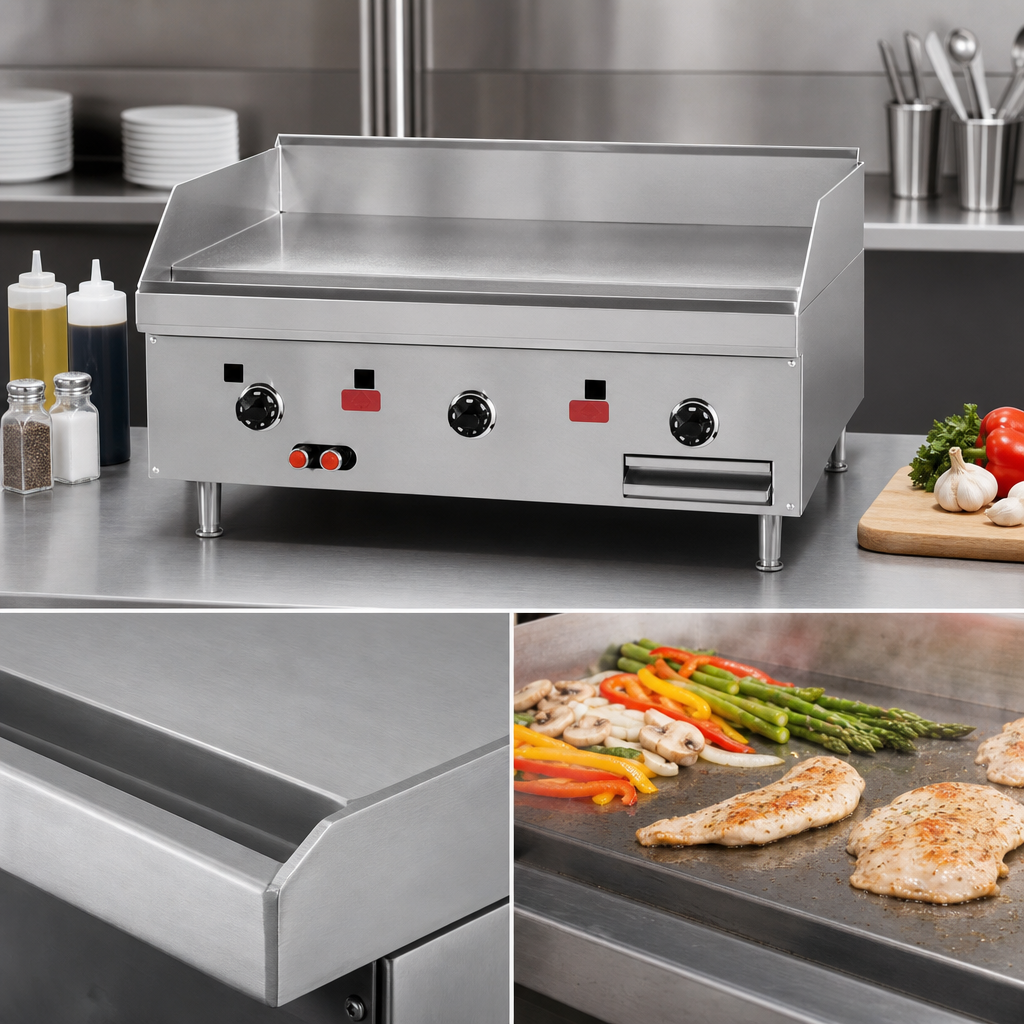

- Uniform heat courtesy of Southbend’s exclusive “NO COLD ZONE” 1" thick polished rolled-steel plate.

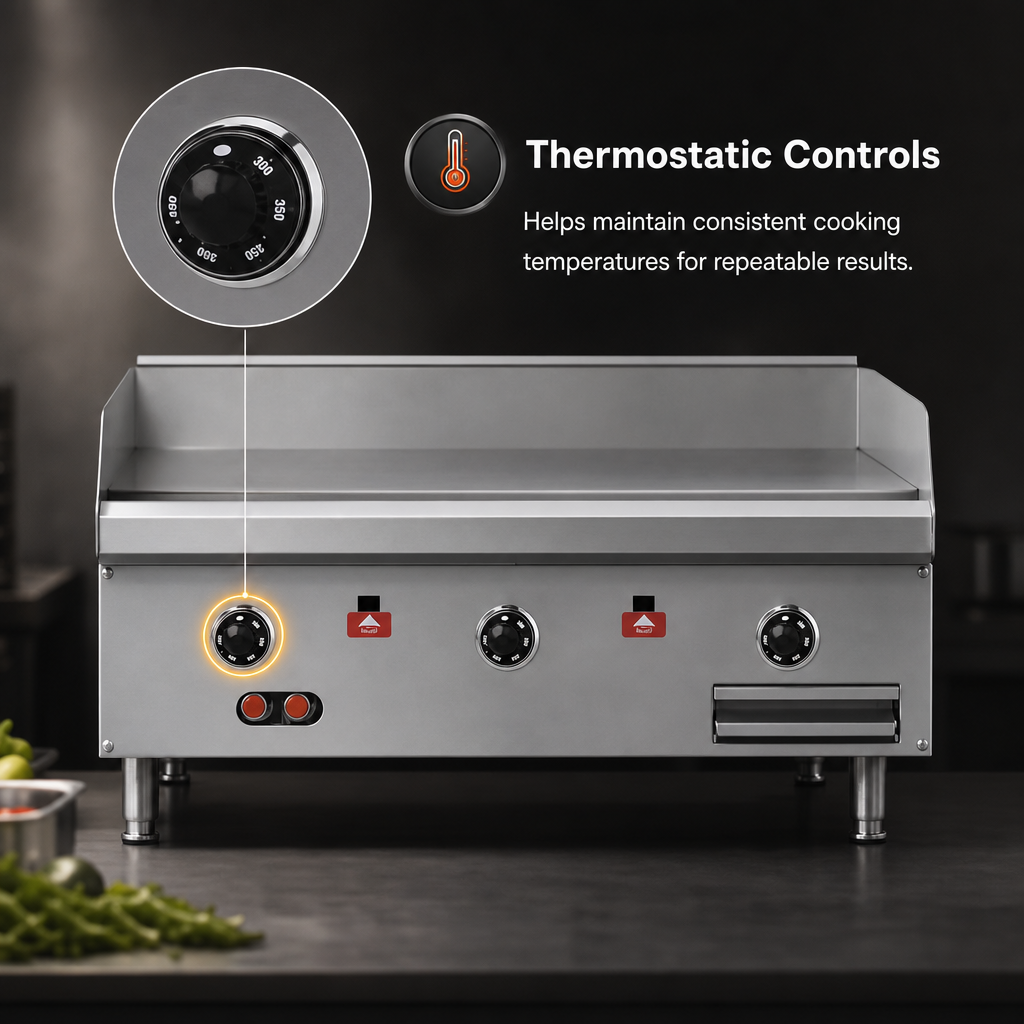

- 30,000 BTU U-shaped burner with embedded sensing thermostat for a precise 200 °F–550 °F range.
- Battery-powered electronic spark ignition—no electrical hookup required.
- Integrated flame-failure safety device automatically shuts off gas if the pilot goes out.
- 5" rear and 4" side splash guards contain grease and mess.
- Heavy-gauge stainless steel front, sides & vent; reinforced, insulated double-wall side panels.
- Extra-large removable grease drawer for all-day capacity.
- 4" stainless adjustable legs for easy leveling on any counter.
- CSA gas & NSF sanitation certified.
Specifications
| Model | HDG-18 (Thermostatic) |
|---|---|
| Cooking surface | 18" W × 24" D (432 sq in / 0.28 m²) |
| Plate thickness | 1" polished rolled steel |
| BTU rating | 30,000 BTU/hr (natural or LP) |
| Thermostat range | 200 °F – 550 °F (93 °C – 288 °C) |
| Ignition | Electronic spark (battery) |
| Safety | Flame-failure shut-off |
| Gas connection | 3/4" rear NPT (regulator included) |
| Overall dimensions | Approx. 18" W × 31-3/4" D × 16" H (plus 4" legs) |
| Shipping weight | 270 lb / 122 kg |
| Certifications | CSA, NSF |
| Warranty | 1 year parts & labor (commercial use) |
Also available in 24", 36", 48", 60" and 72" widths to match any line-up.
Optional accessories (sold separately)
- Stainless steel equipment stand (casters available)
- Stainless shelf with or without cutting board
- Grooved or chrome-plated cooking plates
- 2" insulated base for refrigerated base mounting
Install under a properly vented hood. Maintain minimum clearances of 12" on the sides and 8" at the rear from combustible surfaces, or as required by local code.
Upgrade your line with the reliability, precision and rugged build of the Southbend HDG-18—order today and keep the sizzle going shift after shift.
