Pitco Frialator (Middleby) SSHLV14C-4/FD Solstice Supreme Gas Fryers
Description

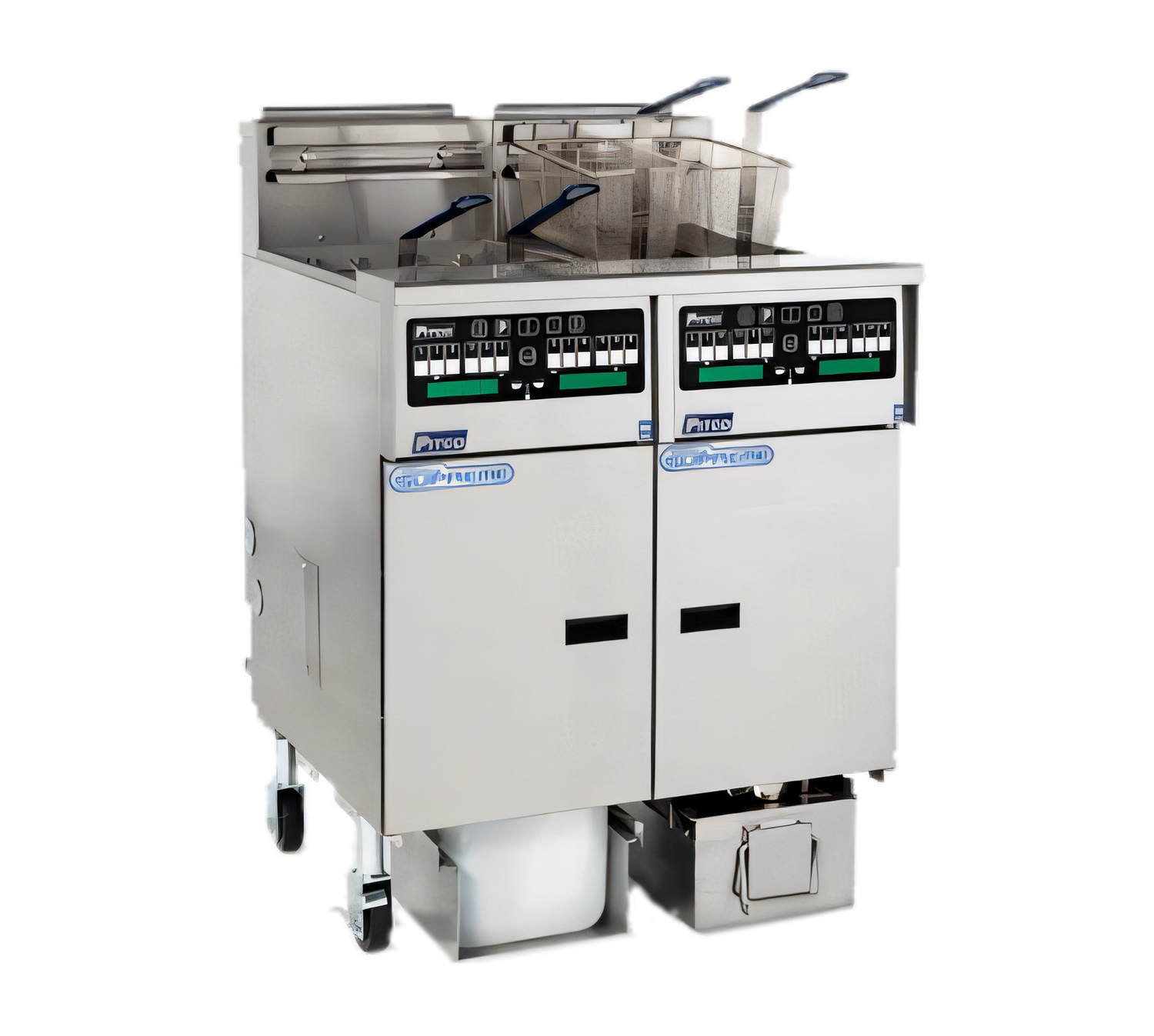

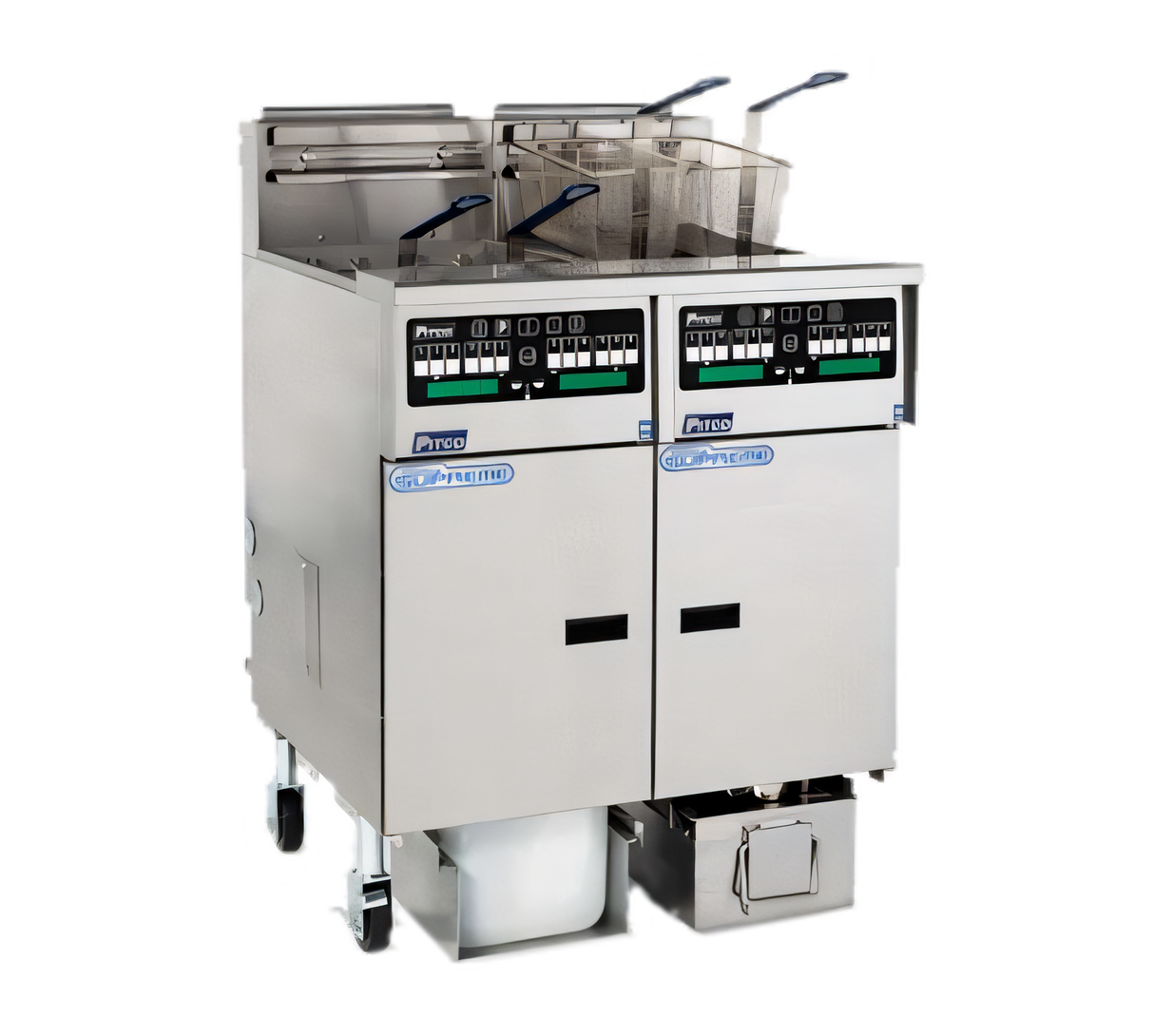

Pitco Solstice Supreme™ 4-Fryer Reduced Oil Volume Gas Fryer System
Model SSHLV14 × 4 | Built-in Solstice™ Filter Drawer | Intellifry Computer ControlsSlash oil costs without sacrificing throughput. The Solstice Supreme™ battery delivers the production of four traditional 50-lb fryers while using just 32 lb of oil per frypot—40 % less from the very first fill. Integrated filtering and push-button top-off keep oil fresh, extend its life and guarantee consistently crispy, great-tasting food service after service.
Why Operators Love It
- Reduced-Oil Design – 32 lb (15.6 L) per frypot cooks like a 50 lb fryer, saving thousands in annual oil spend.
- High Output Burners – 72,500 BTU atmospheric burners (no blowers or ceramics) recover fast during peak demand.
- Intellifry™ Computer – 12-product menu keys, cook/fill timers, “FILTER SOON” production monitor and drain-valve interlock for fool-proof operation.
- Push-Button Oil Top-Off – Hands-free replenishment from an on-board 35-lb Jug-In-Box (JIB) with low-jug alert keeps oil at the ideal cook depth.
- 2-Step, 5-Minute Filtering – Built-in Solstice Filter Drawer, 3″ full-port drains and a 4.5 GPM pump polish oil quickly and safely.
- Energy & Utility Savings – ENERGY STAR®, CSA Flame & Star, NSF & CE approved for efficient, code-compliant kitchens.
- Stainless Steel Durability – All-stainless tank, front, door and sides with 9″ adjustable legs for a rock-solid, easy-to-clean platform.
Built-In Solstice™ Filter Drawer
- Large 10″ × 20.5″ envelope filter media handles a full battery in one pass.
- Swivel drain spout virtually eliminates splashing during discard.
- Filter pan rolls out effortlessly; self-storing lid keeps hands clear of hot oil.
Smart, Safe & Consistent
- DVI drain-valve interlock shuts off burners the moment a drain is opened.
- Automatic pilot lighting speeds start-up and reduces service calls.
- Optional automatic filtration upgrade available for totally hands-free cycles.
Certifications
- ENERGY STAR®
- CSA Flame & CSA Star
- NSF
- CE
Technical Specifications
| Number of Fryers | 4 (battery) |
|---|---|
| Model | SSHLV14 |
| Oil Capacity | 32 lb (15.6 L) per frypot | 128 lb (62.4 L) total |
| Frying Area | 13″ × 13.6″ (33 × 34.5 cm) per frypot |
| Nominal Cook Depth | 4″ (3-1/4″ – 5″ adjustable) |
| Gas Input | 72,500 BTU/hr (21 kW) per frypot | 290,000 BTU/hr total |
| Burner Type | Blower-free atmospheric |
| Filter Pump | 1/3 HP, 4.5 GPM (17 L/min) @ 60 Hz |
| Drain Size | 3″ full-port with swivel spout |
| Electrical | 115 V, 50/60 Hz – 0.7 A per fryer; 6.7 A filter pump (other voltages available) |
| Gas Types | Natural 7-10″ w.c. | LP 11-13″ w.c. |
| Construction | Stainless steel tank, front, door & sides; 9″ adjustable legs |
| Warranty | 1-year parts & labor + 10-year fry tank (standard) |
• Internal JIB storage and push-button top-off are functional with batteries of two fryers or more—standard on this 4-fryer system.
• Not for use with solid shortening.
