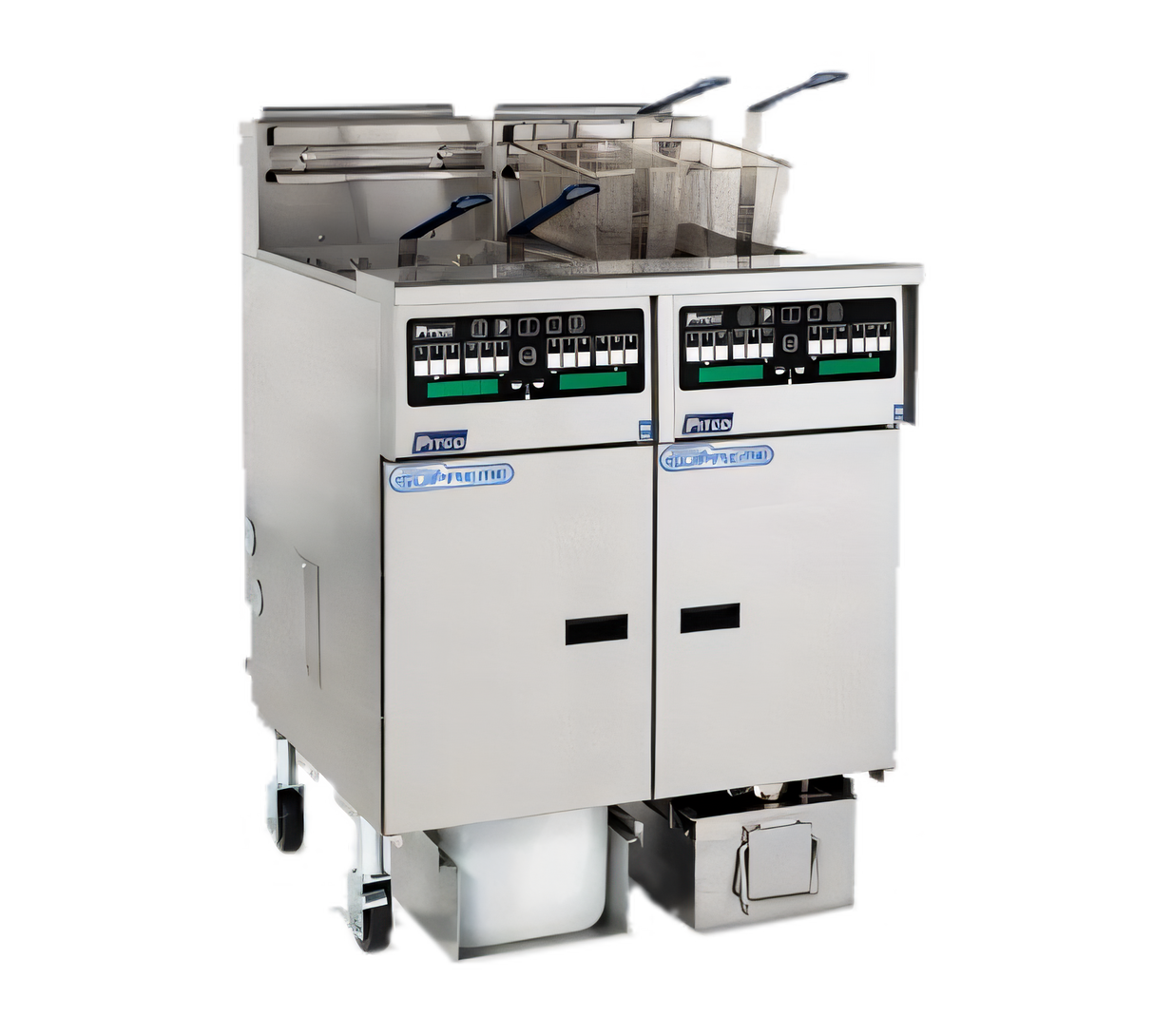

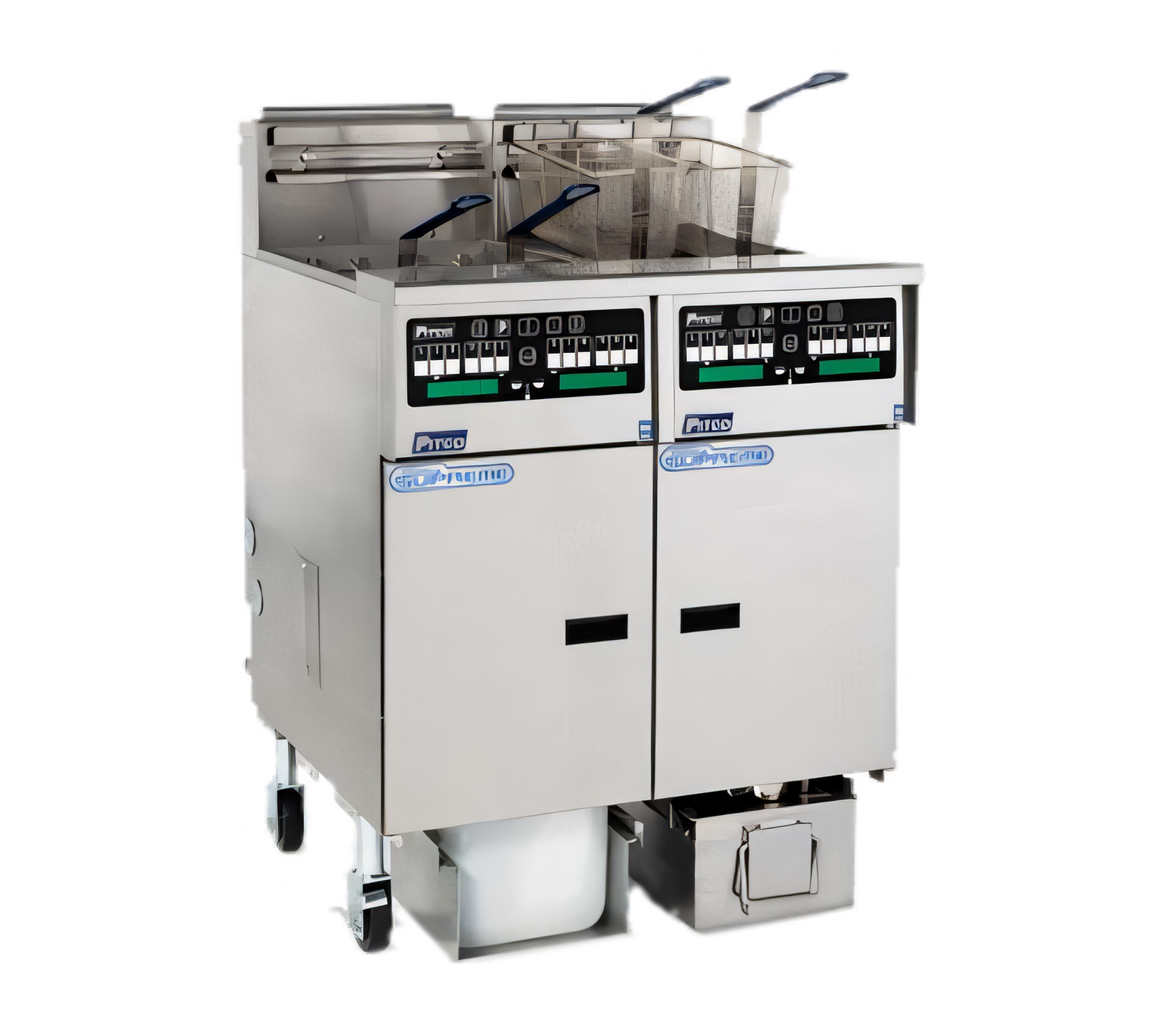

Pitco Frialator (Middleby) SSHLV14C-2/14T-2/FD Solstice Supreme Gas Fryers
Pitco Frialator (Middleby) SSHLV14C-2/14T-2/FD Solstice Supreme Gas Fryers is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Pitco Frialator (Middleby) SSHLV14C-2/14T-2/FD Solstice Supreme Gas...
Description
Pitco Solstice Supreme™ Reduced-Oil-Volume Gas Fryer System
4-Fryer Battery • 2 × 32 lb full vats + 2 split-pot fryers (4 × 17 lb) • Built-in filtration & top-offSlash oil costs without sacrificing throughput. The Solstice Supreme™ fryer battery combines Pitco’s award-winning reduced-oil technology with lightning-fast filtration and smart computer controls—giving you six independent fry zones, less than a 5-minute filter cycle, and up to 40 % oil savings on every change-out.
Key Performance Benefits
- High-output burners: 2 full vats at 72,500 BTU each & 4 split vats at 37,000 BTU each (293,000 BTU/h total).
- Reduced-oil-volume design cooks like a 50 lb fryer with only 32 lb / 17 lb of oil—faster turnover, better food, lower spend.
- Integrated Solstice™ Filter Drawer (4.5 GPM pump, 3″ clog-free drain) completes a full filter & reheat in under 5 minutes.
- Intellifry™ computer—12 programmable products, automatic melt cycles, filter & top-off prompts for rock-solid consistency.
- Push-button Top Off with on-board 35 lb Jug-in-Box storage and low-jug indicator—no more oil runs mid-rush.
- Blower-free atmospheric burners with self-cleaning action—quiet, reliable & ENERGY STAR® qualified.
- Peened stainless-steel fry tanks backed by a 10-year limited warranty; stainless front, door & sides for easy wipe-down.
- Drain-Valve-Interlock safety shuts burners off automatically when a valve is opened.
- Certified for worldwide use: CSA Flame, CSA Star, NSF, CE.
Specification Snapshot
| System Configuration | 4 gas fryers (2 full-pot SSHLV14, 2 split-pot SSHLV14T) |
|---|---|
| Total Frypots | 6 independent zones |
| Oil Capacities | Full vats: 32 lb (14.5 kg) each | Split vats: 17 lb (7.7 kg) per side |
| Heat Input | 2 × 72,500 BTU + 4 × 37,000 BTU = 293,000 BTU/h (85.9 kW) |
| Controls | Intellifry™ 12-button computer with push-button Top-Off & “FILTER SOON” monitor |
| Filtration | Solstice™ Drawer System, 4.5 GPM pump, 10″ × 20.5″ paper envelope |
| Drain Valve | 1-1/4″ full-port with DVI interlock |
| Construction | Stainless tank, front, door & sides; 9″ adjustable legs |
| Approx. Dimensions | 62.5″ W × 44″ D × 55.6″ H (4-fryer battery) |
| Utilities | Natural or LP gas | 115 V, 0.7 A/fryer + 6.7 A filter motor |
| Certifications | ENERGY STAR®, CSA Flame, CSA Star, NSF, CE |
| Warranty | 1-year parts & labour, 10-year fry-tank (limited) |
Included with Your Fryer Battery
- Drain clean-out rod & fryer cleaning brush
- Filter pan scoop & starter pack of filter sheets
- Lift-off basket hangers (no tools required)
- Installation & operation manual
Ideal Applications
- High-volume QSR and fast-casual concepts
- Ghost kitchens & commissaries needing multiple fry profiles
- Stadiums, arenas, concessions & catering lines
- Operators focused on lowering oil usage, labour and downtime
Looking for basket lifts, casters or automatic filtration upgrades? Our equipment specialists can tailor a Solstice Supreme system to match your exact menu and workflow.
