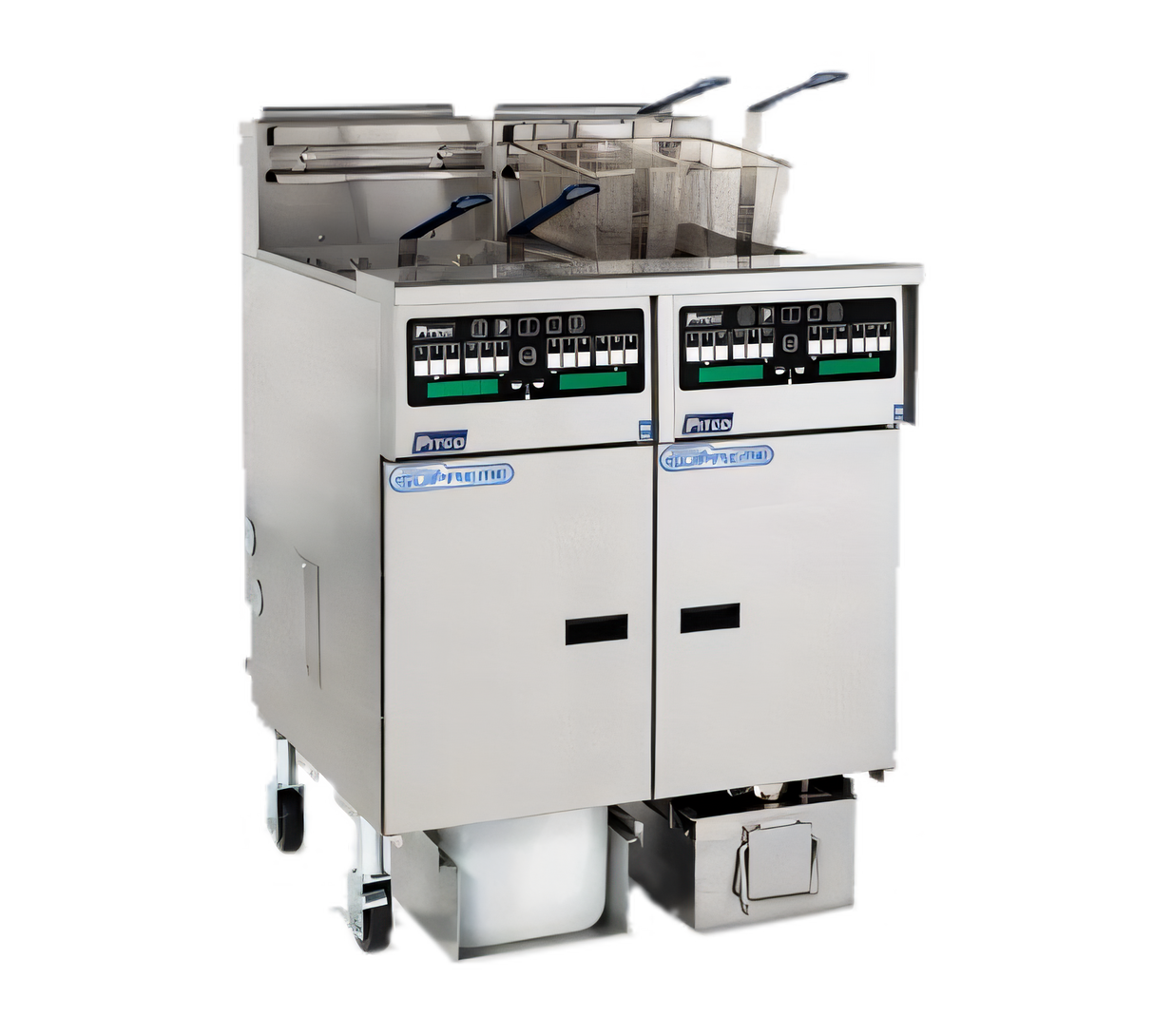

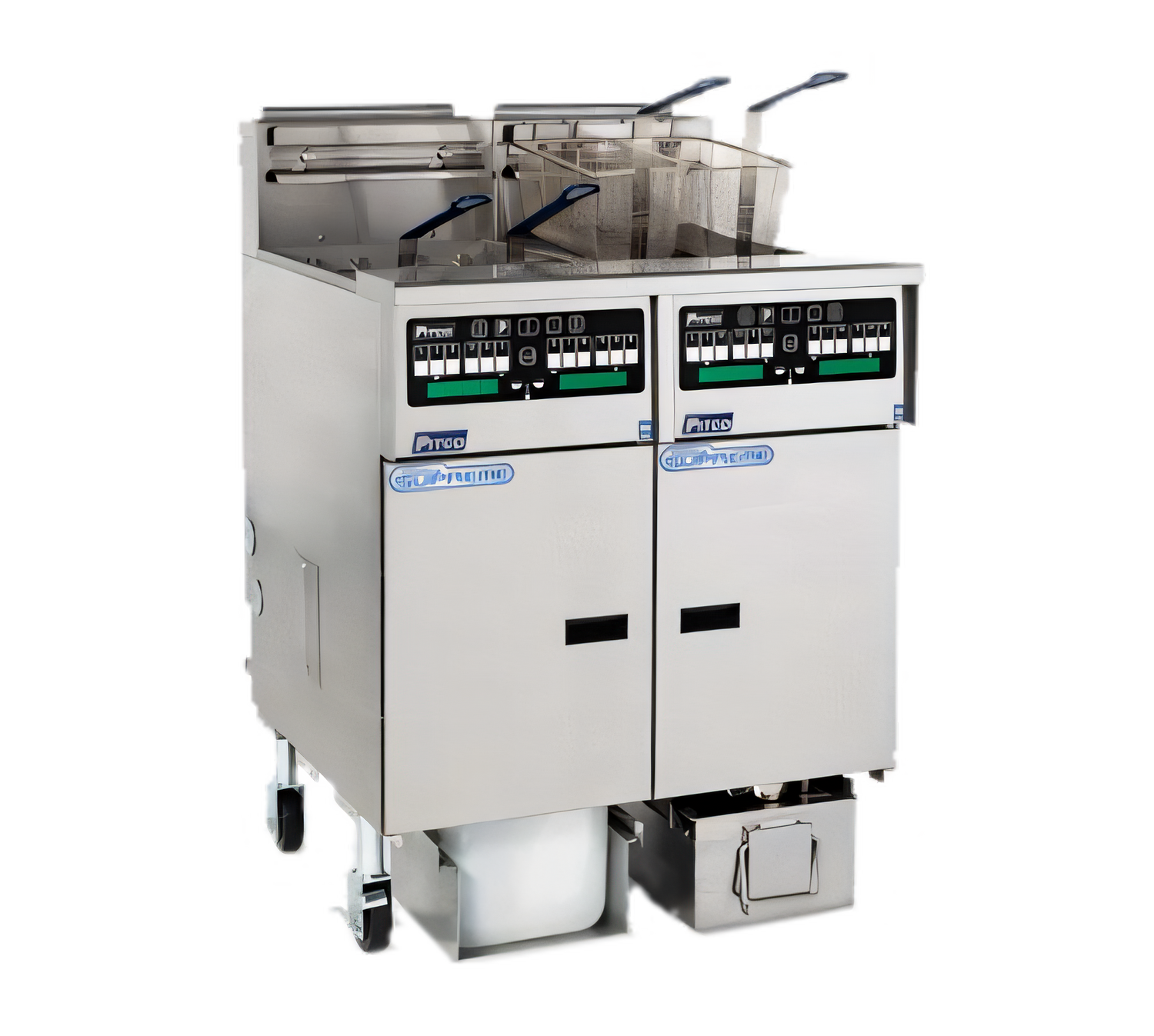

Pitco Frialator (Middleby) SSHLV14C/184/FD Solstice Supreme Gas Fryers
Pitco Frialator (Middleby) SSHLV14C/184/FD Solstice Supreme Gas Fryers is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Pitco Frialator (Middleby) SSHLV14C/184/FD Solstice Supreme Gas Fryers
Description
Solstice Supreme™ Reduced-Oil-Volume Fryer System
Two-tank gas battery | 32 lb + 42 lb oil capacity | Built-in filtration & auto top-offSlash oil costs without sacrificing throughput. The Pitco Solstice Supreme™ pairs industry-leading reduced-oil technology with lightning-fast filtration and menu-driven computer controls, giving high-volume kitchens crisp, consistent results every shift.
Key Advantages
- Up to 40 % less oil on the first fill and every change-out thereafter.
- Push-button Auto Top-Off stores a 35 lb JIB under the cabinet, tops oil as needed, and warns when the jug is low.
- Solstice™ Filter Drawer finishes a full filtration cycle in under five minutes—no doors or hoses to wrestle.
- Intellifry™ computer (12 products) with “Filter Soon” production monitor maximizes oil life.
- Quiet, blower-free atmospheric burners fire at 72,500 BTU & 80,000 BTU for Energy Star®-rated efficiency.
- All-stainless tank, door, front & sides backed by a 10-year frypot warranty.
- Extra-large 3" drain path, 1-¼" full-port valve & 4.5 GPM pump get you back in business fast.
- Certified: CSA Flame, CSA Star, NSF, CE.
System Configuration
| Component | Fryer 1 | Fryer 2 |
|---|---|---|
| Model / Type | SSHLV14 – Full tank | High-output full tank |
| Oil Capacity | 32 lb (15.6 L) | 42 lb (19 L) |
| Gas Input | 72,500 BTU/hr | 80,000 BTU/hr |
| Cooking Area | 13" × 13.6" (33 × 34.5 cm) | 14" × 18" (35.6 × 45.7 cm) |
| Cook Depth | 3-¼" – 5" (8.3 – 12.7 cm) adjustable | |
Built-In Filtration
- Two-step drain-and-polish cycle; reheats oil automatically.
- 10" × 20.5" filter envelope handles heavy sediment all day.
- 1/3 HP pump moves 4.5 GPM @ 60 Hz for rapid turnaround.
- Swivel drain spout & wheeled stainless pan simplify clean-out.
Utility Requirements
| Gas | Natural 7-10" w.c. or LP 11-13" w.c. (individual shut-off per fryer) |
|---|---|
| Electric | 115 V, 1 ph, 60 Hz – 0.7 A per fryer + 6.7 A filter pump |
What’s in the Box
- (2) twin fry baskets per vat & lift-off hangers
- Drain clean-out rod & cleaning brush
- Filter starter kit & pan scoop
- 9" adjustable leveling legs
Popular Factory Options
- Hands-free automatic oil-level control
- Computer-controlled auto-filtration
- 9" locking casters with flexible gas hose & restraint
- Basket lifts or dump station
Rock-Solid Warranty
1-year parts & labor coverage plus a 10-year limited frypot warranty, supported by Pitco’s global service network.
Energy Star® rating applies to the 32 lb fryer. Performance claims assume proper installation, recommended filter media, and oil temperature above 180 °F (82 °C).
