Pitco Frialator (Middleby) SSHLV14-C/FD Solstice Supreme Gas Fryers
Description
Pitco Solstice Supreme™ SSHLV14 Reduced Oil Volume Gas Fryer
32 lb Full Frypot | 72,500 BTU | Built-In Solstice® Filter Drawer | ENERGY STAR®Cut your oil spend by up to 40 % while keeping pace with peak-hour demand. The Solstice Supreme SSHLV14 cooks like a 50-lb fryer but needs only 32 lb of oil, helping you serve crispy, consistent fried food at the lowest possible cost of ownership.
Why you’ll love it

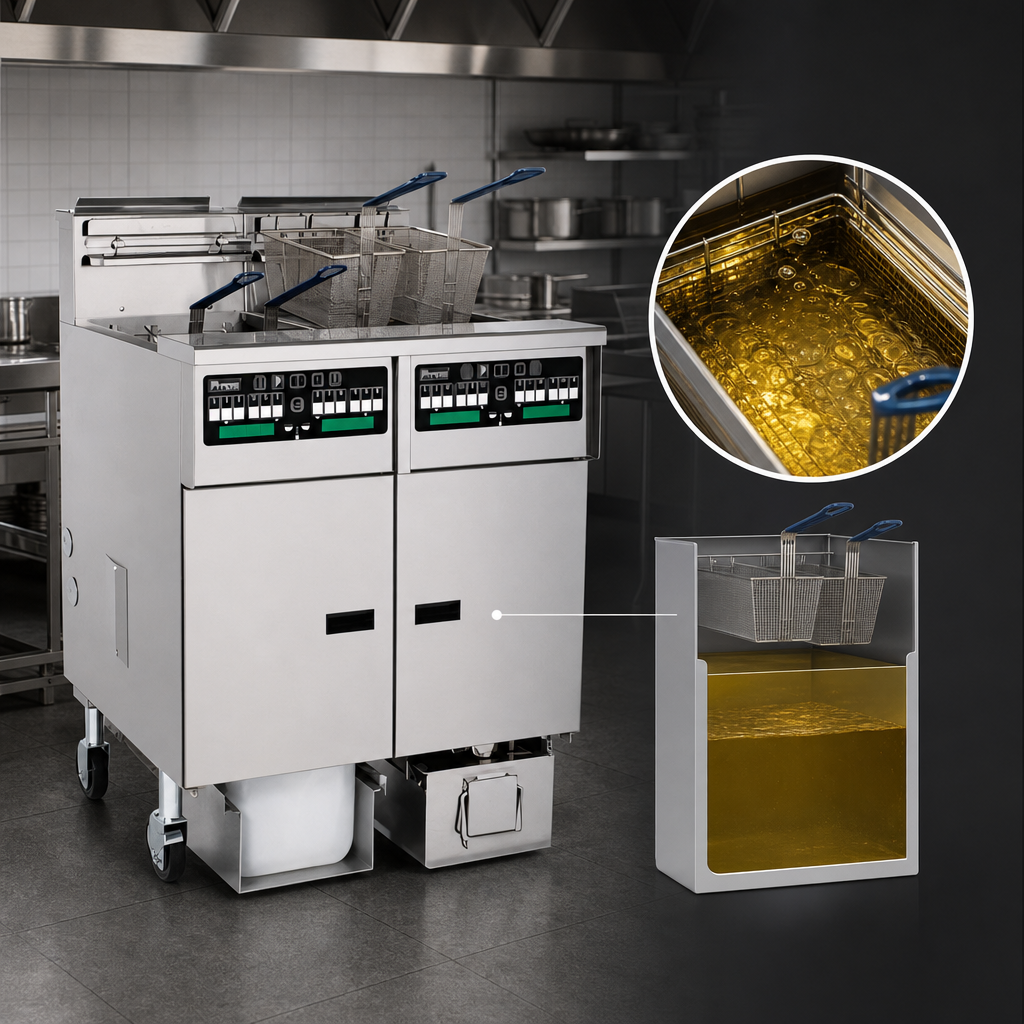

- Reduced Oil Volume. 32-lb frypot provides a full 4″ cook depth yet cuts initial oil fill and top-offs by roughly 40 %.
- High production, low energy. 72,500 BTU atmospheric burners recover quickly without fragile blowers or ceramics.
- Smart controls. Intellifry™ computer stores up to 12 menu items and includes push-button automatic top-off.
- FILTER SOON alert. Production-based monitoring tells staff exactly when to filter for maximum oil life.

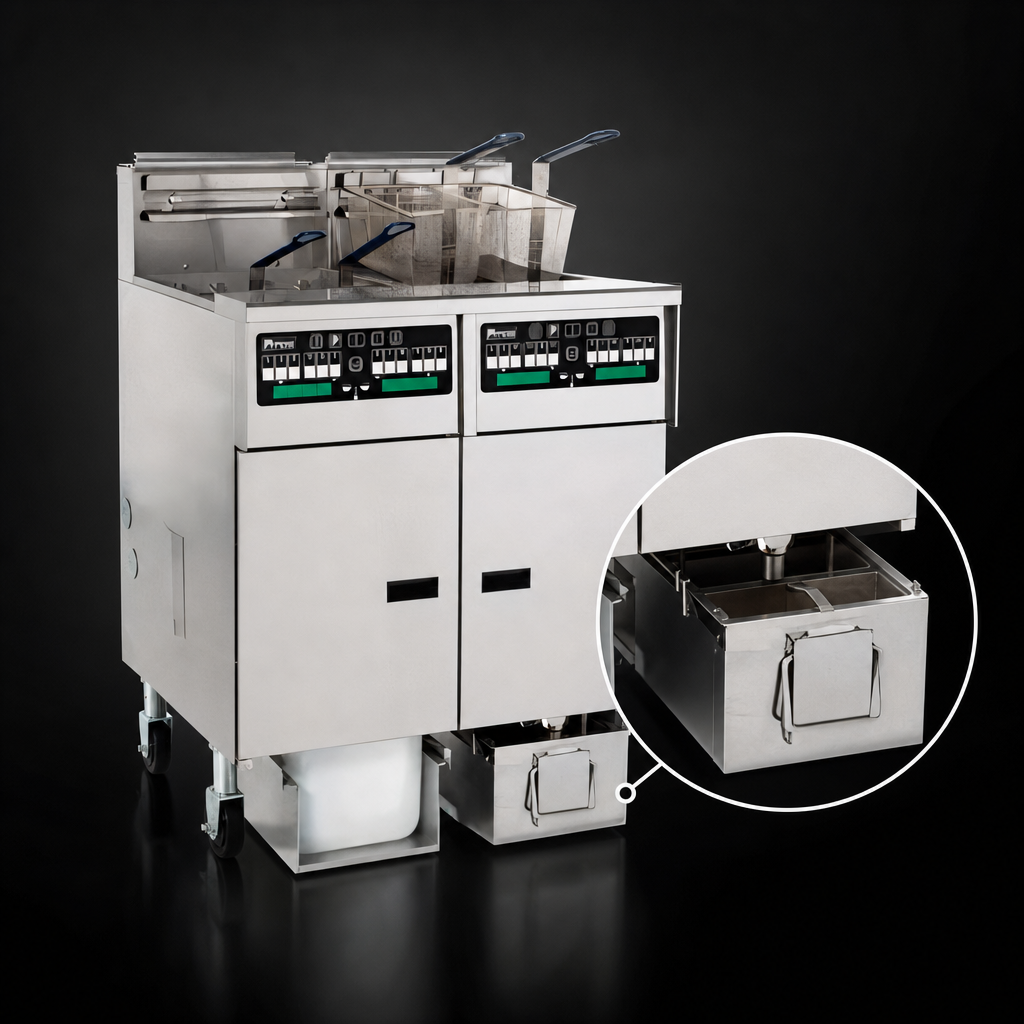

- Two-step filtration. Integrated Solstice® drawer filters a full frypot in under 5 minutes via a 4.5 GPM pump.
- 10-year tank warranty. Heavy-gauge stainless fry tank is peened, polished and built to last.
*Filtration time assumes oil ≥ 180 °F and clean filter media.
Specification summary
| Model | SSHLV14 |
|---|---|
| Oil capacity | 32 lb / 15.6 L |
| Frying area | 13″ × 13.6″ (33 × 34.5 cm) |
| Usable cook depth | 3¼ – 5″ (8.3 – 12.7 cm) |
| Gas input rate | 72,500 BTU/hr (21 kW) |
| Filter pump | 1/3 HP, 4.5 GPM (17 LPM) |
| Electrical | 115 V, 0.7 A (controls) + 6.7 A (filter pump) – single cord |
| Overall dimensions* | 15 5⁄8″ W × 38 5⁄8″ D × 44″ H |
| Certifications | ENERGY STAR®, CSA Flame, CSA Star, NSF, CE |
*Height measured to top of flue; depth shown with filter drawer closed.
Standard equipment
- Intellifry™ computer, automatic pilot ignition & drain-interlock safety shut-off
- Push-button oil top-off with on-board 35-lb JIB fresh-oil holder & low-oil indicator
- Integrated Solstice® filter drawer, stainless pan, self-storing lid & starter pack filters
- Lift-off basket hanger (no tools) and twin fry baskets
- 1¼″ full-port drain valve with clean-out rod & fryer brush
- 9″ adjustable stainless leveling legs
- Stainless steel tank, front, door & sides
Optional upgrades
- Hands-free automatic frypot oil-level control
- Computer-controlled auto-filtration
- Locking swivel casters
- Flush hose or waste-oil piping
- Stainless tank covers & basket lift
Warranty: 1 year parts & labor plus 10 years on the fry tank. See full warranty statement for terms.
