Pitco Frialator (Middleby) SGM24 MEGAFRY Gas Fryers
$18,417.70
Unit price
/
Unavailable
Description

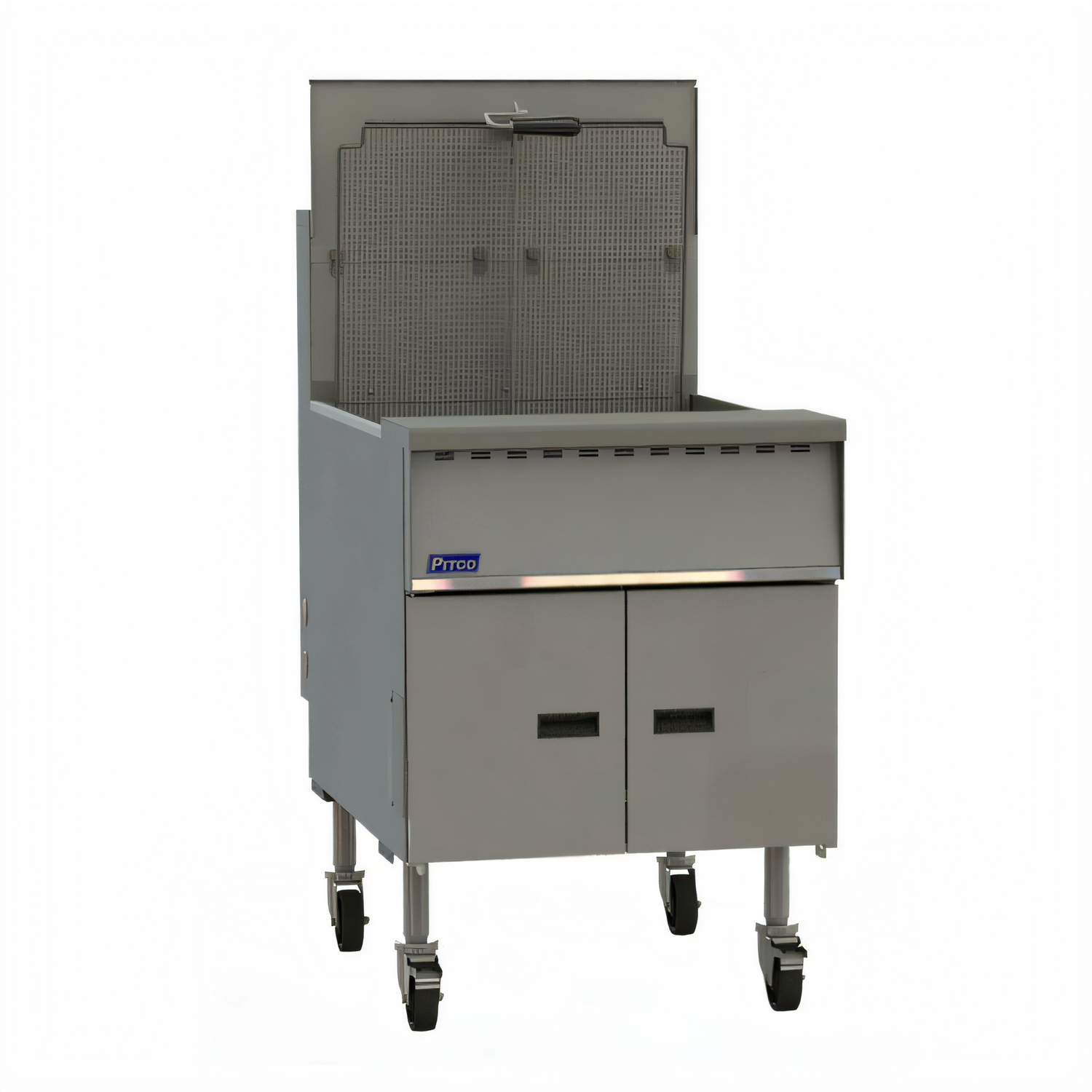

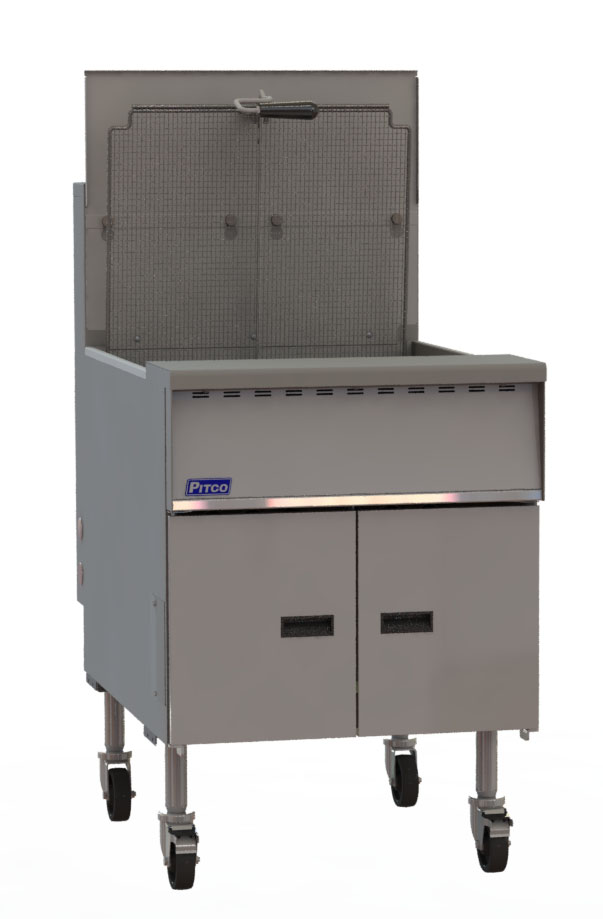

Pitco MEGAFRY SGM24 High-Efficiency Gas Fryer

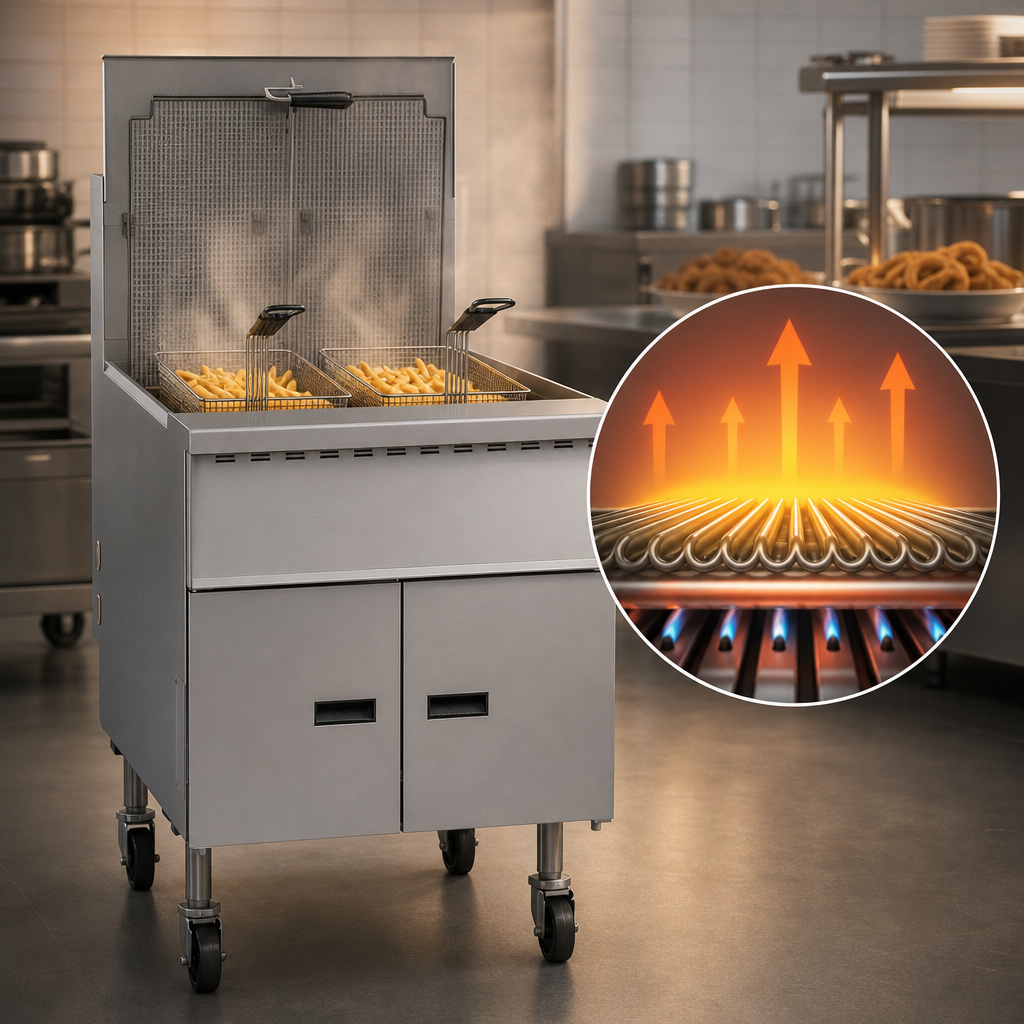

24 in × 24 in fry area • 140 – 150 lb oil capacity • 165,000 BTUBuilt for punishing, round-the-clock production, the Pitco MEGAFRY SGM24 delivers stadium-level output from a single 24" x 24" fry tank. Solstice Burner Technology drives an impressive 62 % thermal efficiency—without noisy blowers—so you serve more food while spending less on gas and ventilation.
Why you’ll love it
- Massive capacity & output – handles up to 150 lb of oil and 165,000 BTU/hour for high-volume rushes.

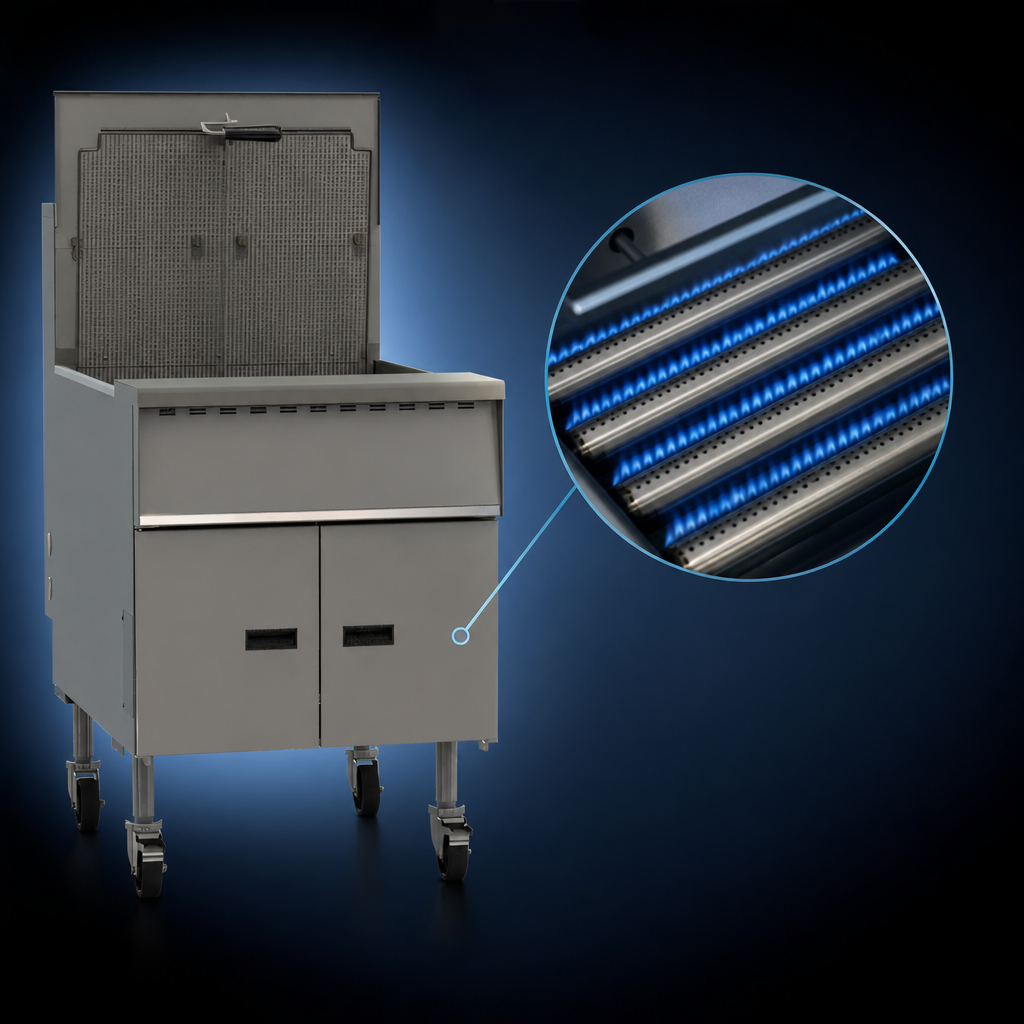

- Solstice Burner Technology – quiet, blower-free operation with industry-leading heat transfer.
- Solid-state controls – precise thermostat with auto melt & boil-out modes simplifies daily prep and clean-up.
- Matchless ignition – pilot lights automatically when power is on, cutting standby gas costs.
- Marine front edge – helps contain splashes in busy galley or stadium kitchens.
- Stainless-steel durability – tank, front, sides & splash-back resist corrosion and wipe clean fast.
- DVI drain-valve interlock – shuts off burners the moment the drain is opened for total operator safety.
- Field-upgradable – add digital timers, Intellifry™ computers, a filter drawer, casters and more as your menu grows.
Performance & utilities
| Frying area | 24 in × 24 in × 4 in (61 × 61 × 10 cm) |
|---|---|
| Oil capacity | 140 – 150 lb (64 – 68 kg) |
| Gas input | 165,000 BTU/hr (48.4 kW / 174 MJ) |
| Thermal efficiency | 62 % |
| Gas connection | ¾ in NPT rear (1 in for multi-unit manifolds) |
| Electrical (controls only) | 115 V / 1 ph / 60 Hz • 1.7 A |
| Shipping weight | 375 lb (170 kg) |
| Shipping dimensions | 57 in H × 36 in W × 47 in D (1448 × 914 × 1194 mm) |
| Clearances | Front 30 in • Sides/Rear 6 in • Do not curb-mount |
What’s in the box
- Removable basket hanger & tube screen
- 1¼ in full-port drain valve with extension & clean-out rod
- Integrated flue deflector
- 9 in adjustable legs (field-convertible to optional casters)
- Starter packet of fryer cleaner
Popular factory options
- FD-M filter drawer system – self-aligning, 8 GPM pump for 2-step filtering
- Intellifry I12 computer with 12 product timers & cook-time compensation
- Digital twin-timer controller
- Stainless-steel tank cover
- Rear & front locking casters, flexible gas hose & quick-disconnect
- Basket configurations: 4 × half-size, 2 × half + 1 × full, or 2 × full-size
Certifications
- NSF
- CE
- CSA Flame & CSA Star
Warranty
1-year parts & labor coverage, plus a 10-year limited fry-tank warranty (standard; exclusions apply).
Installation notice: This fryer is gas-fired. A licensed professional must connect
the gas & electrical supplies in accordance with local codes. Proper ventilation is required.
Features & Specs
Features & Specs
Manufacturer
Pitco Frialator (Middleby)
Brand_name
MEGAFRY
Certifications
NSF, CE, CSA Star, CSA Flame
Shipping Weight
375.0lbs
Exterior Finish
stainless steel front & sides
Controls
solid state controls
Type
restaurant
Fat Capacity (approximate)
130 lb
Basket Lifts
without basket lifts
Fry pot
stainless steel fry pot
Filter
no filter
Specifications
MEGAFRY Fryer, gas, high efficiency, 24"x24" frying area, 140-150 lb. oil capacity, solid state controls, auto melt cycle, boil out mode, matchless ignition, marine front edge, 9" legs, stainless steel tank, front, sides & splash-back, 165,000 BTU, NSF, CE, CSA Flame, CSA Star (available mix/match and with FD-M filter drawer filtration system)
