Pitco Frialator (Middleby) SG14RS Solstice Gas Fryers
Description

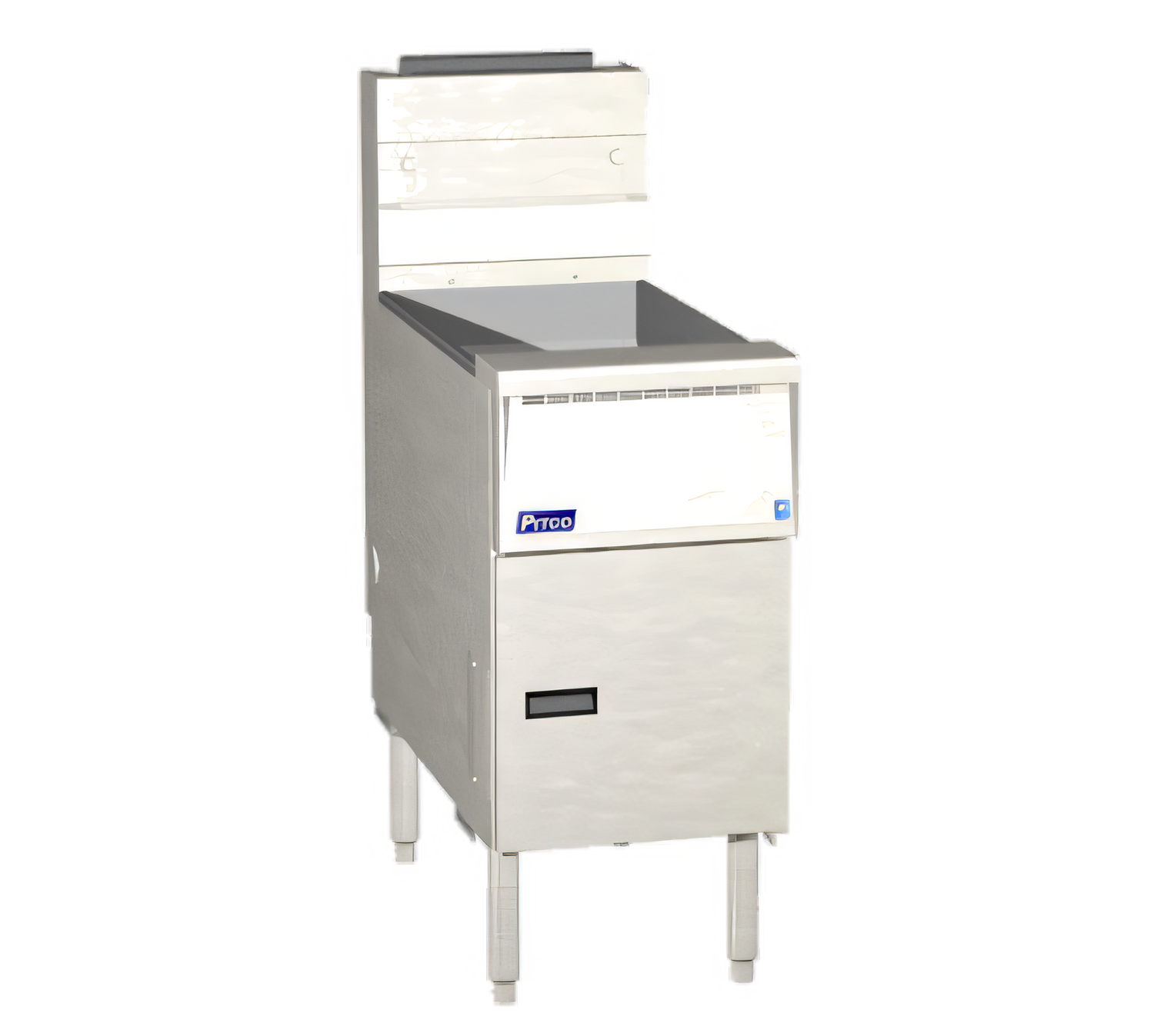

Pitco Solstice SG14R Gas Fryer
40-50 lb | 122,000 BTU | Floor ModelKeep fried favorites flying out of the kitchen with the Pitco Solstice SG14R. Its patented, blower-free burner design delivers fast recovery and rock-solid temperature accuracy, while the stainless-steel tank stands up to years of high-volume service.
Performance & Construction Highlights
- Patented Solstice burner – 57 % thermal efficiency with no fragile ceramics or blowers.
- Millivolt thermostat (200-400 °F) operates without external power.
- Full frypot holds 40–50 lb (18–23 kg) of oil with a 14 × 14 in fry area.
- Self-cleaning burner and downdraft protection keep the fryer running at peak efficiency.
- Large cool zone plus tube rack reduce crumb carbonization and extend oil life.
- 1-¼ in full-port drain valve for rapid, clog-free draining.
- Includes drain line clean-out rod and drain extension for mess-free maintenance.
- Stainless-steel tank, front, door & sides for maximum durability.
- High-temperature safety limit switch and separate manual gas shutoffs.
- 9 in adjustable legs make cleaning underneath a breeze.
- NSF, CE, CSA Flame, CSA Star & AuGA certified.
What’s in the Box
- 2 twin fry baskets
- Drain line clean-out rod
- Drain extension
- Fryer cleaner sample packet
- Operator’s manual
Technical Specifications
| Oil Capacity | 40–50 lb (18–23 kg) |
|---|---|
| Fry Area | 14 × 14 in (35.6 × 35.6 cm) |
| Input | 122,000 BTU/hr |
| Control Type | Millivolt thermostat (no electrical connection required) |
| Gas Connection | 3/4 in NPT rear (CE models ship with 3/4 in BSP adaptor) |
| Manifold Pressure | Natural 4 in w.c. | Propane 10 in w.c. |
| Supply Pressure | Natural 7–10 in w.c. | Propane 11–13 in w.c. |
| Overall Width | 15-5/8 in (39.7 cm) |
| Shipping Weight | 208 lb (95 kg) |
| Certifications | NSF, CE, CSA Flame, CSA Star, AuGA |
| Warranty | 1-year parts & labor + 10-year stainless-steel fry tank (limited) |
Looking for basket lifts, filtration, or digital controls? The modular Solstice platform lets you add upgrades whenever you’re ready.
