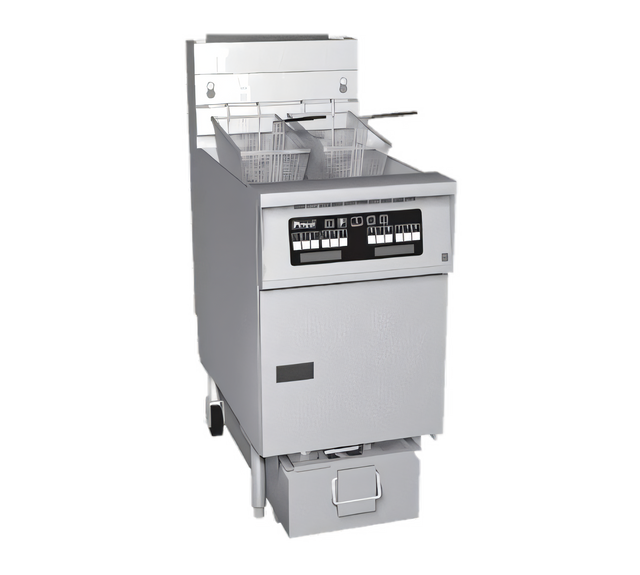

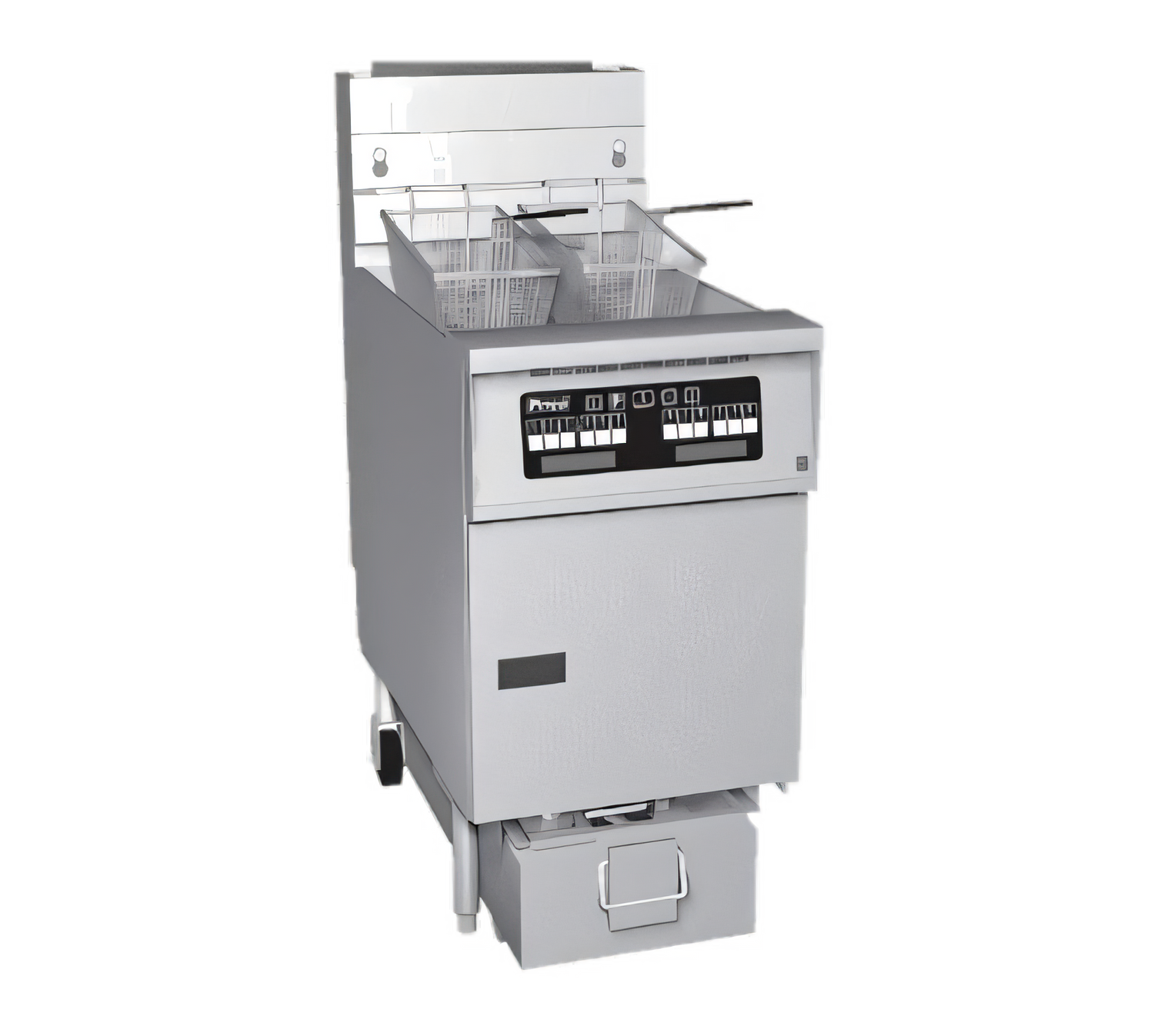

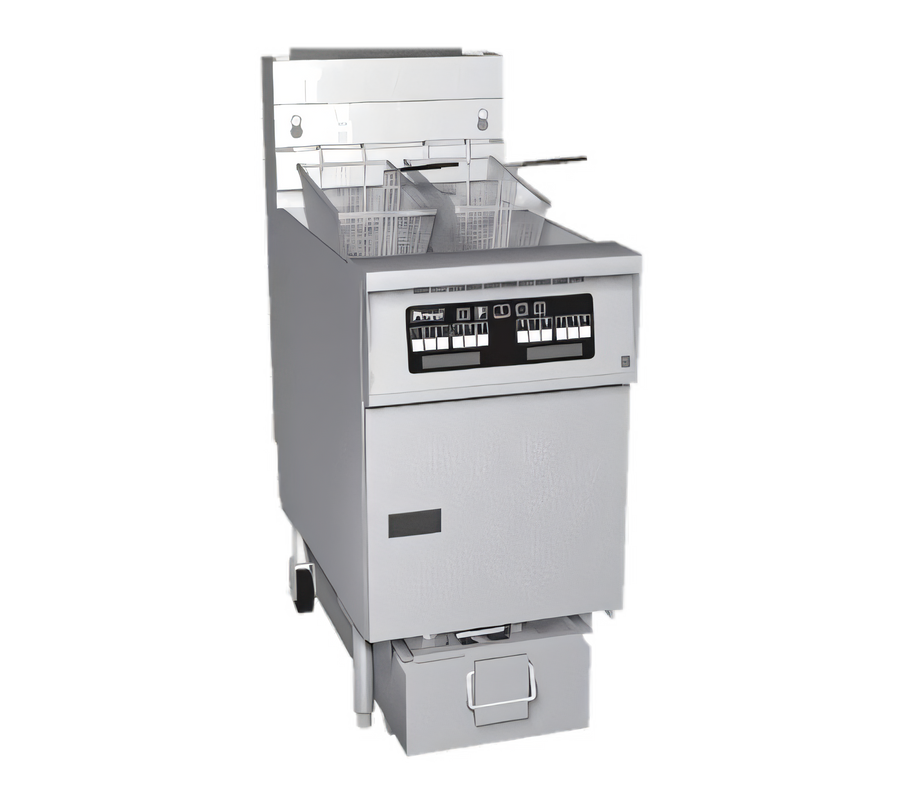

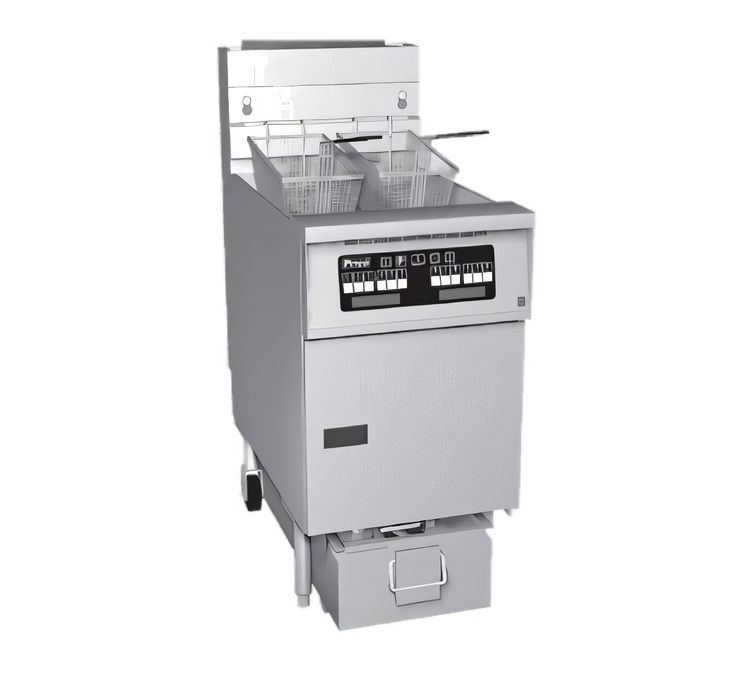

Pitco Solstice™ SFSG14R SoloFilter Gas Fryer System
40–50 lb oil capacity • 122,000 BTU • under-fryer drawer filtrationThe Solstice™ SFSG14R packs high-production frying and built-in filtration into a single 15 ⅝-inch-wide cabinet. Powered by Pitco’s blower-free Solstice Burner Technology, this 122,000 BTU workhorse delivers lightning-fast recovery while the two-step SoloFilter system keeps oil cleaner, longer—helping you turn more orders, cut operating costs and serve consistently crisp, great-tasting food.
Why you’ll love it
- High output, small footprint – 14 × 14 in fry area handles up to 50 lb of oil in only 15 ⅝ in of floor space.
- Solstice Burner Technology – 57 % thermal efficiency, self-cleaning tubes and no external blower to maintain.
- Rapid two-step filtration – Pull the blue handle to drain, pull the red handle to pump back filtered oil—done in minutes.

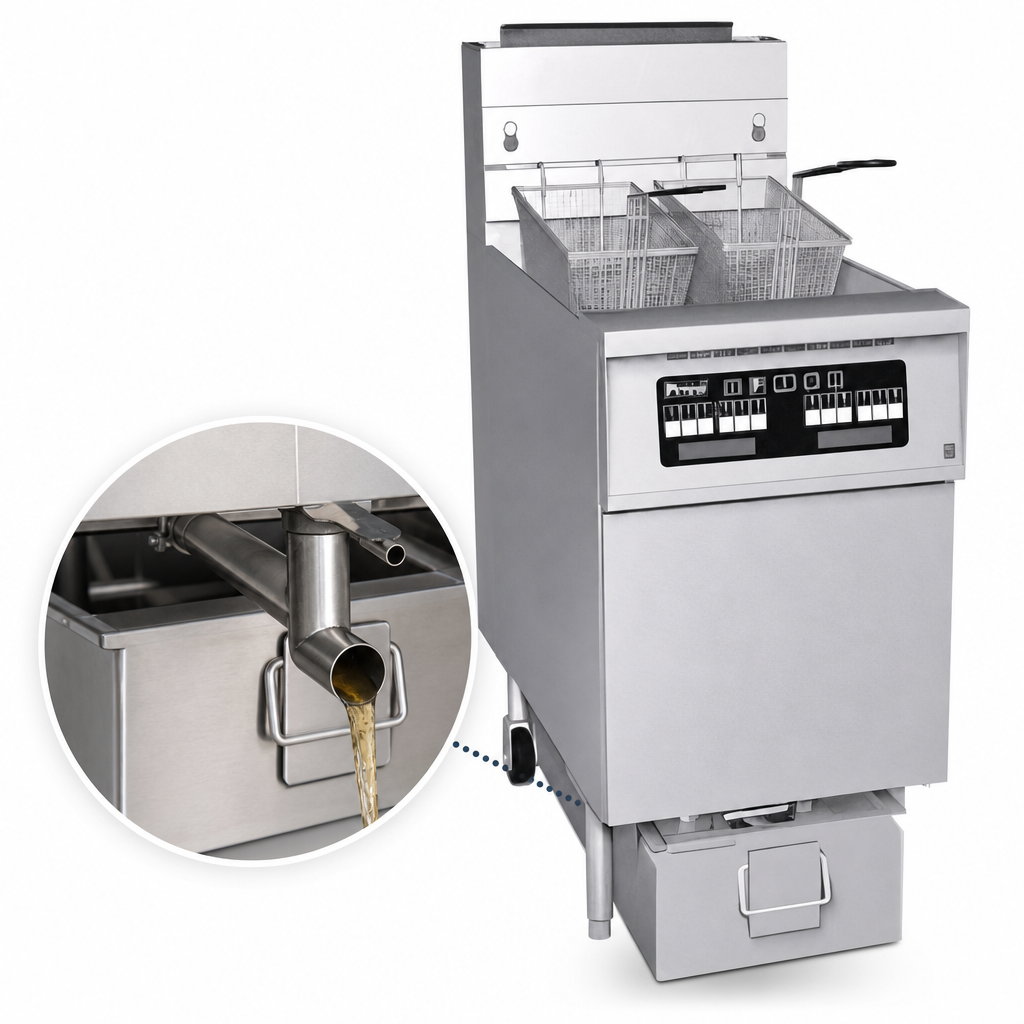

- 3 in curved drain & 8 GPM pump – Extra-large drain manifold and high-flow pump speed up turn-arounds and reduce splashing.
- Built to last – Stainless steel tank, front and sides plus a heavy-duty 3⁄16 in door hinge and 1¼ in full-port drain valve.
- No electricity required – Reliable millivolt thermostat control means the fryer operates even during power interruptions.
- Easy service access – All components are reachable from the front; separate manual gas shut-offs simplify maintenance.
- Industry certifications – NSF, CE, CSA Flame, CSA Star & AuGA listed for peace of mind worldwide.

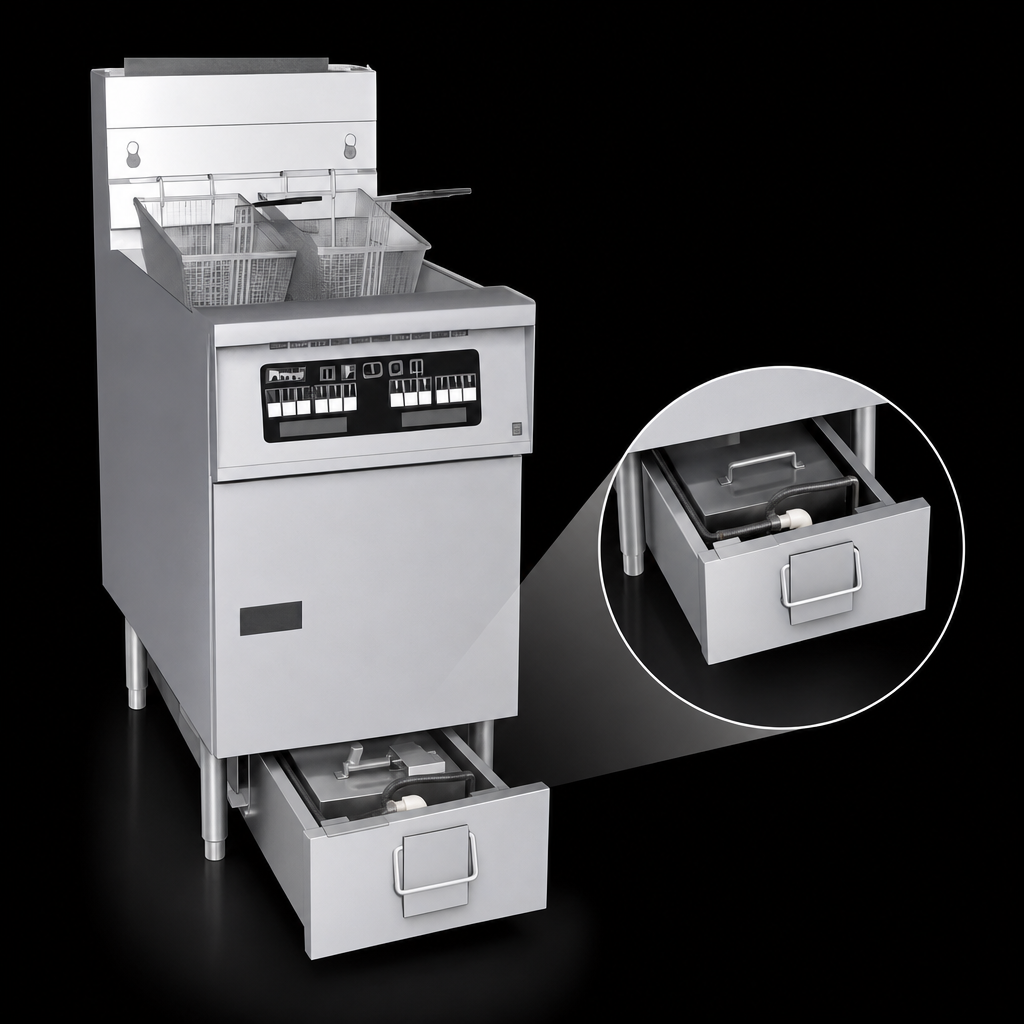

SoloFilter advantages
- Stainless filter pan rolls out on rear casters; self-aligns with the pickup tube—no wrestling required.
- Filter pan lid slides up and out of the way for faster crumb removal.
- Rear oil return flushes the bottom of the tank, sweeping away sediment that degrades oil.
- Includes starter pack of filter paper, filter powder, crumb scoop, shovel scoop & cleaning brush.
Standard specifications
| Oil capacity | 40 – 50 lb (18 – 23 kg) |
|---|---|
| Fry area (W × D) | 14 in × 14 in (35.6 × 35.6 cm) |
| Input rate | 122,000 BTU/hr (35.8 kW) |
| Cook depth | 3¼ – 5 in (8.3 – 12.7 cm) |
| Overall dimensions | 15 ⅝ W × 34 ½ D × 48 ⅜ H in (39.7 W × 87.5 D × 122.8 H cm) |
| Gas connection | ¾ in NPT rear connection (CE units include ¾ in BSP adaptor) |
| Manifold pressure | Natural 4 in w.c. | Propane 10 in w.c. |
| Filter pump motor | ⅓ HP, 8 GPM @ 60 Hz (6.7 GPM @ 50 Hz) |
| Electrical (filter only) | 115 V / 60 Hz, 5.6 A (other voltages available) |
| Shipping weight | ≈ 358 lb (162 kg) | with basket lift ≈ 458 lb (208 kg) |
Popular factory options
- Solid-State, Digital or Intellifry I-12 computer controls (all add matchless ignition & drain-valve interlock)
- Automatic basket lift (requires Digital or Computer control)
- Stainless steel back panel, casters, tank cover & triple basket set
- Paperless filter, pump heaters or waste-oil management kit
Need a mixed battery or a different control package?
Ask our team about custom Solstice configurations.
Warranty
1-year parts & labor on the complete fryer system plus a 10-year limited warranty on the stainless-steel fry tank (standard fryers). See Pitco’s warranty statement for full details.
Installation note: Maintain a minimum 6 in (15 cm) clearance at the sides and rear, and do not curb-mount the unit.
Gas supply line must be sized to sustain the stated manifold pressure when all appliances are on.
Pitco Frialator (Middleby)
Pitco Frialator (Middleby) SG14RS-1FD Solstice Gas Fryers
SKU: SG14RS-1FD
$24,253.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to
?
Pitco Frialator SG14RS-1FD Solstice gas fryer: high-power 122k BTU, 40–50 lb oil, built-in Solstice filter, stainless tank, NSF/CSA certified.
Manufacturer
Pitco Frialator (Middleby)
Brand name
Solstice
Certifications
NSF, CE, CSA Star, CSA Flame
Height
55.75in
Width
15.63in
Depth
38.34in
Shipping Weight
350.0lbs
Basket Lifts
without basket lifts
Filter
built-in filter
Exterior Finish
stainless steel front & sides
Controls
millivolt controls
Fat Capacity (approximate)
50 lb
Type
restaurant
Fry pot
stainless steel fry pot
Specifications
Solstice™ Prepackaged Fryer System with Solstice™ Solo Filter System, High Power, gas, (1) 40-50 lb. oil capacity full tank, millivolt control, stainless steel tank, front & sides, under-fryer drawer filtration, 10" adjustable legs, 122,000 BTU (-F), NSF, CE, CSA Flame, CSA Star, AuGA
