Pitco Frialator (Middleby)  |  Solstice  |  SKU: SELV184X-C/FD

Pitco Frialator (Middleby) SELV184X-C/FD Solstice Electric Fryers

$27,101.60
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Installation & operation Smart features brochure Middleby financial flyer Warranty sheet
Related Searches
Braising Pan & Tilt Skillet Cooking Equipment Cooking Equipment Electric Fryers Fryers Restaurant Equipment Steam Cooking Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

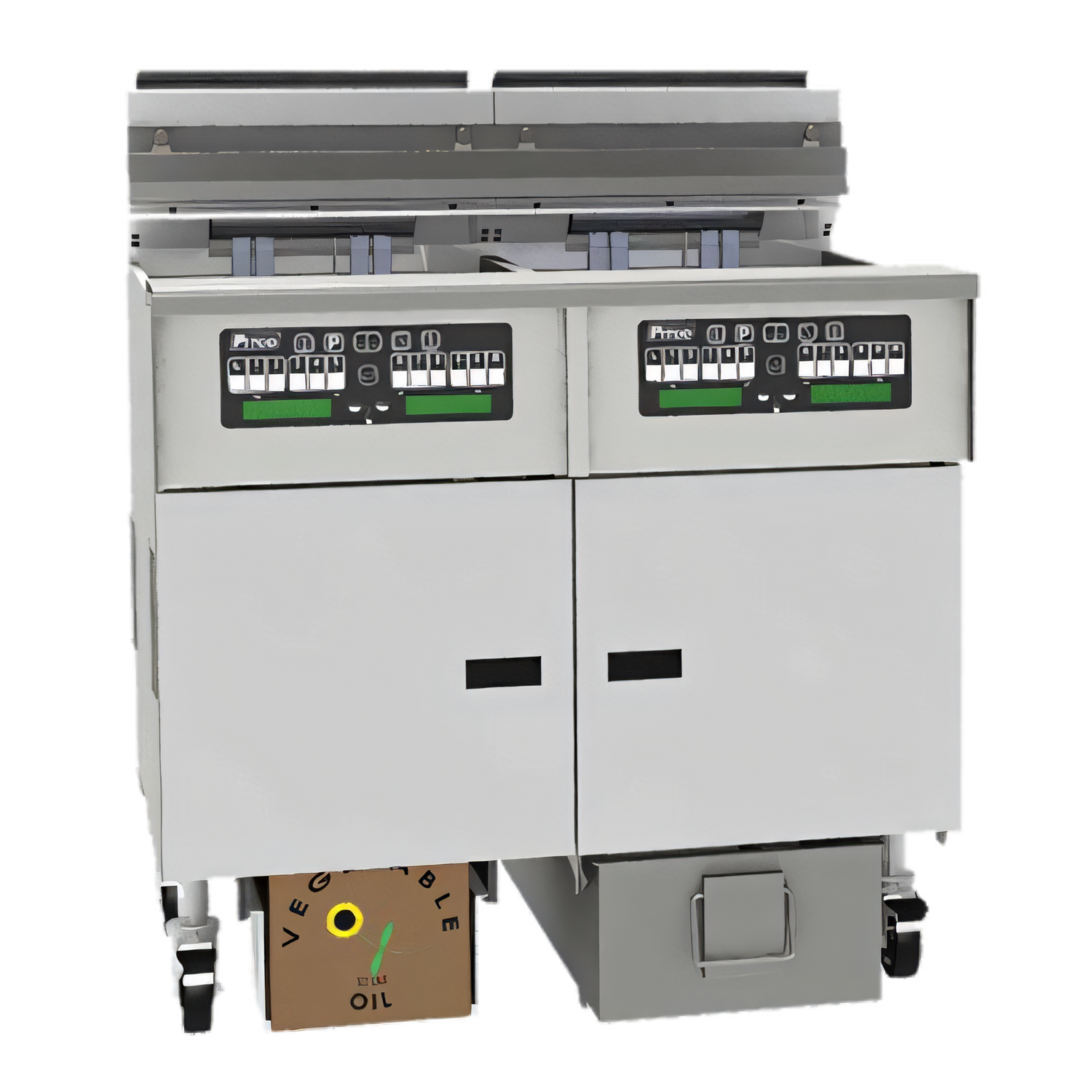

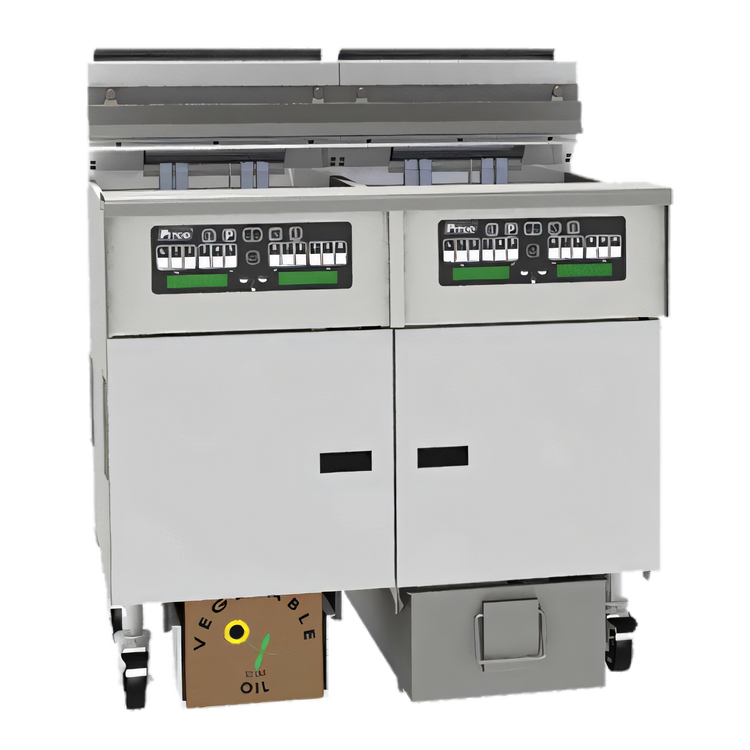

Pitco Solstice™ SELV184X Electric Reduced Oil Volume Fryer

40 lb frypot • 14 kW • Built-in Solstice Filter Drawer System

Cut oil costs, drive consistency and keep service moving with the Pitco Solstice SELV184X. This 14 kW electric fryer cooks like a traditional 60 lb unit while using just 40 lb of oil—delivering a 33 % oil-savings on every fill and every change-out.

Key Operating Advantages

  • High-output performance with reduced 40 lb tank—full 4 in (10.2 cm) cook depth.
  • Intellifry 12-button computer brings repeatable results, melt/boil-out modes and FILTER SOON prompts.
  • Push-button top-off automatically draws fresh oil from a standard 35 lb JIB; includes “jug-low” alert.
  • Mercury-free contactors and lift-out elements simplify maintenance and boost safety.
  • Stainless-steel tank, front, door and sides hold up to the most demanding kitchens.

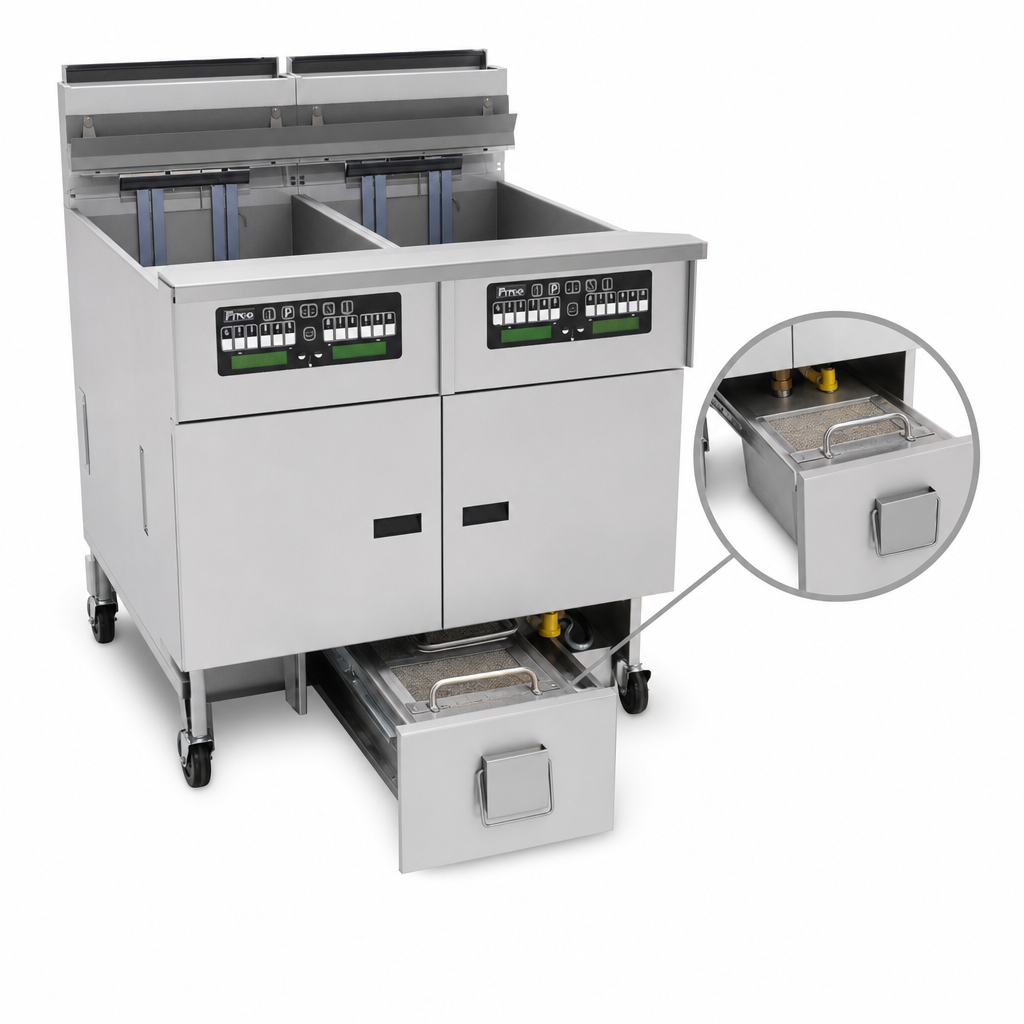

Two-Step Solstice Drawer Filtration

  • Filter, reheat and be back in production in < 6 minutes*.
  • Curved 3 in drain spout &plus; 4.5 gpm pump = fast, splash-free oil flow.
  • Large 14 × 22 in paper envelope captures fine crumbs for longer oil life.
  • Stainless filter pan with rear swivel casters and self-storing lid rolls out effortlessly.

What’s Included

  • (3) twin fry baskets & removable basket hanger
  • Crumb scoop, filter shovel scoop & filter media starter pack
  • Fryer cleaning brush & drain clean-out rod

Specifications

Model SELV184X (Electric)
Oil capacity 40 lb | 18.1 L
Cooking area / depth 17.5 × 14.8 in  (44.5 × 37.6 cm) • 4 in (10.2 cm) depth
Heat input 14 kW
Voltage options 200–240 V & 480 V, 1- or 3-phase (see amp draw chart in manual)
Filtration pump 1⁄3 HP, 4.5 gpm (17 L / min) @ 60 Hz
Drain valve 1¼ in full-port ball valve
Exterior dimensions* 19 ⅝ W × 37 ⅜ D × 45 ⅜ H in (49.8 × 94.9 × 115.3 cm)
55 in (139.8 cm) H with optional basket lifts
Certifications CE, cETLus, ETL-Sanitation

*Dimensions are for a single fryer; allow 6 in (15.2 cm) clearance at rear/sides and 30 in (76.2 cm) front for servicing.

Popular Factory Options (extra cost)

  • Automatic filtration & auto top-off package
  • Automatic basket lifts
  • 9 in adjustable swivel casters
  • Tank covers, dump station & assorted basket styles

Warranty

1-year parts & labor, plus a 10-year fry tank warranty when properly maintained with genuine Pitco parts.

*Assumes oil temperature > 180 °F and clean filter media. Specifications subject to change without notice.

Features & Specs

Manufacturer

Pitco Frialator (Middleby)

Brand_name

Solstice

Certifications

CE, cETLus, ETL-Sanitation

Height

45.75in

Width

19.63in

Depth

34.38in

With or without basket lifts

without basket(s)

Controls

computer controls

Fry pot

stainless steel

Type

Restaurant

Fat Capacity (approximate)

40 lb

Filter

built-in filter

Exterior Finish

all stainless steel exterior

Specifications

Solstice™ Reduced Oil Volume Fryer, electric, full frypot, (1) 40 lb. oil capacity tank, computer controls with push button top off, built-in Solstice™ Filter Drawer System, stainless steel tank, front, door & sides, 14.0kW, CE, cETLus, ETL-Sanitation
