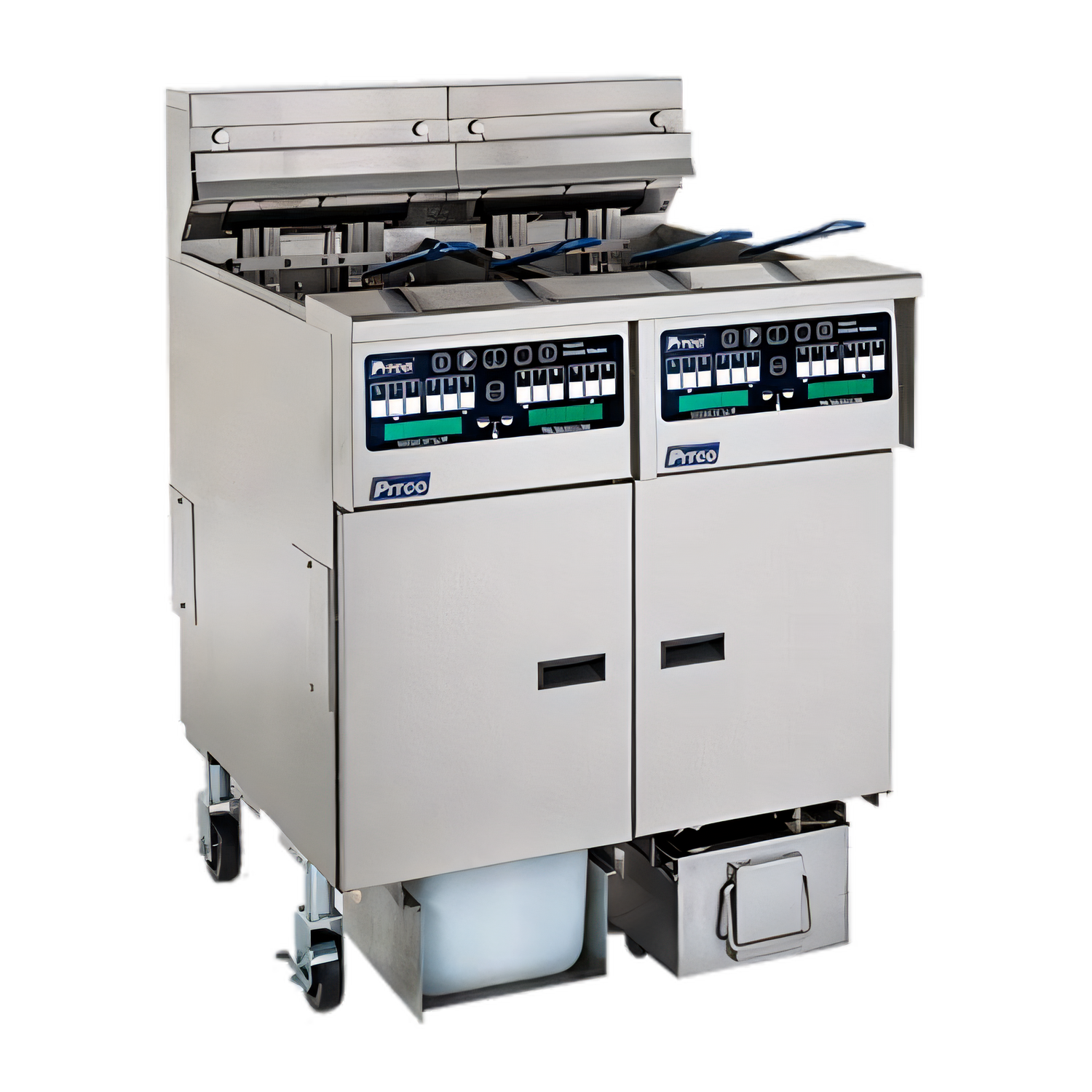

Pitco Frialator (Middleby) SELV14C/14T-2/FD Solstice Electric Fryers
Pitco Frialator (Middleby) SELV14C/14T-2/FD Solstice Electric Fryers is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Pitco Frialator (Middleby) SELV14C/14T-2/FD Solstice Electric Fryers
Description
Pitco Solstice™ Reduced-Oil-Volume Electric Fryer System
3-Fryer battery • 1 × 30 lb full vat & 2 × 15 lb split-vat fryers (4 half pots) • Built-in filter drawerCut oil costs, not production. The Solstice™ ROV system gives you five independent cook zones in the footprint of a traditional three-fryer line-up while using up to 40 % less oil per fill. Designed for high-volume kitchens that demand speed, consistency and safe, mess-free filtering.
Why you’ll love it

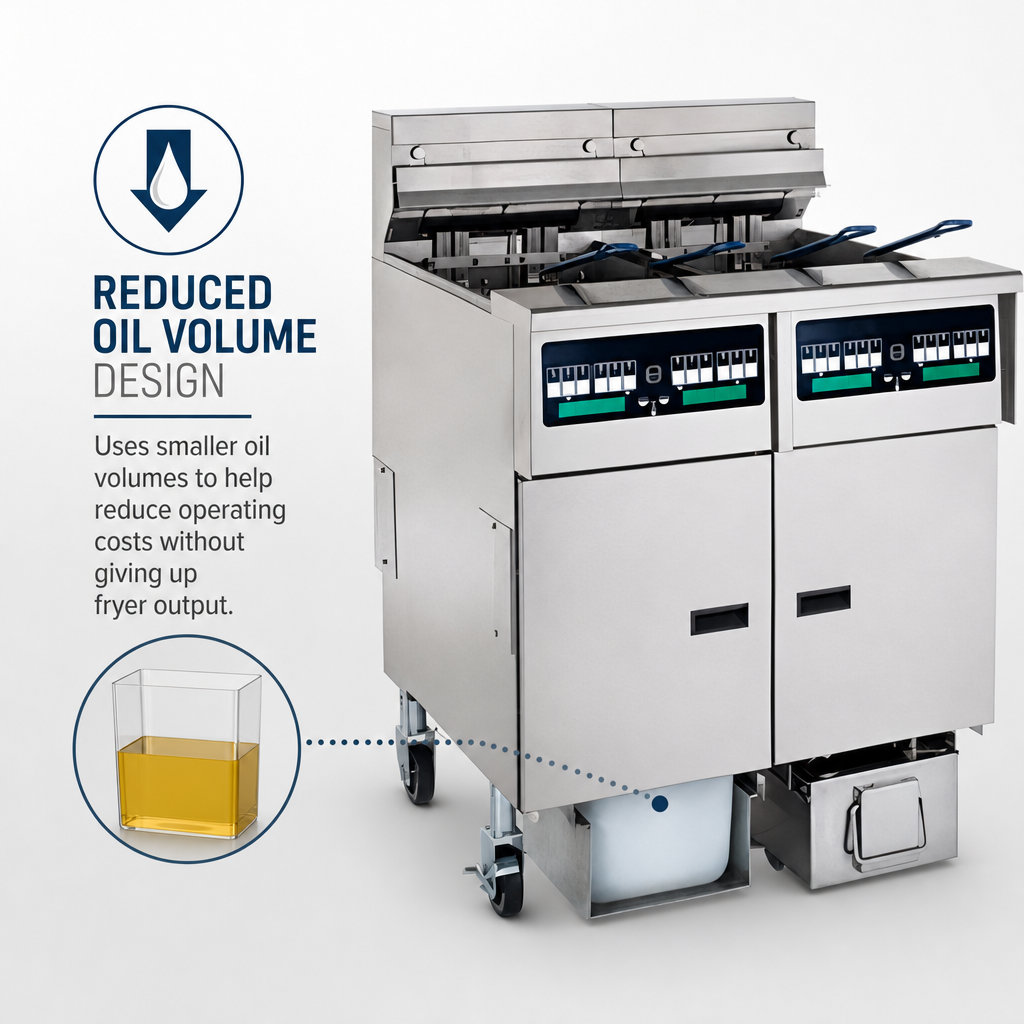

- High output, low oil. 30 lb full vat cooks like a 50 lb fryer; 15 lb split vats give you dedicated zones for allergen or menu separation.
- Intellifry™ computer (12 product keys). Push-button controls, FILTER SOON production monitor and selectable melt/boil-out modes.
- Hands-free top-off. Integrated 35 lb JIB holder automatically adds fresh oil; “Jug Low” indicator tells staff when to swap.

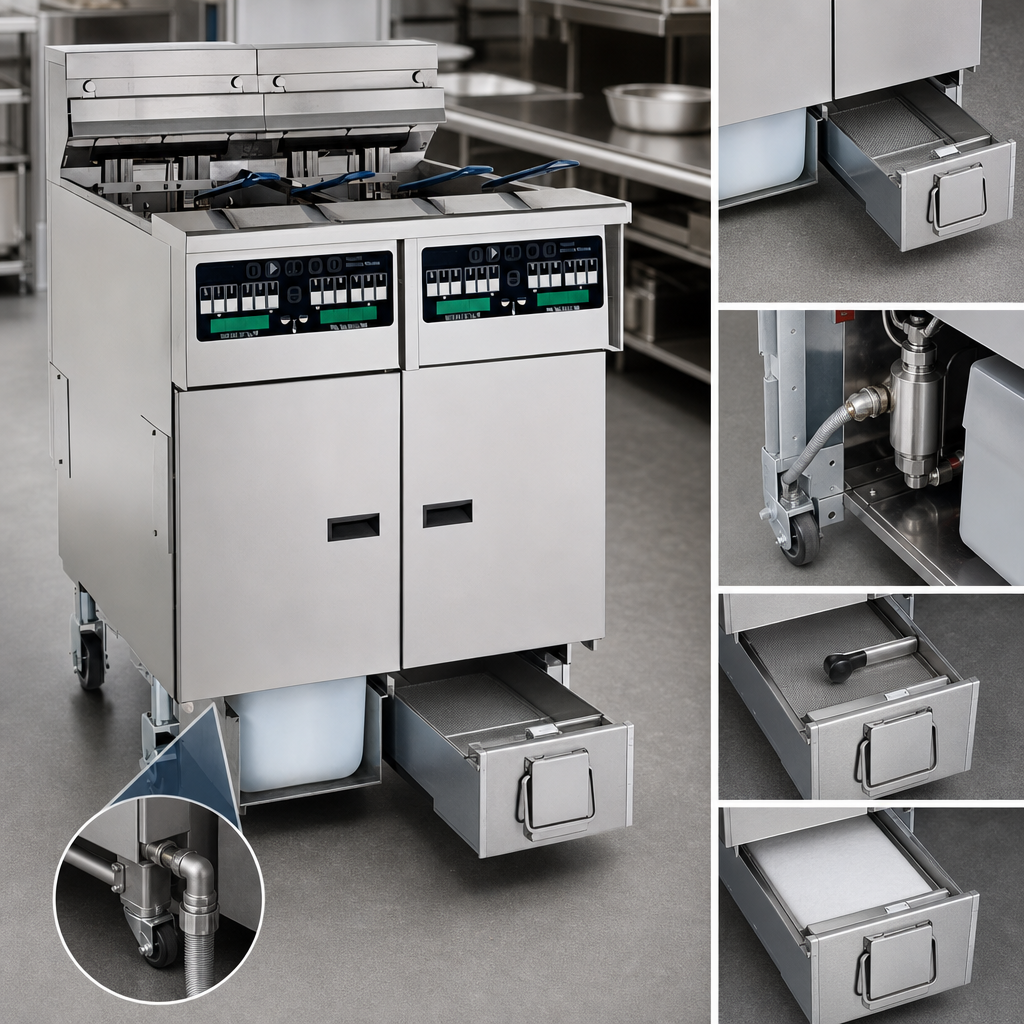

- Two-step Solstice™ Filter Drawer. 3″ full-port drain, 4.5 GPM pump and self-aligning pan filter a vat in under 5 minutes*.
- Easy service & cleaning. Lift-out immersion elements, 1-¼″ drain valve and stainless steel tank, front & sides.
- Sustainably safe. Mercury-free contactors, cool-zone design to slow oil breakdown and reduce flavor transfer.
- Certified & ready. CE, cETLus and ETL-Sanitation listed for global code compliance.
*Oil > 180 °F and clean filter envelope assumed.
Per-Vat Cooking Capacities
| Vat type (qty) | Oil capacity | Cook area (W × D × Depth) |
|---|---|---|
| Full vat (1) | 30 lb / 13.6 kg | 13.5″ × 14.8″ × 4″ (34.3 × 37.6 × 10.2 cm) |
| Split vat half (4) | 15 lb / 6.8 kg | 6.3″ × 14.8″ × 4″ (16.0 × 37.6 × 10.2 cm) |
Built-In Filtration Specs
| Filter pan capacity | 45 lb (single) | 70 lb (three-fryer battery) |
|---|---|
| Pump motor | 1/3 HP, 50/60 Hz |
| Pump flow rate | 4.5 GPM (17 LPM) |
| Filter media | 10″ × 20.5″ paper envelope (starter pack included) |
Power requirements (per fryer)
| Model | kW | 208 V / 3 ph | 240 V / 3 ph | 480 V / 3 ph |
|---|---|---|---|---|
| SELV14 full vat | 17 kW | 46 A | 43 A | 21 A |
| SELV14T split vat | 17 kW | 46 A | 43 A | 21 A |
Each fryer requires a dedicated electrical connection. Other voltages available – ask your consultant.
What’s in the crate
- 3 × fryers pre-assembled as a battery
- 5 × twin fry baskets & removable basket hangers
- Crumb scoop, filter shovel & cleaning brush
- Drain clean-out rod & starter pack of filter envelopes
Rock-solid warranty
1 year parts & labor on the entire system plus 10 years on the stainless steel fry tanks when you register with Pitco.
Download the full spec sheet from Pitco’s resource library or talk to our team for CAD blocks and utility rough-ins.
