Description

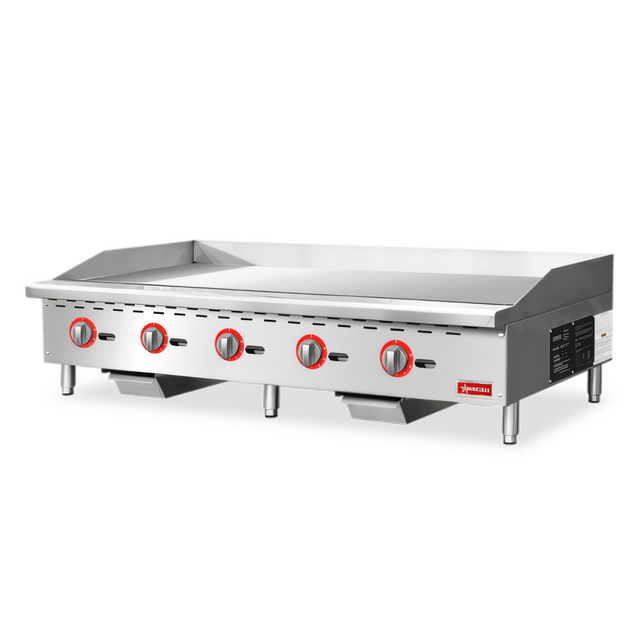

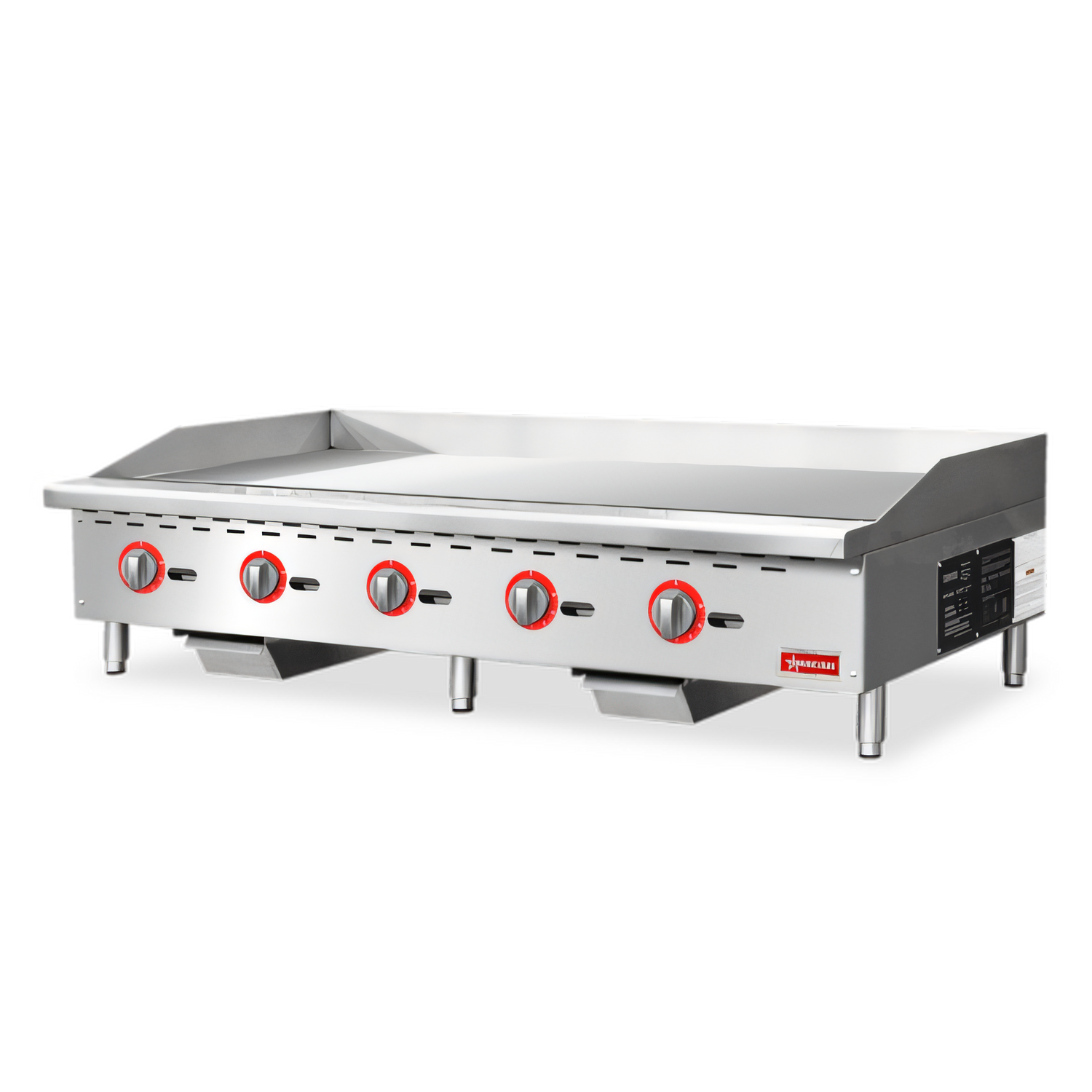

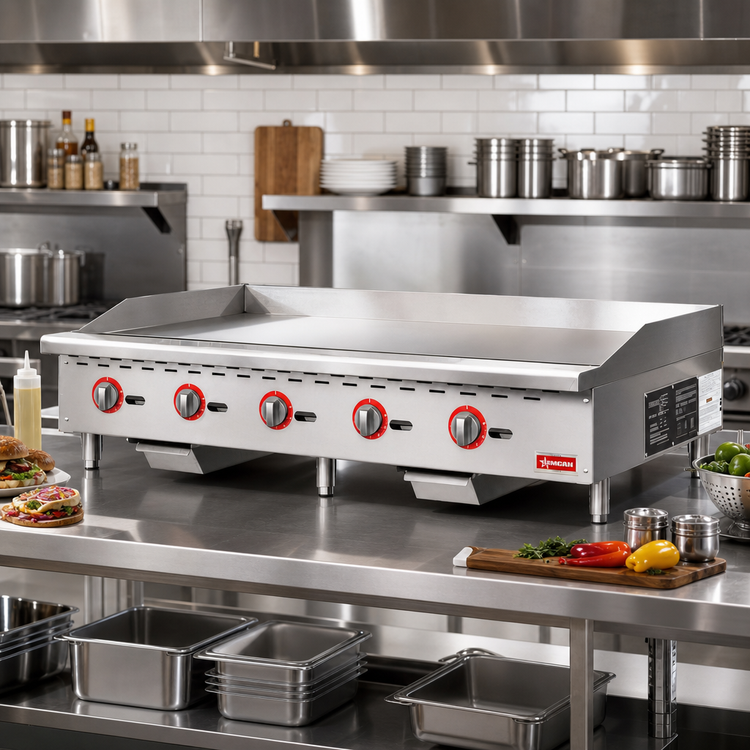

Omcan 60" Natural-Gas Countertop Griddle – 140,000 BTU

Model CE-CN-G60-TP • Item 48520

Built for high-volume breakfast spots, diners, and catering kitchens, Omcan’s 60 inch gas griddle gives you a massive, thermostatically controlled cook surface with the durability of an all-stainless cabinet. Five powerful burners, a 3⁄4 inch thick plate, and operator-friendly clean-up features keep service moving fast from the first order of pancakes to the last late-night smash burger.

Key Features

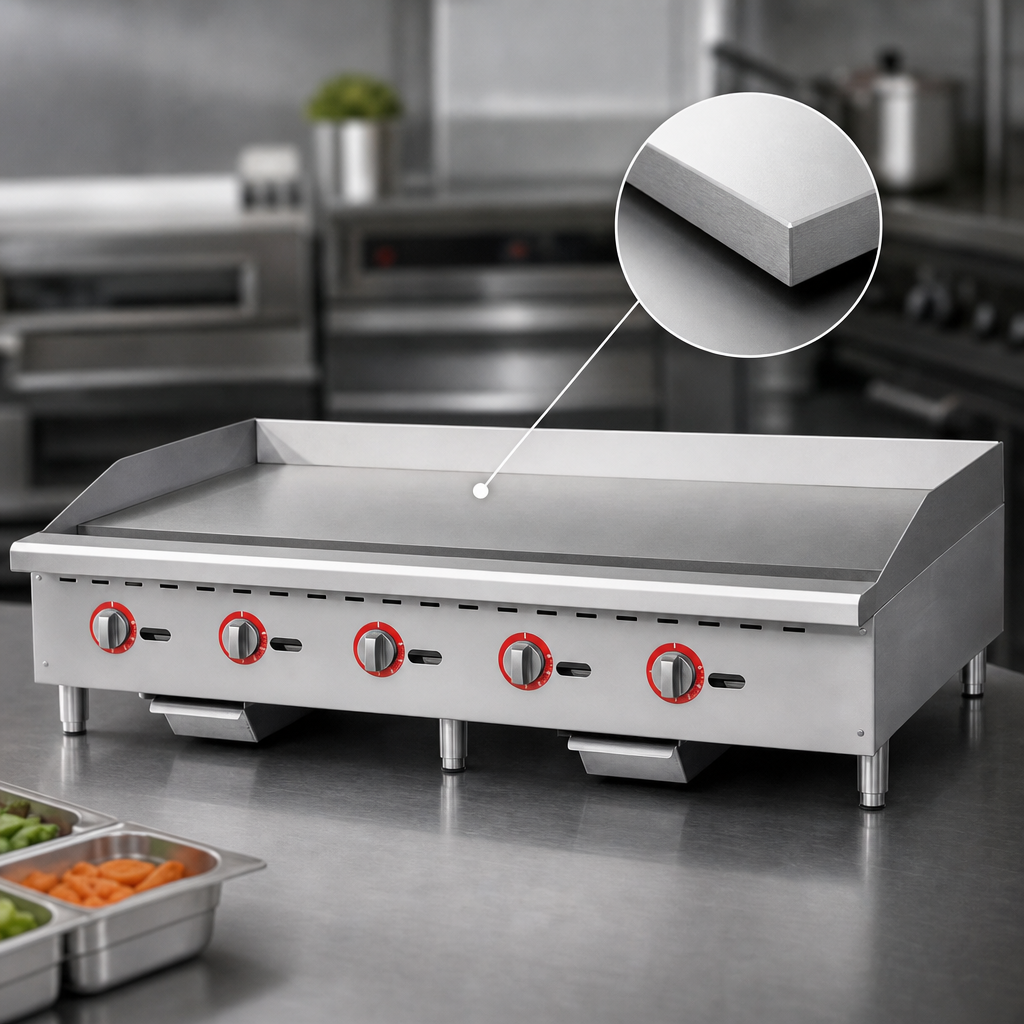

  • 3⁄4" polished steel griddle plate delivers even heat and excellent heat retention.
  • Five individually controlled burners (≈28,000 BTU each) with standing pilots for instant ignition – 140,000 BTU total.

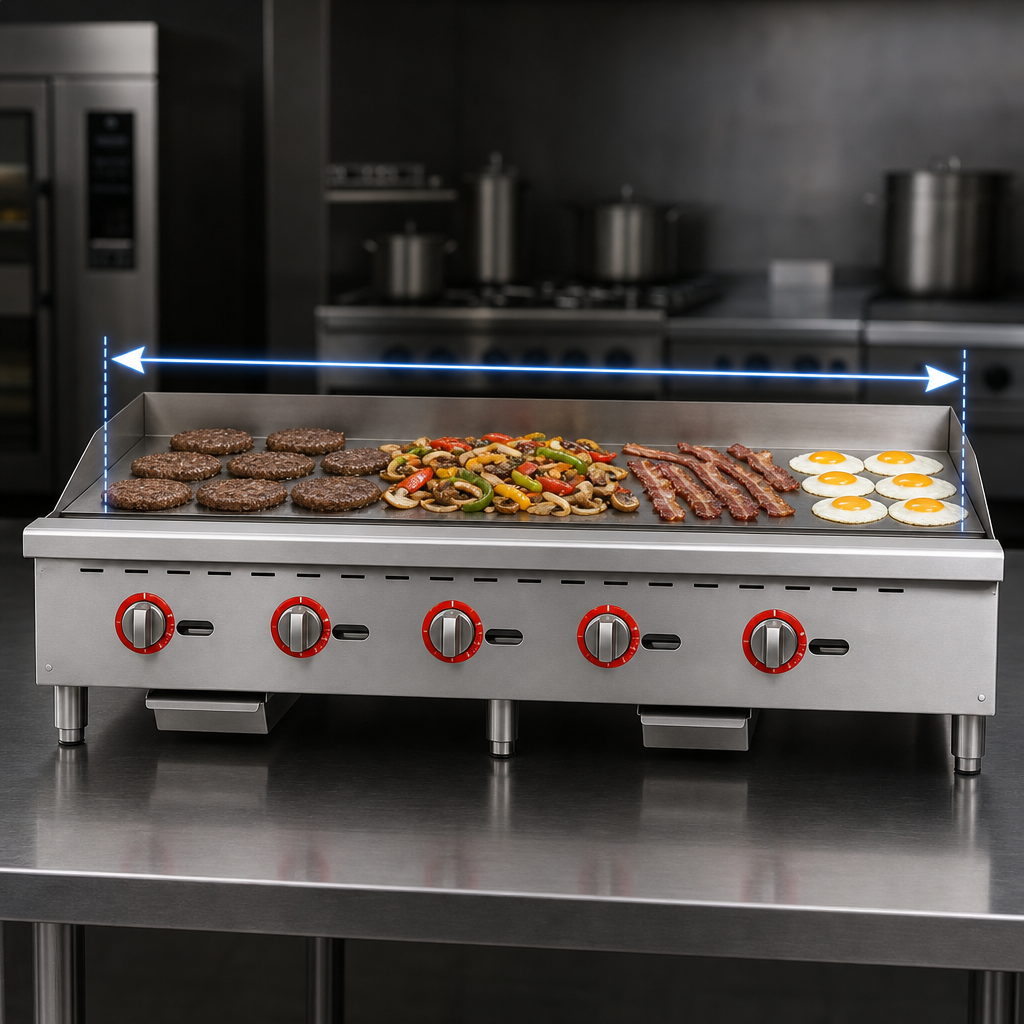

  • Thermostatic dial controls let you create multiple cooking zones across the 60" surface.
  • Fully welded rear and side splash guards contain grease splatter.
  • Cool-touch stainless-steel front edge improves operator safety during peak periods.
  • Front-mounted, extra-wide grease trough and a removable large-capacity drawer simplify clean-up.
  • All-stainless-steel cabinet resists corrosion in demanding commercial environments.
  • Adjustable, non-skid stainless-steel feet for quick leveling on any countertop line-up.
  • Factory-set for natural gas – LP conversion kit included for propane applications.
  • Certified cETLus & ETL-Sanitation for commercial use.
Specifications
Cooking surface 60" W × ≈22.8" D
Plate thickness 3⁄4" (19 mm) polished steel
Burners / BTU 5 burners / 140,000 BTU total
Control type Thermostatic with standing pilots
Gas connection 3⁄4" NPT (rear), Natural Gas • LP kit included
Net dimensions (W × D × H) 60" × 28.7" × 15.4" (1530 × 728 × 394 mm)
Shipping dimensions 63" × 35.5" × 19.25" (1600 × 850 × 490 mm)
Net weight 484 lb (220 kg)
Shipping weight 567 lb (258 kg)
Cabinet construction 304 stainless steel
Certifications cETLus & ETL-Sanitation
Warranty 1 year parts & labor
Installation note: Unit ships on a pallet and must be installed by a qualified gas technician in accordance with local codes. Ensure adequate ventilation and countertop support for the listed weight.

Specifications are based on data provided by Omcan USA and are subject to change without notice.

Features & Specs

Manufacturer

Omcan USA

Certifications

cETLus, ETL-Sanitation

Height

15.4in

Width

60.2in

Depth

28.7in

Shipping Weight

568.8lbs

Cooking Surface Width (side - side)

55" - 60"

Cooking Surface Depth (front - back)

24" - 29"

Controls

thermostat / solid state controls

Exterior Finish

all stainless steel exterior

Griddle Plate Finish

smooth steel

Plate Thickness

3/4"

Specifications

(CE-CN-G60-TP) Griddle, countertop, natural gas, 60"W cooking area, 3/4" thick griddle plate with standing pilots, (5) burners, thermostat control, removable grease drawer, stainless steel construction, adjustable non-skid feet, 140,000 BTU, cETLus, ETL-Sanitation (includes LP conversion kit) (shipped on pallet)
