Master-Bilt Products

Master-Bilt DC-12D Conventional Ice Cream Dipping Cabinet, 18 x 3-Gallon Dip / 15 x 3-Gallon Storage, 115V

SKU: DC-12D
$7,771.48
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Freezers Commercial Refrigeration Ice Cream Freezers Master-Bilt Products New Arrivals Restaurant Equipment

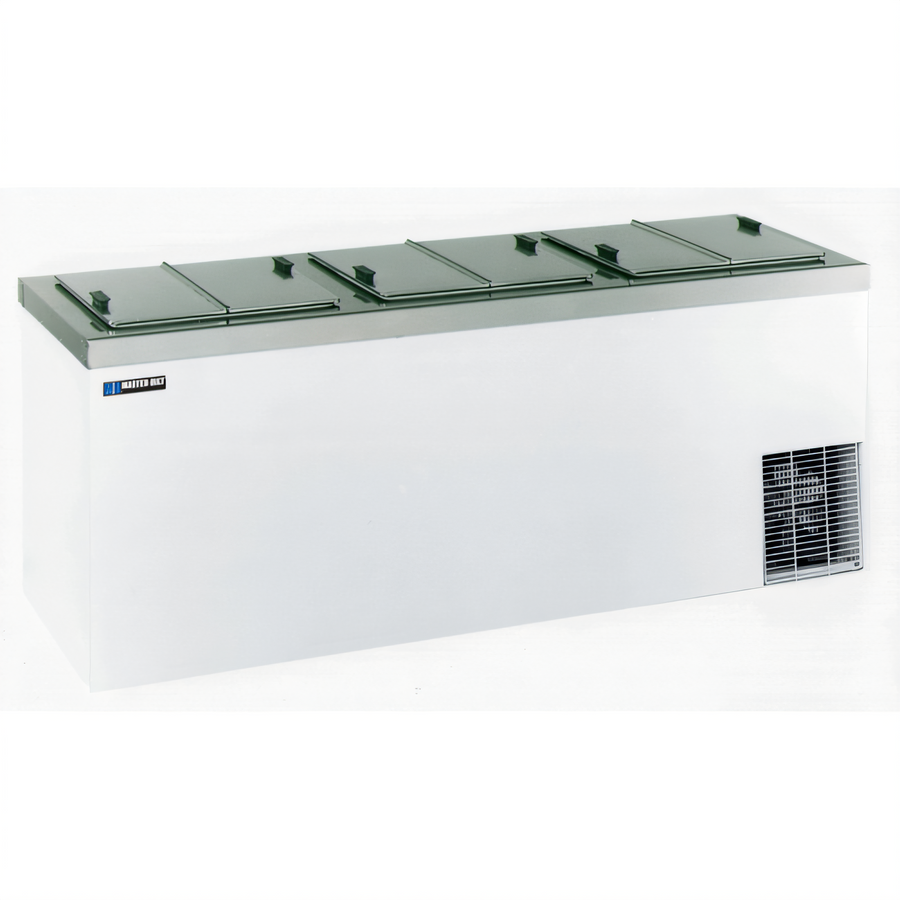

Master-Bilt DC-12D Conventional Ice Cream Dipping Cabinet, 18 x 3-Gallon Dip / 15 x 3-Gallon Storage, 115V

Self-Contained R290, Floor Model, Cold-Wall Evaporator

Designed for scoop shops that need dependable product access and reserve storage, this cabinet keeps 18 tubs at the top and 15 more in storage at commercial-freezer temperatures.

  • Holds 18 3-gallon tubs for dipping and 15 3-gallon tubs for reserve storage.
  • Self-contained R290 refrigeration simplifies installation and day-to-day service.
  • Cold-wall evaporator and 10°F to -10°F temperature range help maintain consistent product conditions.
  • Stainless steel top with anti-condensate heaters helps reduce moisture around the working surface.
  • Painted galvanized steel construction with a galvanized steel interior is built for commercial durability.
  • 115V, 1-phase electrical connection uses a standard NEMA 5-15P plug with a 9-foot cord.

Overall Dimensions:

84.63"W x 30.13"D x 34.13"H

Product Weight:

490.0 lb

Self-Contained R290 Refrigeration

Factory-tested self-contained refrigeration system uses R290 refrigerant and a cold-wall evaporator for straightforward installation.

High-Capacity Dipping Cabinet

Configured to dip 18 3-gallon tubs and store 15 3-gallon tubs.

Stainless Steel Top With Anti-Condensate Heaters

Seamless stainless steel top includes anti-condensate heaters to help reduce condensation.

Durable Painted Steel Construction

Features a 24-gauge painted galvanized steel cabinet with a galvanized steel interior and inner liner.

Flip Lids With Replaceable Gaskets

Hinged stainless steel lids with handles and heavy-duty replaceable gaskets help retain cold air.

Foamed-In-Place Insulation

2-1/4 in. foamed-in-place zero-ODP urethane insulation supports temperature retention.

Service-Friendly Base

Includes leveling legs to correct for uneven flooring and a floor drain with garden hose fitting.

Standard Electrical Hookup

Connects via a 9-foot cord with a molded NEMA 5-15P plug on 115V, 60 Hz, 1-phase power.

Type Chest
Style Ice Cream Dipping Cabinet
Installation Type Floor Model
Top Working Tub Capacity 18 3-Gallon Tubs
Tub Storage Capacity 15 3-Gallon Tubs
Refrigeration Type Self-Contained
Refrigerant Type R290
Temperature Range 10°F to -10°F (-12°C to -23°C)
Material Galvanized Steel
Interior Finish Galvanized Steel
Finish Painted Galvanized Steel
Voltage 115 Volts
Amps 5.9 Amps
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 5-15P
Cord Length 9 Feet
Shipping Width 85 Inches
Shipping Depth 31 Inches
Shipping Height 35 Inches
Shipping Weight 490 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

2-year parts and labor, plus 3 additional years on the compressor part.

Documents

PDF Cutsheet PDF Download PDF Cutsheet PDF Download PDF Warranty PDF Download PDF Owner's manual PDF Download PDF Installation manual PDF Download PDF Lid lock installation manual PDF Download

Frequently Asked Questions

This model dips 18 3-gallon tubs and stores 15 3-gallon tubs.
It operates on 115V, 60 Hz, 1-phase power and draws 5.9 amps. It comes with a 9-foot cord and NEMA 5-15P plug.
It uses a self-contained refrigeration system with R290 refrigerant and a cold-wall evaporator.
The cabinet is designed to operate between 10°F and -10°F (-12°C to -23°C).
It is designed for optimum performance in an air-conditioned area at 75°F ambient temperature and 55% relative humidity.
The standard limited warranty includes two years of parts and labor, plus an additional three years of coverage on the compressor part.
