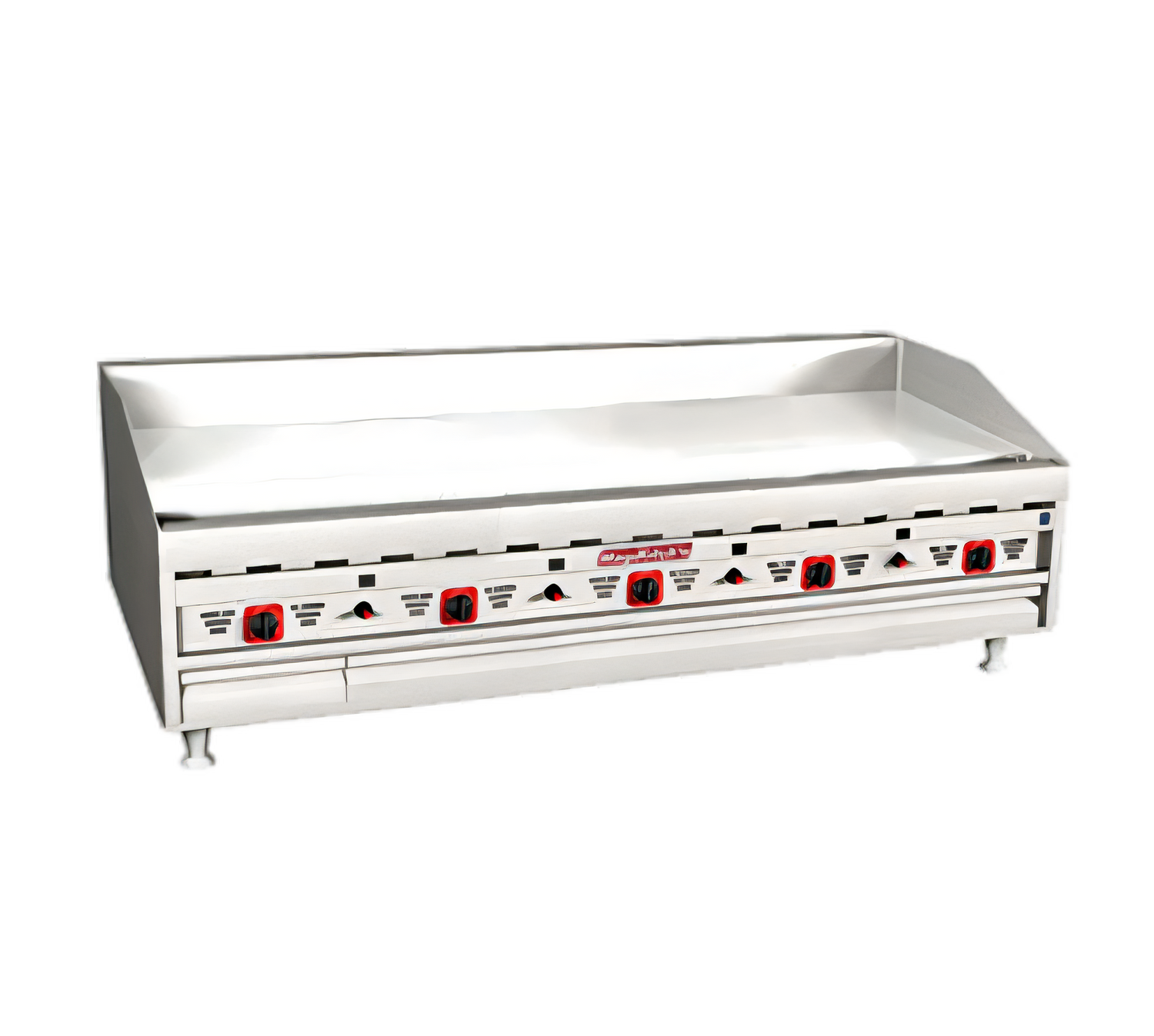

MagiKitch'n 60-Inch Countertop Gas Griddle with Electric Thermostat and Matchless Ignition

59.75" x 24" Cooking Surface, 1" Polished Steel Plate, Stainless Steel Construction

This high-output 60-inch griddle pairs a thick polished steel cooktop with electric thermostat control and matchless ignition for reliable, efficient line service.

  • 60-inch countertop gas griddle with a 59.75" x 24" cooking surface for high-volume production.
  • Electric thermostat and matchless ignition simplify startup and temperature management.
  • 1-inch polished steel plate helps deliver even heat and strong recovery.
  • Front grease trough, welded chute, and large grease box streamline daily cleanup.
  • Stainless steel construction, 3-inch side splash, and removable 4-inch legs support commercial installation.
  • 115V, single-phase power with a NEMA 5-15P plug supports the ignition and control system.

Overall Dimensions:

60.0"W x 31.56"D x 23.28"H

Product Weight:

775.0 lb

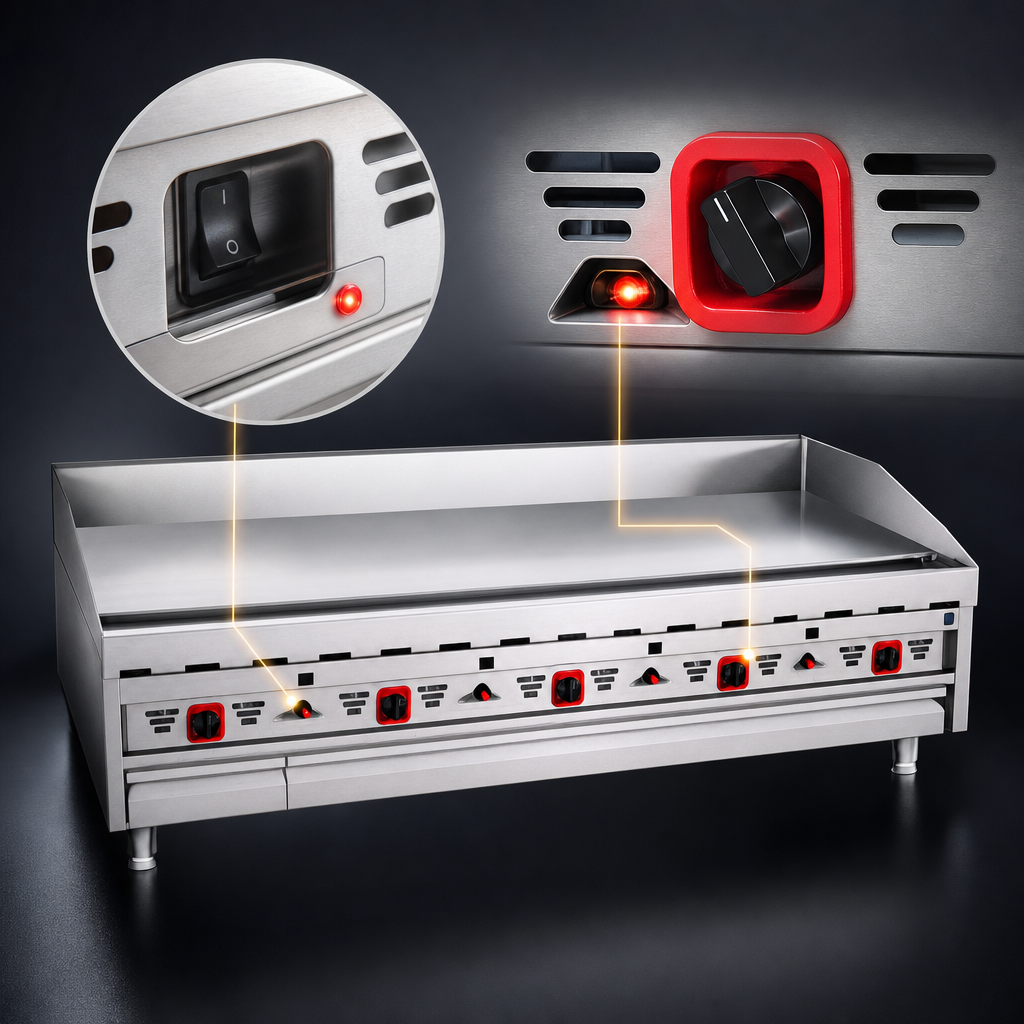

Electric Thermostat With Matchless Ignition

Recessed I/O switches and pilot-ready lights support automatic pilot lighting when the unit is powered on.

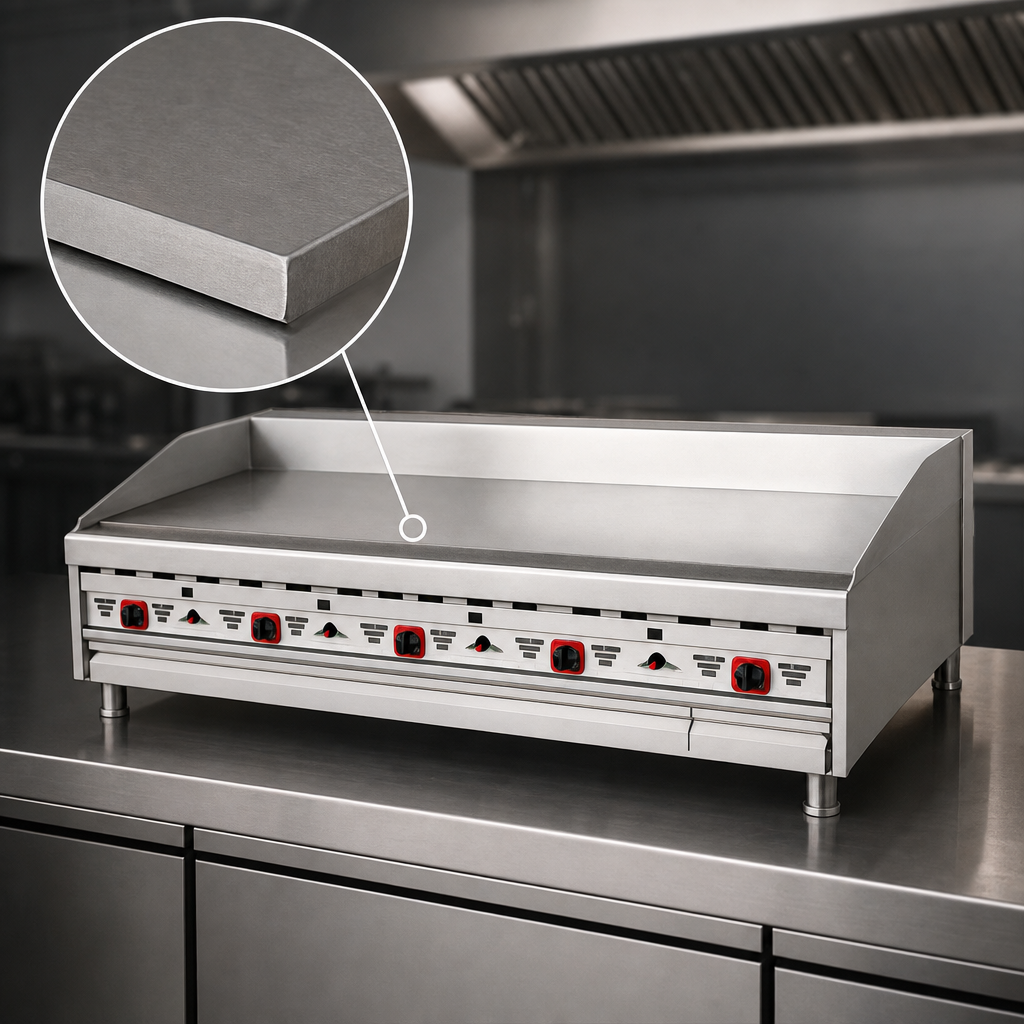

1-Inch Polished Steel Griddle Plate

The thick steel cooking surface helps retain heat and recover quickly during heavy cooking periods.

Five Thermostatic Control Zones

The 60-inch model uses five controls, with each thermostat covering about 12 inches of cooking surface.

High-Output Burner System

15,000 BTU/hr burner sections every 6 inches provide 150,000 BTU total output.

Grease Management System

Includes a front grease trough, fully welded grease chute, and 3.75-gallon grease box for easier cleanup.

Stainless Steel Construction

Double-walled stainless sides, a stainless cabinet base, and no exposed fasteners help simplify cleaning.

Safety Pilot With Flame Loss Shutoff

Built-in pilot protection helps shut the burners down if the flame goes out.

Removable 4-Inch Legs

Supplied for counter use and leveling; the griddle can also be mounted on an optional equipment stand.

Type Gas Griddle
Style Countertop
Installation Type Countertop
Controls Electric Thermostat With Matchless Ignition
Temperature Range 200°F to 550°F
Cooking Surface Width 59.75 Inches
Cooking Surface Depth 24 Inches
Plate Thickness 1 Inch
Material Stainless Steel
Finish Smooth Steel
BTU 150,000 BTU
Gas Connection Size 3/4 Inch NPT
Voltage 115 Volts
Amps 1.10 Amps
Hertz 50/60 Hz
Phase 1-Phase
Plug Type NEMA 5-15P
Cord Length 6 Feet
Shipping Width 60 Inches
Shipping Depth 32 Inches
Shipping Height 24 Inches
Shipping Weight 775 Pounds
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of CSA Certified
CSA Certified

Documents

PDF Cutsheet PDF Download PDF Parts manual PDF Download PDF Middleby financial flyer PDF Download PDF Installation & operation (post 8/01/05) PDF Download PDF Installation & operation (pre 6/01/03) PDF Download PDF Service manual PDF Download PDF Installation & operation (6/01/03 to 7/31/05) PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

The cooking surface measures 59.75 inches wide by 24 inches deep.
Matchless ignition models use 115V, 50/60 Hz, single-phase power, draw 1.10 amps, and use a NEMA 5-15P plug with a 6-foot cord.
The 60-inch unit uses five thermostatic control zones, with each control covering about 12 inches of surface.
The electric thermostat is designed to maintain temperatures from 200°F to 550°F.
It includes a front grease trough, welded grease chute, and grease box; the grease box should be emptied daily.
Yes. The manual covers countertop use with legs, counter use without legs when sealed to the counter, and use on an optional equipment stand.
