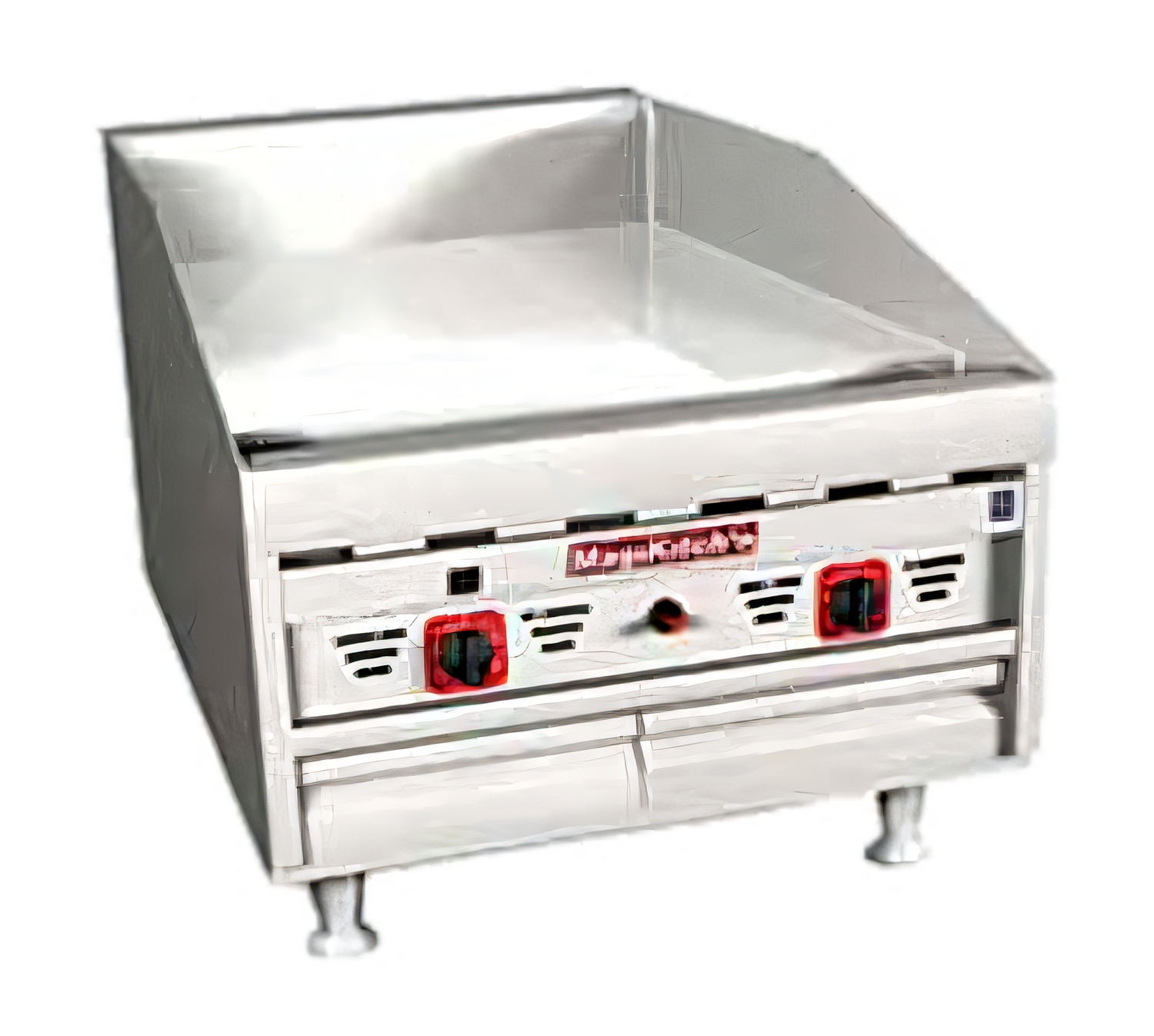

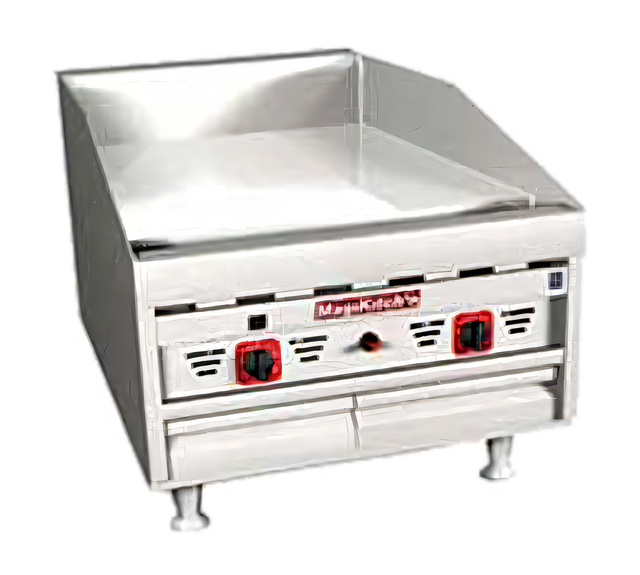

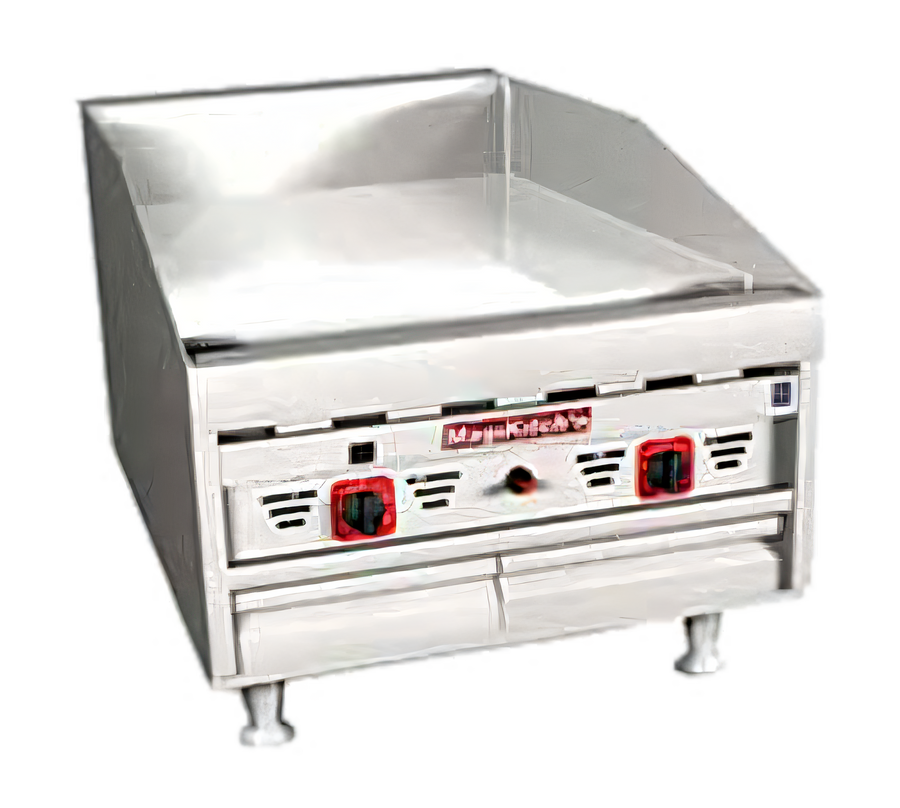

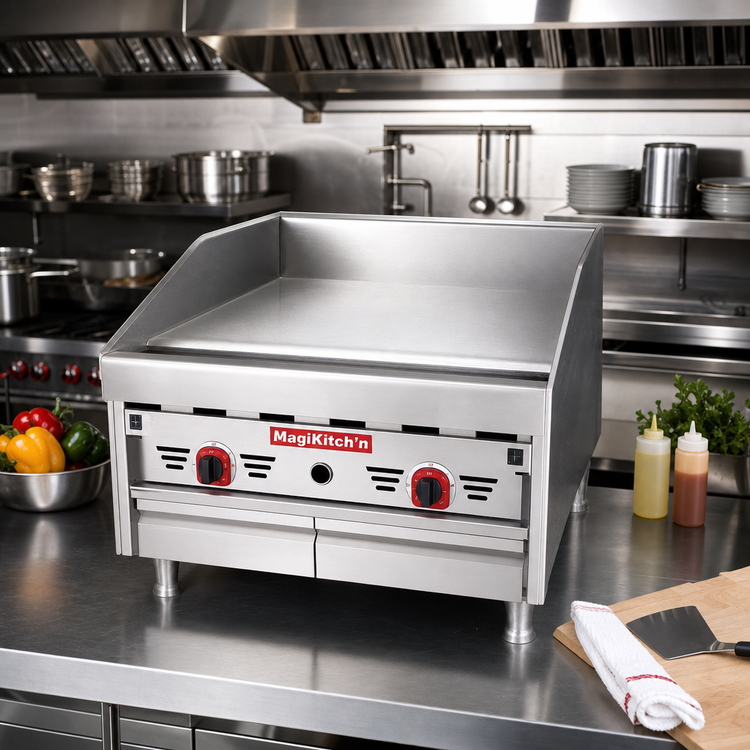

MagiKitch'n MKG24 24-Inch Countertop Gas Griddle with 1-Inch Polished Plate

23-3/4 x 24-Inch Cooking Surface, Snap-Action Thermostat, Stainless Steel

Built for compact high-volume cooking, this 24-inch gas griddle pairs a thick polished steel plate with easy-clean grease management and durable stainless steel construction.

  • 24-inch countertop gas griddle with a 23-3/4 x 24-inch cooking surface
  • 1-inch thick polished steel plate helps deliver even heat and solid recovery
  • Snap-action thermostat and piezo ignition provide simple, reliable operation
  • Large grease box, front trough, and welded chute simplify daily cleanup
  • Stainless steel body with side splashes and a tapered back helps contain messes
  • 60,000 BTU/hr output supports breakfast, lunch, and short-order service

Overall Dimensions:

24.0"W x 31.56"D x 23.28"H

Product Weight:

370.0 lb

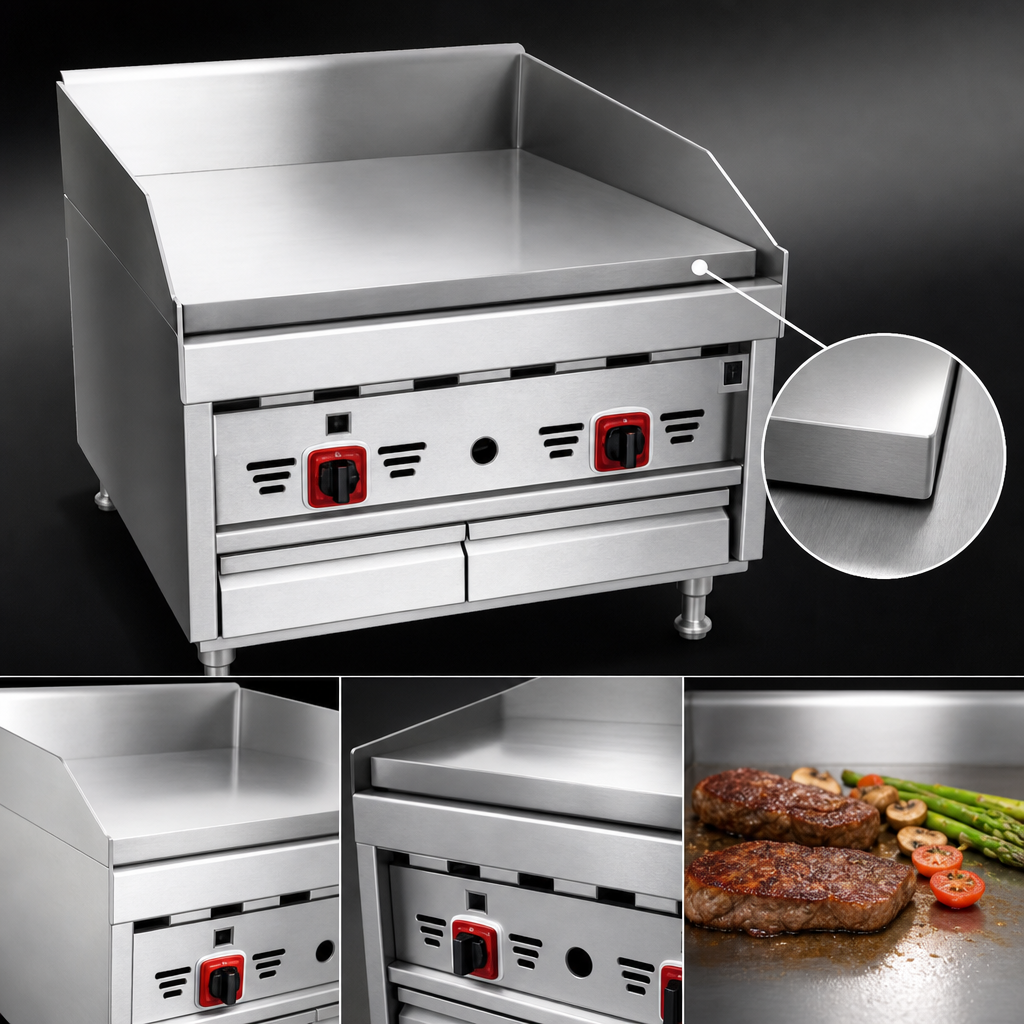

1-Inch Polished Griddle Plate

Thick polished steel cooking surface delivers strong heat retention and a smooth cooktop.

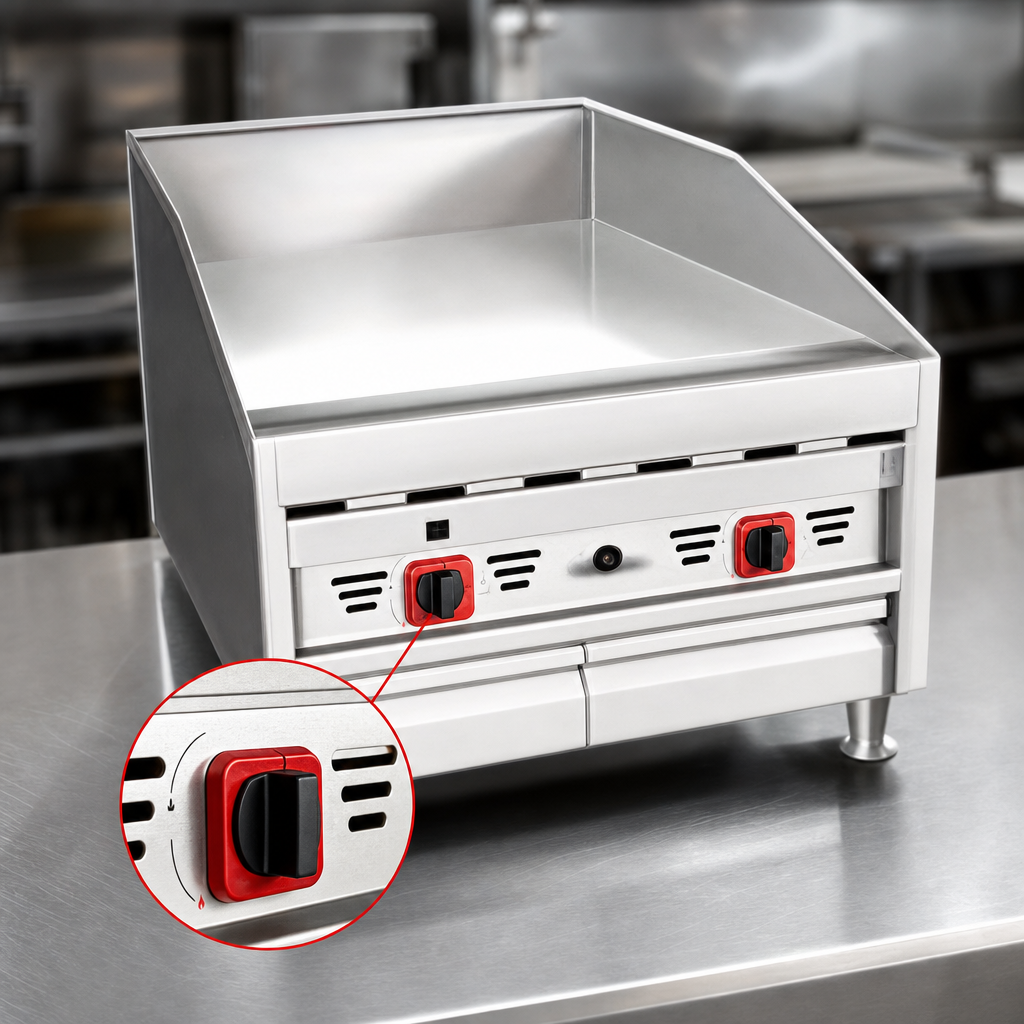

Snap-Action Thermostat

Factory thermostat maintains temperatures between 200°F and 450°F for consistent cooking.

Piezo Spark Ignitor

Recessed piezo ignition provides push-button pilot lighting without a match.

60,000 BTU/hr Output

High heat output supports fast recovery and demanding service periods.

Thermostatic Burner Layout

15,000 BTU/hr burners are spaced every 6 inches and controlled every 12 inches for responsive heat across the surface.

Grease Management System

Includes a 3.75-gallon grease box, wide front grease trough, and fully welded grease chute for easier cleanup.

Stainless Steel Construction

Double-walled stainless sides and cabinet base are built for durability and cleaning.

Safety Pilot with Flame-Loss Shutoff

Safety pilot helps shut off gas if the flame goes out.

Factory-Installed Gas Regulator and Shutoff

Recessed gas components are factory installed for close-wall installation.

4-Inch Removable Legs

Included for countertop use and leveling; optional stand mounting is also available.

Type Gas Griddle
Style Countertop
Installation Type Countertop
Material Stainless Steel
Controls Snap-Action Thermostat
Cooking Surface Width 23-3/4 Inches
Cooking Surface Depth 24 Inches
Plate Thickness 1 Inch
BTU 60,000 BTU/hr
Gas Connection Size 3/4 Inch NPT
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of CSA Certified
CSA Certified

Documents

PDF Cutsheet PDF Download PDF Installation & operation (pre 6/01/03) PDF Download PDF Parts manual PDF Download PDF Middleby financial flyer PDF Download PDF Installation & operation (post 8/01/05) PDF Download PDF Installation & operation (6/01/03 to 7/31/05) PDF Download PDF Service manual PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

The snap-action thermostat maintains temperatures between 200°F and 450°F.
No electrical hookup is indicated for the standard snap-action model; electrical power is only required on matchless ignition versions with electric or solid-state thermostats.
The manual lists 7-8 inches W.C. for natural gas and 11-12 inches W.C. for propane at the supply line, depending on the fuel type on the data plate.
It includes a front grease trough, welded grease chute, grease box splash zone compartment, and a 3.75-gallon grease box.
Yes. It can be used with the included legs, sealed to a counter without legs, or mounted on an optional equipment stand.
