Magikitch'n (Middleby) MKG-24-E Gas Griddles
Description
MagiKitch’n MKG24 24" Countertop Gas Griddle
Electric thermostat • Matchless ignition • 60,000 BTUBuilt for demanding breakfast, lunch and all-day menus, the MagiKitch’n MKG24 gives you a full 24" cook zone inside a compact countertop footprint. Its 1" thick polished steel plate delivers fast recovery, while the factory-installed matchless ignition and embedded electric thermostat let you dial-in accurate surface temps without fumbling for a pilot light or guessing at hot spots. Spend more time cooking—and less time cleaning—thanks to an oversized front trough and a 3.75-gal grease box that lifts out in seconds.
Key advantages
- Generous 23-3/4" W x 24" D cooking surface (3.96 sq ft).

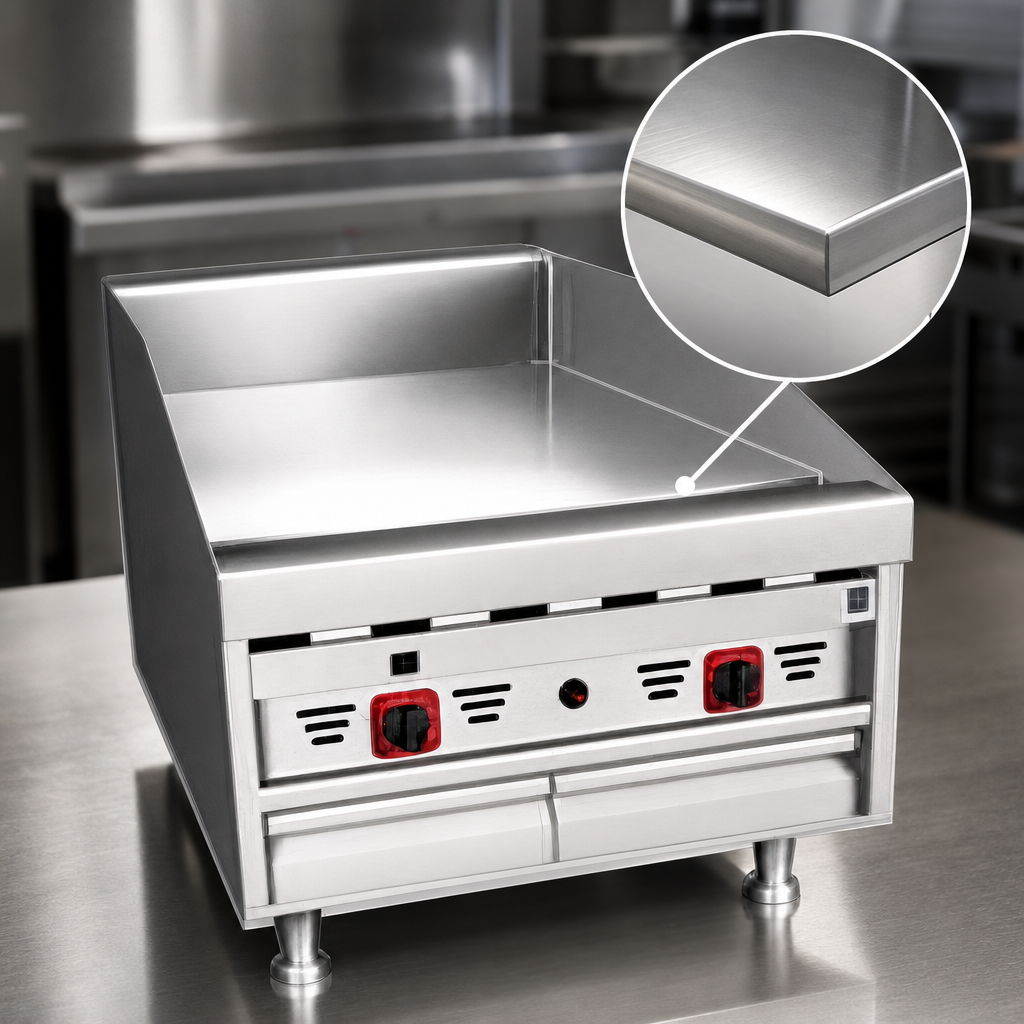

- 1" (2.5 cm) polished steel griddle plate minimizes temperature drop when fully loaded.

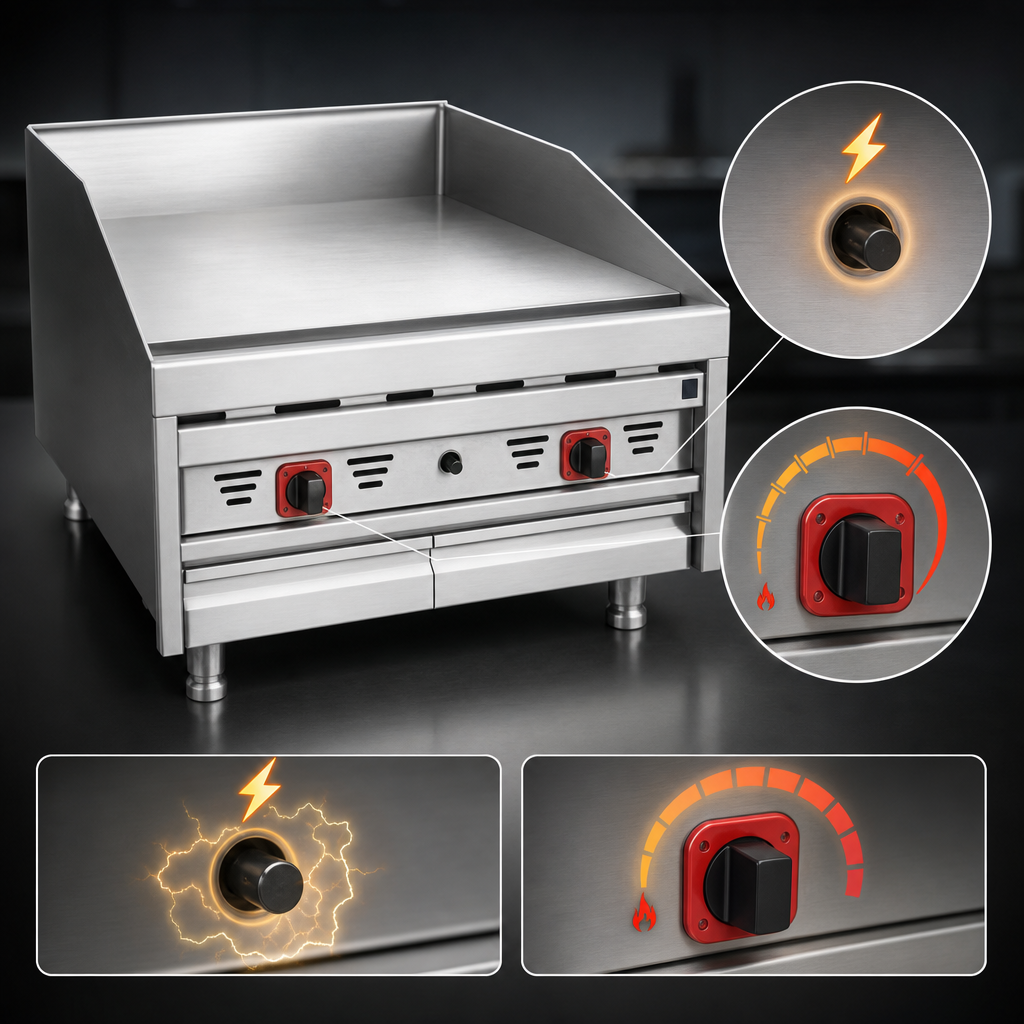

- Electric snap-action thermostat maintains 200 °F – 550 °F; probe is embedded directly in the plate for rapid response.
- Matchless 24 VAC ignition automatically lights the pilot when the unit is powered on—no matches, no open flames.
- 60,000 BTU/h total output (four 15,000 BTU burners, one for every 6") with two independent cook zones.
- Grease management you can trust: 3.5" wide welded front trough, full-width chute and 3.75-gal grease box with splash-zone compartment.
- 3" side splashes and tapered rear splash help keep adjacent equipment and walls clean.
- All-stainless exterior—double-walled sides and cabinet base—stands up to daily commercial abuse.
- 4" removable, adjustable legs for simple leveling on any counter.
- Ships with 6' cord & NEMA 5-15P plug; draws only 0.44 A at 115 V.
- Certified NSF & CSA for gas and sanitation compliance.
At-a-glance specs
| Cooking surface | 23-3/4" W × 24" D (603 mm × 610 mm) |
|---|---|
| Plate thickness | 1" (25 mm) polished steel |
| Control type | Electric snap-action thermostat, 200 °F – 550 °F |
| Ignition | Factory-installed matchless 24 VAC system |
| Total BTU | 60,000 BTU/h (17.6 kW) |
| Burner configuration | 4 × 15,000 BTU, one every 6" | 2 thermostat zones |
| Gas connection | 3/4" NPT (regulator & shut-off factory-installed) |
| Electrical | 115 V / 50-60 Hz / 1-ph, 0.44 A, 6' cord, NEMA 5-15P |
| Grease box capacity | 3.75 gal (14 L), quick-lift handle |
| Overall dimensions | 24" W × 31-5/8" D × 19-3/8" H (with legs) |
| Certifications | CSA Flame & Sanitation, NSF |
| Warranty | 2 years parts & labor (factory-authorized service network) |
Popular add-ons (sold separately)
- Stainless steel equipment stand (with optional casters).
- Service shelf: 8", 10" or 12" depths with available pan cut-outs.
- Towel bar—mount standalone or below a service shelf.
- 48" gas hose with quick-disconnect & restraining cable.
- Chrome-plated griddle surface kit (includes scraper, spatula, Palmetto brush & cleaner).
