Lang Manufacturing (Middleby) CLG36 Lang® Marine Electric Griddles
$16,530.00
Unit price
/
Unavailable
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Lang Manufacturing (Middleby) CLG36 Lang® Marine Electric Griddles is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Lang Manufacturing (Middleby) CLG36 Lang® Marine Electric Griddles
$16,530.00
Unit price
/
Unavailable
Description
Lang® Marine Heavy-Duty Electric Griddle – 36"
Model CLG36F | Cruise-Line Specification Countertop GriddlePurpose-built for galleys, offshore kitchens and shipboard commissaries, the Lang Marine 36" Griddle combines a precision-machined 1" steel cooking surface with rugged, all-welded 304 stainless construction. From breakfast rush to midnight mess, it delivers even heat, fast recovery and easy, USPH-approved clean-up in the tightest quarters.
Why It Belongs in Your Galley
- True Marine Design – UL Marine listed, NSF & USPH compliant with flanged 4" bolt-down legs and full-width front grab bar for rough-sea safety.
- Uniform Heat, Fast Recovery – Three 6 kW Incoloy-sheathed elements are pressure-clamped every 12" for even coverage across the entire 36" × 23" plate.

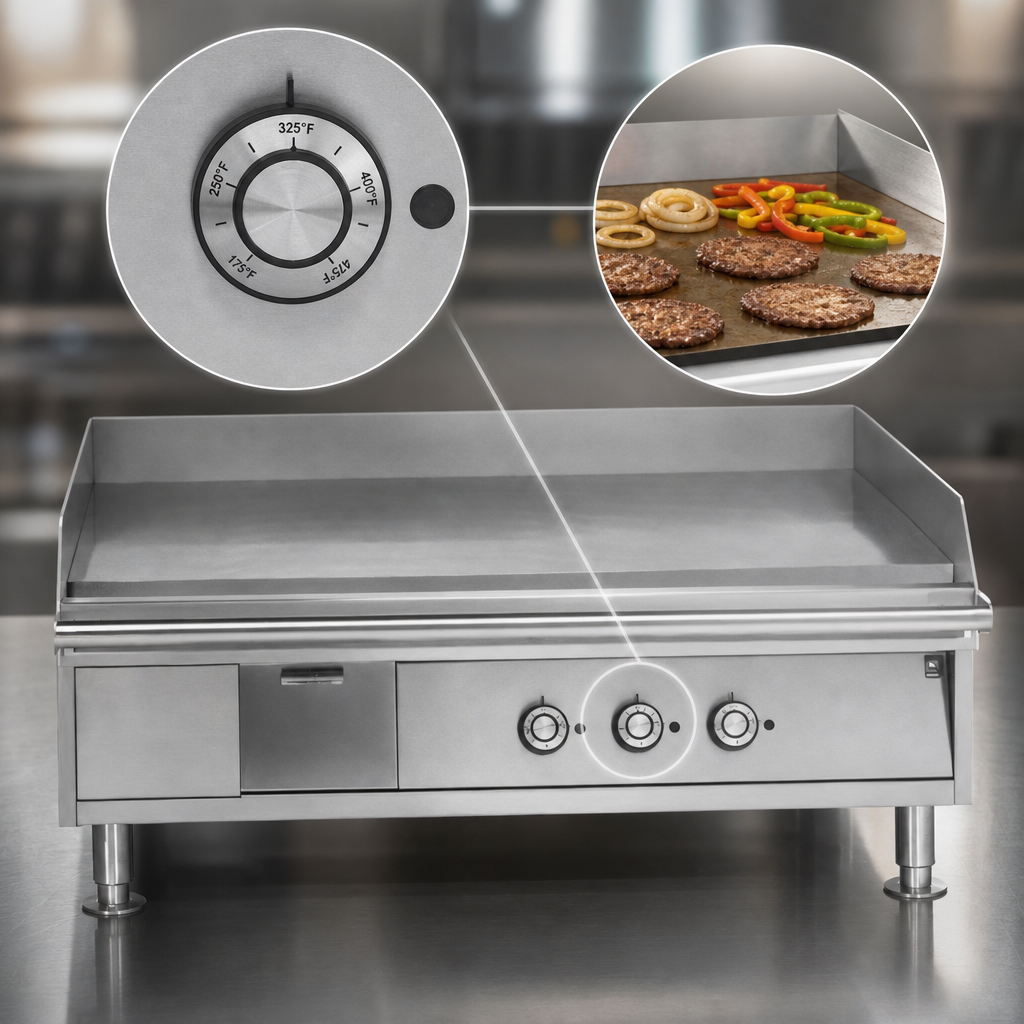

- Accurate Snap-Action Control – Independent thermostats for each zone maintain 175 – 475 °F (79 – 246 °C) to handle delicate eggs or high-heat searing.
- Built for Sanitation – Seam-welded splash guards, continuous trough welds and USPH fasteners eliminate food traps and speed daily wash-downs.
- 8 qt. Grease Management – Extra-deep drawer with marine latch, locking tab and recessed sleeve keeps fats secure when the ship rolls.

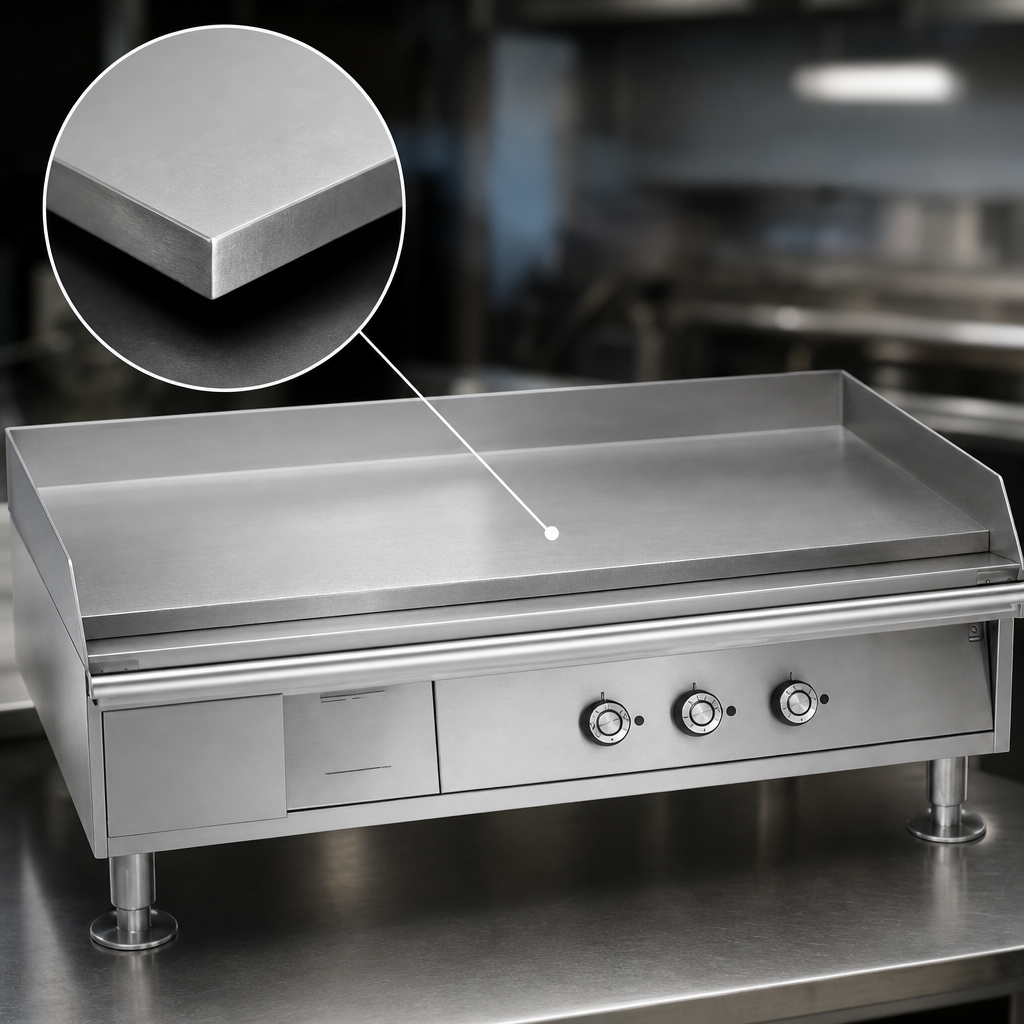

- Lifetime Plate Integrity – 1" thick precision-ground carbon-steel plate minimizes hot & cold spots and resists warping under heavy loads.
Technical Specifications
| Cooking surface | 36 in W × 23 in D (828 in² / 914 mm × 584 mm) |
|---|---|
| Plate thickness & finish | 1 in (25 mm) polished steel, precision-machined |
| Heat zones / controls | 3 zones, independent snap-action thermostats every 12 in |
| Temperature range | 175 – 475 °F (79 – 246 °C) |
| Heating input | 18 kW total (6 kW per zone) |
| Electrical | 208/240 V or 480 V; ships 3-phase, field convertible to 1-phase* |
| Grease drawer | 8 qt (7.6 L) with marine latch & locking tab |
| Splash protection | 5 in tapered wrap-around guard + 3 ½ in W × 1 in D trough |
| Construction | All-welded 304 stainless exterior; fully enclosed, air-cooled controls |
| Overall dimensions (HxWxD) | 19 in H × 36 in W × 30.2 in D (483 mm × 914 mm × 767 mm) |
| Shipping weight | 410 lb / 186 kg |
| Certifications | UL Marine, NSF, USPH |
| Warranty | 2 years parts & labor (Marine series) |
Safety & Sanitation Details

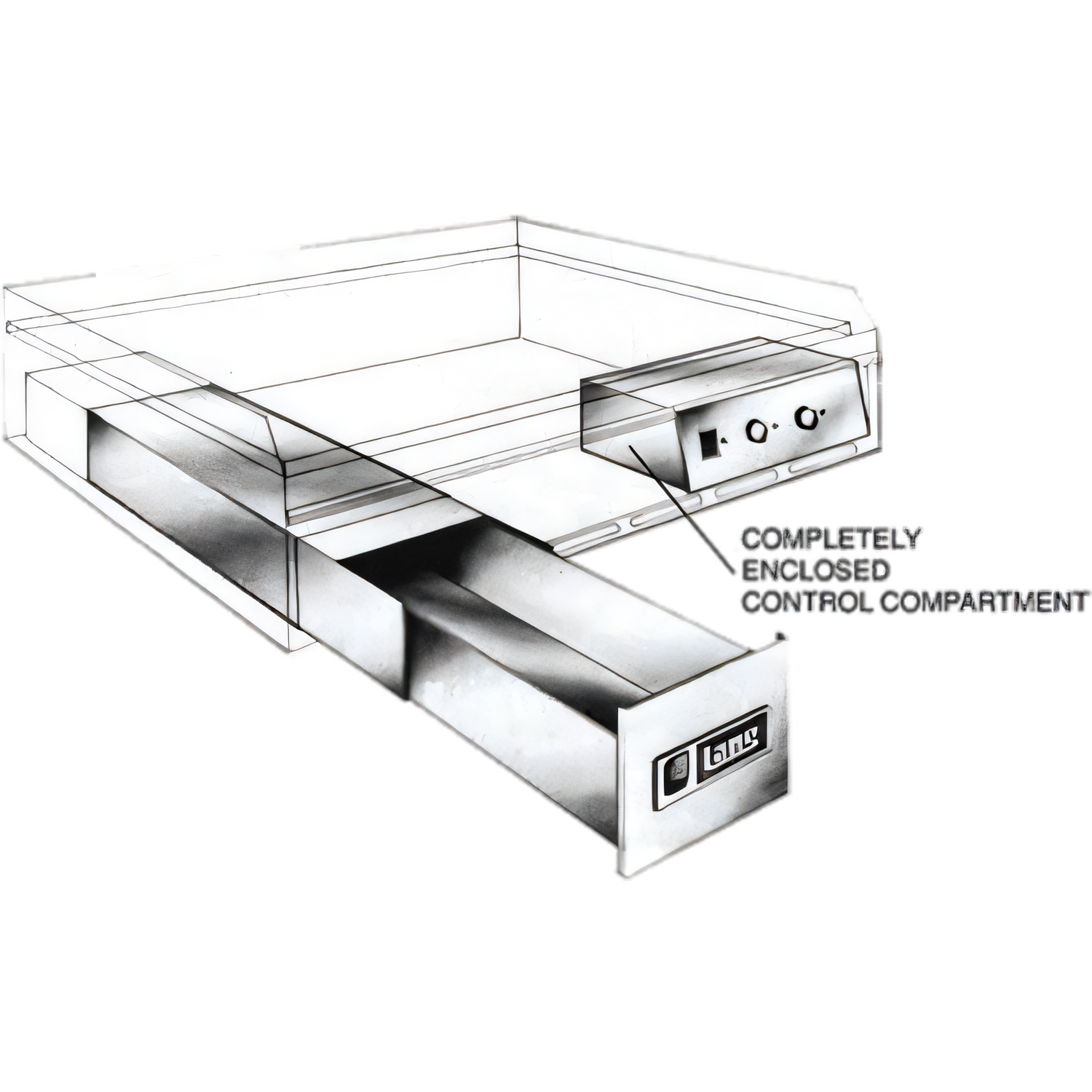

- Recessed control panel shields thermostats and pilot lights from splashes.
- Full-width stainless grab bar protects controls and offers steady support in rough seas.
- Continuously welded 5 ½ in rear splash plus tapered side guards contain flare-ups.
- Flanged, adjustable bolt-down legs satisfy USCG/USPH mounting requirements.
Installation Note: This appliance must be hard-wired and permanently grounded. Approved for vessels ≥ 65 ft (19.8 m) in length. Use stranded copper conductors rated 90 °C or higher.
*See owner’s manual for phase conversion instructions and exact amp draw per voltage.
Features & Specs
Features & Specs
Manufacturer
Lang Manufacturing (Middleby)
Brand_name
Lang® Marine
Certifications
NSF, UL
Control Type
thermostatic
Exterior Finish
all stainless steel exterior
Cooking Surface Width (side - side)
25" - 36"
Griddle Plate Finish
smooth steel
Cooking Surface Depth (front - back)
17" - 23"
Specifications
Lang® Marine Heavy Duty Griddle, electric, countertop, 36" W x 23" D cooking surface, 1" thick polished griddle plate, 175°-475°F snap-action thermostat and 6000W elements every 12", 5" tapered wrap-around splash guard, 8 qt. grease drawer, full width grab bar, locking tab for grease door, welded steel frame with stainless steel exterior, flanged 4" bolt-down legs, cruise line specification, UL Marine, NSF, USPH compliant
