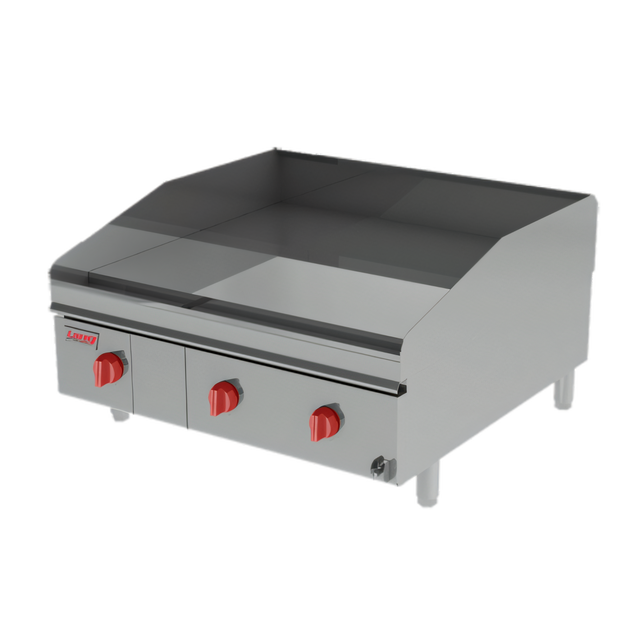

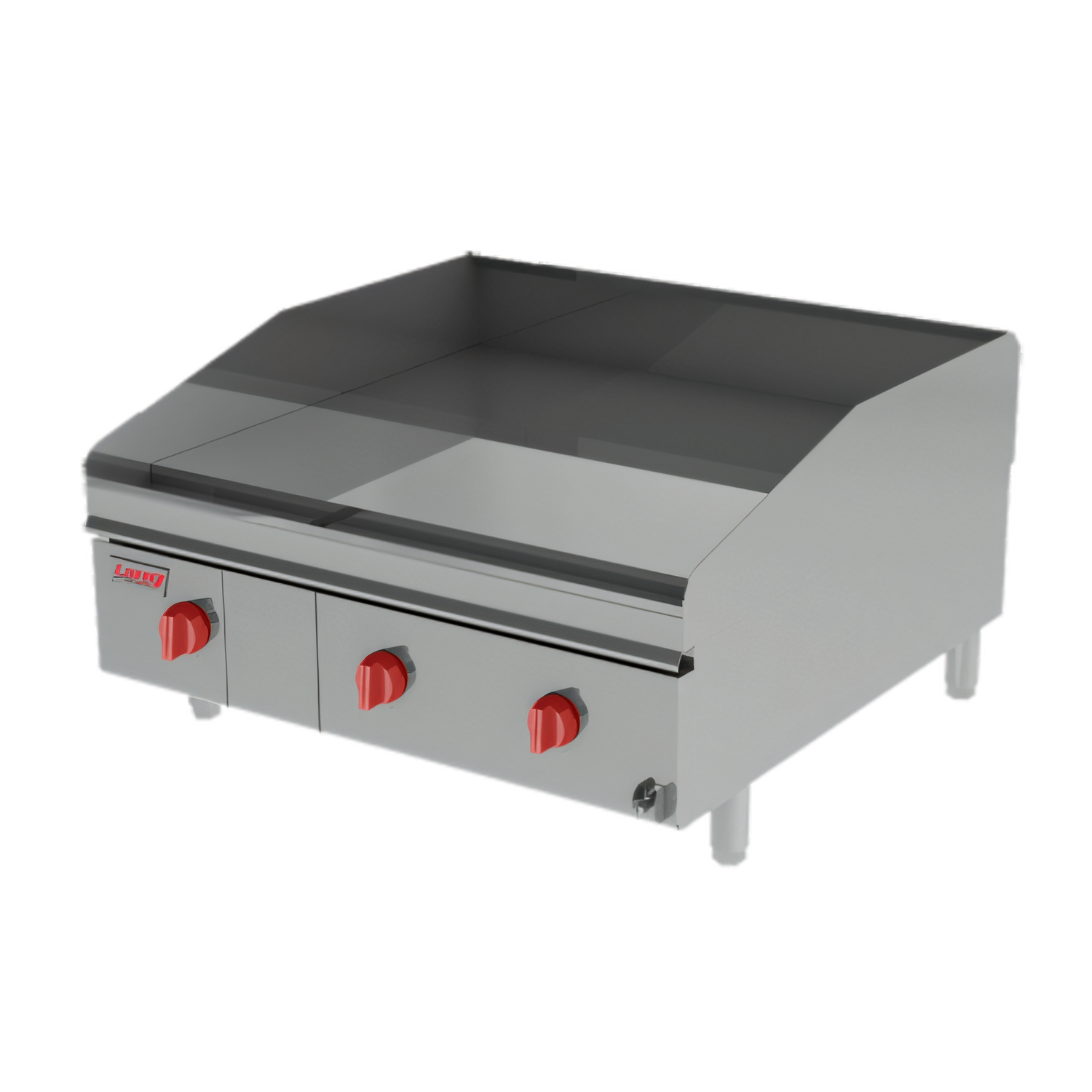

Lang Manufacturing (Middleby) 272ZTD LG Series Gas Griddles

$20,488.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Buying guide Middleby financial flyer Warranty sheet
Related Searches
Gas Griddles Griddles & Flat Tops

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

Lang LG Series 72" Gas Countertop Griddle

Extra-deep 30 in. plate | 210,000 BTU | cETLus & ETL-Sanitation

Engineered for high-volume breakfast, lunch and all-day menus, the 72 inch Lang LG Series gives you the fire-power of six burners and the precision of embedded electric snap-action thermostats. With a full 30 inch extra-deep cooking surface and a heat range up to 550 °F, this griddle recovers fast, cooks evenly and keeps your line moving during the biggest rushes.

Key Performance Advantages

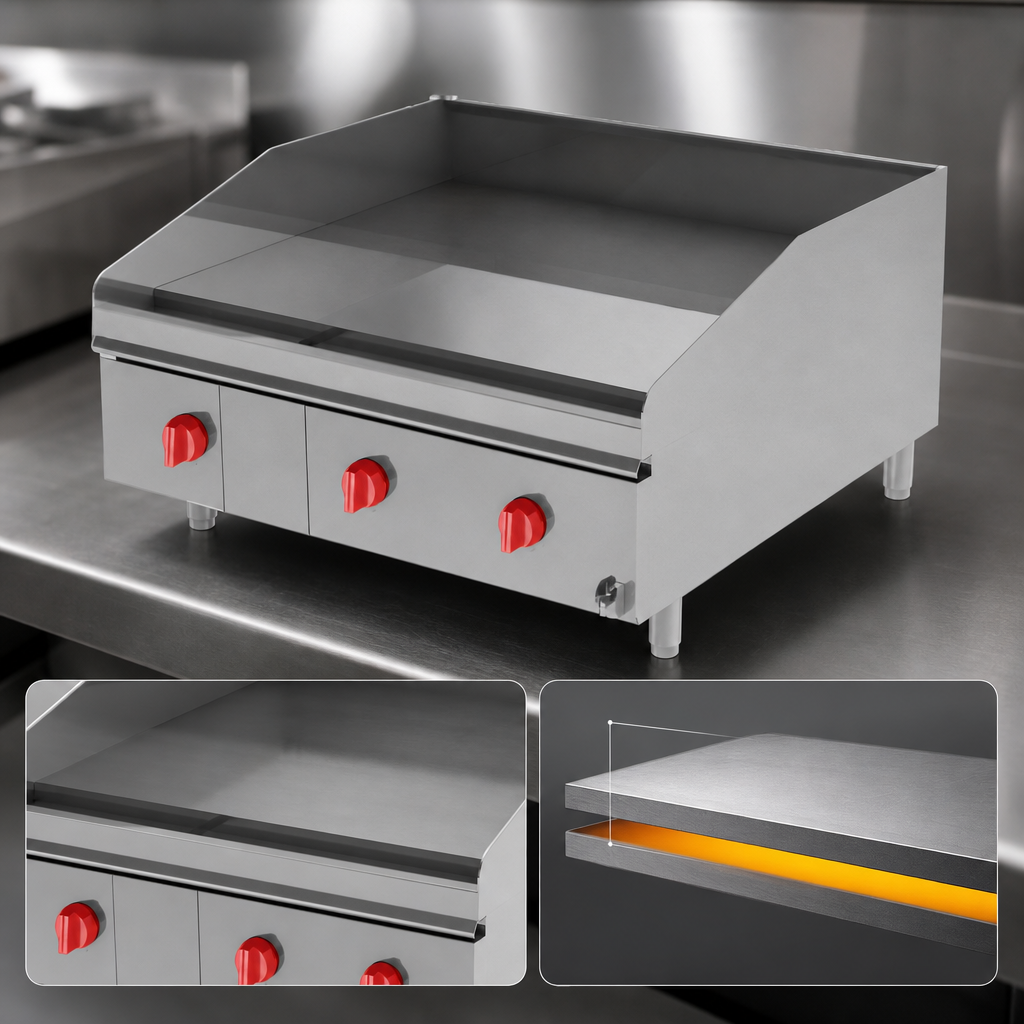

  • 1" thick machined steel plate retains heat for lightning-fast recovery and fewer hot/cold spots.
  • Embedded electric snap-action thermostats (220–550 °F) react directly to plate temperature for ±15 °F accuracy.
  • Six independent 35,000 BTU burners (total 210,000 BTU) let you zone-cook everything from delicate eggs to seared steaks.

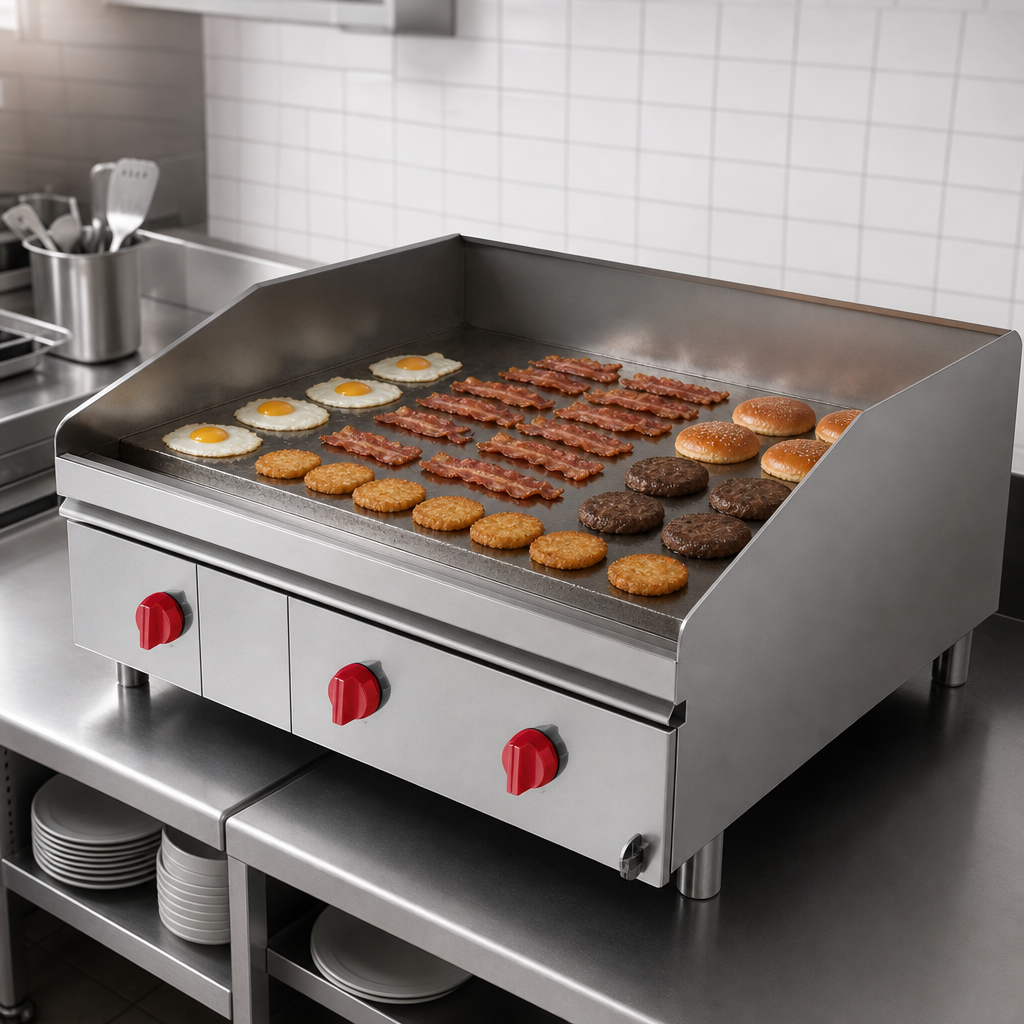

  • 30 inch extra-deep plate delivers 2,160 sq in. of usable cook zone—ideal when tickets stack up.
  • Pilot-safety system with direct-spark ignition eliminates a standing pilot for safer, more efficient operation (120 V plug-in).
  • 5" welded splash guard (sides & rear) and 3 ½" wide front trough keep grease where it belongs.
  • 8 qt. stainless grease drawer slides out for quick dumping between dayparts.
Construction Highlights
  • Rugged welded steel frame with stainless steel front, sides & flue.
  • 4" stainless legs with 1 5⁄8" adjustment for leveling under any hood.
  • Tapered splash guard is continuously welded for easy scrub-down.
  • All service connections located at rear for clean under-counter installs.
  • Certified cETLus / ETL-Sanitation for gas and sanitation safety.
Specifications
Cooking surface 72" W × 30" D (2,160 in²)
Plate material / thickness Polished steel, 1" thick
Heat source Six aluminized burners, 35,000 BTU each (210,000 BTU total)
Temperature range 220 °F – 550 °F
Control type Embedded electric snap-action thermostats, one per 12" section
Electrical 120 V / 60 Hz / 1-ph, 2 A, NEMA 5-15P (controls & ignition only)
Gas connection ¾" NPT (natural or propane—specify at order)
Grease management 3 ½" trough, 8 qt. S/S drawer
Overall dimensions 72" W × 36 ¼" D × 18" H (to top of splash)
Net weight 960 lb / 435 kg
Certifications cETLus, ETL-Sanitation
Standard warranty 2 years parts & labor (5 years against chrome plate peeling if chrome option is ordered)

Installation under a vent hood is required. Gas pressure regulator and 120 V cord & plug supplied.

Need Financing?

Ask us about Middleby Equipment Financing to turn this purchase into affordable fixed monthly payments.

Features & Specs

Manufacturer

Lang Manufacturing (Middleby)

Brand_name

LG Series

Certifications

cETLus, ETL-Sanitation

Height

16.5in

Width

72.0in

Depth

37.25in

Shipping Weight

1020.0lbs

Cooking Surface Width (side - side)

67" - 72"

Exterior Finish

all stainless steel exterior

Griddle Plate Finish

smooth steel

Plate Thickness

1"

Controls

thermostat / solid state controls

Cooking Surface Depth (front - back)

30" - 36"

Specifications

LG Series Griddle, gas, countertop, 72" W x 30" D cooking surface, 1" thick smooth steel griddle plate, 220° - 550° F embedded elctric snap-action thermostats with pilot safety, welded steel frame with stainless steel exterior, 5" tapered wrap-around splash guard, 3-1/2" front grease trough, 8 qt. stainless steel grease drawer, 4" stainless steel legs with 1-5/8" adjustment, 210,000 BTU, 120v/60/1-ph, NEMA 5-15P, cETLus, ETL-Sanitation
