Lang Manufacturing (Middleby)

72-Inch Countertop Gas Griddle with 1-Inch Chrome Plate and Electric Snap-Action Thermostats

SKU: 272TC
$30,198.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Griddles Commercial Grills Gas Griddles Griddles & Flat Tops Lang Manufacturing (Middleby) New Arrivals Restaurant Equipment

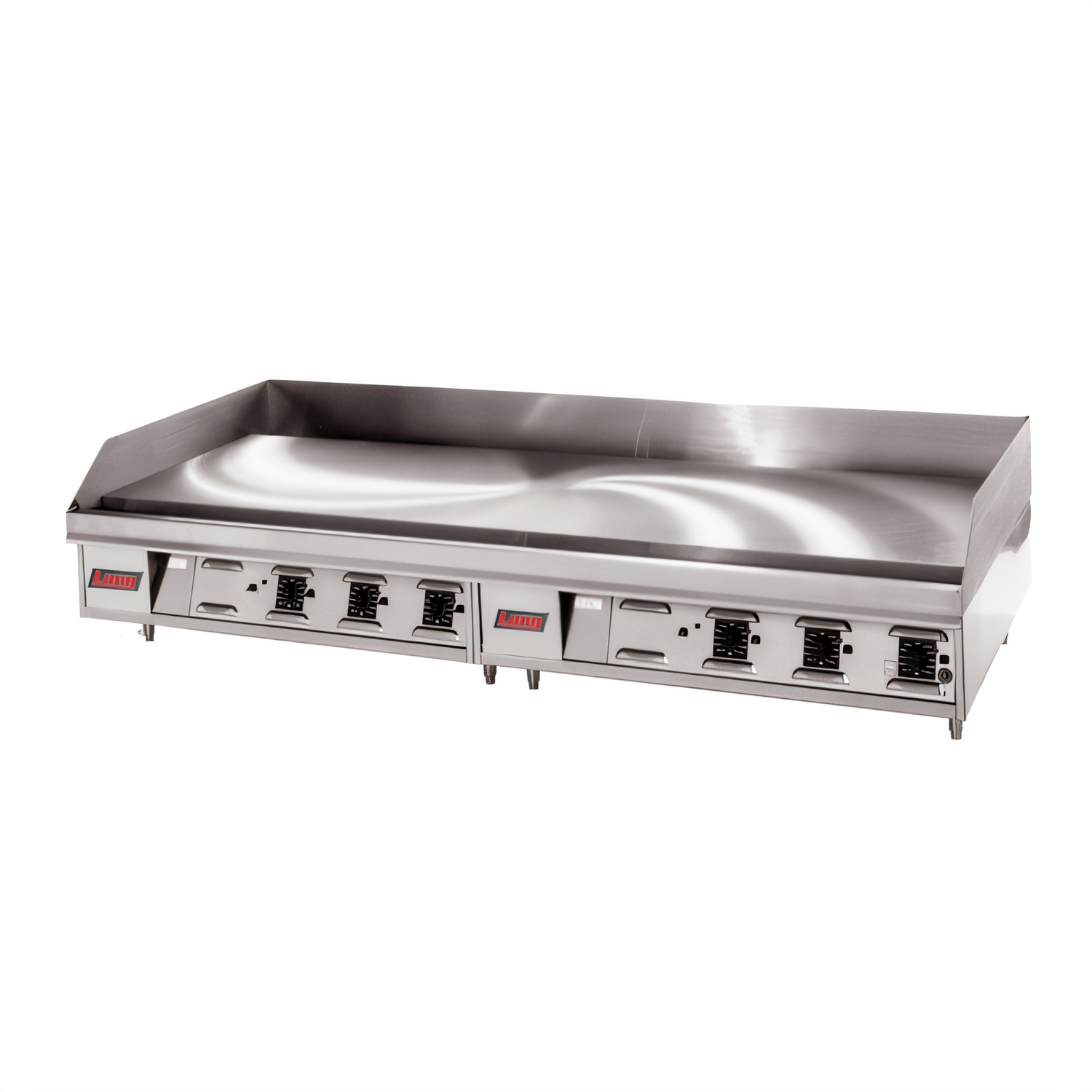

72-Inch Countertop Gas Griddle with 1-Inch Chrome Plate and Electric Snap-Action Thermostats

23-Inch Deep Cooking Surface, 162,000 BTU, 120V Pilot Safety

This heavy-duty 72-inch gas griddle combines a chrome cooking surface, responsive thermostatic control, and easy-clean grease management for high-volume service.

  • Large 72-inch by 23-inch cooking surface supports high-volume breakfast, lunch, and dinner production.
  • 1-inch chrome griddle plate helps improve heat retention, recovery, and cleanup.
  • Embedded electric snap-action thermostats provide controlled cooking from 200°F to 450°F.
  • Welded steel frame with stainless steel exterior is built for demanding commercial kitchens.
  • 5-inch tapered wrap-around splash guard, front grease trough, and stainless steel grease drawer help contain messes.
  • 120V pilot safety operation with 162,000 BTU output and NEMA 5-15P plug connection.

Overall Dimensions:

72.0"W x 30.4"D x 16.4"H

Product Weight:

800.0 lb

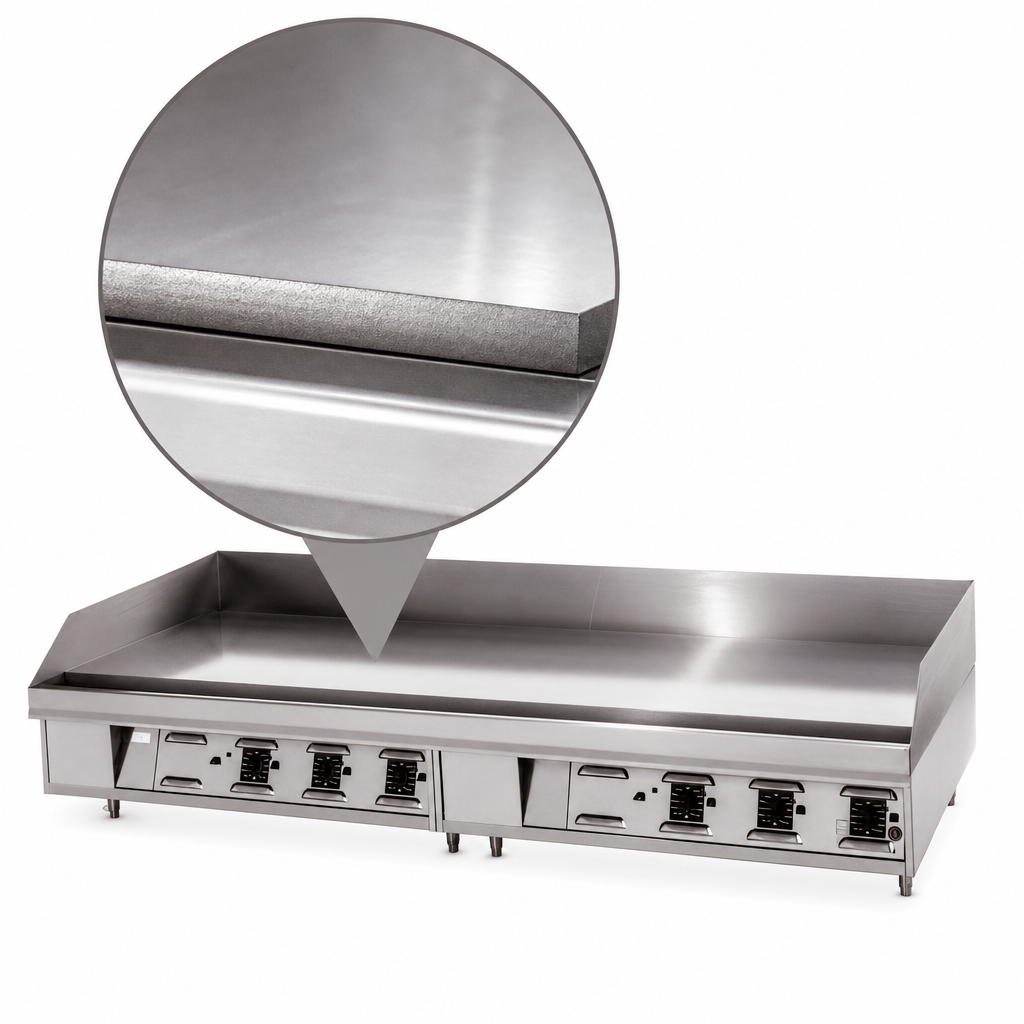

1-Inch Chrome Griddle Plate

Chrome-plated cooking surface retains heat well, recovers quickly, and helps reduce cleanup time.

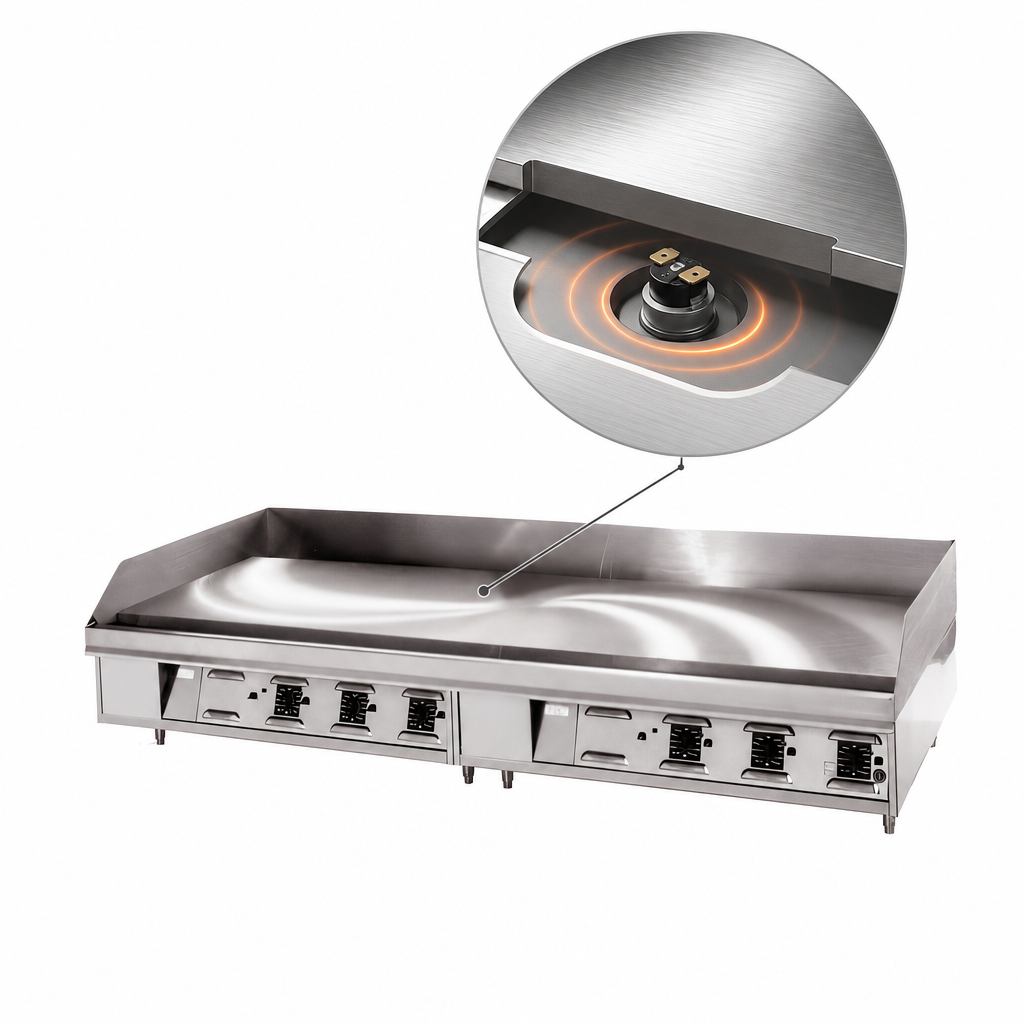

Embedded Electric Snap-Action Thermostats

Thermostats are embedded in the plate for responsive temperature control across the cooking surface.

Pilot Safety

Pilot safety helps support safe burner ignition when heat is called for by the thermostat.

Stainless Steel Exterior

Welded steel frame with stainless steel exterior is designed for durability in busy commercial kitchens.

High-Capacity Grease Management

Includes a 3-1/2-inch front grease trough and an 8-quart stainless steel grease drawer for easier cleanup.

Wrap-Around Splash Guard

The 5-inch tapered wrap-around splash guard helps contain grease and food debris during use.

Adjustable Stainless Steel Legs

4-inch adjustable stainless steel legs help level the countertop griddle during installation.

Large Cooking Surface

The 72-inch wide by 23-inch deep cooking surface provides ample room for high-volume cooking.

Type Griddle
Style Countertop
Installation Type Countertop
Cooking Surface Width 72 Inches
Cooking Surface Depth 23 Inches
Plate Thickness 1 Inch
Controls Electric Snap-Action Thermostat
Temperature Range 200°F to 450°F
BTU 162,000 BTU
Voltage 120 Volts
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 5-15P
Material Stainless Steel
Finish Chrome Plated
Shipping Width 72 Inches
Shipping Depth 31 Inches
Shipping Height 17 Inches
Shipping Weight 800 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of UL Certified
UL Certified

Warranty & Protection

2 years parts and labor; 5 years on chrome griddle surfaces against peeling.

Documents

PDF Cutsheet PDF Download PDF Buying guide PDF Download PDF Middleby financial flyer PDF Download PDF Installation & operation PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

The griddle has a 72-inch by 23-inch cooking surface.
The temperature range is 200°F to 450°F.
It uses a 120V/60/1-ph connection with a NEMA 5-15P plug.
It includes a 3-1/2-inch front grease trough and an 8-quart stainless steel grease drawer.
Lang griddles are warranted for 2 years on parts and labor, and chrome griddle surfaces are covered for 5 years against peeling, subject to Lang's warranty terms.
