Lang LG Series 60-Inch Gas Countertop Griddle with 1-Inch Smooth Steel Plate and Electric Snap-Action Thermostats

SKU: 260ZTD
$17,217.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Griddles Commercial Grills Gas Griddles Griddles & Flat Tops Lang Manufacturing (Middleby) New Arrivals Restaurant Equipment

Lang LG Series 60-Inch Gas Countertop Griddle with 1-Inch Smooth Steel Plate and Electric Snap-Action Thermostats

175,000 BTU, 120V Control Power, Stainless Steel Exterior

Built for high-volume service, this 60-inch gas griddle combines a thick smooth steel plate with responsive thermostatic control and durable stainless steel construction.

  • 60" x 30" cooking surface supports high-volume breakfast and lunch production.
  • 1" thick smooth steel griddle plate helps retain heat and recover quickly.
  • Embedded electric snap-action thermostats deliver precise temperature control from 220°F to 550°F.
  • Stainless steel exterior, welded steel frame, and 5" wrap-around splash guard improve durability.
  • Front grease trough and 8 qt. stainless steel drawer simplify cleanup.
  • 120V control power with NEMA 5-15P plug supports the thermostat system.

Overall Dimensions:

60.0"W x 37.25"D x 16.5"H

Product Weight:

870.0 lb

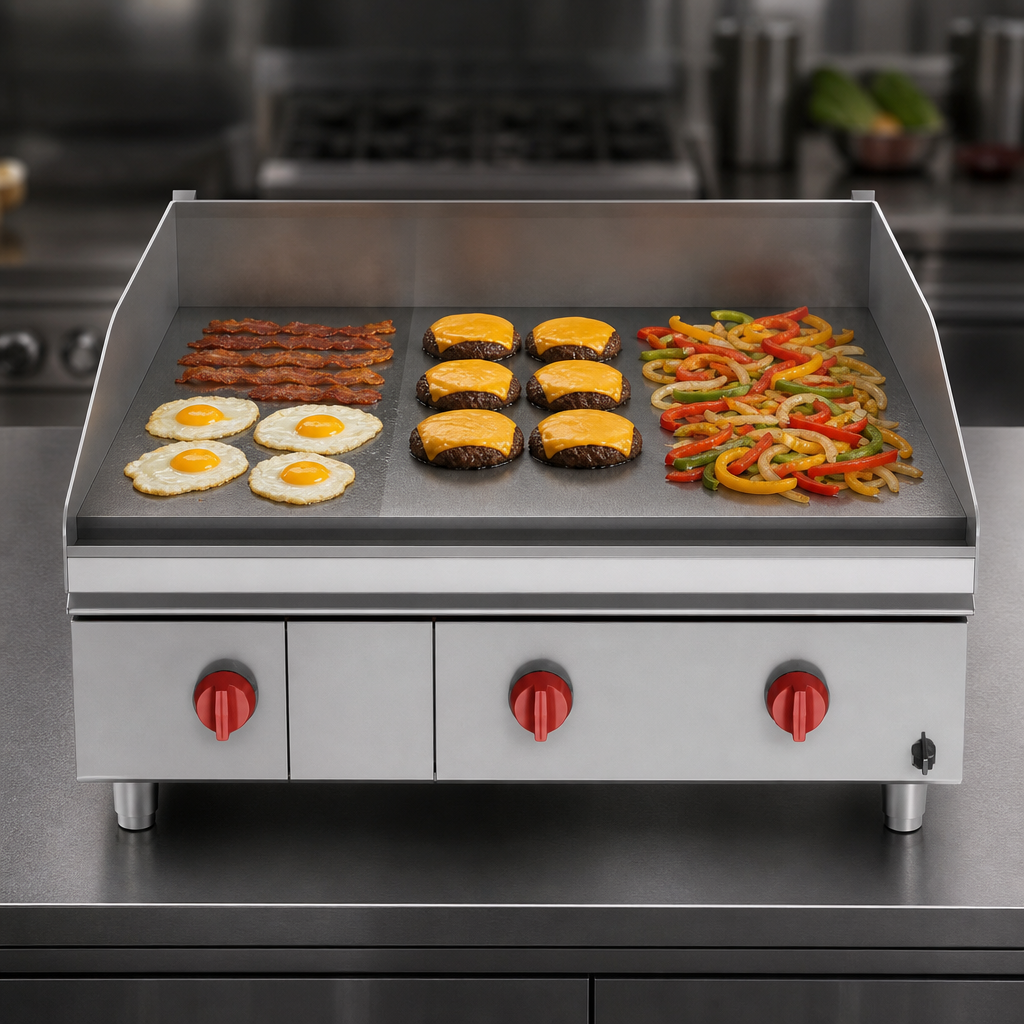

Large 60-Inch Cooking Surface

Provides a 60" W x 30" D cooking area for high-volume griddling.

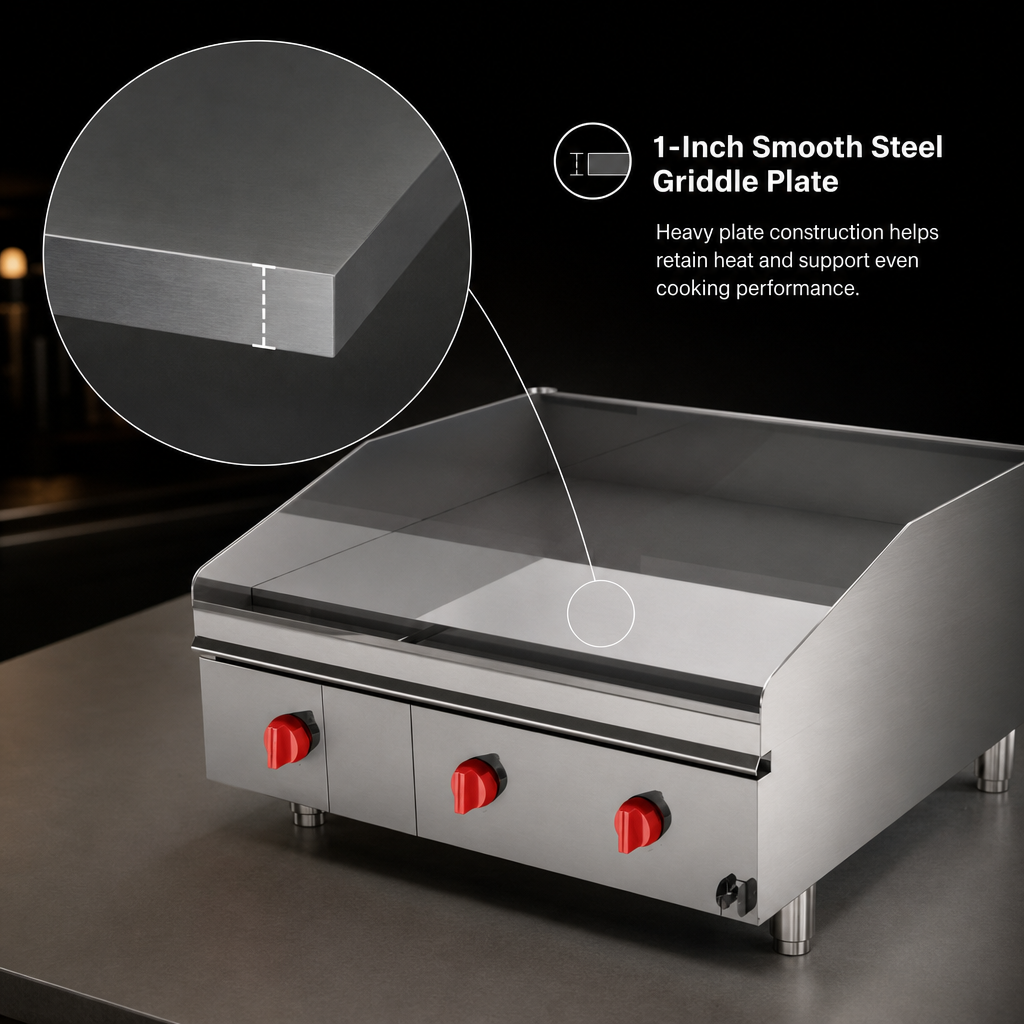

1-Inch Smooth Steel Griddle Plate

Heavy plate construction helps retain heat and support even cooking performance.

Embedded Electric Snap-Action Thermostats

Responsive thermostat control is designed for precise heat management across the cooking surface.

Pilot Safety

Pilot safety helps support reliable burner operation and safer ignition.

Welded Steel Frame with Stainless Steel Exterior

Heavy-duty construction is built for commercial use and easier cleaning.

5-Inch Tapered Wrap-Around Splash Guard

Helps contain grease and food splatter around the cooking area.

Front Grease Trough and 8 Qt. Drawer

Channels grease forward into a removable stainless steel drawer for easier maintenance.

Adjustable Stainless Steel Legs

4" legs with 1-5/8" adjustment help level the unit during installation.

High-Output Gas Performance

175,000 BTU output supports fast recovery and efficient cooking production.

120V Control Power

120V / 60 Hz / 1-phase electrical connection with NEMA 5-15P plug powers the thermostat system.

Type Griddle
Installation Type Countertop
Material Stainless Steel
Finish All Stainless Steel Exterior
Griddle Plate Finish Smooth Steel
Plate Thickness 1 Inch
Cooking Surface Width 60 Inches
Cooking Surface Depth 30 Inches
Controls Electric Snap-Action Thermostats
Temperature Range 220° F to 550° F
BTU 175,000 BTU
Voltage 120 Volts
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 5-15P
Shipping Width 60 Inches
Shipping Depth 38 Inches
Shipping Height 17 Inches
Shipping Weight 870 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of ETL Listed
ETL Listed

Warranty & Protection

2-year parts and 2-year labor

Documents

PDF Cutsheet PDF Download PDF Middleby financial flyer PDF Download PDF Buying guide PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

The cooking surface measures 60" wide by 30" deep.
It uses embedded electric snap-action thermostats with pilot safety and a 220°F to 550°F temperature range.
The unit requires 120V / 60 Hz / 1-phase power and uses a NEMA 5-15P plug.
It includes a 3-1/2" front grease trough and an 8 qt. stainless steel grease drawer.
Lang griddles are covered by a 2-year parts and 2-year labor warranty under the standard limited equipment warranty.
