Lang LG Series 60" Gas Countertop Griddle
1" Chrome Plate • Solid-State Thermostats • 135,000 BTUEngineered for serious volume and precision, the Lang LG Series 60" chrome-top griddle brings five independently controlled cooking zones to your countertop. Its full-inch T1 armor-grade plate is chrome finished for effortless release, rapid cleanup, and a cooler kitchen environment—backed by a 5-year no-peel surface warranty.
Key Features
- 60" W × 23" D chrome cooking surface (5 × 12" zones) handles peak-hour volume with ease.
- 1" thick plate with embedded thermocouples only 3/16" from the surface for lightning-fast recovery.

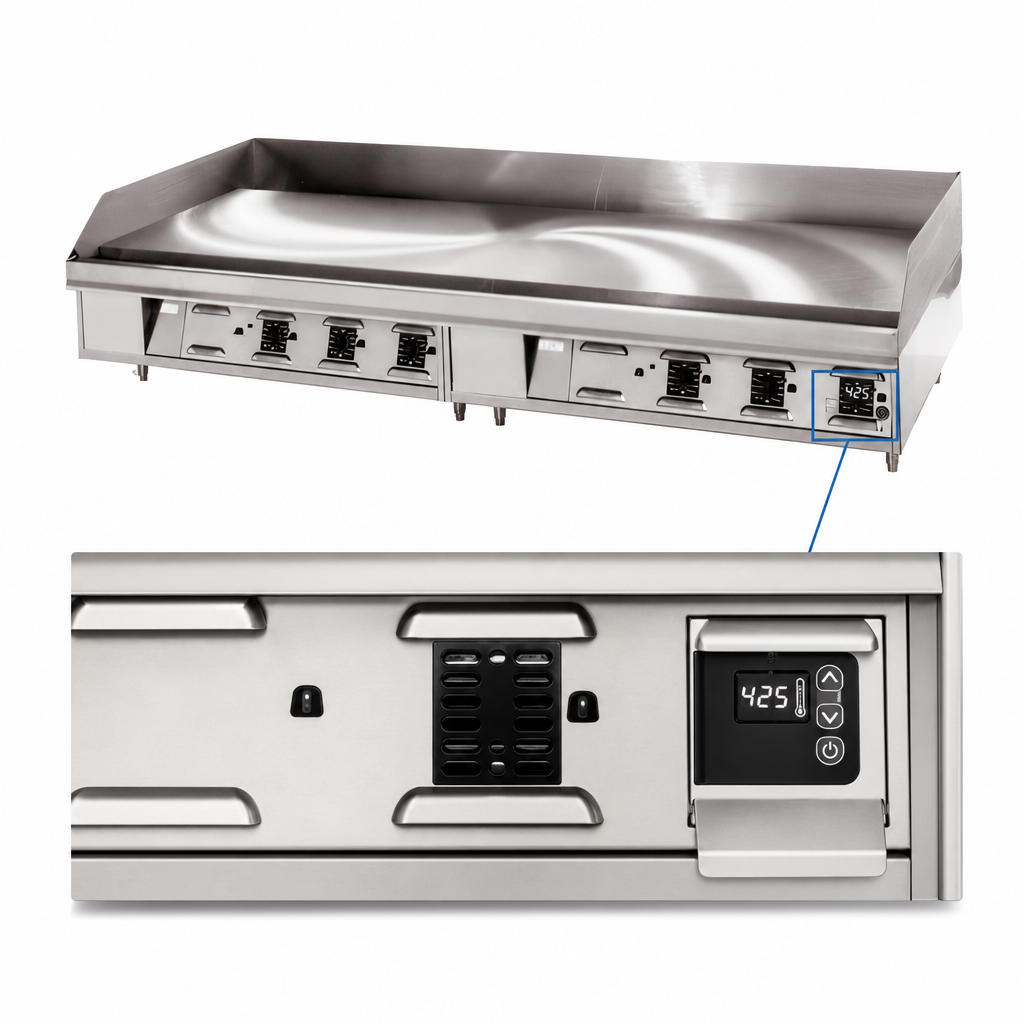

- Solid-state thermostats (175 – 450 °F) hold surface temps to ±4 °F of set point.
- Direct-spark ignition with pilot safety—no standing pilot equals lower energy use and safer operation.
- 5" tapered wrap-around stainless splash guard contains splatter on all sides.
- Heavy 3-1/2" front trough funnels grease to an 8 qt stainless drawer for quick dumping.
- Welded steel frame & stainless exterior built for years of commercial abuse.
- 4" adjustable stainless legs—level it, clean under it, and comply with health codes.
Performance & Control
- 27,000 BTU burner under every 12" section • Total output : 135,000 BTU/hr.
- Embedded sensors read true surface temperature, not cabinet air, for instant feedback.

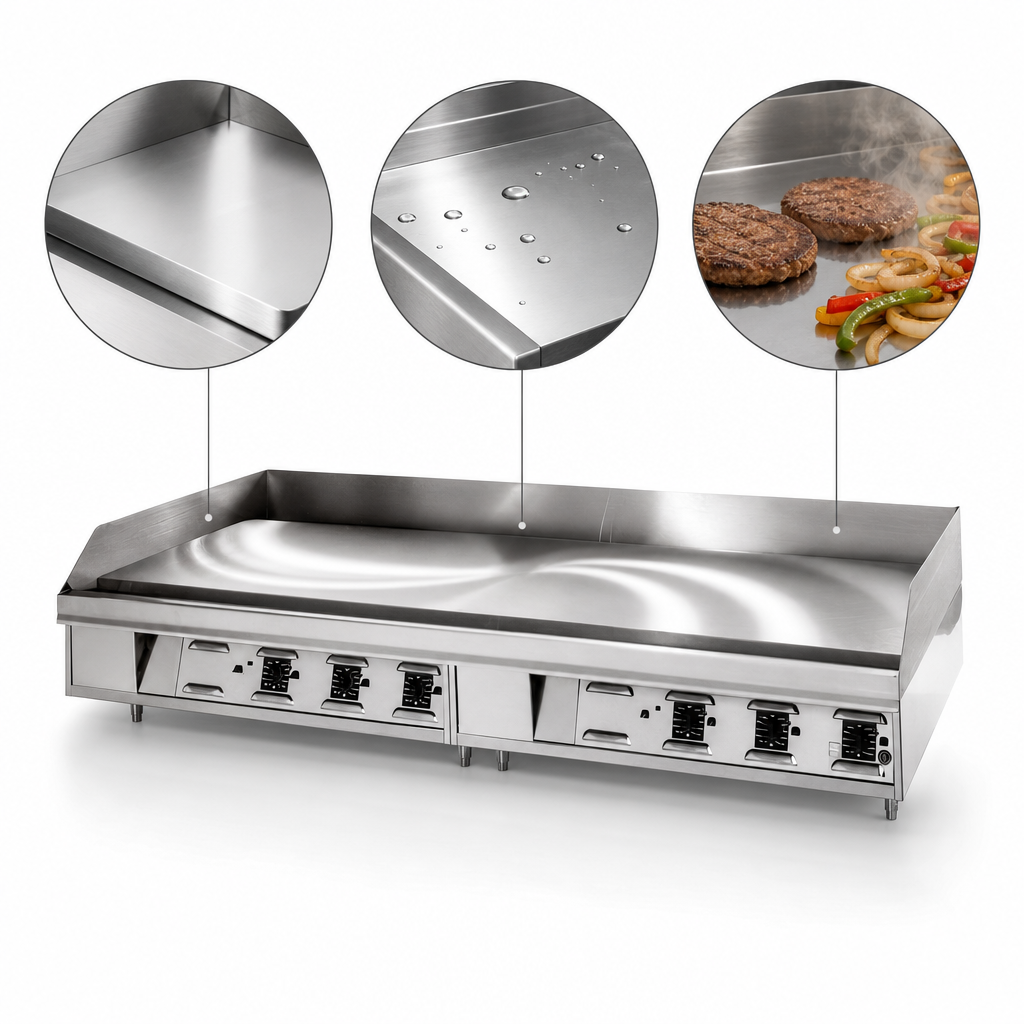

- Chrome plate eliminates seasoning, reduces flavor transfer, and radiates 40 % less heat into the kitchen.
Built for Busy Kitchens
- Independent zone control lets you sear proteins, toast buns, and hold delicate items simultaneously.
- 23" plate depth provides extra landing area without enlarging the appliance footprint.
- Smooth chrome surface wipes clean fast, cutting downtime between dayparts.
Ideal For
- Diner & breakfast programs—pancakes, eggs, bacon, hash browns
- Burger and sandwich stations
- High-volume catering & commissary production
- Exhibition cooking & chef’s counters (mirror-finish plate looks fantastic front-of-house)
Technical Specifications
| Cooking Surface (W × D) | 60" × 23" (1524 mm × 584 mm) |
|---|---|
| Plate Thickness / Material | 1" T1 steel, 2 mil Hexavalent chrome finish |
| Heat Zones | 5 independent, 12" each |
| Temperature Range | 175 °F – 450 °F (79 °C – 232 °C), ±4 °F accuracy |
| Total Input | 135,000 BTU/hr (Natural or LP gas) |
| Gas Connection | 3/4" NPT male (rear) |
| Electrical | 120 V / 60 Hz / 1-ph, 2 A, NEMA 5-15P |
| Grease Management | 3-1/2" trough to 8 qt removable stainless drawer |
| Splash Protection | 5" wrap-around stainless splash guard |
| Overall Dimensions (H×W×D) | 20.2" × 60.1" × 31.6" (513 × 1526 × 803 mm) |
| Legs | 4" adjustable stainless (±1") |
| Certifications | UL Listed, NSF |
| Warranty | 2 years parts & labor • 5 years chrome surface (peel-proof) |
Installation Note: Allow a minimum 5" (127 mm) clearance at back and sides for ventilation and service access.
Gas hose, regulator, and start-up calibration must be performed by a qualified technician to maintain
warranty coverage.
Need financing? Middleby Equipment Financing offers fast approvals and affordable monthly payments— ask your rep or apply online.
$31,488.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to
?
Commercial Lang 260SC LG 60" gas griddle: 1" chrome plate, 175–450°F thermostats, 135,000 BTU, welded stainless exterior, grease drawer, NSF/UL-rated.
Manufacturer
Lang Manufacturing (Middleby)
Brand name
LG Series
Certifications
cULus, UL EPH
Height
16.4in
Width
60.0in
Depth
30.4in
Shipping Weight
635.0lbs
Cooking Surface Width (side - side)
55" - 60"
Controls
thermostat / solid state controls
Cooking Surface Depth (front - back)
20" - 23"
Griddle Plate Finish
chrome plated
Plate Thickness
1"
Exterior Finish
all stainless steel exterior
Specifications
LG Series Griddle, countertop, gas, 60"W x 23"D cooking surface, 1" thick chrome griddle plate, 175° - 450° F solid state thermostats with pilot safety, welded steel frame with stainless steel exterior, 5" tapered wrap-around splash guard, 3-1/2" front grease trough, 8 qt. stainless steel grease drawer, 4" adjustable stainless steel legs, 135,000 BTU, 120V/60/1-ph, NEMA 5-15P, UL, NSF
