Lang Manufacturing (Middleby) 248ZTDC LG Series Gas Griddles
Description

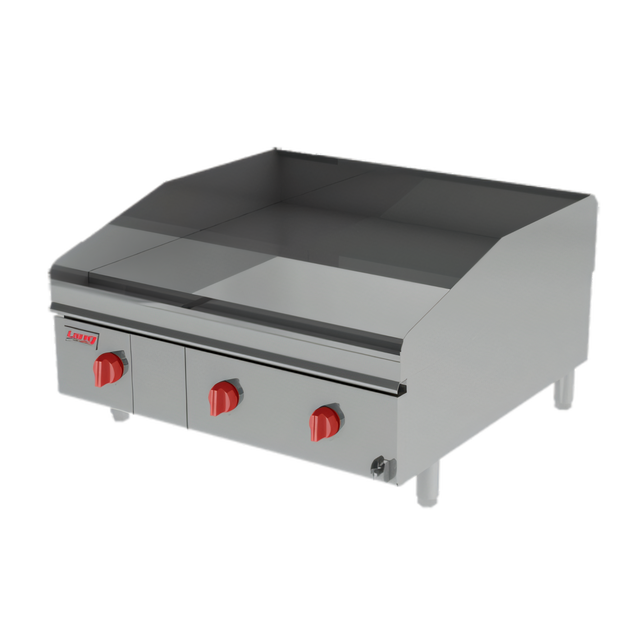

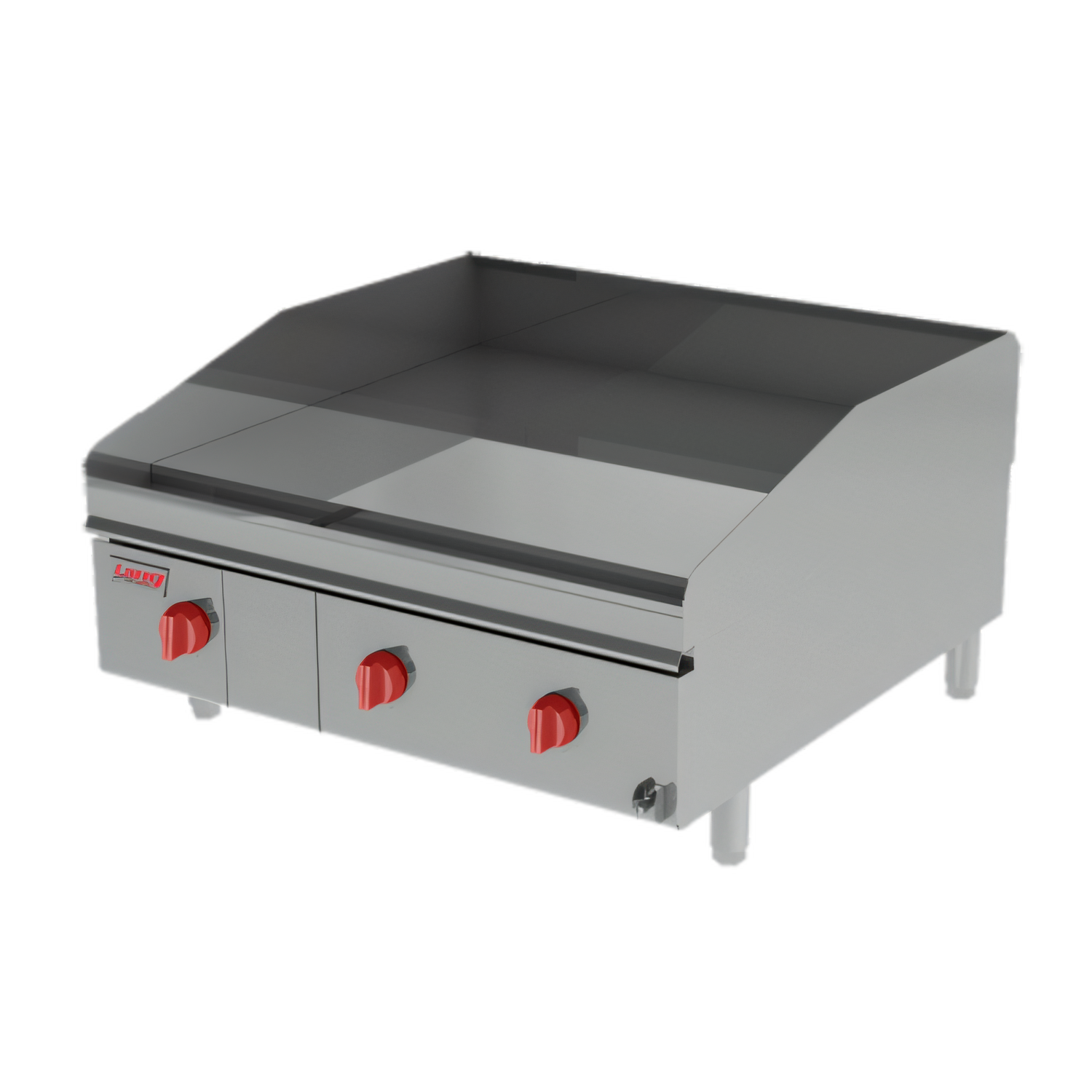

Lang LG Series 48" Countertop Gas Griddle – Chrome Plate, 30" Extra-Deep
Model LG-248CXD | 140,000 BTU | cETLus & ETL-SanitationBuilt for high-volume kitchens that refuse to compromise on speed, consistency, or presentation, the Lang LG Series 48" chrome griddle delivers a massive 1,440 in² cooking surface, fingertip-accurate temperature control, and the industry’s most durable mirror-finish plate—all in a compact countertop footprint.
Key advantages

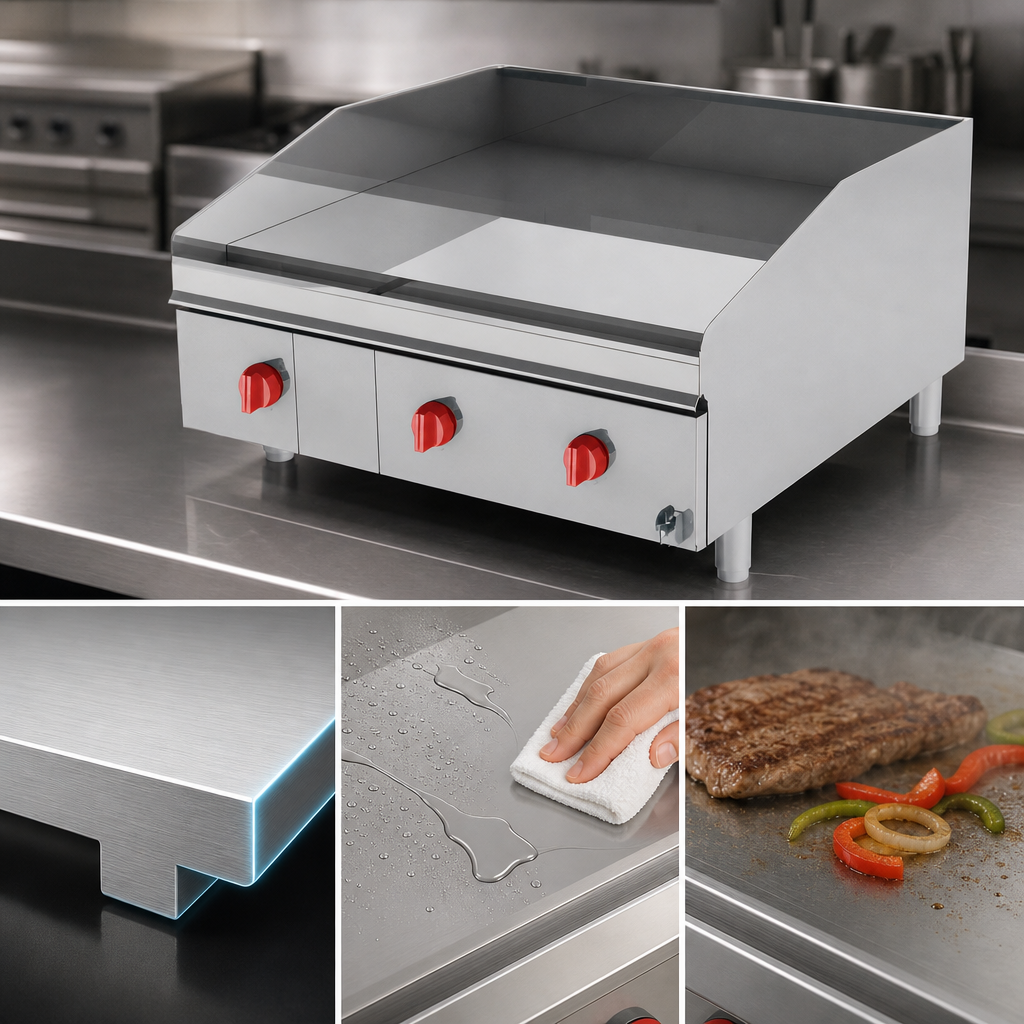

- 1" T1 armor-grade steel plate with 2 mil Hexavalent chrome for superior heat retention and a 5-year no-peel surface warranty.
- Extra-deep 30" plate gives you 30% more production space than standard 24" griddles.

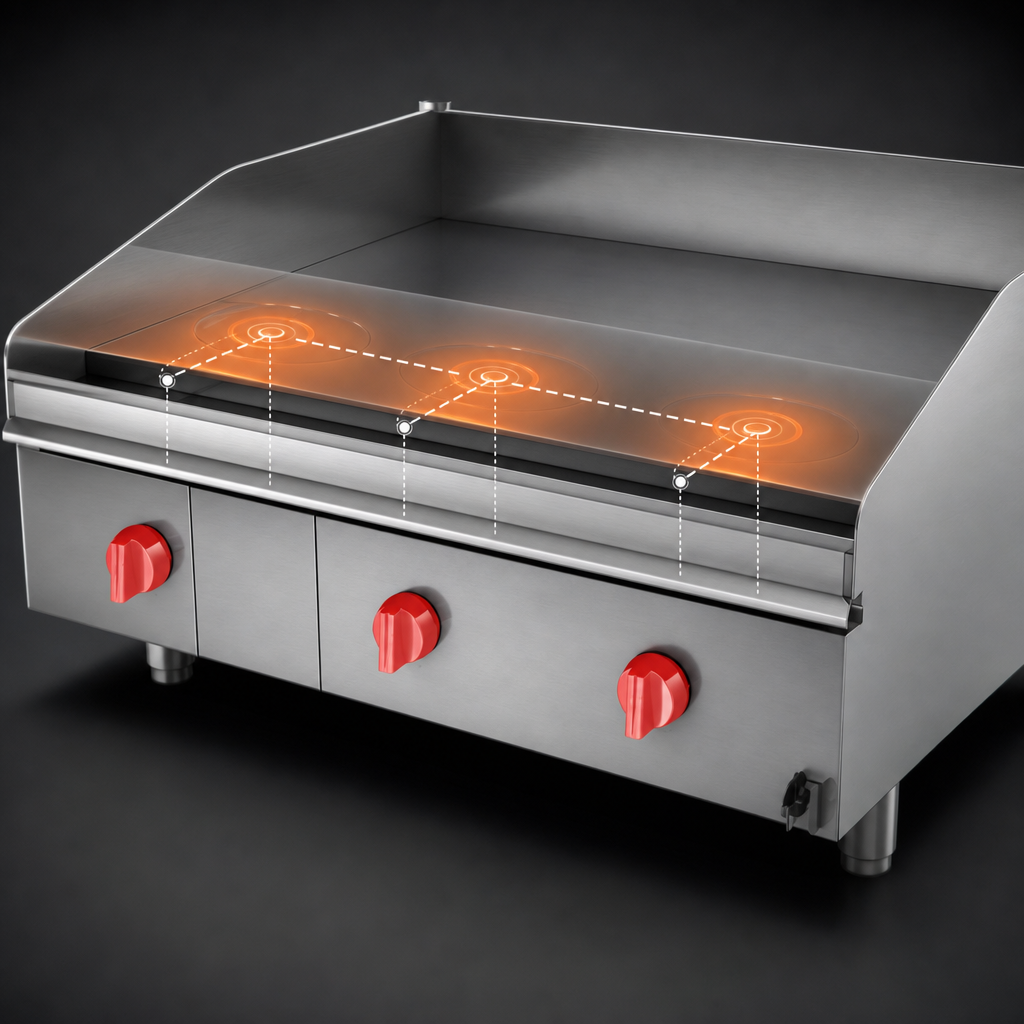

- Four embedded electric snap-action thermostats (one every 12") react faster to load changes and hold set temps within ±15 °F from 220 °F-550 °F.
- Pilot-safe, 140,000 BTU aluminized burner system lights only on demand – no standing pilot means lower idle costs and a cooler line.
- Welded stainless exterior & frame built to take daily commercial abuse and simplify wipe-downs.
- Kitchen-friendly ergonomics: 5" wrap-around splash guard, 3 ½" wide front trough, and an 8 qt. stainless drawer that slides out for quick grease disposal.
Consistent results, shift after shift
- Chrome plate never needs seasoning – foods release easily and flavor transfer is virtually eliminated.
- Rapid recovery keeps pancakes, burgers, eggs, and proteins moving during rush periods.
- Even heat from corner to corner reduces hot & cold spots that waste real estate.
- 4" stainless legs with 1 5⁄8" adjustment make leveling under any hood simple.
Clean-up in minutes
- Highly-polished chrome wipes clean with a damp cloth – no brick required.
- Front trough funnels runoff directly to the extra-capacity drawer to prevent flare-ups.
- Removable splash guard corners allow full-plate access for nightly sanitation.
Peace-of-mind coverage
- 2-year parts & labor warranty on the entire unit.
- 5-year warranty against chrome plate peeling.
Technical specifications
| Cooking surface | 48" W × 30" D (1,440 in²) |
|---|---|
| Plate thickness / material | 1" T1 steel, 2 mil chrome finish |
| Temperature range | 220 °F – 550 °F |
| Heat input | 140,000 BTU/hr |
| Controls | 4 × embedded electric snap-action thermostats (one each 12") |
| Gas connection | 3/4" NPT (natural or propane regulator included) |
| Electrical | 120 V / 60 Hz / 1-ph, 2 A, NEMA 5-15P (powers ignition & controls) |
| Grease management | 3 ½" trough, 8 qt. stainless drawer |
| Splash guard | 5" tapered, wrap-around, welded |
| Certifications | cETLus, ETL-Sanitation |
| Overall dimensions | 48" W × 37 ¼" D × 18" H (with legs) Depth includes trough and splash guard. |
| Net weight | ≈ 680 lb. |
Install under an approved commercial ventilation hood and connect to the specified gas & electrical services for safe, reliable operation.
