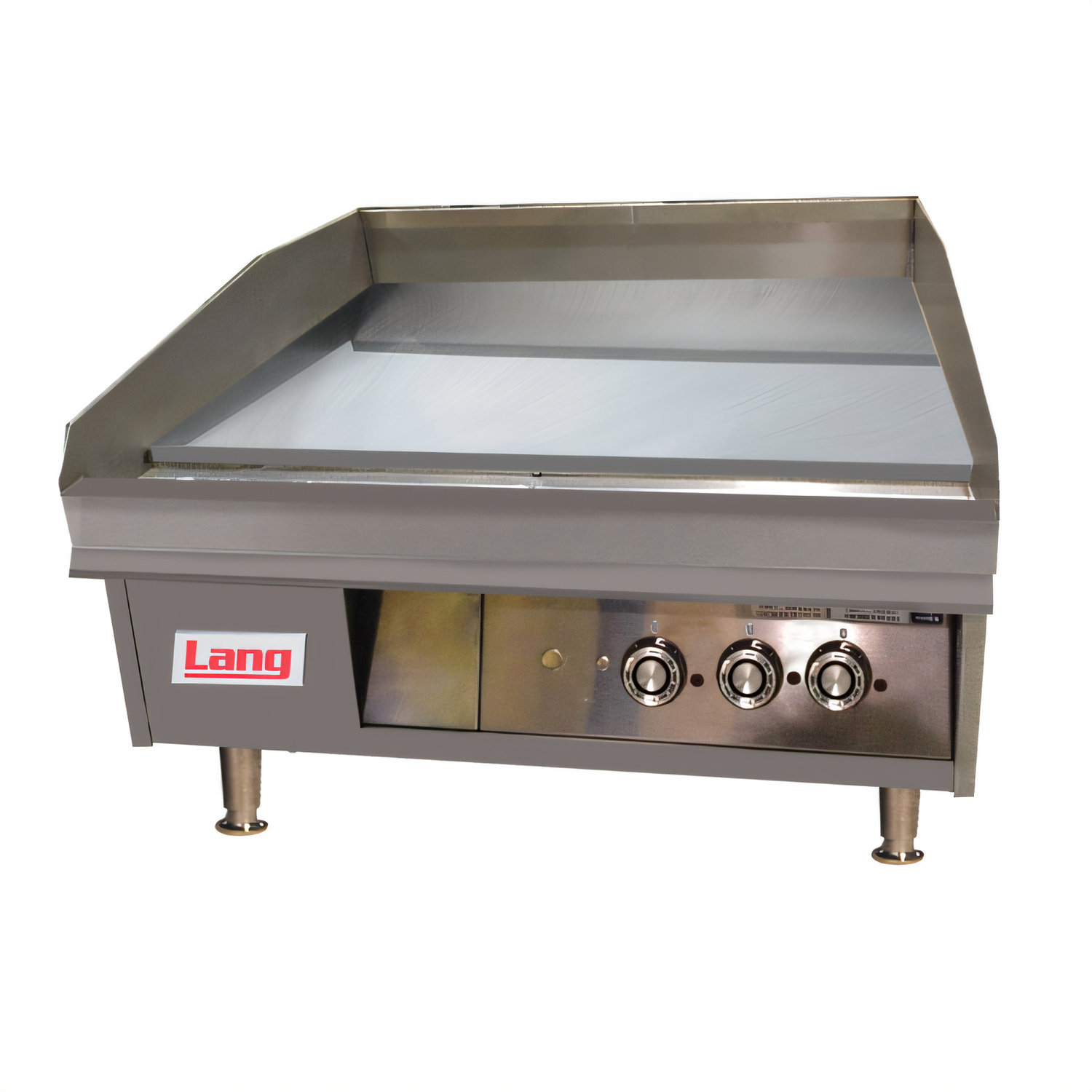

Lang LG Series 48" Gas Countertop Griddle
Model 248S | 108,000 BTU | Solid-State ThermostatsPut high-output performance and razor-sharp temperature control on your line. The Lang LG Series 48" griddle combines a full 1" thick steel plate with embedded solid-state thermostats that react instantly to surface changes—so every burger, pancake, or quesadilla gets the same even cook, no matter how hard you push the rush.
Why You’ll Love It
- True 1" steel plate with sensors ⅛" from the surface for rapid recovery and consistent browning.
- Four independent heat zones (one per 12") let you cook multiple menu items at once.
- Solid-state thermostats hold set points within ±4 °F from 175-450 °F—ideal for delicate eggs or hard-sear steaks.
- Built-in pilot safety & direct-spark ignition eliminate standing pilots, reducing gas waste and keeping the kitchen cooler.
- 5" wrap-around splash guard and 3½" front trough channel grease into an 8 qt. stainless drawer for fast cleanup.
- Stainless steel exterior & welded frame stand up to daily commercial abuse and wipe down easily.
- 4" adjustable legs level the unit on any counter and provide clearance for sanitation.
Perfect For
- 24/7 diners & short-order grills
- Hotel & resort banquet prep
- College, healthcare & corporate dining
- High-volume food trucks and ghost kitchens needing compact power
Technical Specifications

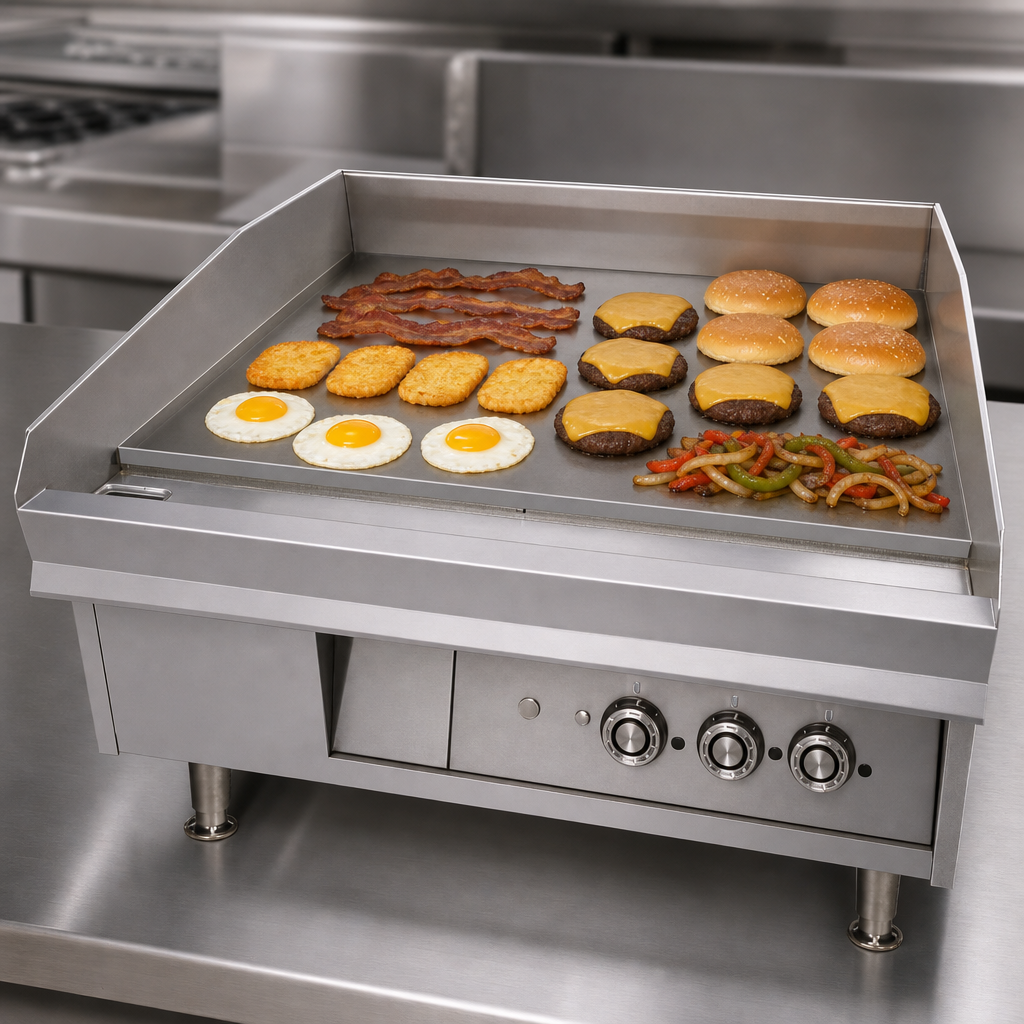

| Cooking surface (W × D) | 48" × 23" (1219 mm × 584 mm) |
|---|---|
| Plate thickness | 1" (25 mm) polished steel |
| Heat zones / Controls | 4 zones | 4 solid-state thermostats |
| Temperature range | 175 °F – 450 °F (79 °C – 232 °C) |
| BTU rating | 108,000 BTU/hr (27,000 BTU per 12") |
| Gas connection | ¾" NPT (natural or LP – specify at order) |
| Electrical | 120 V / 60 Hz / 1-ph, 2 A, NEMA 5-15P plug (for ignition & controls) |
| Grease drawer capacity | 8 qt. (7.6 L) stainless steel, front-mount |
| Splash guard height | 5" rear & sides, tapered |
| Overall dimensions (HxWxD) | 20.2" × 48.1" × 31.6" |
| Legs | 4" stainless, height-adjustable ±1" |
| Certifications | UL Gas-Fired, NSF |
| Warranty | 2-year parts & labor (5 yr chrome plate option) |
Popular Factory Options
- Mirror-finish chrome plate (5-year no-peel warranty)
- Clamshell hood (one per 12") for accelerated cook times
- Custom grooved plate (12" or 24" from either side)
- Matching equipment stand with legs or casters
Installation notice: A licensed gas professional must connect the unit
and verify correct gas type, pressure, and clearance (5" minimum to combustible
surfaces). Failure to follow local codes voids the warranty.
Need to conserve capital? Ask us about Middleby Equipment Financing for fast credit decisions and affordable monthly payments.
$15,615.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to
?
Lang 48" LG Series countertop gas griddle — 1" steel plate, 175–450°F thermostats, 108k BTU, stainless exterior, welded frame, NSF/UL certified.
Manufacturer
Lang Manufacturing (Middleby)
Brand name
LG Series
Certifications
cULus, UL EPH
Height
16.4in
Width
48.0in
Depth
30.4in
Shipping Weight
520.0lbs
Cooking Surface Width (side - side)
43" - 48"
Griddle Plate Finish
smooth steel
Cooking Surface Depth (front - back)
20" - 23"
Exterior Finish
all stainless steel exterior
Controls
thermostat / solid state controls
Plate Thickness
1"
Specifications
LG Series Griddle, countertop, gas, 48"W x 23"D cooking surface, 1" thick steel griddle plate, 175° - 450° F solid state thermostats with pilot safety, welded steel frame with stainless steel exterior, 5" tapered wrap-around splash guard, 3-1/2" front grease trough, 8 qt. stainless steel grease drawer, 4" adjustable stainless steel legs, 108,000 BTU, 120V/60/1-ph, NEMA 5-15P, UL, NSF
Contact Us
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
