Lang Manufacturing (Middleby) 224ZSDC LG Series Gas Griddles
Description

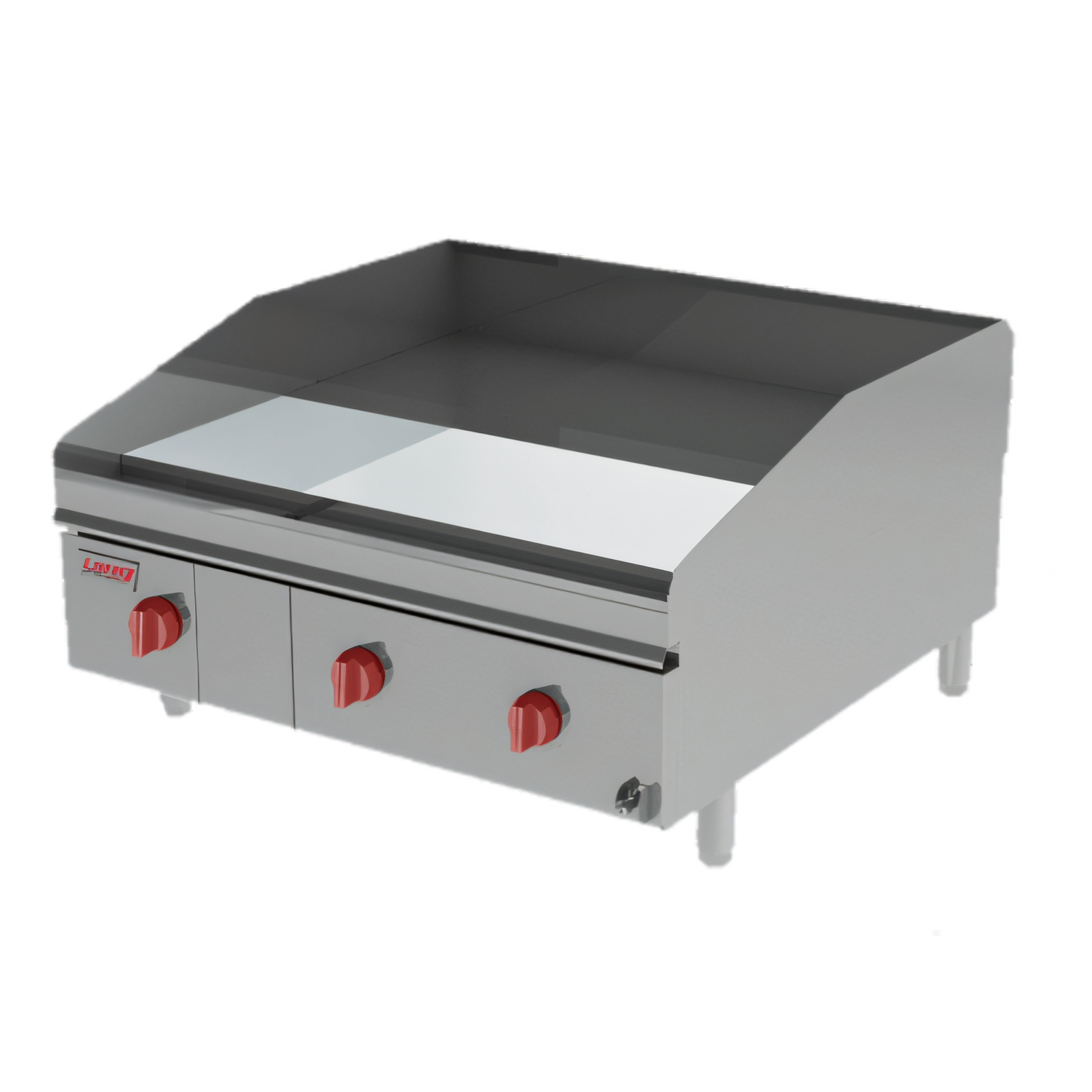

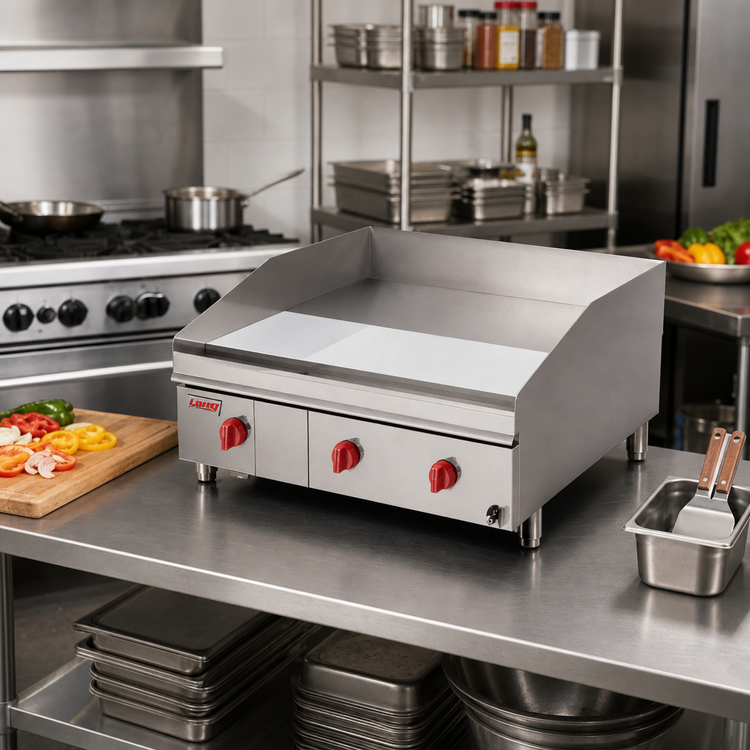

Lang LG Series 24" Gas Countertop Chrome Griddle
Model 224 LG | 70,000 BTU | 1″ Chrome Plate | Solid-State ControlsBuilt for kitchens that refuse to compromise on speed, consistency, or presentation, the Lang LG Series packs a full-size 30″ deep chrome cooking surface into a 24″ wide footprint. Rapid recovery solid-state thermostats, premium 1″ T1 armor-grade steel, and Lang’s famous mirror-finish chrome combine to give chefs pinpoint surface accuracy, easy cleanup, and a cooler line.
Why You’ll Love It
- Huge Production, Small Footprint — 720 sq in of cook area in just 24″ of counter width.

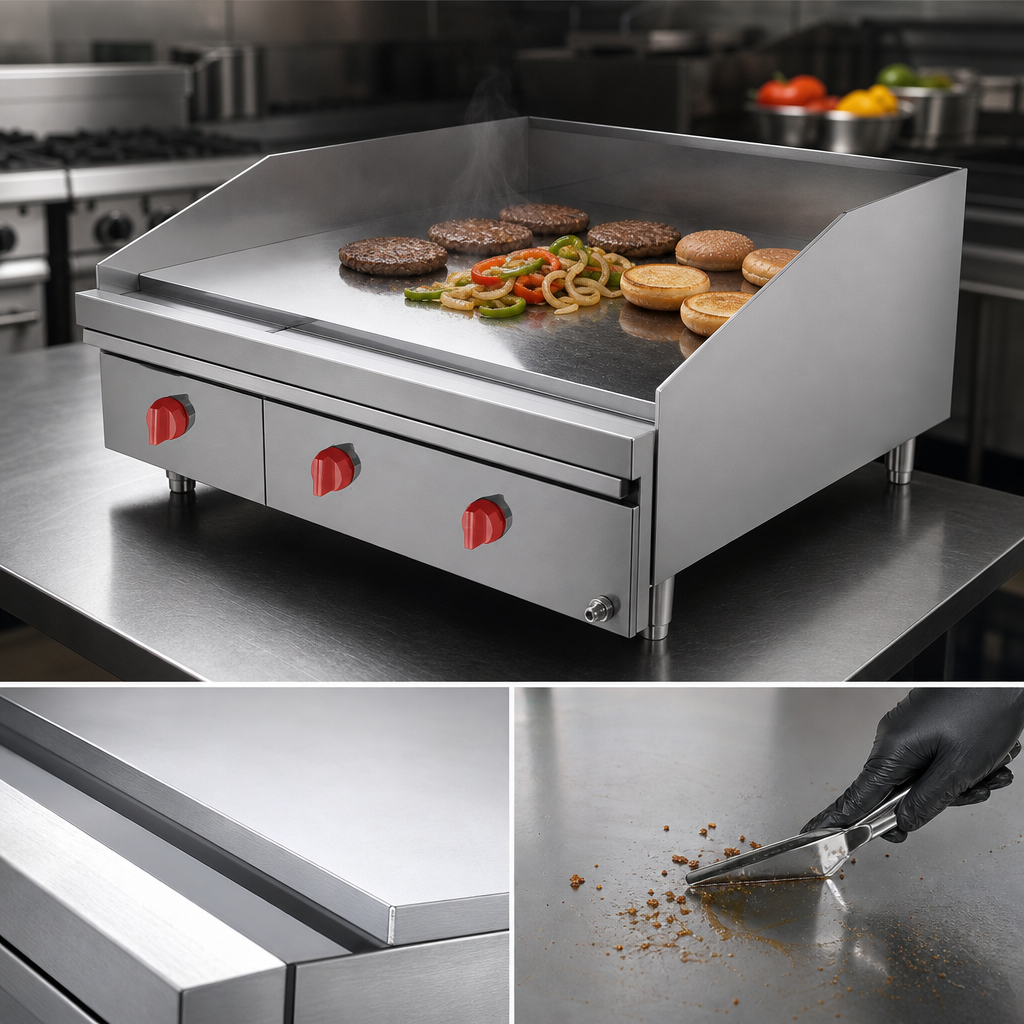

- Industry-Leading Chrome Plate — 1″ thick T1 steel coated with 2 mil hexavalent chrome for unmatched durability, zero seasoning, easy release, and a 5-year surface warranty.

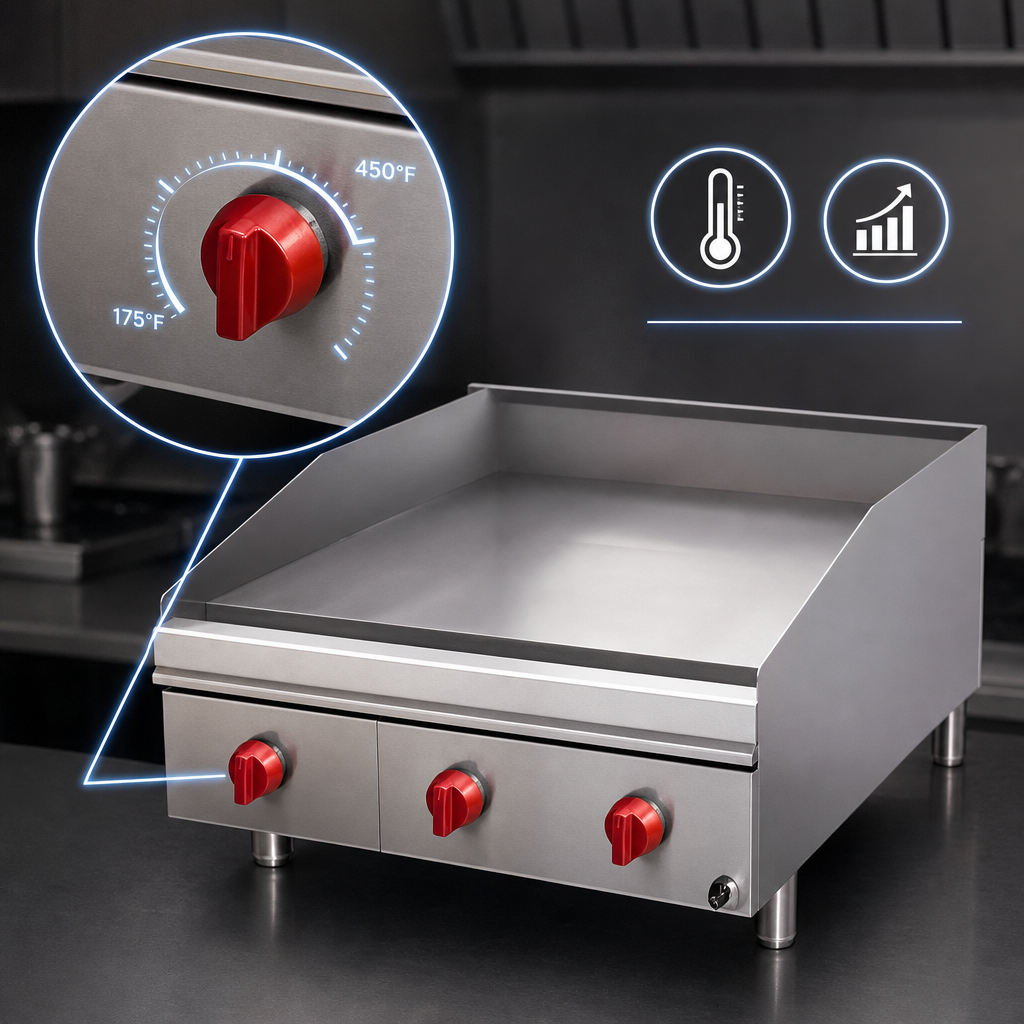

- Solid-State Precision — Embedded RTD probes hold set temps within ±4 °F across two 12″ zones (175 – 450 °F).
- 70,000 BTU Performance — Direct-spark burners fire only when needed, slashing idle energy cost and kitchen heat.
- Grease Management Made Easy — 3½″ wide trough funnels into an 8 qt stainless drawer for quick, mess-free disposal.
- All-Stainless Exterior — Welded steel frame, 5″ wrap-around splash, and 4″ adjustable legs stand up to the busiest line.
Performance & Construction Highlights
- Two independent 12″ zones with separate solid-state thermostats and pilot safety.
- Smooth chrome surface reduces flavor transfer and lowers hood load.
- Welded double-wall body keeps controls cool and allows tighter clearances.
- Direct-spark ignition eliminates standing pilots (120 V NEMA 5-15P cord included).
- 5″ high tapered splash guard contains splatter on three sides.
- Stainless steel legs offer 1 ⅝″ height adjustment for perfect leveling.
Technical Specifications
| Cooking Surface | 24″ W × 30″ D (720 sq in) smooth chrome |
|---|---|
| Plate Thickness | 1″ T1 steel, 2 mil hexavalent chrome |
| Temperature Range | 175 °F – 450 °F (±4 °F) |
| Total BTU Input | 70,000 BTU/hr (natural or LP) |
| Gas Connection | ¾″ NPT, rear |
| Electrical | 120 V, 0.5 A, 1-Ph, NEMA 5-15P |
| Overall Dimensions* | 24.1″ W × 31.4″ D × 16.4″ H (add 4″ for legs) |
| Grease Drawer Capacity | 8 qt (stainless) |
| Net Weight | ≈ 243 lb (shipping 280 lb) |
| Certifications | cETLus, ETL-Sanitation |
| Standard Warranty | 3 years parts & labor + 5 years chrome surface |
*Depth shown includes 30″ cook surface; refer to spec sheet for full dimensional drawings.
Perfect For
- High-volume breakfast menus & all-day diners
- Hotel, institutional, or banquet production lines
- Open-kitchen concepts that value a gleaming, guest-facing cooktop
- Food trucks or ghost kitchens needing premium output in tight quarters
