Lang Manufacturing (Middleby) 224SC LG Series Gas Griddles
Description

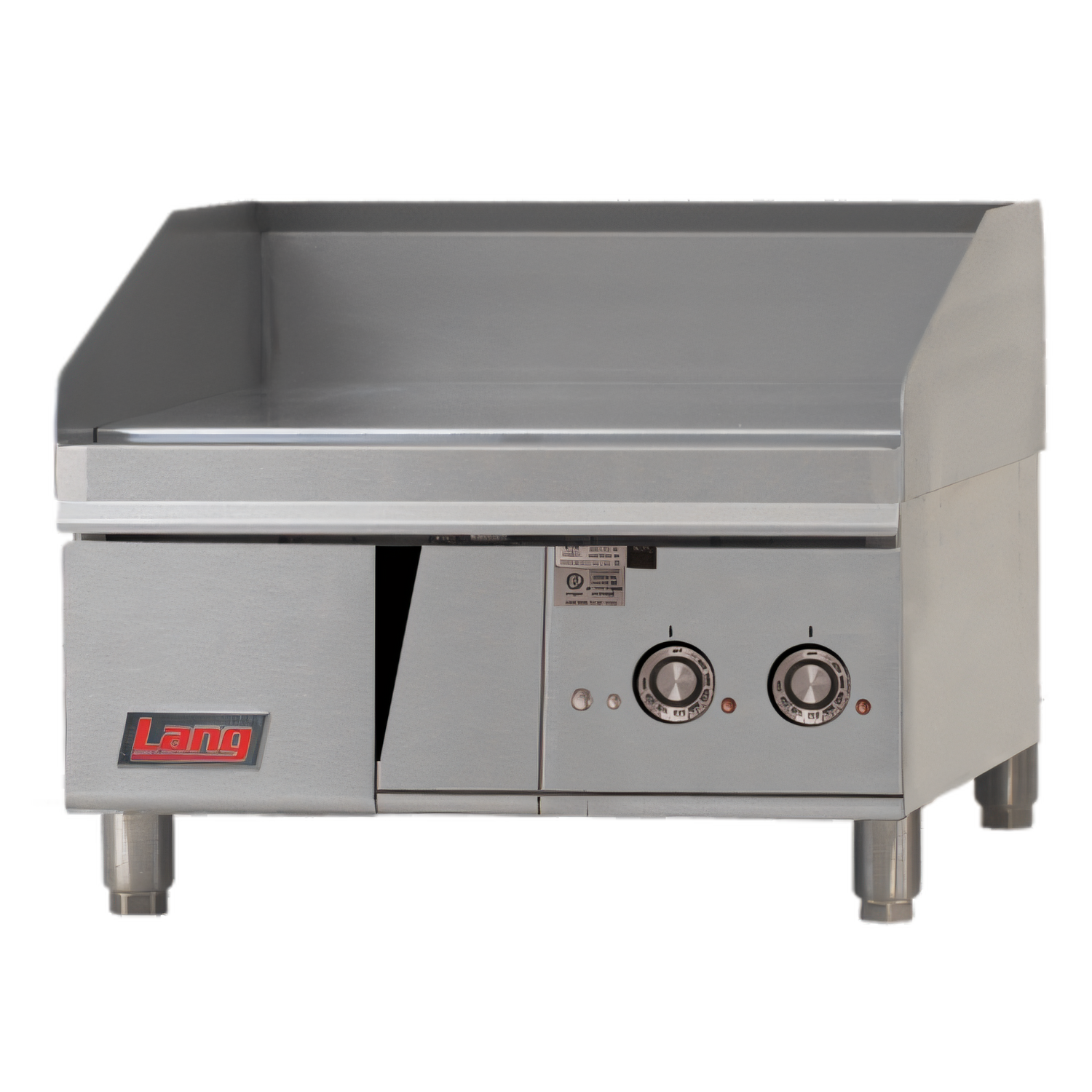

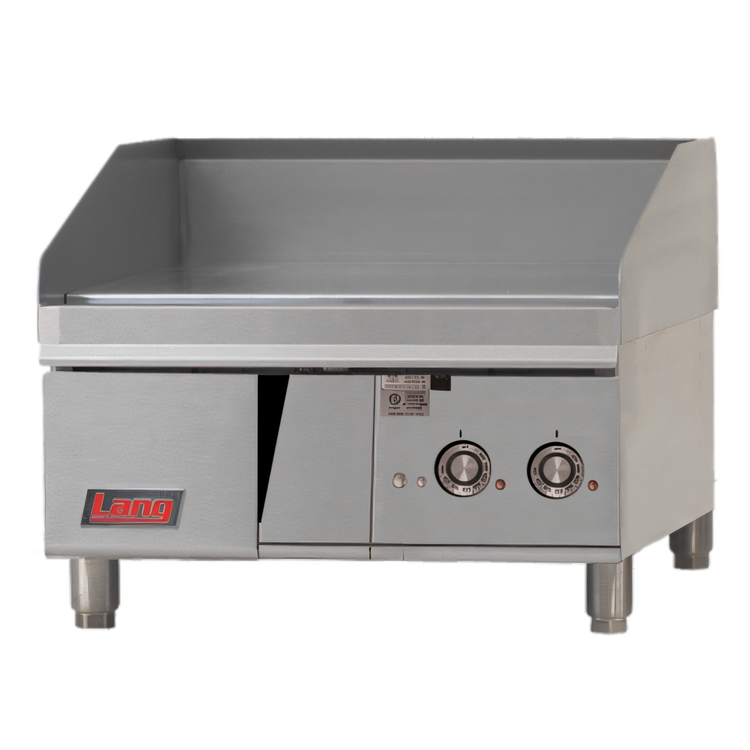

LG Series 24" Gas Countertop Chrome Griddle
Lang Manufacturing | Model 224SC | 54,000 BTUEngineered for high-volume breakfast bars, diners and institutional kitchens, the Lang LG Series delivers unrivaled temperature accuracy, lightning-fast recovery and a mirror-finish chrome surface that wipes clean in seconds. Put simply, it’s the last 24-inch griddle you’ll buy.
Why You’ll Love It

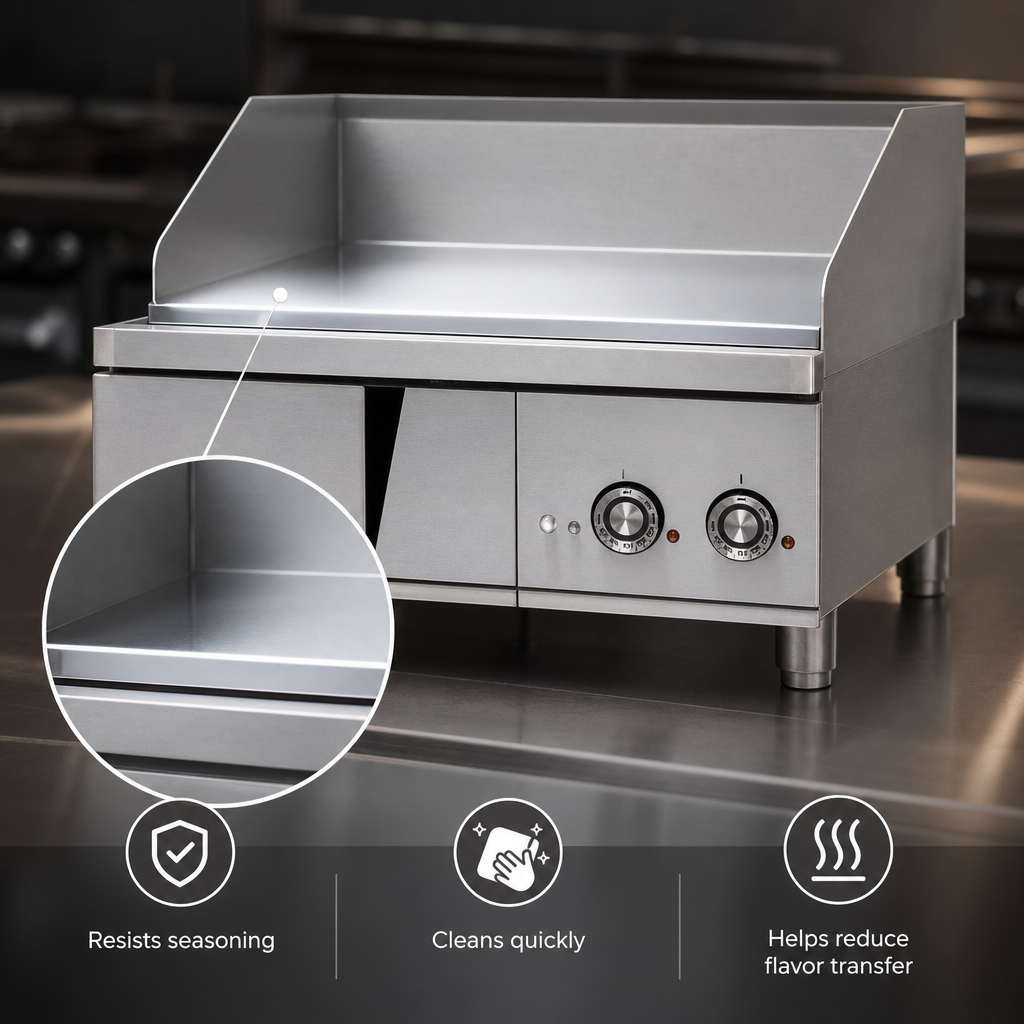

- 1" thick chrome plate – T1 armor-grade steel with a 2 mil chrome finish retains heat, slashes cleanup time and virtually eliminates flavor transfer.

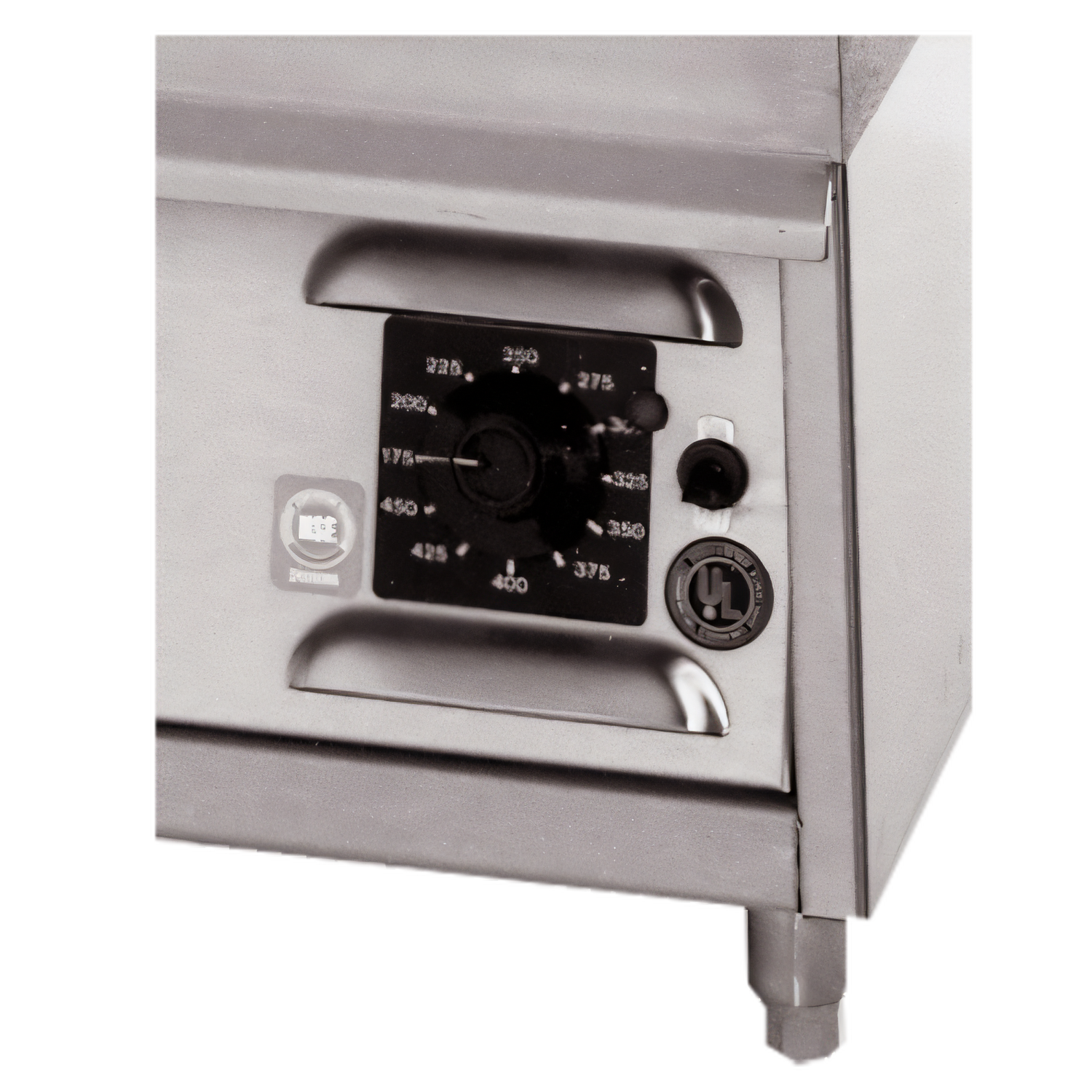

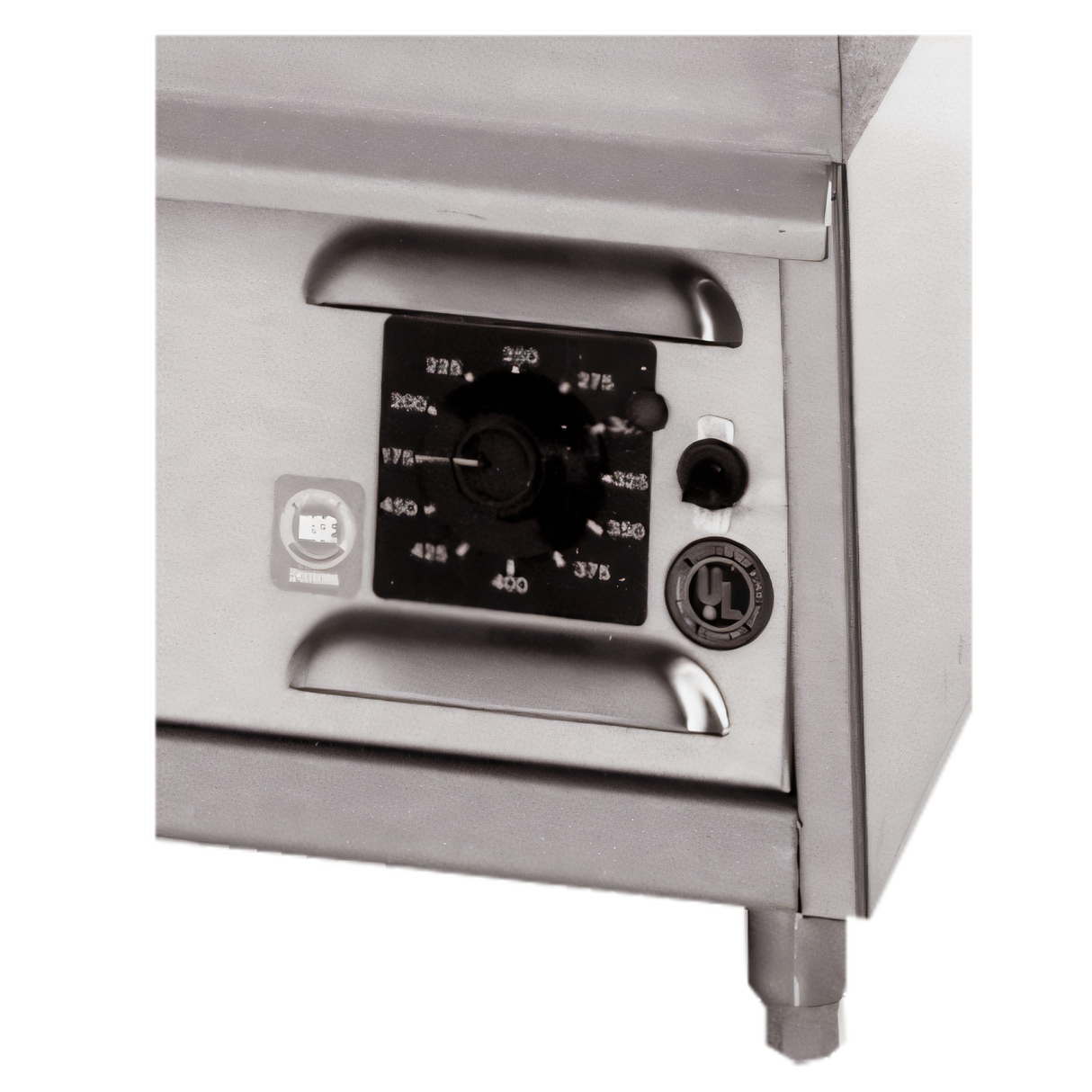

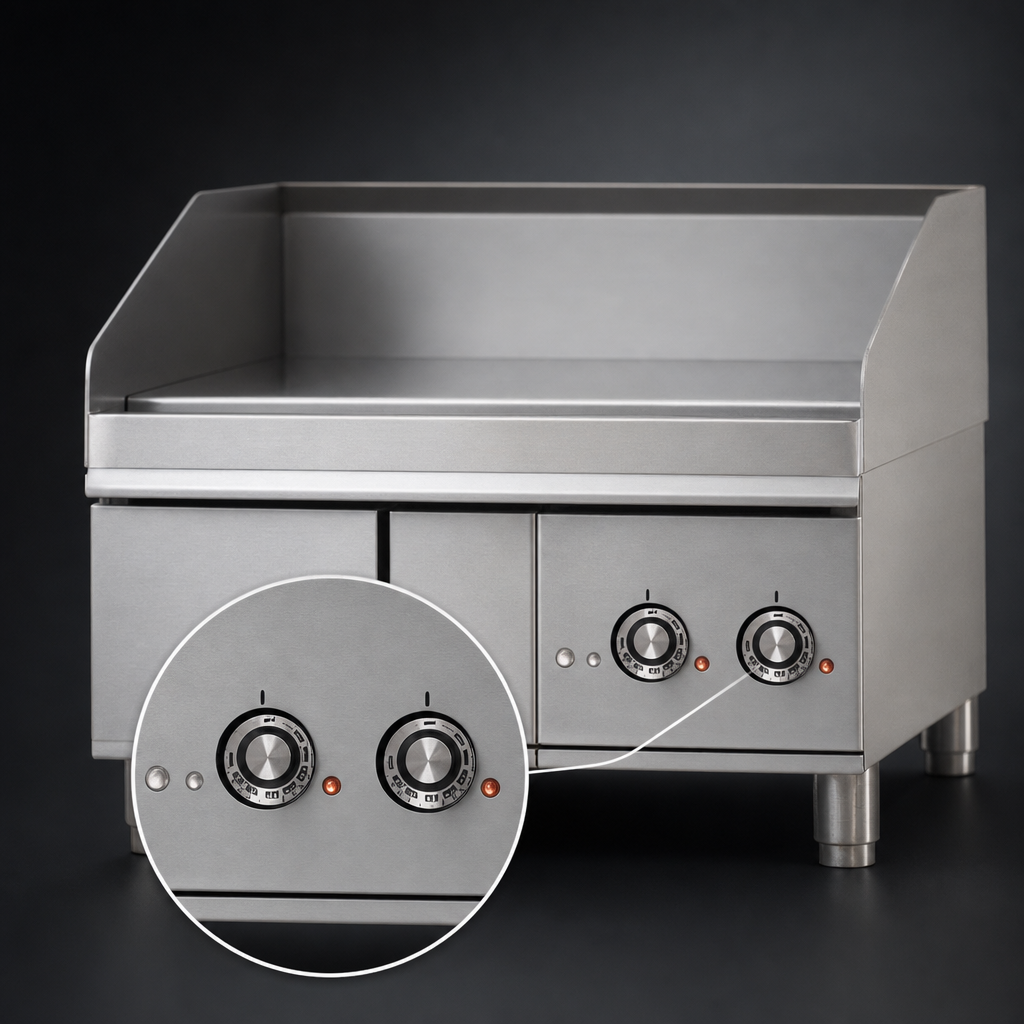

- Solid-state thermostats embedded 3/16" below the surface react instantly, holding set temps from 175-450 °F within ±4 °F.
- 54,000 BTU burner system (one 12" heat zone) with direct-spark ignition and pilot safety for dependable, energy-saving starts.
- 23" deep cook zone provides more usable space than standard 20-21" plates without enlarging your footprint.
- Grease management made easy – 3½" wide trough channels drippings into an 8 qt stainless drawer that pulls straight out for fast emptying.
- 5" wrap-around splash guard contains splatter on all three sides.
- Built for the long haul – welded steel frame, stainless front & sides, and 4" adjustable stainless legs (±1").
- Certified & warrantied – NSF & UL Gas-Fired listed, 2-year parts & labor warranty plus 5-year chrome surface warranty.
- Made in the USA at Lang’s Smithville, TN facility.
Technical Specifications
| Cooking surface | 24" W × 23" D (1 sq ft = 0.09 m²) |
|---|---|
| Plate material / thickness | Chrome-plated T1 steel, 1" (25 mm) |
| Temperature range | 175 °F – 450 °F (79 °C – 232 °C) |
| Controls | Solid-state, embedded sensor, ±4 °F accuracy |
| Heat zones | 1 (12" section) |
| Input | 54,000 BTU/hr natural gas (LP kit available) |
| Ignition / safety | Electronic direct spark with pilot safety |
| Electrical | 120 V / 60 Hz / 1-ph | 2 A | NEMA 5-15P |
| Grease drawer capacity | 8 qt (7.6 L) stainless steel |
| Splash guard | 5" rear & side, tapered |
| Overall dimensions (HxWxD) | 20.2" × 24.1" × 31.6" (513 × 612 × 803 mm) |
| Shipping / installed weight | 300 lb / 236 lb (136 kg / 107 kg) |
| Certifications | NSF, UL Gas-Fired |
| Warranty | 2 yrs parts & labor • 5 yrs chrome surface (no peel) |
Popular Accessories (sold separately)
- Clamshell grill – boost production up to 50 % with top-side cooking.
- Custom grooved plate for char-marking without a charbroiler.
- Stainless equipment stand with legs or casters.
