Lang Manufacturing (Middleby) 136TM Lang® Marine Electric Griddles
$9,538.00
Unit price
/
Unavailable
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Lang Manufacturing (Middleby) 136TM Lang® Marine Electric Griddles is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Lang Manufacturing (Middleby) 136TM Lang® Marine Electric Griddles
$9,538.00
Unit price
/
Unavailable
Description

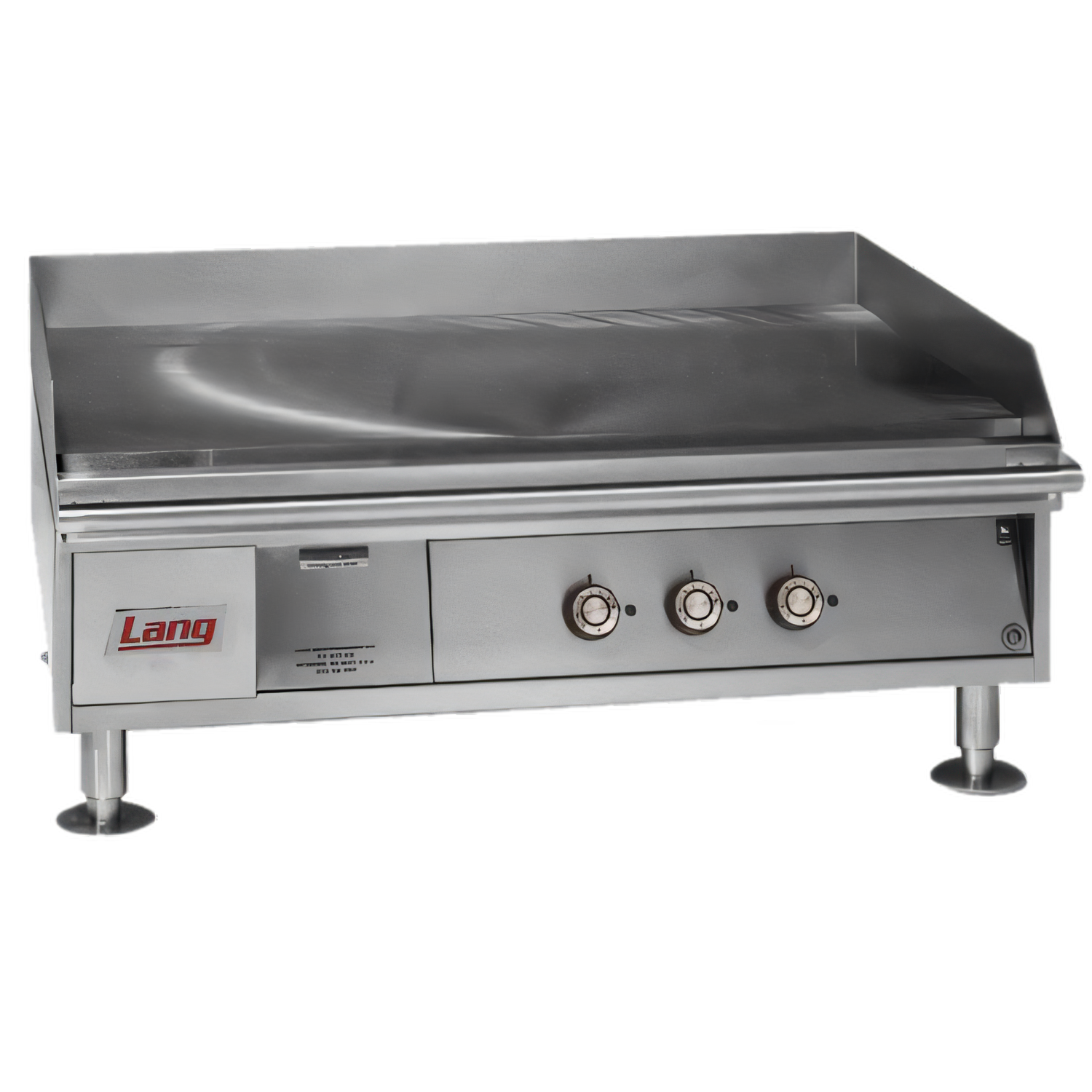

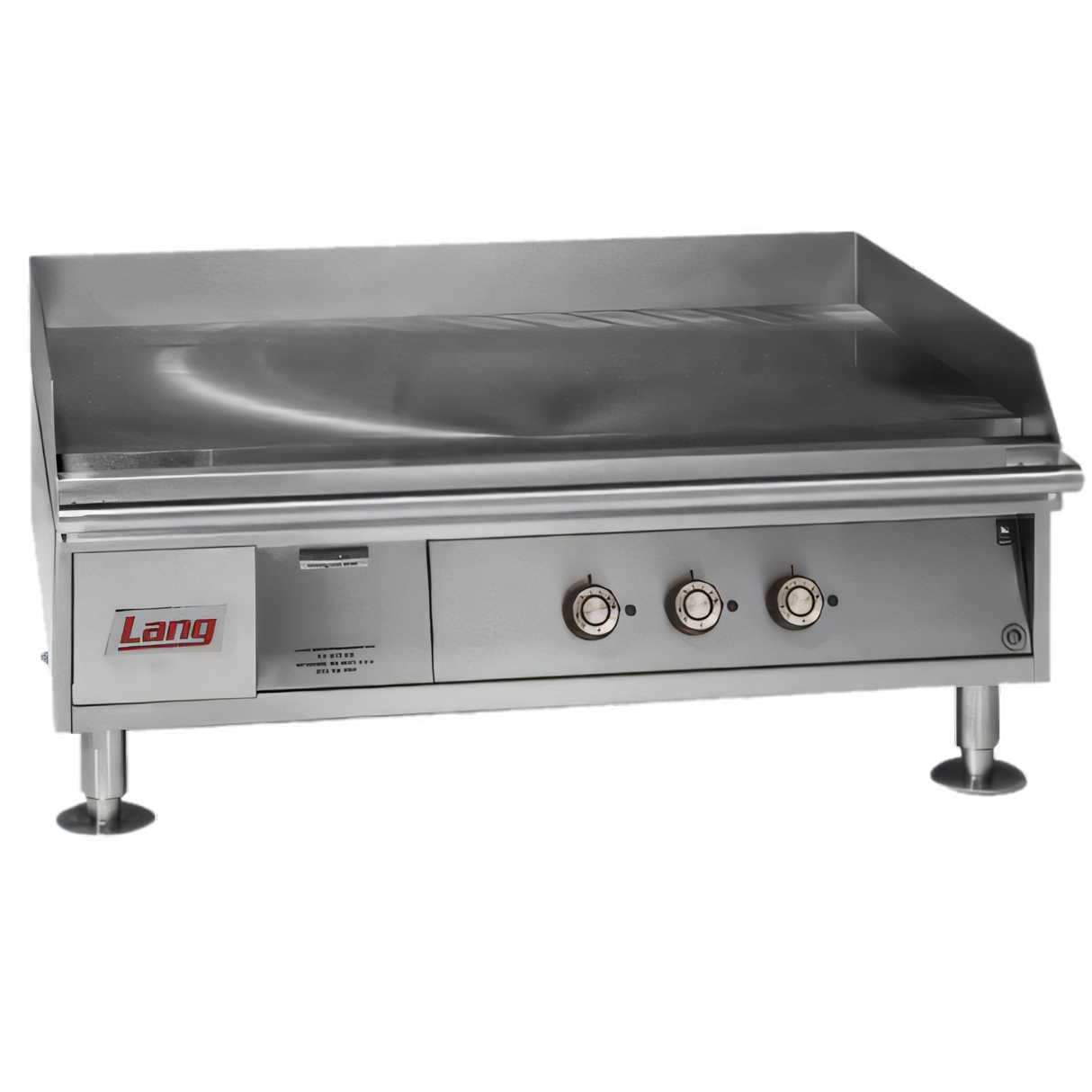

Lang® Marine 36" Heavy-Duty Electric Countertop Griddle
Model 136TM – Marine SeriesEngineered for demanding shipboard kitchens, the Lang Marine 136TM delivers unwavering, even heat on a thick, polished surface—so your crew gets hot meals fast, no matter the sea state.
Key Features
- 36" W × 23" D cooking surface (828 in²) machined to a mirror finish
- 1" thick polished carbon-steel plate for superior heat retention & recovery
- Three independent 6 kW heating zones (18 kW total) with Incoloy-sheathed elements
- ACCU-TEMP snap-action thermostats per 12" section; 200 °F–550 °F (93 °C–288 °C)
- 5" tapered wrap-around splash guard reduces mess in rough seas
- 8 qt front grease drawer with locking tab & full-width grab bar for safe handling
- All-welded steel frame & 304 stainless exterior resist corrosion
- Flanged 4" bolt-down legs meet USCG & NAVSEA mounting requirements
- Fully enclosed control compartment shields wiring from spray & salt
- ETL Marine listed, NSF certified, proudly Made in the USA
Performance Specifications
| Cooking surface | 36" W × 23" D (1" thick plate) |
|---|---|
| Heat zones | 3 (12" wide each, independently controlled) |
| Temperature range | 200 °F – 550 °F (93 °C – 288 °C) |
| Total power | 18 kW (6 kW per zone) |
| Voltage options | 208 V / 240 V 1- or 3-phase (field convertible), 440 V or 480 V 3-phase |
| Typical amp draw | 208 V/3 Φ 50 A | 240 V/3 Φ 43 A | 480 V/3 Φ 22 A |
| Overall dimensions | 36" W × 30.2" D × 19" H (914 × 767 × 483 mm) |
| Shipping / installed weight | 410 lb (186 kg) / 360 lb (164 kg) |
| Grease drawer capacity | 8 qt (7.6 L) |
| Clearances | 2" sides, 2" back (minimum) |
| Certifications | ETL Marine, NSF |
| Origin | Made in USA |
Ideal Applications
- Naval & commercial ship galleys
- Off-shore platforms & research vessels
- Coast Guard cutters & large yachts (65 ft+)
- Land-based kitchens requiring bolt-down security
Marine installation only: Approved for vessels over 65 ft per USCG 46 CFR 110-113. Must be hard-wired with stranded copper conductors by a qualified marine electrician.
Warranty
Covered by Lang’s Marine 2-year parts & labor warranty. Chrome-plate upgrades carry a 5-year anti-peel warranty.
Features & Specs
Features & Specs
Manufacturer
Lang Manufacturing (Middleby)
Brand_name
Lang® Marine
Certifications
NSF, ETL, Made in USA
Height
15.0in
Width
36.0in
Depth
28.2in
Shipping Weight
420.0lbs
Cooking Surface Width (side - side)
25" - 36"
Exterior Finish
all stainless steel exterior
Control Type
thermostatic
Griddle Plate Finish
smooth steel
Cooking Surface Depth (front - back)
17" - 23"
Specifications
Lang® Marine Heavy Duty Griddle, electric, countertop, 36" W x 23" D cooking surface, 1" thick polished griddle plate, 200°-550°F snap-action thermostat and 6000W elements every 12", 5" tapered wrap-around splash guard, 8 qt. grease drawer, full width grab bar, locking tab for grease door, welded steel frame with stainless steel exterior, flanged 4" bolt-down legs, ETL Marine, NSF, Made in USA
