Lang Manufacturing (Middleby)  |  LG Series  |  SKU: 136TC

Lang Manufacturing (Middleby) 136TC LG Series Electric Griddles

$15,630.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options

Documents

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

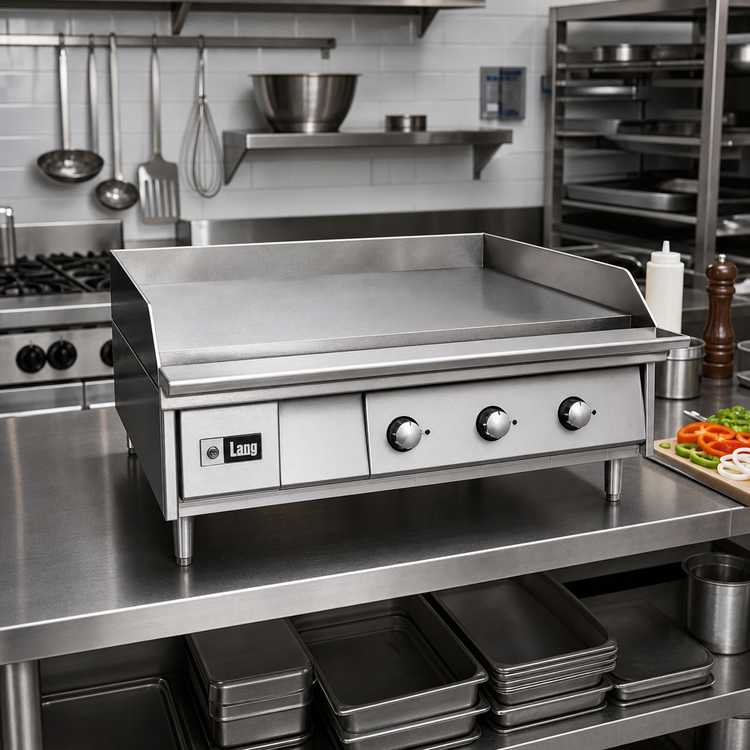

Lang LG Series 36" Electric Countertop Chrome Griddle

Model 136TC • Made in the USA

Built for high-volume kitchens that refuse to compromise on consistency, the Lang LG Series 36" electric griddle delivers rapid recovery, pinpoint temperature control and the unbeatable clean-up of a polished chrome cooking surface. Three powerful 6 kW elements (one every 12") team up with Accu-Temp™ snap-action thermostats to keep every zone exactly where you set it—even during the rush.

Key Features & Benefits

  • Full 1" thick T1 armor-grade polished chrome plate for exceptional heat retention and a 5-year no-peel surface warranty.
  • 6000 W Incoloy-sheathed elements under each 12" section (18 kW total) provide even, edge-to-edge heat.

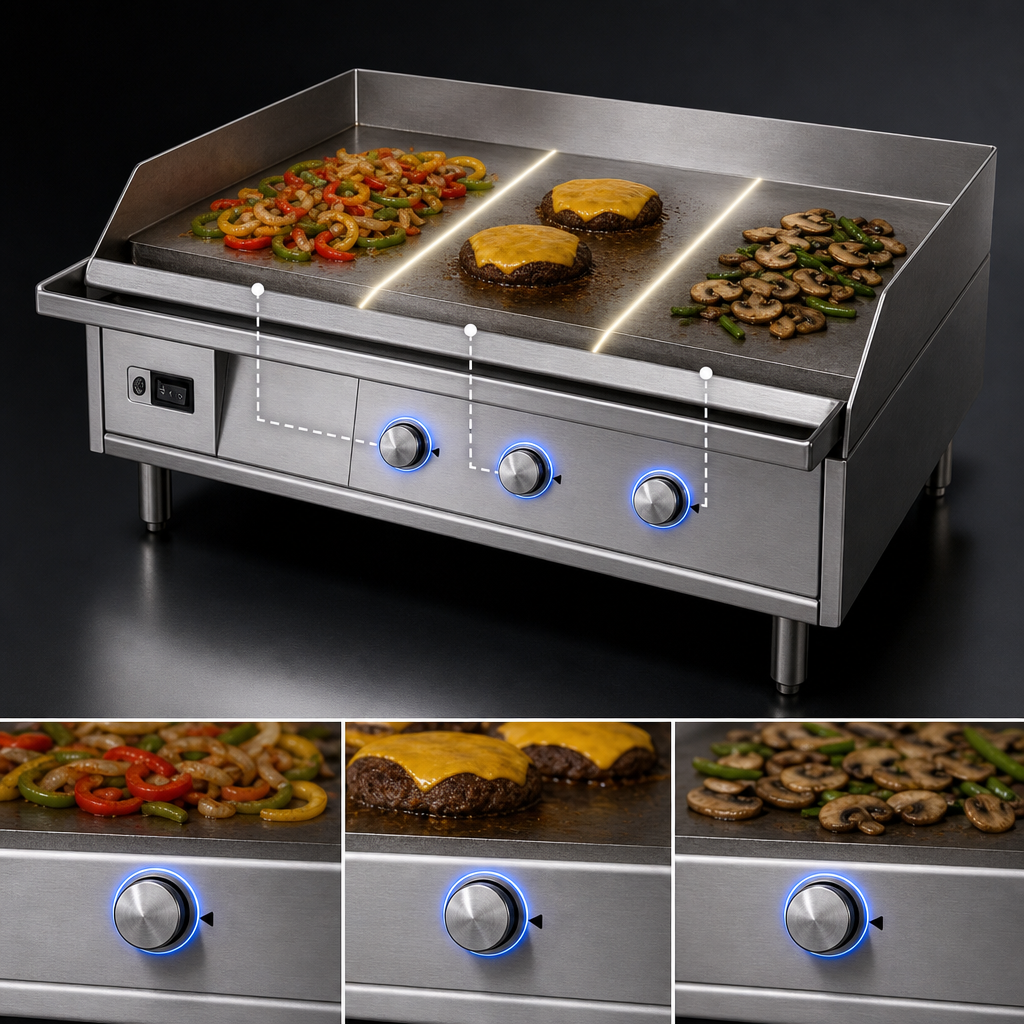

  • Accu-Temp™ snap-action thermostats — independent control of all three sections, 200°–550°F operating range, ±15°F accuracy.
  • 23" extra-deep cooking surface maximizes production without enlarging your footprint.
  • Welded steel chassis with stainless-steel exterior stands up to heavy commercial use.
  • 5" tapered wrap-around splash guard plus a 3.5" x 1" grease trough keep neighboring equipment clean.
  • Large 8 qt front-mount grease drawer slides out for fast, mess-free emptying.
  • 4" stainless-steel legs with 1-5/8" adjustment level the unit on any countertop.
  • NSF & cETLus listed for food-service safety and sanitation.

Why Choose a Chrome Plate?

  • No seasoning required — start cooking right out of the box.
  • Mirror-finish surface releases delicate foods with ease and wipes clean in seconds.
  • Lower radiant heat reduces HVAC load and keeps the cookline cooler.
  • Virtually eliminates flavor transfer between menu items.

Specifications

Cooking Surface 36" W x 23" D (914 x 584 mm)
Plate Material & Thickness 1" (25 mm) polished chrome-plated steel
Heat Zones 3 independent zones — 12" each
Temperature Range 200°F – 550°F (93°C – 288°C)
Total Power 18 kW (6 kW per zone)
Electrical Ships 208 V/3 ph hard-wire; field-convertible to 208 V or 240 V, 1- or 3-phase; 480 V 3-ph available
Overall Dimensions (WxDxH) 36.1" x 28.5" x 18.8" (916 x 724 x 478 mm)
Installed Weight ≈ 331 lb (150 kg)
Grease Drawer Capacity 8 qt (7.6 L)
Splash Guard 5" (127 mm) tapered, wrap-around
Certifications NSF • cETLus
Warranty 2 years parts & labor; 5 years against chrome plate peeling

Allow 2" (51 mm) clearance at the back and sides for ventilation. Unit ships ready for hard-wire connection; power cord not included.

Features & Specs

Manufacturer

Lang Manufacturing (Middleby)

Brand_name

LG Series

Certifications

NSF, cETLus, Made in USA

Height

15.0in

Width

36.0in

Depth

28.2in

Shipping Weight

410.0lbs

Exterior Finish

all stainless steel exterior

Griddle Plate Finish

chrome plated

Cooking Surface Width (side - side)

25" - 36"

Control Type

thermostatic

Cooking Surface Depth (front - back)

17" - 23"

Specifications

LG Heavy Duty Griddle, electric, countertop, 36" W x 23" D cooking surface, 1" thick polished chrome griddle plate, 200°-550° F snap-action thermostat and 6000W elements every 12", welded steel frame with stainless steel exterior, 5" tapered wrap-around splash guard, 8qt grease drawer, 4" stainless steel legs with 1-5/8" adjustment, NSF, cETLus, Made in USA
