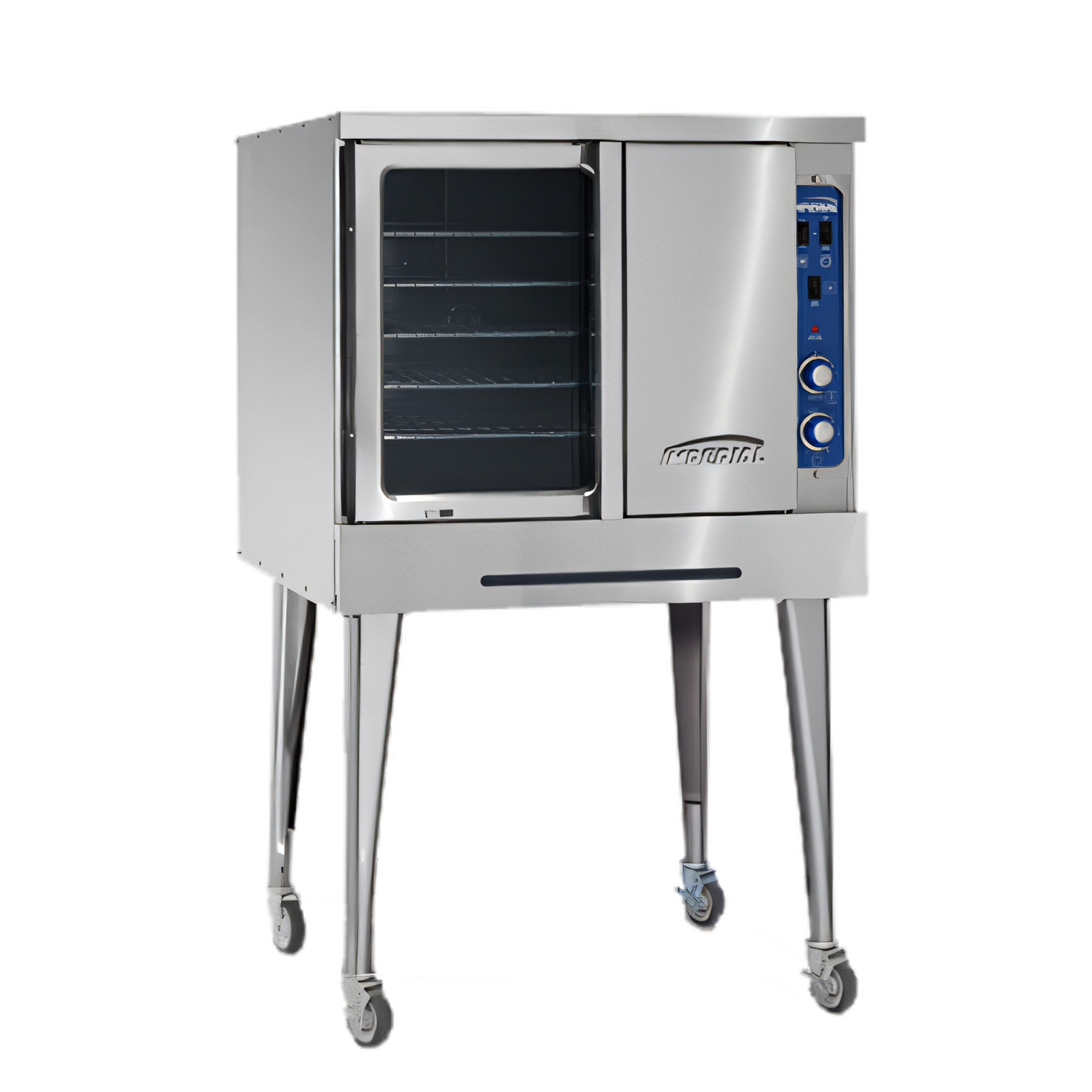

Imperial (Middleby) PCVE-1 Convection Ovens
Imperial (Middleby) PCVE-1 Convection Ovens is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Imperial (Middleby) PCVE-1 Convection Ovens
Description
Imperial PCVE-1 Electric Convection Oven

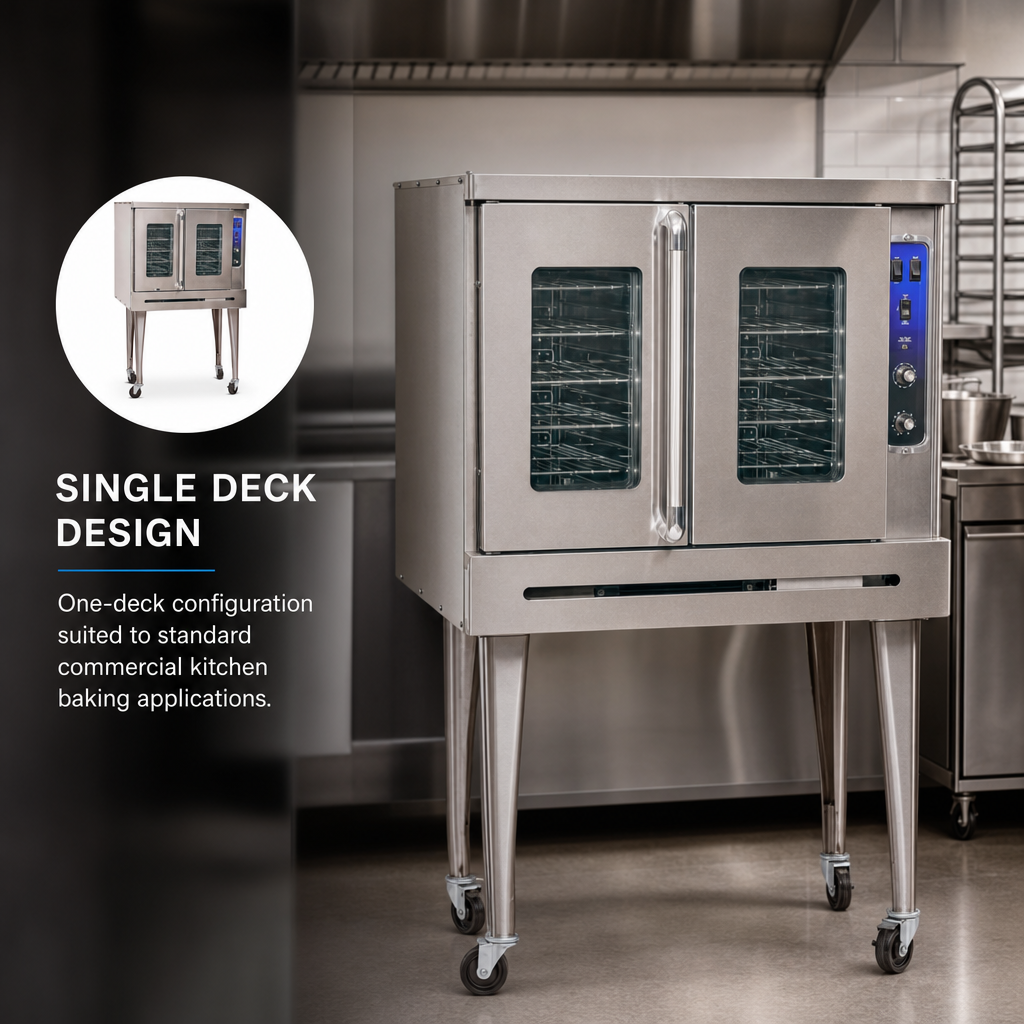

Middleby Essentials • Single-Deck, Standard DepthEngineered for demanding commercial kitchens, the PCVE-1 combines Imperial’s Turbo-Flow air system with heavy-duty stainless steel construction to deliver faster, more even baking and roasting—all in a space-saving, single-deck footprint.
Turbo-Flow Performance
- 2-speed ½ HP fan motor blankets every rack position with uniform heat.
- Recirculating hot-air design recovers temperature quickly and reduces energy use.
- Fan-only cool-down mode lets you turn loads faster between production cycles.
Operator-Focused Features

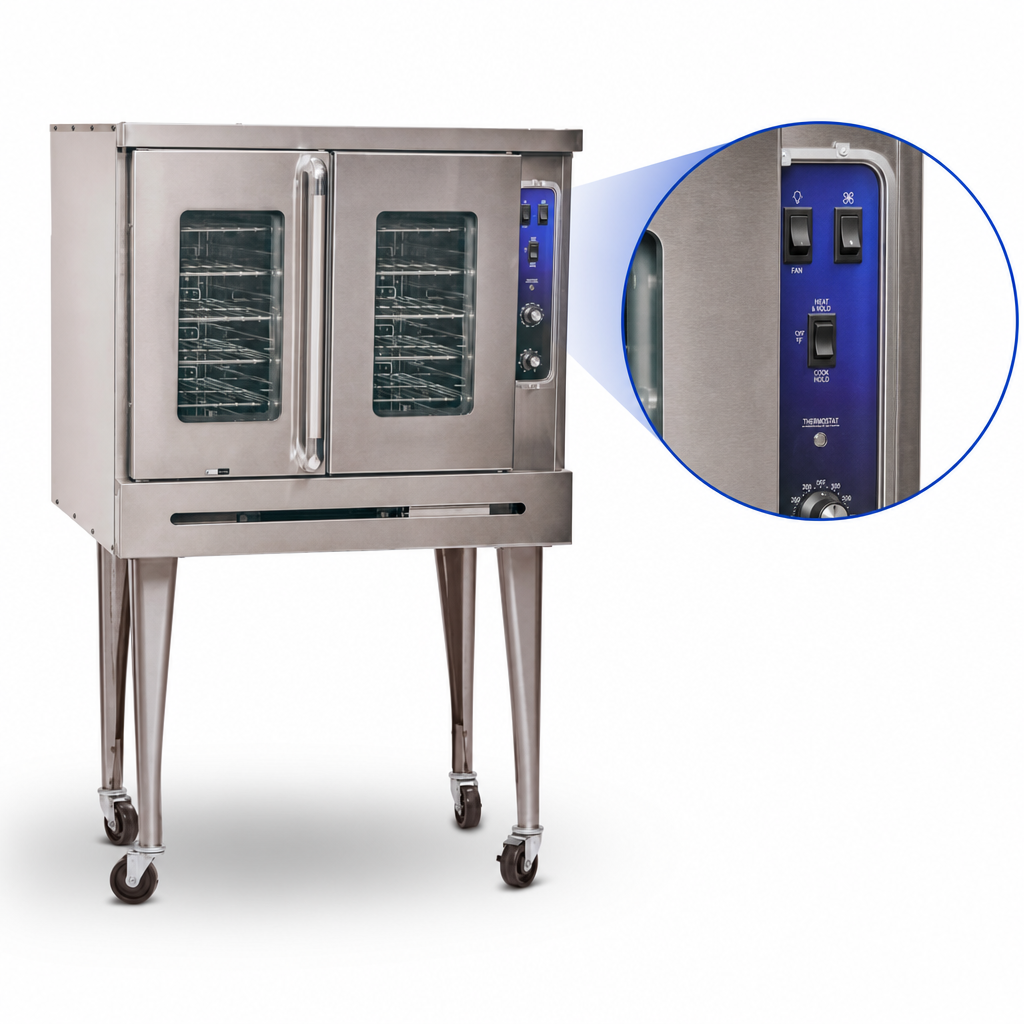

- Manual time & temperature controls (150 °F–500 °F) with 60-minute timer and audible buzzer.
- Dual 60/40 split doors open simultaneously with one hand and swing 130° for full cavity access.
- Porcelainized interior cleans fast and promotes superior browning.
- (10) rack guides with (5) chrome racks included—hold up to five full-size 18" × 26" sheet pans.
- (2) interior lights illuminate product without opening the door.
- All-stainless front, sides, doors, top and 25" legs stand up to years of heavy use.
Technical Specifications
| Model | PCVE-1 (Single Deck, Standard Depth) |
|---|---|
| Capacity | (5) full-size sheet pans • 10 rack positions |
| Heat Source | Electric, 11 kW tubular elements |
| Fan Motor | ½ HP • 2-speed (1 725 / 1 140 RPM) |
| Temp. Range | 150 °F – 500 °F (66 °C – 260 °C) |
| Exterior (W × D × H) | 38" × 40-7/8" × 64" (965 × 1 038 × 1 526 mm) |
| Electrical* |
208 V / 1 ph / 48 A 208 V / 3 ph / 28 A 240 V / 1 ph / 42 A 240 V / 3 ph / 24 A 480 V / 3 ph / 12 A (export) |
| Clearances | 0" sides & rear (non-combustible) • 6" combustible side walls |
| Ship Weight | Approx. 521 lb (236 kg) |
*Hard-wire connection required. Verify phase and voltage at time of order.
Certifications & Warranty
- cETLus • ETL-Sanitation • CE
- One-year limited parts & labor warranty
Financing Available
Spread the cost over affordable monthly payments with Middleby Equipment Financing. Click here to apply online in minutes.
Imperial continually improves products; specifications are subject to change without notice. Always consult the installation manual and local codes before installation.
