Imperial (Middleby) PCVDG-1 Convection Ovens
Imperial (Middleby) PCVDG-1 Convection Ovens is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Imperial (Middleby) PCVDG-1 Convection Ovens
Description

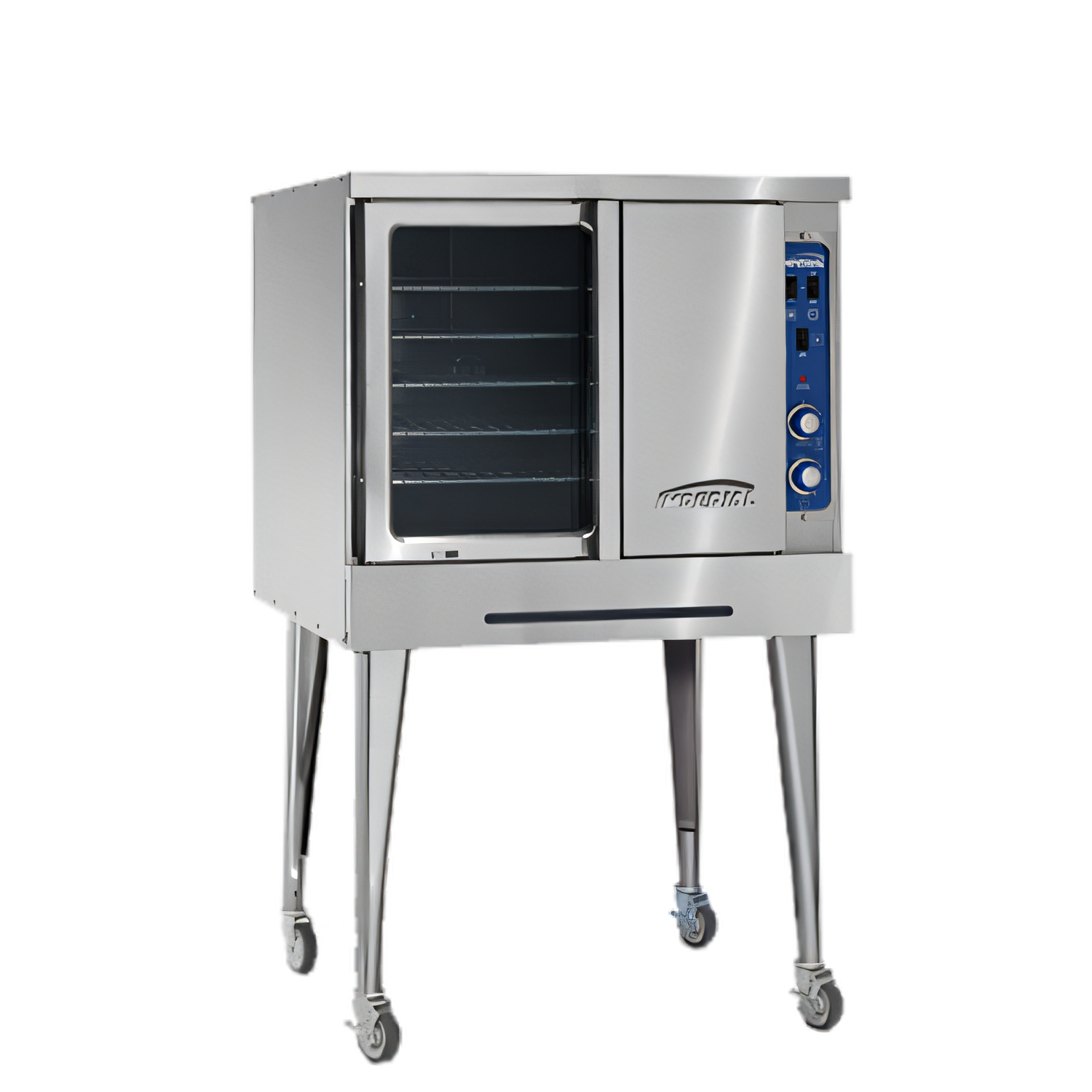

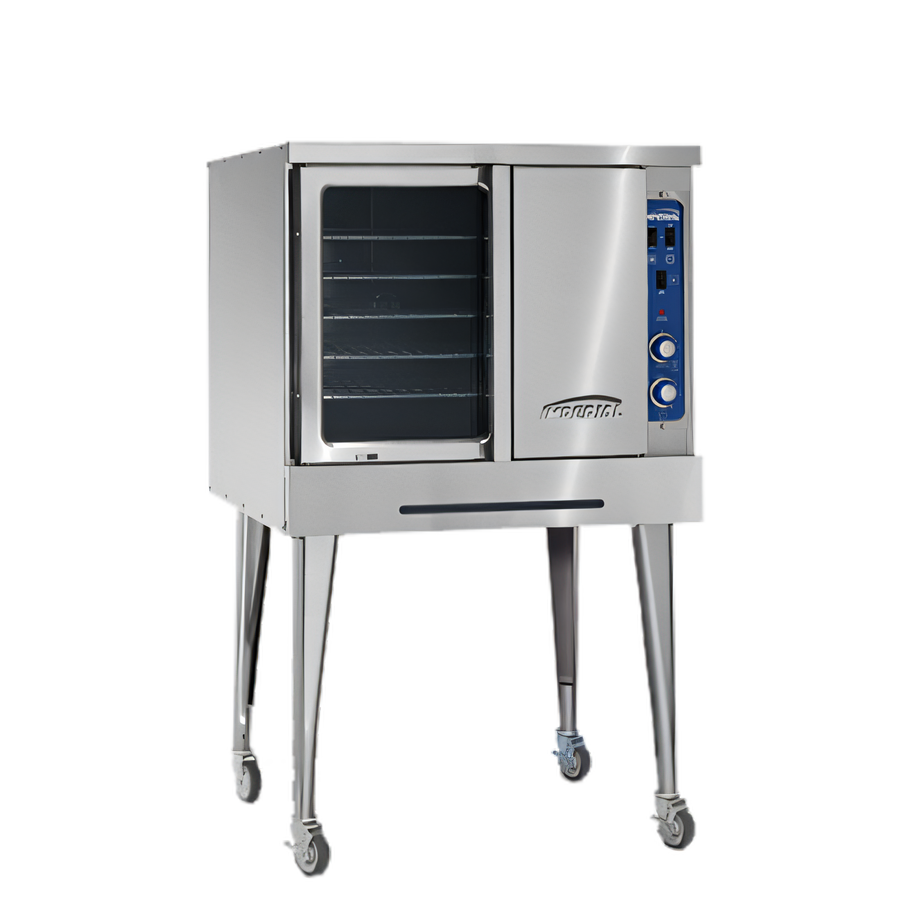

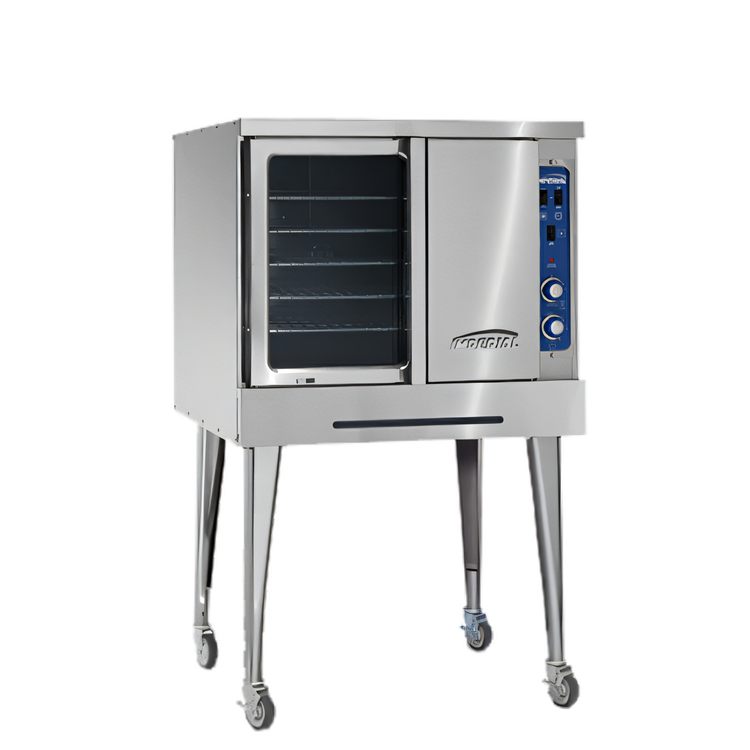

Imperial PCVDG-1 Quick-Ship Gas Convection Oven
Single-deck | Bakery depth | Manual controls | 80,000 BTUBuilt to keep pace with the busiest bakeries, cafés and restaurants, the Imperial PCVDG-1 delivers powerful, even baking in a spacious bakery-depth cavity—yet ships fast so you can get cooking sooner.
Key performance features
- 80,000 BTU gas heat combined with a rugged ½ HP, 2-speed fan motor for rapid heat recovery and consistent airflow.

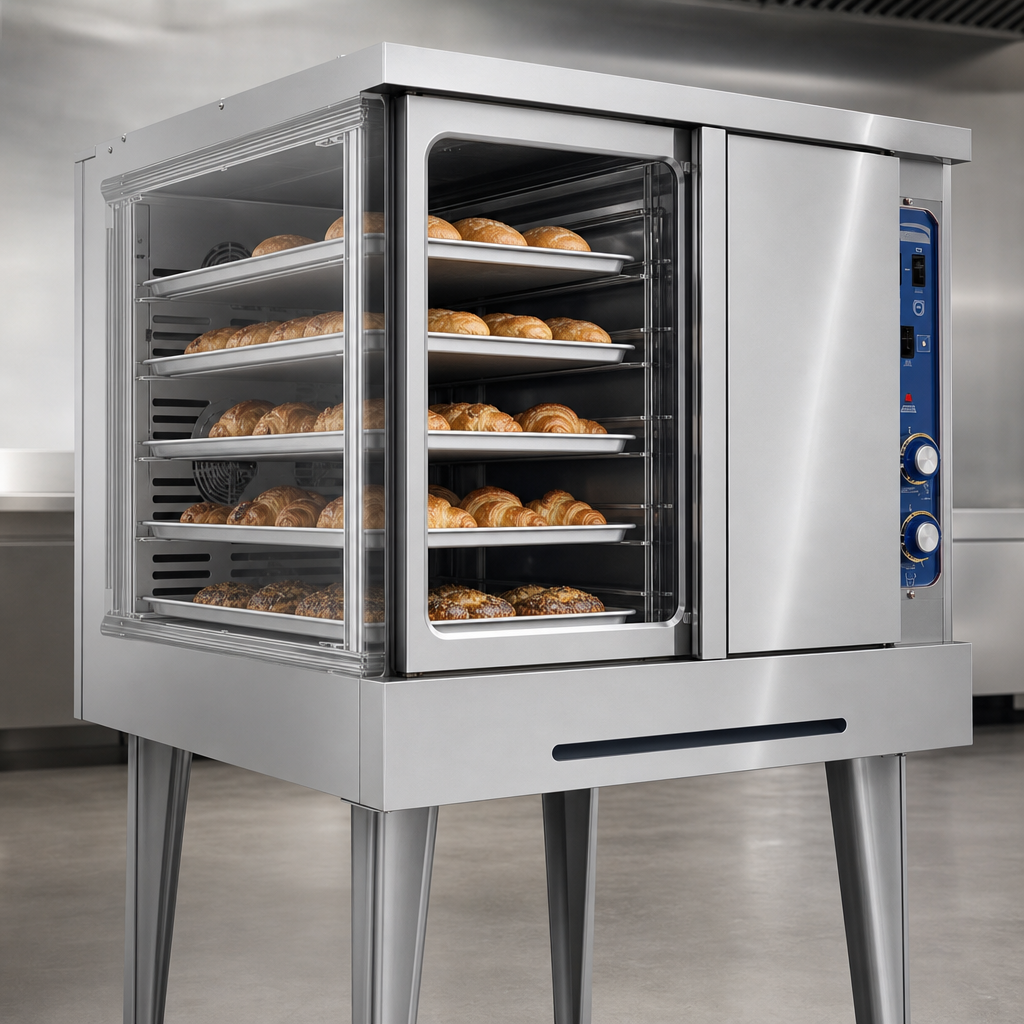

- Bakery-depth interior accepts full-size sheet pans front-to-back or side-to-side.
- Five heavy-duty racks with 10 position guides offer maximum loading flexibility.
- Dual 60/40 doors open with one hand; large window and twin halogen lights give a clear view of every batch.

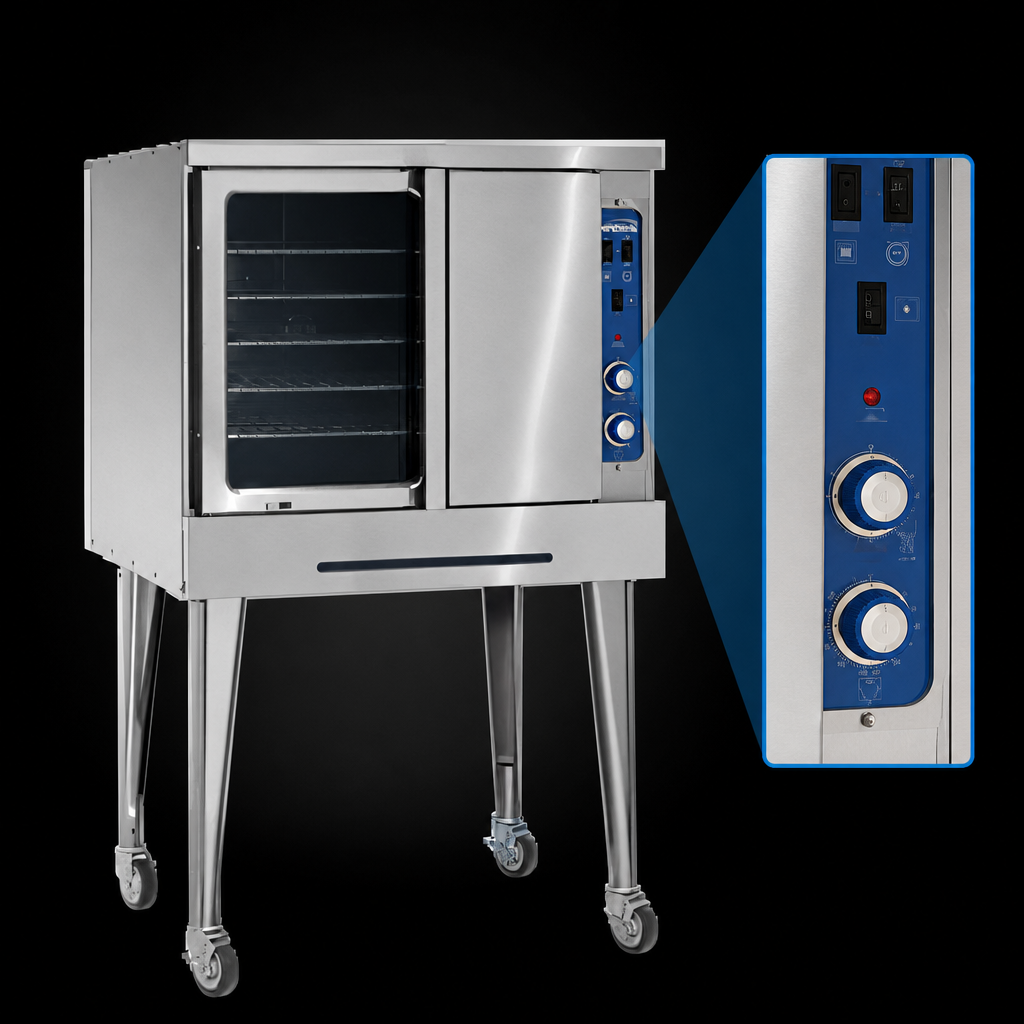

- Snap-action thermostat from 150 °F – 500 °F (66 °C – 260 °C) plus independent 60-minute timer.
- Stainless steel front, sides, doors, top & 6" adjustable legs stand up to daily commercial use.
- Porcelain-coated interior with coved corners wipes clean quickly.
- cETLus, NSF, CE, CSA Flame & CSA Star certified for broad code compliance.
At-a-glance specifications
| Manufacturer / Model | Imperial, PCVDG-1 |
|---|---|
| Configuration | Single deck, bakery depth (quick-ship) |
| Heat source | Natural or LP gas, 80,000 BTU total |
| Controls | Manual thermostat, 2-speed fan switch, 60-min timer, ON/OFF rocker |
| Fan motor | ½ HP, 2 speeds (bake / roast) |
| Interior dimensions | Bakery depth – fits full-size sheet pans |
| Racks supplied | 5 nickel-plated racks, 10 positions |
| Electrical | 120 V, 50/60 Hz, 1-ph, 9 A (cord & plug furnished) |
| Gas connection | ¾" NPT; 5.0" WC Natural, 10.0" WC LP |
| External dimensions (W × D × H) | 38" × 45-1/2" × 64" (965 × 1156 × 1626 mm) |
| Ship weight | 611 lb (277 kg) |
| Certifications | cETLus, NSF, CE, CSA Flame, CSA Star |
| Warranty | 1 year parts & labor |
Popular accessories (sold separately)
- 6" stainless steel stacking kit (for future double-deck expansion)
- Heavy-duty swivel casters, set of 4
- Cook-and-Hold programmable control upgrade
- Direct-connect flue vent kit
- Stainless steel solid doors
Need equipment fast? This Quick-Ship model typically leaves the factory in 48 hours or less.
Specifications subject to change without notice. Always consult the installation manual and your local code
authority before installation.
