Imperial (Middleby) PCVDE-2 Convection Ovens
Description

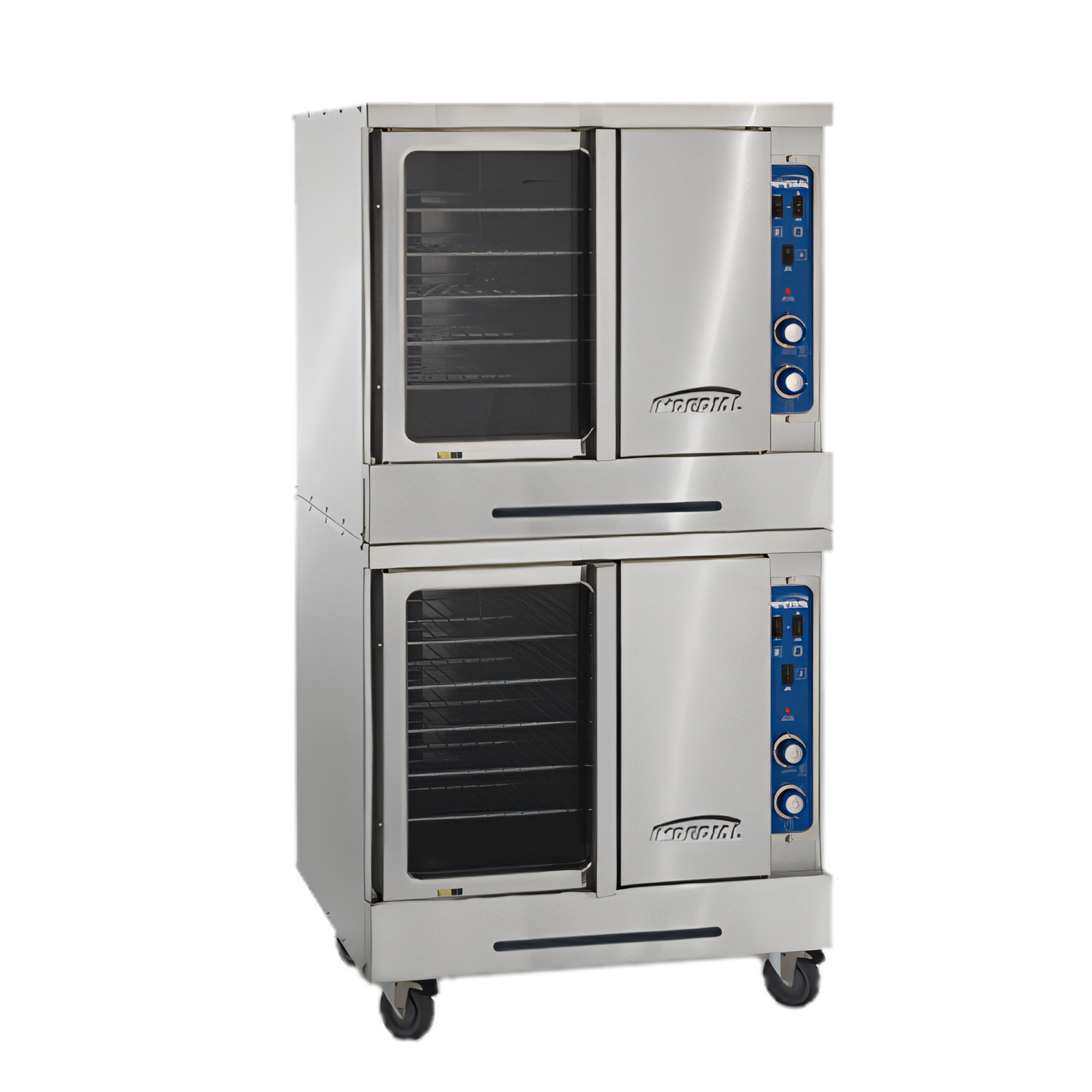

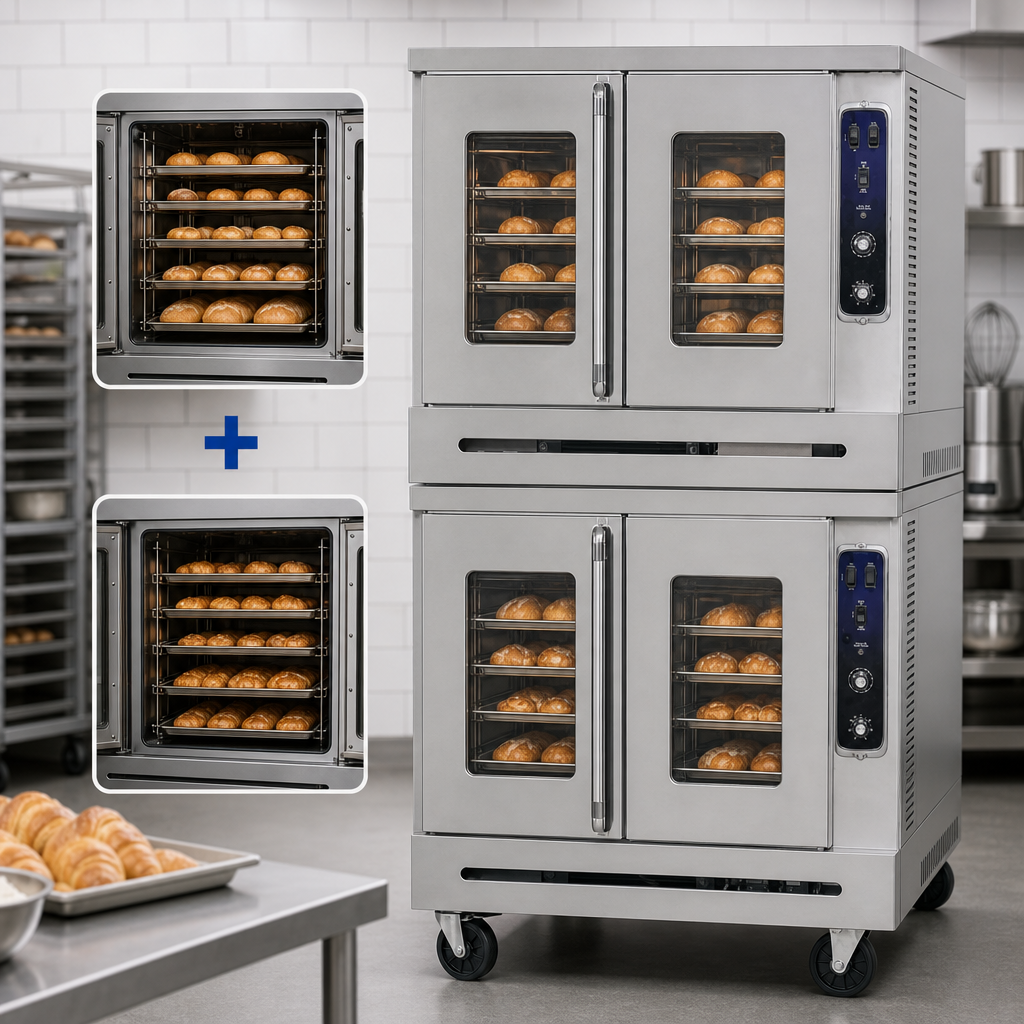

Imperial PCVDE-2 Double Deck Electric Convection Oven – QUICK SHIP
Bakery-Depth | Manual Controls | Turbo-Flow Air SystemBuilt for the fast-paced demands of bakeries, restaurants, and high-volume kitchens, the Imperial PCVDE-2 delivers consistent, even results in a rugged, all-stainless package. Two independent 11 kW ovens give you the production of a full baking line while its Turbo-Flow circulation system locks in moisture, enhances browning, and speeds recovery between batches. Order today and take advantage of our Quick-Ship inventory!
Key Features
- Turbo-Flow System recirculates hot air for uniform baking, reduced shrinkage, and energy savings.

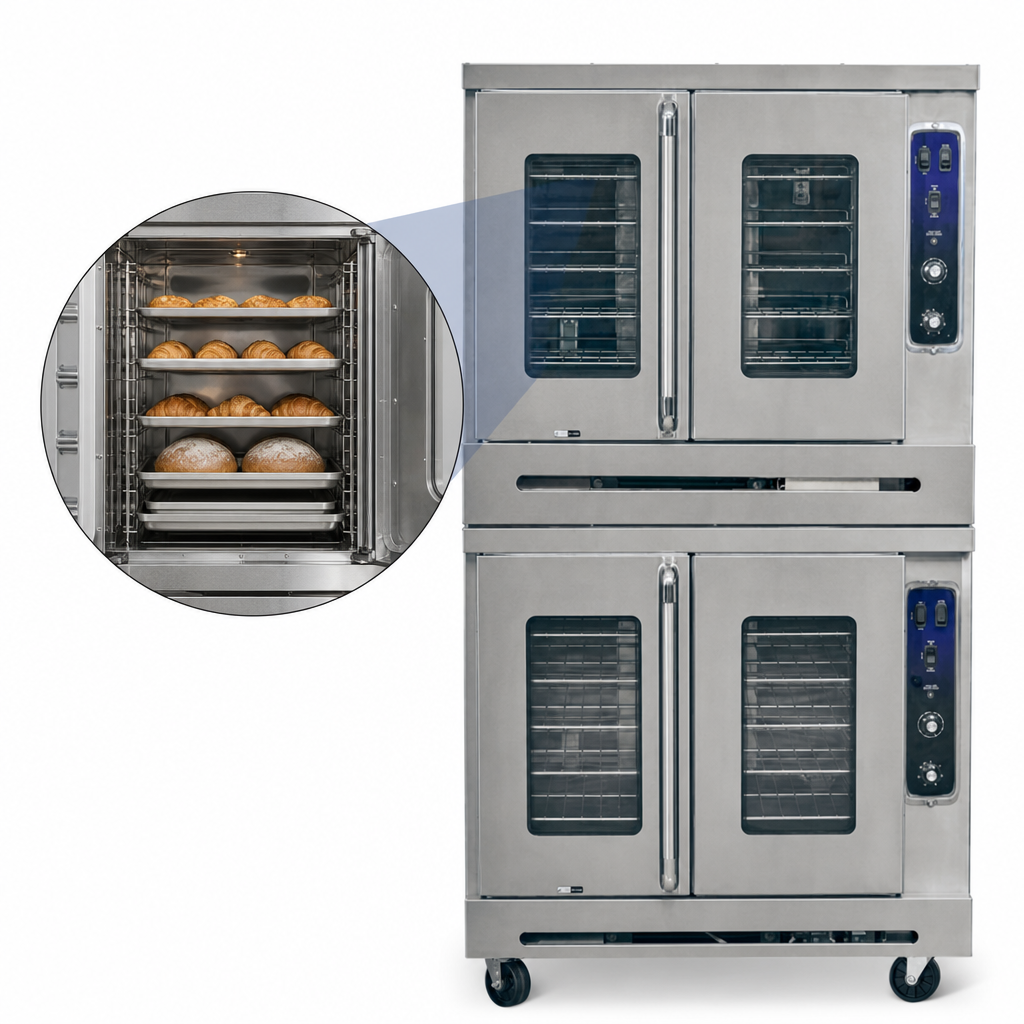

- True bakery depth (45.5") accepts full-size sheet pans front-to-back.
- 2-speed ½ HP fan motor with cool-down mode—high for quick cooking, low for delicate items.
- Manual controls: 150-500 °F thermostat, independent time & temperature, 60-minute timer and audible buzzer.
- Split 60/40 windowed doors open together with one hand and swing 130° for easy loading.
- Porcelainized interior with 10 rack positions; comes standard with 5 chrome racks per deck.
- Two interior lights in each cavity illuminate product without opening the door.
- All-stainless front, sides, doors, top & 6" adjustable legs (heavy-duty casters optional).
- cETLus, ETL-Sanitation & CE listed; proudly Made in the USA.
Technical Specifications
| Model | PCVDE-2 |
|---|---|
| Oven Type | Double deck, bakery depth electric convection |
| Exterior Dimensions | 38" W × 45.5" D × 74" H (965 × 1140 × 1880 mm) |
| Capacity | Full-size sheets: 5 per deck (10 total) – 10 rack positions per cavity |
| Heat Output | 11 kW per deck / 22 kW total |
| Temperature Range | 150 °F – 500 °F (66 °C – 260 °C) |
| Fan Motor | ½ HP, 2-speed, 1725/1140 RPM |
| Electrical (per deck) | 208 V 1-ph 53 A | 208 V 3-ph 31 A | 240 V 1-ph 46 A | 240 V 3-ph 27 A | 480 V 3-ph 14 A* |
| Shipping Weight | 1,185 lb (536 kg) |
| Clearances | 0" sides & rear (non-combustible); 6" sides (combustible); 0" rear (combustible) |
| Certifications | cETLus, ETL-Sanitation, CE |
| Warranty | 1-year parts & labor |
*480 V available for export only.
Popular Options (sold separately)
- Heavy-duty swivel casters, set of 4
- Cook-and-Hold programmable controls
- Stainless steel back enclosure or solid doors
- Direct-connect vent
- Extra oven racks
Specifications are subject to change without notice. Quick-Ship availability is based on current inventory and may vary.
